SV431DD2DUA
4 Port Dual DVI USB KVM Switch with Audio USB 2 0 Hub
Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port Dual DVI USB KVM Switch with Audio USB 2 0 Hub Product Number SV431DD2DUA UPC 065030835695 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port Dual DVI USB KVM Switch Product Title (Medium) x Product Title (Standard) 4 Port Dual DVI USB KVM Switch w/ Audio & USB Hub, TAA Product Title (Long) 4 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub - TAA Product Title (AMZ) 4-Port Dual KVM Switch with Audio for DVI Computers - Built-in USB Hub , TAA (SV431DD2DUA) Title Ingram (Part 1) 4 Port Dual DVI USB KVM Switch w Title Ingram (Part 2) ith Audio & USB 2.0 Hub Website Product Headline Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers Bullet 1 Front panel push-buttons and Hot-key functions for easy switching Bullet 2 Supports resolutions up to 2048x1536 (Analog) and 1920x1200 (digital) Bullet 3 USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.) Bullet 4 Audible tone confirms port switching Bullet 5 Combined or independent switching of audio ports Bullets (Consolidated) Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers - Compatible with the Thinkpad Pro Dock - Dual Monitor KVM Switch/Dual Display KVM/Dual DVI KVM/Multi-Monitor KVM - Supports resolutions up to 2048x1536 (analog)/1920x1200 (digital) - USB 2.0 hub and Mic/Audio ports - Control 4 dual display computers with a single set of peripherals - Quad system control for a single user workstation with dual monitors, increasing productivity in the office or at home Marketing Copy Applications - Four system control for single user workstations with dual head video cards, increasing user productivity in the office
- Control up to four dual display multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications, and multiple screens
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals
Website Search Keyword - 4 port kvm
- Dual Display kvm
- DVI kvm
- KVM with audio
- USB 2.0 kvm
- USB KVM
- two monitor kvm
- Dual Monitor kvm
- DVI-I kvm
- dual view
- multi-monitor
- multi monitor
- multi-display
- multi display
- B004-2DUA4-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - IM12D1500P
- DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA12M2NEUA
- SVA12M5NA
- SV431RACK
Related Products - SV431DDVDUA
- SV431DDUSB
- SV231DDVDUA
- SV431DVIUDDM
- SV231DVIUA
- SV231DVIUAHR
- SV231DVIUDDM
- SV211KDVI
- SV231UADVI
- SV231DD2DUA
- SV231TDVIUA
- SV231QDVIUA
- SV431DVIUAHR
- SV431DVIUAQV
- SV431DVIUA
- SV431TDVIUA
- SV831DVIU
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 90% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 220 Product Width (mm) 135 Product Depth (mm) 130 Product Height (mm) 60 Product Weight (g) 1270 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Single Link Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 @85Hz Maximum Digital Resolutions 1920x1200 @60Hz Maximum Number of Users 1 MTBF (hours) 140000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 1 - Green - Power
- 4 - Green - Host Online, Red - Host Selected

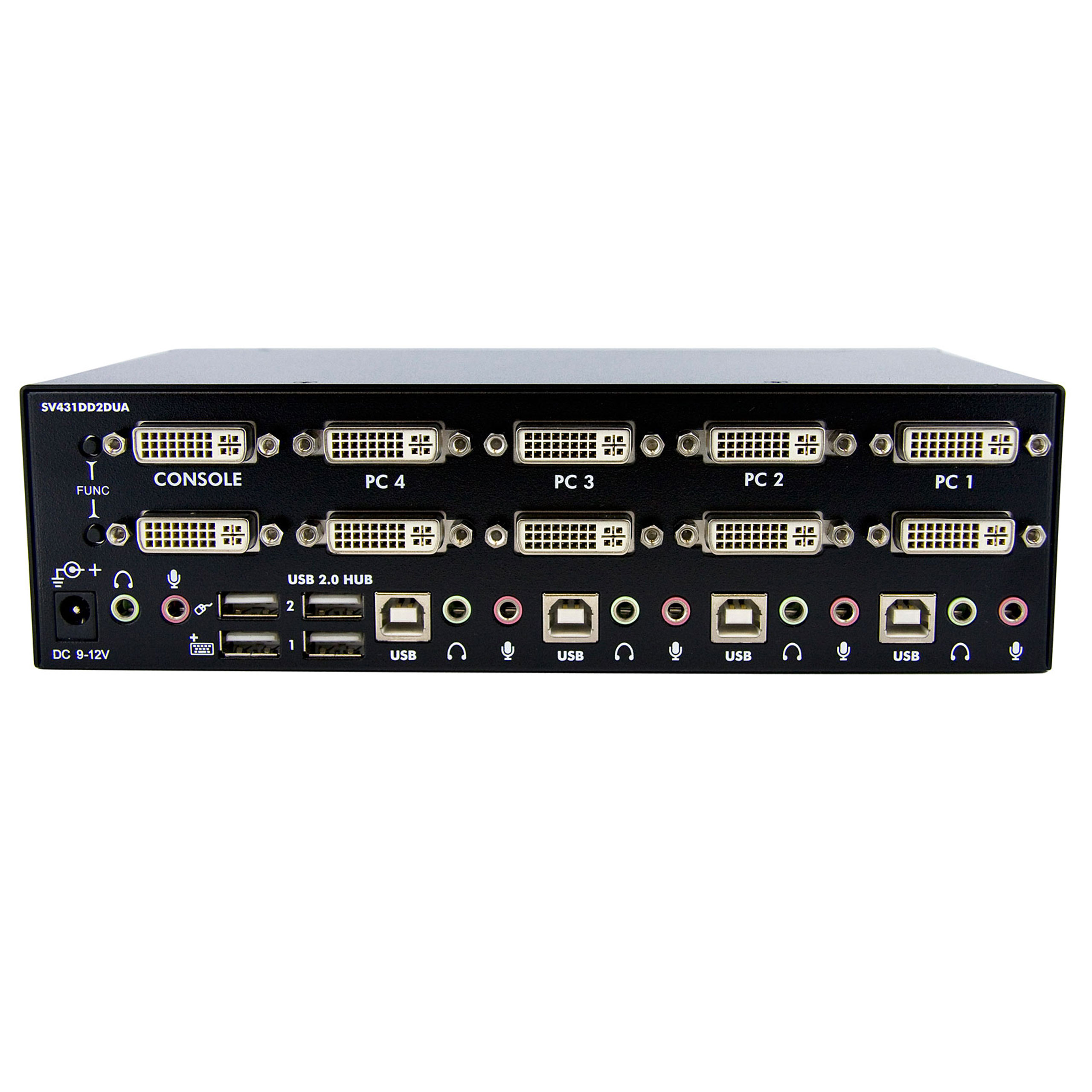

Number of KVM Ports 4 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 318 Carton Height (mm) 298 Carton Quantity 6 Carton Weight Gross (g) 11546 Included in Package - 1 - 4-port dual DVI USB KVM

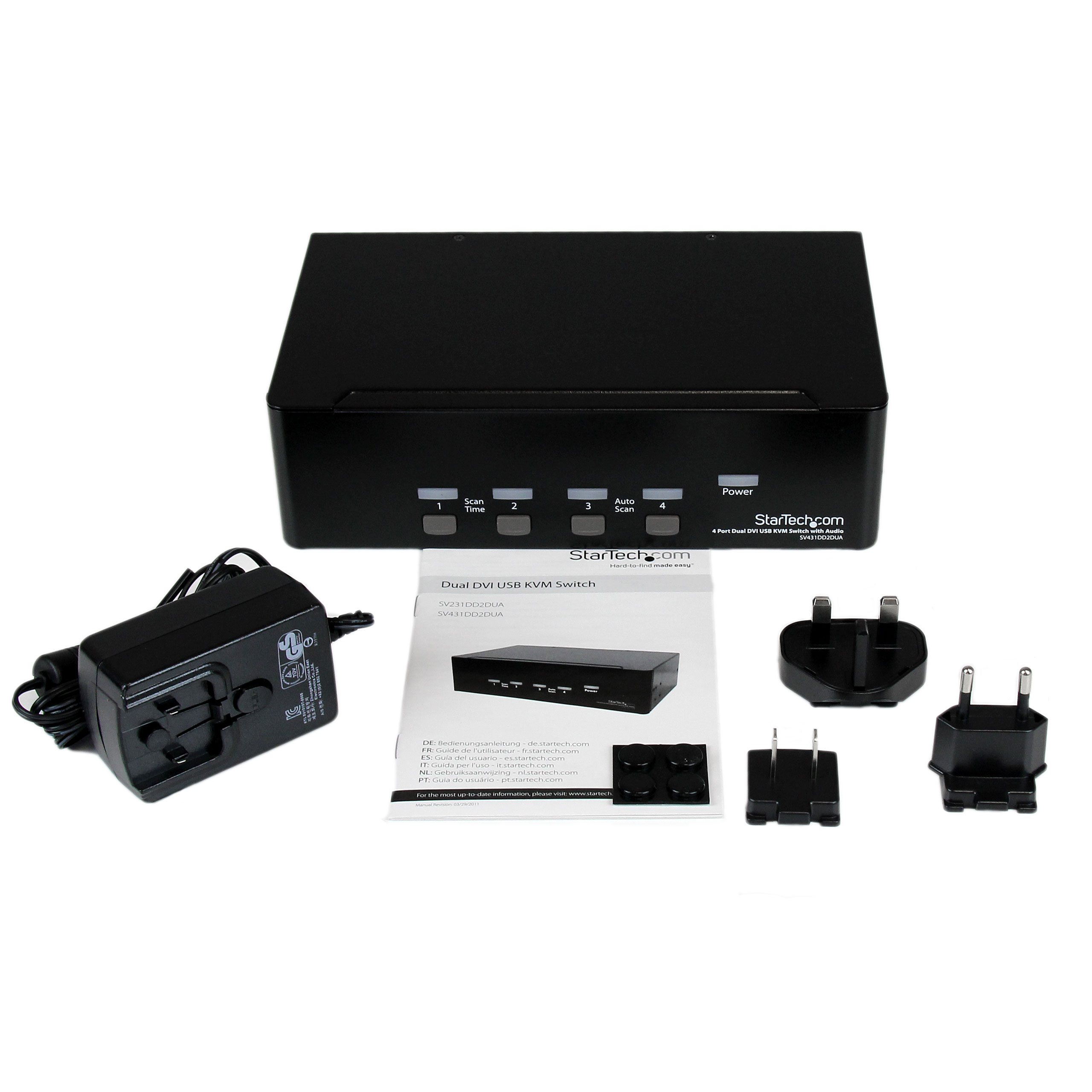

- 1 - instruction manual
- 1 - universal power adapter (NA/EU/UK/AU)
- 4 - foot pads
Package Depth (mm) 247 Package Height (mm) 86 Package Width (mm) 295 Package Quantity 1 Package Weight (g) 1786 Packaging Description 4 Port Dual DVI USB KVM Switch with Audio Packaging Description India 4 Port Dual DVI USB KVM Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 2 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 8 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 8 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
