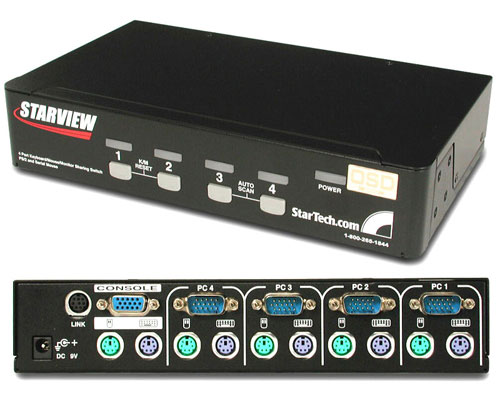

4 Port StarView KVM Switch with OSD

Main Image

Product Name	4 Port StarView KVM Switch with OSD
Product Number	SV431DEU
UPC	065030811798
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--0hKCPdRM--/5dd3ec00df704ec595e38019d372d97bb8ee0264.pdf

Product Title (Long)	4 Port StarView KVM Switch with OSD
Bullet 1	"Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control.
Bullet 2	A dependable 3-year warranty provides peace of mind.
Bullet 3	Can be cascaded to control up to 16 PCs (more if cascaded from larger switch models)
Bullet 4	Compatible with all notebook computers.
Bullet 5	Compatible with Compaq Alpha systems.
Marketing Copy
Applications	Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

Accessory Products	GC56MF PS23N1THIN10 PS23N1THIN15 PS23N1THIN2 PS23N1THIN25 PS23N1THIN4 PS23N1THIN6 SV110 SV125 SV431RACK SV560UTP SVPOWER SVPS23N1_10 SVPS23N1_15 SVPS23N1_25 SVPS23N1_35 SVPS23N1_50 SVPS23N1_6 SVSERIALAD USB2PS2
Related Products	SV431 SV431H SV431USB SV831 SV831D

General Specifications	Certifications: FCC Part 15 Class A, CE Mark, VCCI Dimensions: W8.63 x D5.13 x H1.75" (219 x 129 x 44 mm) Enclosure: Metal Maximum resolution: 1920 x 1440 pixels PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button Ports: 4 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female) Power: 9V DC 600mA - Adapter included Video Bandwidth: 300 MHz Weight: 5.26 lb (2385 g)
Maximum Analog Resolutions	1920 x 1440
Maximum Number of Users	1
On-Screen Display	Yes

Power Consumption (In Watts)	0.6W
Power Source	AC Adapter Included
