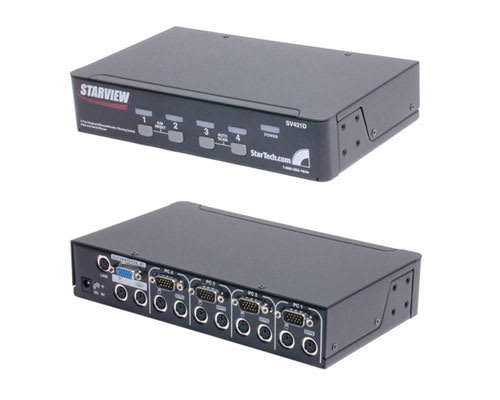

4 Port StarView KVM Switch with OSD

Main Image

Product Name	4 Port StarView KVM Switch with OSD
Product Number	SV431DGB
UPC	065030800457
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--D6cEz9jR--/4ad1675f490afff82c83baa34de363af5d13fa6a.pdf

Product Title (Long)	4 Port StarView KVM Switch with OSD
Bullet 1	Completely hot-pluggable feature allows you to add or remove keyboards, mice, monitors and even cascaded switches without powering down the switch or an attached computer
Bullet 2	A dependable 3-year warranty provides peace of mind.
Bullet 3	Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems.
Bullet 4	Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems.
Bullet 5	Compatible with all notebook computers.
Marketing Copy
Applications	Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

Accessory Products	SVPS23N1_6 SVPS23N1_15 SVPS23N1_35 SV560UTP USB2PS2 SV431RACK SVPS23N1_10 SVPS23N1_25 SVPS23N1_50 SV110 GC56MF SVPOWER SVSERIALAD PS23N1THIN4 PS23N1THIN10 PS23N1THIN25 PS23N1THIN2 PS23N1THIN6 PS23N1THIN15 SV125 SV1105IPEXT
Related Products	SV431H SV431 SV431USB SV831D SV831

General Specifications	Ports: 4 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female) PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button Video Bandwidth: 300 MHz Maximum resolution: 1920 x 1440 pixels Enclosure: Metal Dimensions: W8.63 x D5.13 x H1.75" (219 x 129 x 44 mm) Weight: 5.26 lb (2385 g) Power: 9V DC 600mA - Adapter included Certifications: FCC Part 15 Class A, CE Mark, VCCI
Maximum Analog Resolutions	1920 x 1440
Maximum Number of Users	1
On-Screen Display	Yes

Power Consumption (In Watts)	0.6W
Power Source	AC Adapter Included
