4 Port KVM Switch with Remote IP Access

Main Image

Product Name	4 Port KVM Switch with Remote IP Access
Product Number	SV431DI
UPC	065030804240
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Product Title (Long)	4 Port KVM Switch with Remote IP Access
Bullet 1	SV431D
Bullet 2	A dependable 2-year warranty provides peace of mind
Bullet 3	Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems
Bullet 4	Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems
Bullet 5	Compatible with all notebook computers
Marketing Copy
Applications	Remote access to mission-critical corporate datacenter servers Application service providers (ASPs) BIOS level remote access to servers located at co-location facilities and ISPs Remote access for outsourced server/IT hardware management IP enable existing KVM switches Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

DVI Support	No

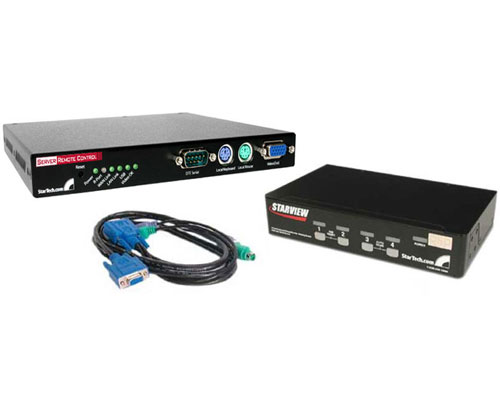

General Specifications	SV431D: : Ports: 4 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female) : PC Selection methods: Keyboard hot-key, Front panel button : Video Bandwidth: 300 MHz : Maximum resolution: 1920 x 1440 pixels : Enclosure: metal : Dimensions: W8.63 x D5.13 x H1.75" (219 x 129 x 44 mm) : Power: 9V DC 600mA - Adapter included : Certifications: FCC Part 15 Class A, CE Mark, VCCI KVM Control over IP module : Login Security: MD5 and DAA encryption protocols : Web Interface Security: SSL2, SSL3 and TLS1.0 protocols : Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys : Maximum Supported Resolution: 1280x1024 pixels at 60Hz : Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more : 2 x HD-DB15 VGA Video (In/Out) 2 x PS/2 Keyboard/Mouse (In/Out) USB (In) : Dimensions: Length: 4.53" (11.5cm) Width: 7.8" (19.8cm) Height: .98" (2.5cm) : Safety Approvals: FCC & CE : Warranty: 2-year Package Contents: : SV431D : SV1110IPEXT : 2 CABLPS23N1THIN_2 : 2 CABLPS23N1THIN_4 : 2 CABLPS23N1THIN_6
KVM IP Control	Yes
Maximum Number of Users	1

Accessory Products	2630CABINET 2636CABINET 7230CABINET 7236CABINET CAB1019WALL CAB4236BK RPORT PCM815SHNA
Related Products	SV831 SV831D SV831MEDIA SV831SUN

Audio	No
Cascadable	Yes
Number of KVM Ports	4
Number of Monitors Supported	1
Rack-Mountable	Yes
Supported Platforms	PS/2
