SV431DIGB
Main Image

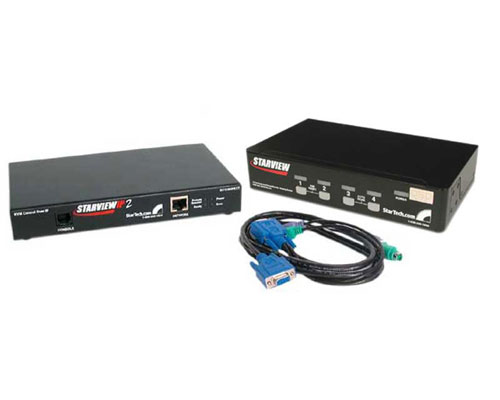

Product Name 4 Port KVM Switch with Remote IP Access Product Number SV431DIGB UPC 065030809825 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 4 Port KVM Switch with Remote IP Access Bullet 1 SV431DGB Bullet 2 A dependable 3-year warranty provides peace of mind Bullet 3 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems Bullet 4 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems Bullet 5 Compatible with all notebook computers Marketing Copy Applications - Remote access to mission-critical corporate datacenter servers
- Application service providers (ASPs)
- BIOS level remote access to servers located at co-location facilities and ISPs
- Remote access for outsourced server/IT hardware management
- IP enable existing KVM switches
- Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
Accessory Products - 7230CABINET
- CAB1019WALL
Power Source AC Adapter Included Color Black Material Steel TAA Compliant No General Specifications - SV431DGB:
- Ports: 4 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female)
- PC Selection methods: Keyboard hot-key, Front panel button
- Video Bandwidth: 200 MHz
- Maximum resolution: 1920 x 1440 pixels
- Enclosure: Metal, rackmount brackets included
- Power: 9V DC 600mA - Adapter included
- Certifications: FCC Part 15 Class A, CE Mark, VCCI
- SV1105IPEXGB
- Login Security: MD5 and DAA encryption protocols
- Web Interface Security: SSL2, SSL3 and TLS1.0 protocols
- Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys
- Maximum Supported Resolution: 1280x1024 pixels at 60Hz
- Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
- Connectors: 1 x RJ45 10/100 Ethernet 1 x RJ11 Serial 2 x HD-DB15 VGA Video (In/Out) 2 x PS/2 Keyboard/Mouse (In/Out) USB (In)
- Dimensions: Length: 4.53" (11.5cm) Width: 7.8" (19.8cm) Height: .98" (2.5cm)
- Safety Approvals: FCC & CE
- Warranty: 2-year
- Package Contents:
- SV831D
- SV1105IPEXT
- 2 CABLPS23N1THIN_2
- 2 CABLPS23N1THIN_4
- 3 CABLPS23N1THIN_6
- 3 CABLPS23N1THIN_10
Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 6 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 4 en-US Content Approved Yes
