SV431DL2DU3A
4 Port Dual Link Dual DVI USB KVM Switch with Audio USB 3
DVI KVM Switch | TAA Compliant | 2560 x 1600 Digital Resolution | Stereo Audio
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port Dual Link Dual DVI USB KVM Switch with Audio USB 3 Product Number SV431DL2DU3A UPC 065030858496 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) KVM - 4 PT 2 Mon Product Title (Short) 4 Port Dual Monitor DVI KVM Switch 1440p Product Title (Medium) 4-Port Dual-Monitor Dual-Link DVI KVM Switch with USB 3.0 Hub - TAA Compliant Product Title (Standard) 4 Port Dual Monitor Dual Link DVI KVM Switch 1440p Dual Screen/View/ Display Compact USB KVM Switch w/USB 3.0 Hub & Audio TAA Product Title (Long) 4 Port Dual Monitor Dual Link DVI KVM Switch 1440p - Dual Screen/View/Display Compact USB KVM Switch w/Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo TAA Compliant Product Title (AMZ) 4 Port Dual Monitor Dual Link DVI KVM Switch 1440p - Dual Screen/View/Display Compact USB KVM Switch w/Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo TAA Compliant (SV431DL2DU3A) Title Ingram (Part 1) 4-Port Dual-Monitor Dual-Link Title Ingram (Part 2) DVI USB KVM Switch Website Product Headline DVI KVM Switch | TAA Compliant | 2560 x 1600 Digital Resolution | Stereo Audio Bullet 1 IMPROVE EFFICIENCY: Dual Monitor Dual Link DVI KVM Switch with hotkey and manual switching, to access 4 workstations or servers with USB and DVI video from a single keyboard, monitor, and mouse Bullet 2 WORK SMARTER: Combines dual DVI displays and a high-speed 2-Port USB 3.0 hub to share USB devices between connected computers seamlessly; OS independent and works with video cards from NVIDIA and AMD Bullet 3 TECH SPECS: 4 Port KVM | Dual Screen | DVI Dual Link | 2048x1536 Analog | 2560x1600 or 1440p Digital | 2-Port USB 3.0 Hub | Hotkey, Push Button | OS Independent | Audio | Dual DVI + USB Console | TAA Bullet 4 USER-FRIENDLY: Dual view KVM switch with compact & durable housing features easily accessible large push buttons on the front panel in addition to hotkey support; also provides audio and mic switching Bullet 5 THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America Bullets (Compact) 4 Port Dual Monitor Dual Link DVI USB KVM Switch w/hotkey/manual switching - Dual Screen Display - 2048x1536 Analog - 2560x1600 or 1440p Digital - Dual View KVM - Audio & mic switching - Compact steel housing Integrated 2Port USB 3.0 Hub 2Yr warr TAA Bullets (Consolidated) 4 Port Dual Monitor Dual Link DVI KVM Switch w/ hotkey/manual switching - Access 4 computers w/ USB and DVI video from 1 console including audio and video switching - Share high-speed peripherals w/ integrated 2-Port USB 3.0 Hub - 4 Port KVM|Dual Screen Display|DVI Dual Link|2048x1536 Analog|2560x1600 or 1440p Digital|2-Port USB 3.0 Hub|Hotkey + Push Button|OS Independent|Audio Switching| Dual DVI/USB Console|TAA - Dual view DVI KVM Switch w/ Compact and Durable housing - 2 year warr Marketing Copy Marketing Copy (No HTML) Applications - High-res medical imaging
- High-res digital signage server control
- Multimedia design and production
Website Search Keyword - 2 monitor kvm
- 4 port dual dvi usb kvm switch
- 4 port dual monitor kvm switch
- dual dvi kvm switch
- dual link dvi kvm
- dual monitor kvm switch
- dual monitor switch box
- dual screen kvm
- dvi kvm switch
- dvi monitor switch
- dvi usb kvm switch
- four port kvm switch
- kvm box
- monitor switch box dvi
- USB 3.0 KVM
- usb dvi kvm switch
- usb keyboard mouse switch
- kvm switch box
- 4 Port USB 3.0 Hub
- computer monitor switch box
- keyboard mouse monitor switch
- dual screen kvm switch
- dual link dvi kvm switch
- dual monitor dvi kvm switch
- 4 port dvi kvm switch
- 4 port dvi usb kvm switch
- 4 port dual link dvi kvm
- 4 port dvi kvm
- 4 port dvi switch
- 4 port KVM
- 4 port kvm switch
- 4 port single link dvi kvm
- 4-port DVI KVM
- Acer R240HY
- Acer V226HQL
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- GCAUD3535FF
- MU1MMS
- MU6MF
- MU6MM
- MU12MF
- DVIDDMM6
- DVIDDMM10
- DVIDDMM3
- DVIDDMM15
Related Products - SV431DVGAU2A
- SV431DVIUAQV
- SV431DDVDUA
- SV431DD2DUA
- SV431DVIDDU
- SV431HDU3A2
- SV431DHD4KU
- SV431DPU3A
- SV431HDU3A
- SV431DPU3A2
- SV431DPDDUA2
- SV431DPUA2
- SV431DUSBU
- SV431DUSB
- SV431H
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 9V DC Power Consumption (In Watts) 18W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 90% RH (Non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 253.000 Product Width (mm) 100.000 Product Height (mm) 66.000 Product Weight (g) 1010.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds DVI Support Yes - Dual Link Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Digital Resolutions 2560 x 1600 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions Minimum 640 x 480 Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Industry Standards USB 3.0 LED Indicators - 4 - Red (Active)
- 4 - Green (Sync)

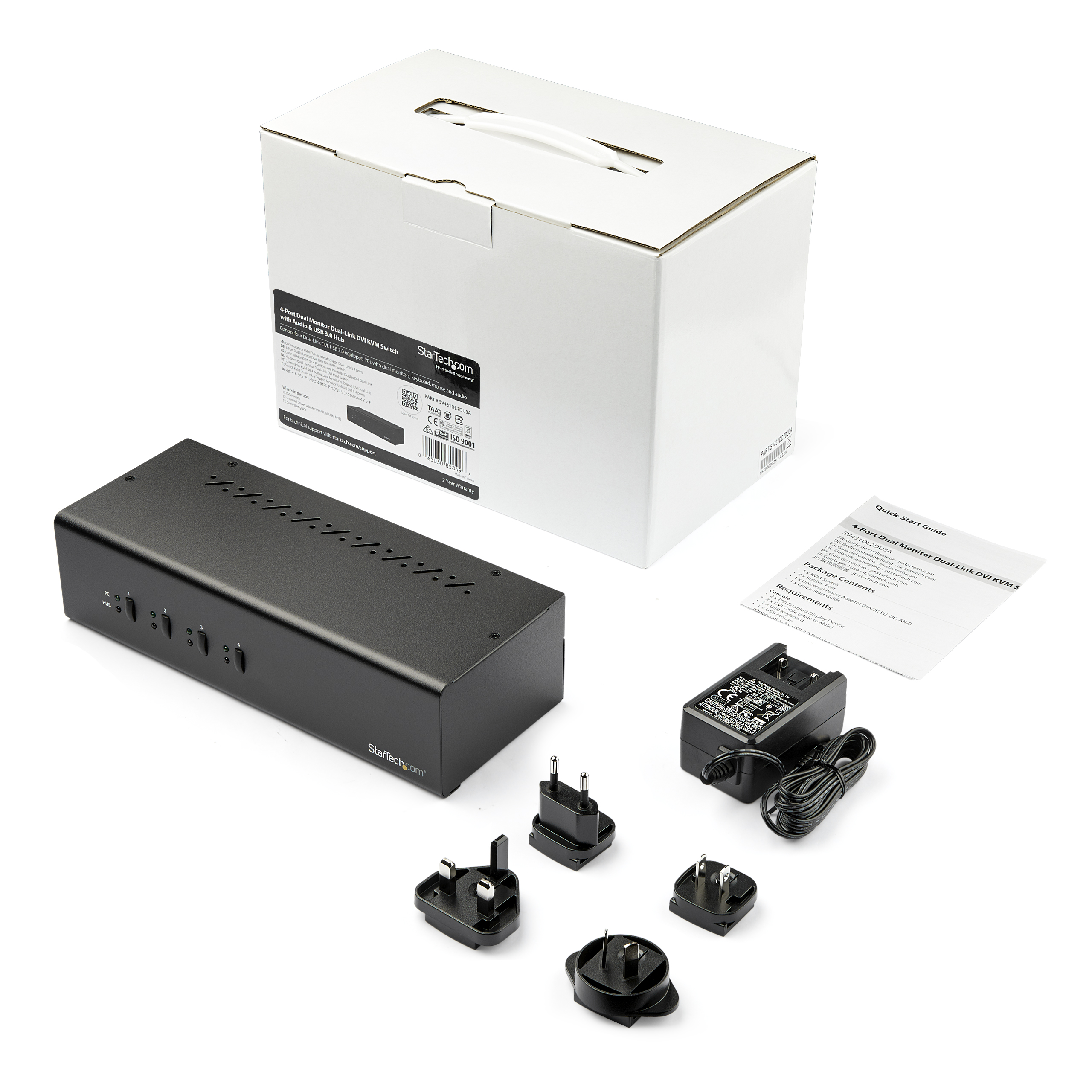

Number of KVM Ports 4 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 495 Carton Height (mm) 213 Carton Quantity 6 Carton Weight Gross (g) 10870 Included in Package - 1 - KVM switch
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - quick-start guide

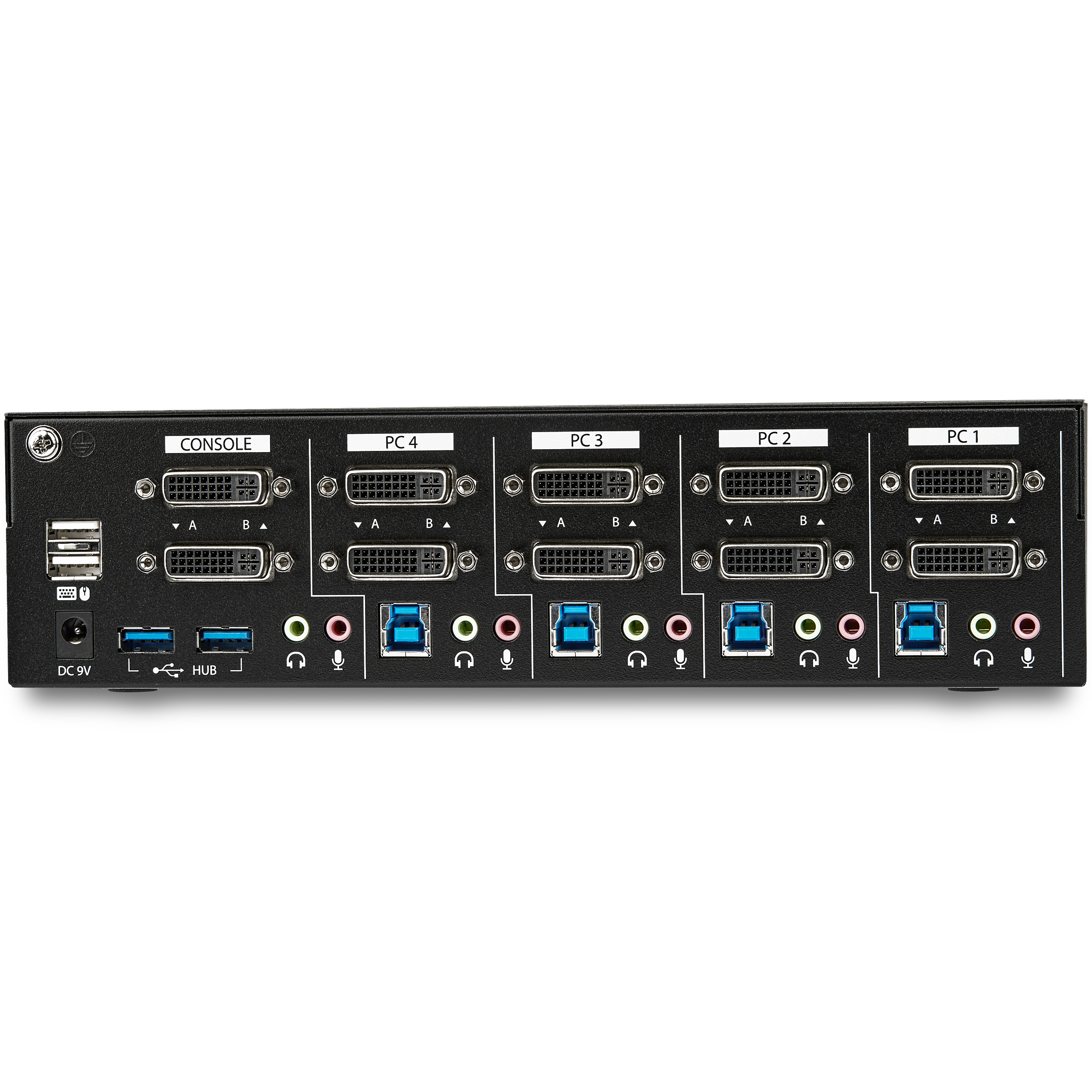

Package Depth (mm) 224 Package Height (mm) 170 Package Width (mm) 346 Package Quantity 1 Package Weight (g) 1604 Packaging Description 4-Port Dual Monitor Dual-Link DVI KVM Switch Packaging Description India 4-Port Dual Monitor Dual-Link DVI KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 2 Connector 2 USB-A (1.5Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 4 Host Connector 2 DVI-I Dual-Link (29-Pin) Host Connector 2 (Quantity) 8 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-07-13 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2018-09-14 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-07-13 Target Production Release 2018-07-13 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
