SV431DPDDUA2
4 Port Dual Monitor DP 1 2 KVM
This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port Dual Monitor DP 1 2 KVM Product Number SV431DPDDUA2 UPC 065030867863 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4PT Dual DP KVM 4K60 Product Title (Short) KVM Switch 4 port Dual DisplayPort 4K60 Product Title (Medium) 4 Port Dual DisplayPort KVM Switch - 4K 60Hz Product Title (Standard) 4 Port Dual DisplayPort KVM Switch, DisplayPort 1.2 KVM, 4K 60Hz, TAA Product Title (Long) 4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA Product Title (AMZ) DisplayPort KVM - 4 port - 4K 60Hz - Dual Monitor KVM - DisplayPort Switch - KVM DisplayPort - Desktop KVM Switch , TAA (SV431DPDDUA2) Title Ingram (Part 1) 4 Port KVM Switch - 4K60 Title Ingram (Part 2) KVM Switch - 4K60 - 4 Port Website Product Headline This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers Bullet 1 Maximum productivity with dual-display, multi-computer access Bullet 2 Full multimedia control with separate 3.5 mm microphone and speaker support Bullet 3 Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz Bullet 4 Share your USB peripheral devices with built-in 2-port USB hub Bullet 5 Access computers easily with hotkey and push-button switching Bullets (Compact) This 4 port Dual DisplayPort KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC or MAC computers - 4 port KVM / Desktop KVM switch / DisplayPort KVM / DisplayPort KVM switch / Dual DisplayPort KVM switch Bullets (Consolidated) This 4 port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected computers - Maximum productivity with dual-display, multi-computer access - Multimedia control with separate 3.5mm microphone and speaker support - Support for 4K 60Hz - Share USB peripherals with built-in 2-port USB hub - 4 port KVM/Desktop KVM switch/DisplayPort KVM/DisplayPort KVM switch/DisplayPort switch/Dual monitor KVM/KVM DisplayPort/DisplayPort 1.2 KVM Marketing Copy Marketing Copy (No HTML) This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. The DisplayPort KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems. With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space. The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging and computing bandwidth are critical, such as graphic design, video editing, medical, CAD drawing. The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer. The DisplayPort switcher is TAA compliant and backed by a 2-year StarTech.com warranty. Applications - Ideal in environments where high-quality imaging and computing bandwidth are critical, such as graphic design, video editing, medical, CAD drawing
- Operate multiple computers in manufacturing lines or install the KVM switch in your server room, for multi-computer access
Website Search Keyword B006-DP2UA4 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - IM12D1500P
- DISPLPORT1L
- DISPLPORT3L
- SVA12M2NEUA
- DISPLPORT6L
- SVA12M5NA
- DISPLPORT10L
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MDP2DPMM3
- MDP2DPMM6
- MDP2DPMM10
- SV431RACK
- DP2VGA2
- DP2DVIS
- DP2DVID2
- DP2HD4KS
- DP2HD4K60S
- DISPL2M
- USB2HAB2M
Related Products - SV231DPDDUA
- SV231DPUA
- SV231DPU
- SV431DPUA
- SV431DPU3A2
- SV211DPUA
- SV231DPU2
- SV431DPUA2
Constrained SKU Alternatives (Limited Stock) SV431DPUA2 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80% Material Steel Operating Temperature 0℃ - 40℃ Primary Material Steel Product Length (mm) 127.000 Product Width (mm) 215.900 Product Height (mm) 63.500 Product Weight (g) 1200.000 Storage Temperature -10℃ - 60℃ TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 500 Mbps (USB 2.0) Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @ 60hz Maximum Number of Users 1 MTBF (hours) 142000 hours On-Screen Display No Port Selection Support Push Button and Hotkeys Supported Resolutions Wide Screen Supported Yes Aspect Ratio 16:9 Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 4 - Green - Online indicator (One LED per port)
- 4 - Red - Select indicator (One LED per port)
- 1 - Power

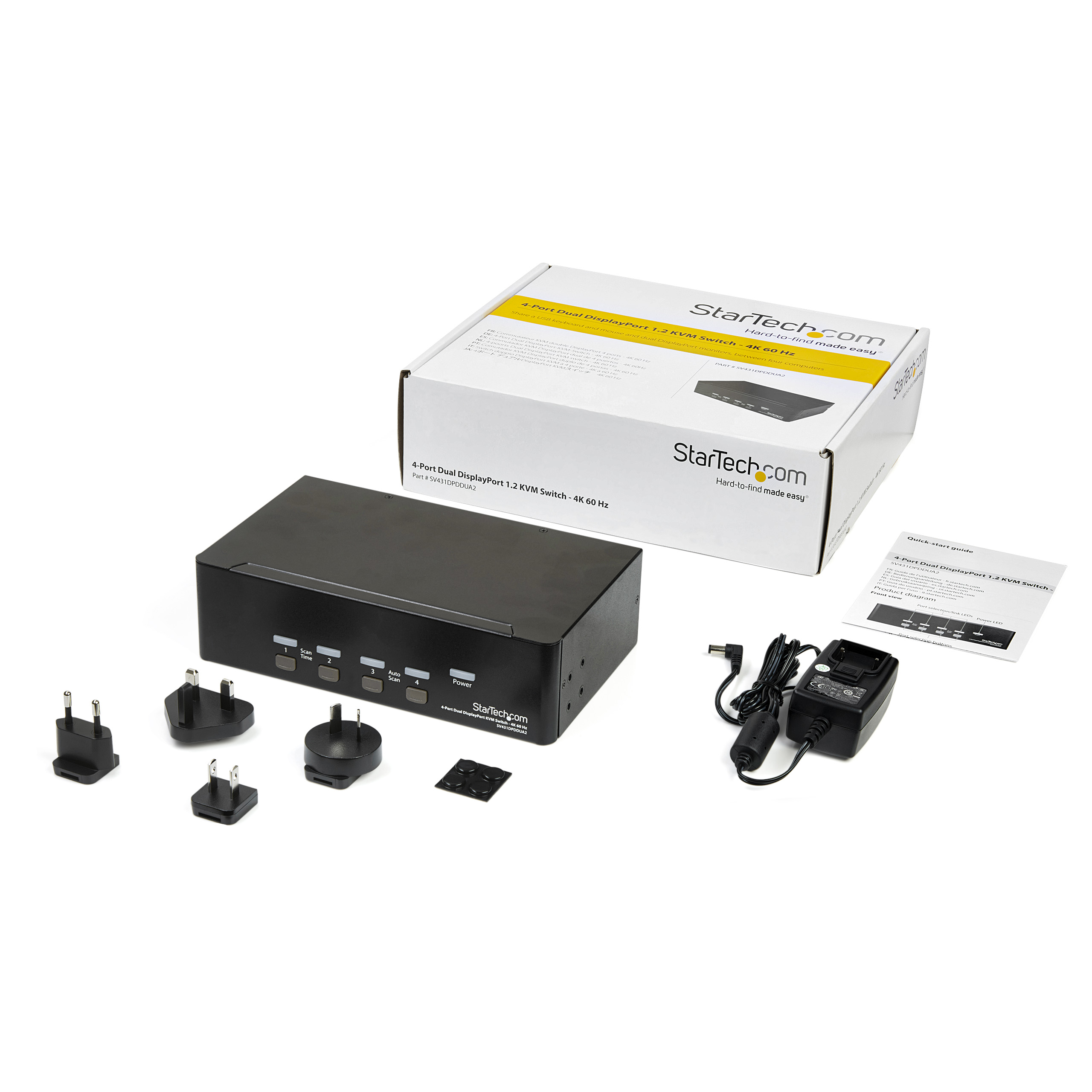

Number of KVM Ports 4 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable Optional Supported Platforms USB U Height 2U Carton Depth (mm) 514 Carton Height (mm) 299 Carton Quantity 6 Carton Weight Gross (g) 11262 Included in Package - 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - KVM switch
- 1 - quick start guide
- 4 - rubber feet
Package Depth (mm) 244 Package Height (mm) 86 Package Width (mm) 296 Package Quantity 1 Package Weight (g) 1726 Packaging Description 4-Port Dual DisplayPort KVM Switch - 4K 60 Hz Packaging Description India 4-Port Dual DisplayPort KVM Switch - 4K 60 Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-A (1.5Mbps, 2.5W) Connector 4 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 8 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-12-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2018-01-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-11-13 Target Production Release 2017-12-08 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
