SV431DPU3A2
DisplayPort KVM Switch - 4-port - USB Hub - 4K
Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name DisplayPort KVM Switch - 4-port - USB Hub - 4K Product Number SV431DPU3A2 UPC 065030863728 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Manual Product Title (Ultra-Short) DP KVM Switch - 4K Product Title (Short) 4-Port DisplayPort KVM - USB 3.0 - 4K Product Title (Medium) 4-Port DisplayPort KVM Switch - Built-in USB 3.0 Hub for Peripheral Devices - 4K Product Title (Standard) 4-Port DisplayPort KVM Switch, DP KVM Switch with Built-in USB 3.0 Hub for Peripherals, 4K 30 Hz, TAA Product Title (Long) 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz - TAA Product Title (AMZ) 4 Port DisplayPort KVM Switch - DP KVM Switch with Audio and Built-in USB 3.0 Hub for Peripherals - 4K 30Hz , TAA (SV431DPU3A2) Title Ingram (Part 1) DisplayPort KVM Switch - 4-port Title Ingram (Part 2) Built-in USB 3.0 Hub - 4K Website Product Headline Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices Bullet 1 Easily share peripheral devices using the built-in USB 3.0 hub Bullet 2 Astonishing picture quality with support for Ultra HD 4K resolutions Bullet 3 Full multimedia control with separate 3.5 mm auxiliary support Bullet 4 No software or drivers required Bullet 5 Independent HID keyboard and mouse ports Bullets (Compact) Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices - Supports resolutions up to 4K - 3.5mm audio support - Control four DisplayPort USB 3.0 computers - Integrated USB 3.0 5 Gbps hub Bullets (Consolidated) Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices - Works with DisplayPort enabled computers with USB 3.0 and DP displays - Supports resolutions up to 4K - 3.5mm audio support/USB KVM Switch/DisplayPort KVM/Built-in USB 3.0 hub for Peripheral devices/4-Port KVM Switch/KVM USB 3.0 - Control four DP USB computers with a single set of console peripherals (Keyboard Mouse and Monitor) - Integrated USB 3.0 (5 Gbps) hub Marketing Copy Marketing Copy (No HTML) Applications - Control four DisplayPort USB computers with a single set of console peripherals (keyboard, mouse and monitor)
- Perform Ultra HD multimedia applications such as graphic design or CAD and CAM creations
- Share USB 3.0 peripherals between four computers
Website Search Keyword - DP kvm
- Displayport KVM switch
- 4 port kvm switch
- 4 port kvm
- 4 port displayport kvm switch
- kvm usb 3.0
- displayport KVM
- dp kvm switch
- displayport kvm
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Accessory Products - SV431RACK
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAA6BK
- USB3SAA6
- USB3SAA3MBK
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- DP2VGA2
- DP2DVIS
- DP2VGA3X5
- DP2HD4KS
- DISPLPORT6L10PK
Constrained SKU Alternatives (Limited Stock) SV431DPUA2 Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Color Black Humidity 0~80% RH Non-Condensing Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 220 Product Width (mm) 130 Product Height (mm) 43 Product Weight (g) 1062 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 3840x2160 @ 30 Hz MTBF (hours) 143000 hours On-Screen Display No Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Industry Standards HDCP 2.2 LED Indicators - 4 - port selection/link LEDs
- 1 - power LED
Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable Optional Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 521 Carton Height (mm) 296 Carton Quantity 6 Carton Weight Gross (g) 10214 Included in Package - 1 - 4-port DisplayPort KVM switch
- 4 - rubber feet

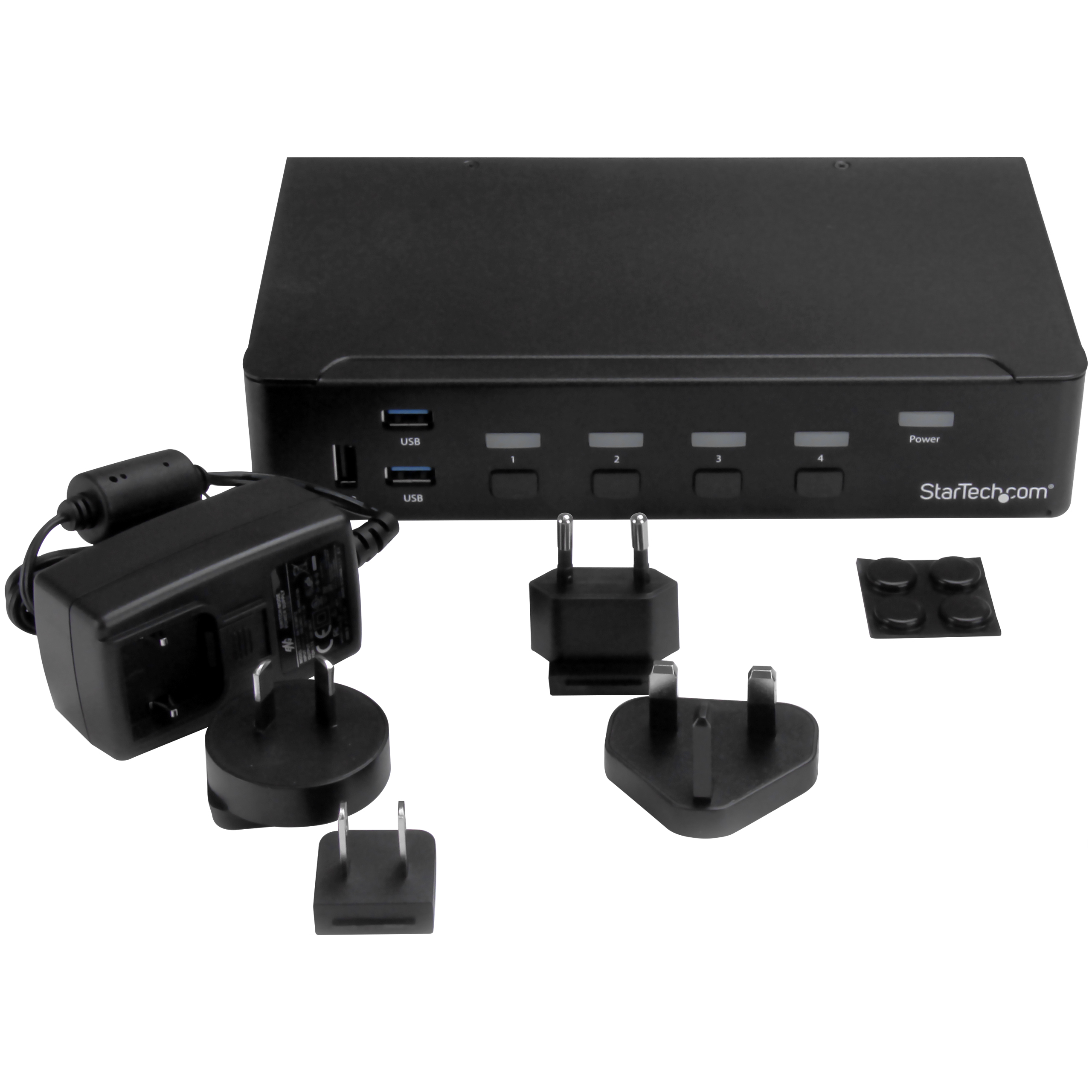

- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - quick start guide
Package Depth (mm) 250 Package Height (mm) 88 Package Width (mm) 297 Package Quantity 1 Package Weight (g) 1552 Packaging Description 4-Port DisplayPort™ KVM Switch - USB 3.0 Packaging Description India 4-Port DisplayPort™ KVM Switch - USB 3.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 4 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-11-19 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2016-04-26 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-08-31 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
