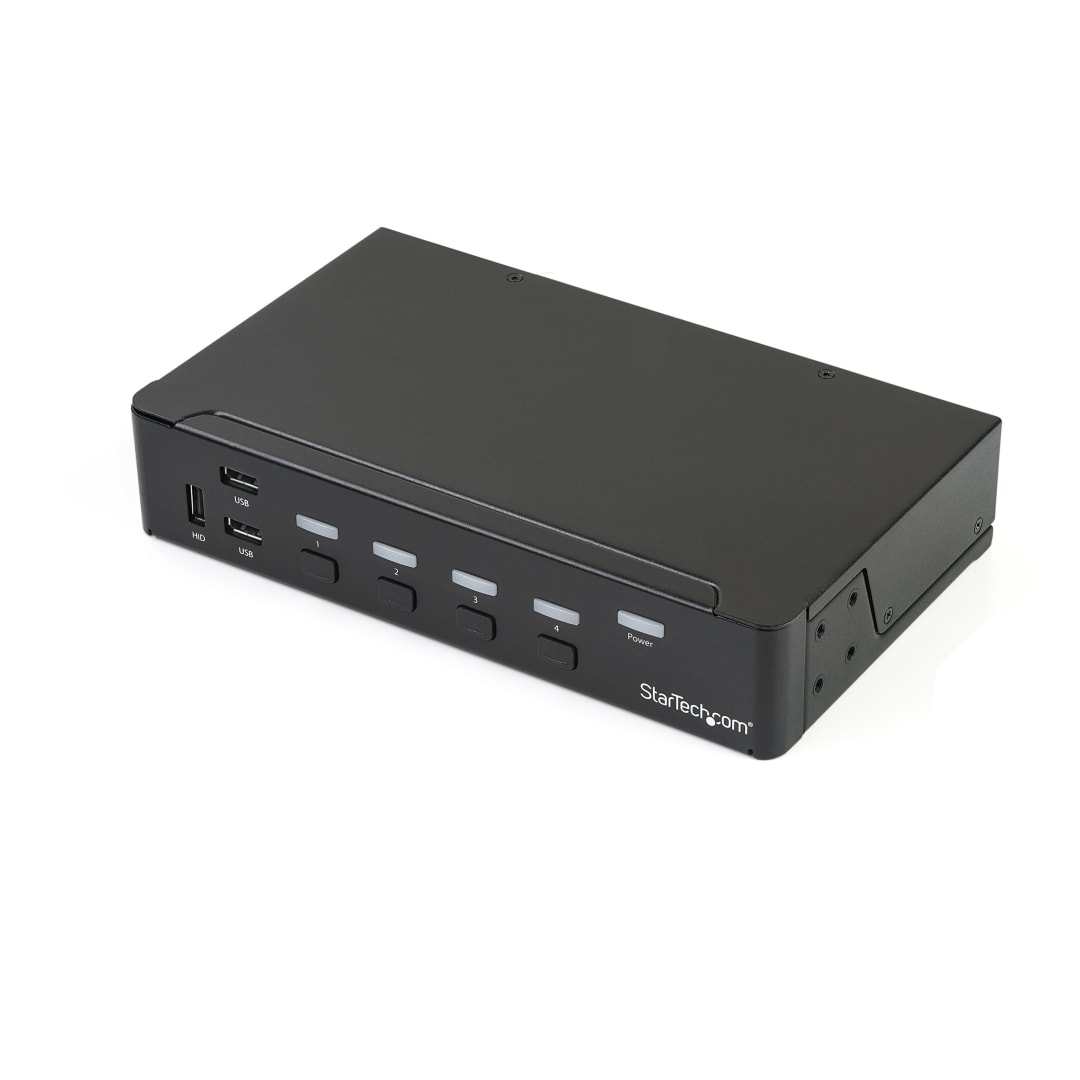

4 Port 4K30 DisplayPort USB 3 0 KVM Switch Refurbished

Main Image

Product Images

Product Images

Product Images

BOM Image

Product Name	4 Port 4K30 DisplayPort USB 3 0 KVM Switch Refurbished
Product Number	SV431DPU3A2R
UPC	065030898980
Lifecycle status	Active
Warranty	1 Year
Taxonomy	Product > Legacy Discontinued
Category Level 1	KVM Switches
Category Level 2	Desktop KVMs
Category Level 3	USB 3.0 - DisplayPort KVMs
Family	Mid
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX066X

Product Title (AMZ) 4 Port DisplayPort KVM Switch - DP KVM Switch with Audio and Built-in USB 3.0 Hub for Peripherals - 4K 30Hz , TAA (SV431DPU3A2R)
Marketing Copy
Marketing Copy (No HTML)

Required Regulatory Compliance Marks

WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU

Special Notes
Input Voltage 100 - 240 AC
Output Current 1.5 A
Output Voltage (V) 12V DC
Power Consumption (In Watts) 18
Plug Type M

Hot-Key Selection	Yes
KVM IP Control	No
Maximum Cable Length (mm)	10000
Maximum Digital Resolutions	3840x2160 @ 30 Hz
MTBF (hours)	143000 hours
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys
Wide Screen Supported	Yes

Audio	Yes
Cables Included	No
Cascadable	No
Industry Standards	HDCP 2.2
LED Indicators	4 - port selection/link LEDs 1 - power LED
Number of KVM Ports	4
Number of Monitors Supported	1
PC Video Type	DisplayPort
Rack-Mountable	Optional
Supported Platforms	USB 3.2 Gen 1 (5Gbps)

Carton Depth (mm)	316
Carton Height (mm)	300
Carton Quantity	6
Carton Weight Gross (g)	10310
Included in Package	1 - 4-port DisplayPort KVM switch 4 - rubber feet 1 - universal power adapter (NA, EU, UK, ANZ) 1 - Product Documentation
Package Depth (mm)	244
Package Height (mm)	85
Package Width (mm)	297
Package Quantity	1
Package Weight (g)	1610
Packaging Description	4-Port KVM Switch for DisplayPort™ Computers - USB 3.0
Packaging Description India	4-Port KVM Switch for DisplayPort™ Computers - USB 3.0
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Actual Inbox Documents Created	Compliance Insert
Amazon Merchandising Manager	Kathleen Marshall
Artwork Due Date	2022-05-17
Buying Center - AV & Collaboration	No
Buying Center - End User Compute	Yes
Buying Center - Networking & Edge	Yes
Comparable SKU Comment	New version of SKU
Comparable SKU 2 Comment	N/A
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
Launch Markets (concatenated)	US
Product Development Specialist	Pierre Wheeler
Product Information Creation Specialist (PICS)	Dan Dagenais
Product Manager	Rob Fleck
Product Performance Specialist	Ray Aoki
Product Photographer	Alejandra Valencia
Target Development Completion Date	2022-05-10
Target Production Release	2022-05-17
Tech Lead	Stefan Tirolese
Technical Writer	Dan Dagenais
Technology Lifecycle	Mainstream
Vending Machine	Not Compatible with Vending Machine

Product Title (AMZ)	4 Port DisplayPort KVM Switch - DP KVM Switch with Audio and Built-in USB 3.0 Hub for Peripherals - 4K 30Hz , TAA (SV431DPU3A2R)
Marketing Copy
Marketing Copy (No HTML)
