Main Image
SV431DPUA
4 Port DisplayPort KVM Switch with Audio
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port DisplayPort KVM Switch with Audio Product Number SV431DPUA UPC 065030837545 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - Displayport KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4Pt DP KVM Switch Product Title (Short) 4 Port USB DisplayPort KVM Switch Product Title (Medium) x Product Title (Standard) 4 Port USB DisplayPort KVM Switch with Audio, TAA Product Title (Long) 4 Port USB DisplayPort KVM Switch with Audio - TAA Product Title (AMZ) 4 Port DisplayPort KVM Switch w/ Audio - USB, Keyboard, Video, Mouse, Computer Switch Box for 2560x1600 DP Monitor , TAA (SV431DPUA) Title Ingram (Part 1) 4 Port USB DisplayPort KVM Switc Title Ingram (Part 2) h with Audio Website Product Headline Share keyboard, mouse, and DisplayPort display between four HD multimedia systems Bullet 1 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone Bullet 2 Full plug-and-play support with USB keyboards, mice, and connected peripherals Bullet 3 Hotkey and push-button switching Bullet 4 Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p Bullet 5 OS independent - No driver or software required Bullets (Compact) Share keyboard, mouse, and DisplayPort display between 2 HD multimedia systems - 4 Port DisplayPort KVM - DP KVM Switch - 4 Port USB DisplayPort KVM Switch with Audio Bullets (Consolidated) Share keyboard mouse and DisplayPort display between four HD multimedia systems - 4 Port DisplayPort KVM - DP KVM Switch/4 Port USB DisplayPort KVM Switch with Audio/4Port KVM Switch - Supports digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections - USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices - Compatible with Mini DisplayPort adapters for Apple MacBook connectivity - Hotkey and push-button switching Marketing Copy Marketing Copy (No HTML) Applications - Dual system control for a single workstation increasing productivity in the office
- High resolution medical imaging and Health care display, such as MRI and X-Ray display
- Perfect for high-res Digital Signage server control, simplifying access to multiple systems
- Multimedia design, multimedia post-production and video editing
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
Website Search Keyword - 1080p KVM Switch
- Display port KVM
- DisplayPort KVM Switch
- High Definition KVM Switch
- KVM Switch
- KVM with Audio
- USB 2.0 KVM Switch
- four port KVM
- Multi-media KVM
- DisplayPort switch
- HD KVM
- Cinemaview KVM
- Apple Displayport Switch
- B005-DPUA4
- B004-DPUA4-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - IM12D1500P
- DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA12M2NEUA
- SVA12M5NA
- DP2VGA2
- DP2DVIS
- DP2DVID2
- DP2HD4KS
- SV431RACK
Related Products - SV431DPU3A2
- SV231DPUA
- SV231DPU
- SV231DPDDUA2
- SV211DPUA
- SV231DPU2
- SV231DPDDUA
Constrained SKU Alternatives (Limited Stock) SV431DPUA2 Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 130.6 Product Width (mm) 220.7 Product Height (mm) 44 Product Weight (g) 1040 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 2560 x 1600 @ 60Hz Maximum Number of Users 1 MTBF (hours) 136000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 4 - Green - Online indicator (One LED per port)
- 4 - Red - Select indicator (One LED per port)
- 1 - Power

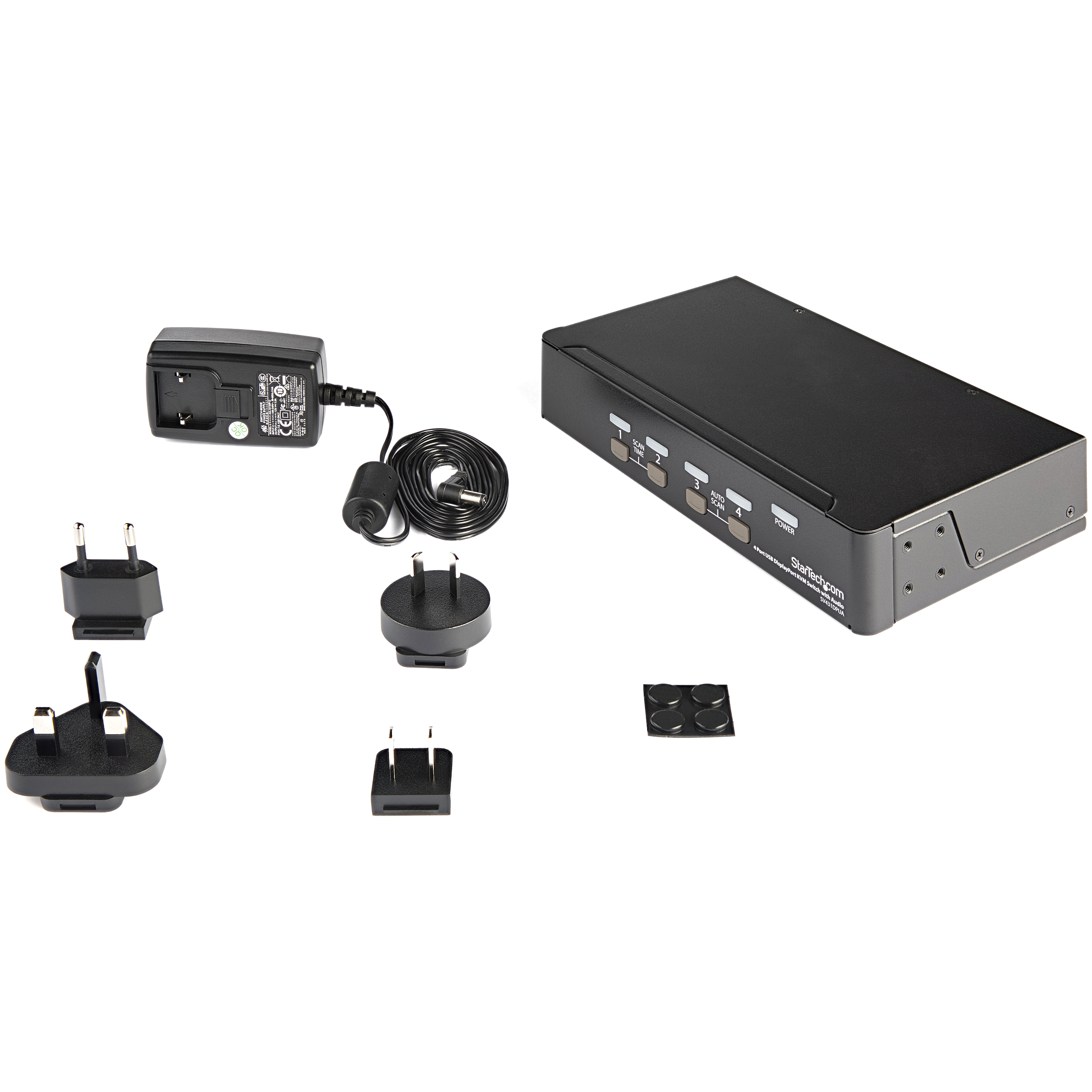

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 553 Carton Height (mm) 257 Carton Quantity 6 Carton Weight Gross (g) 10790 Included in Package - 1 - 4-port DisplayPort KVM switch
- 1 - instruction manual
- 1 - universal power adapter (NA/UK/EU/AU)
- 4 - foot pads
Package Depth (mm) 412 Package Height (mm) 92 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 1602 Packaging Description 4 Port USB DisplayPort KVM Switch Packaging Description India 4 Port USB DisplayPort KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
