Main Image
SV431DPUA2
4 Port DP1 2 KVM
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port DP1 2 KVM Product Number SV431DPUA2 UPC 065030826372 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - Displayport KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4 Port DP KVM Product Title (Short) 4Port DisplayPort KVM Switch 4K 60Hz TAA Product Title (Medium) 4 Port DisplayPort KVM Switch Product Title (Standard) 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - UHD DP 1.2 USB KVM Switch with USB 2.0 Hub & Audio - TAA Compliant Product Title (Long) 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant Product Title (AMZ) 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant (SV431DPUA2) Title Ingram (Part 1) 4 Port DisplayPort KVM Title Ingram (Part 2) Switch with 4K 60Hz Website Product Headline DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio Bullet 1 IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo Bullet 2 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor | Supports MST Passthrough for multiple displays Bullet 3 TECH SPECS: 4 Port DP 1.2 KVM | 3840 x 2160 60Hz | 4K UHD | MST Passthrough | 2 Port USB 2.0 Hub | HDCP | 3.5mm Analog Audio | Switching: Hotkey & Push Button | OS Independent | TAA Bullet 4 THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 3-year warranty and free lifetime 24/5 multilingual technical support based in North America Bullet 5 USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & integrated USB 2.0 Hub for sharing USB drives & devices between connected computers Bullets (Compact) 4 Port DisplayPort KVM Switch with Audio/ Hotkey/ Manual Switching - 3840 x 2160 60Hz - 4K UHD - HDCP - DP 1.2 - USB 2.0 Hub - MST Passthrough - Steel housing - OS independent works with Dell Lenovo HP - 3 year warranty - TAA Compliant Bullets (Consolidated) 4 Port DisplayPort KVM Switch w/hotkey/manual switching - Access 4 systems w/USB and DP video from 1 console | Universal works w/major brands like HP Dell Lenovo - Supports up to 4K 60Hz on 1 monitor | MST Passthrough for multiple displays - TECH SPECS: 4 Port DP 1.2 KVM | 3840 x 2160 60Hz | 4K UHD | MST Passthrough | 2 Port USB 2.0 Hub | HDCP | 3.5mm Analog Audio | Switching: Hotkey/Push Button | OS Independent | TAA - Durable housing w/integrated USB 2.0 Hub - TAA with StarTech.com 3-year warranty Marketing Copy Marketing Copy (No HTML) Applications - High-res medical imaging
- High-res digital signage server control
- Multimedia design and production
Website Search Keyword - 4 port displayport kvm
- 4 port kvm
- 4 port kvm switch
- 4 port switch
- 4K KVM
- 4K KVM Switch
- 4-port KVM
- computer switch box
- display port kvm
- display port kvm switch
- display port switch
- displayport 1.2 kvm
- displayport 4k
- DisplayPort KVM
- displayport kvm 4k
- DisplayPort KVM Switch
- displayport switch
- displayport switcher
- DP kvm switch
- keyboard and mouse switch
- keyboard mouse switch
- keyboard switch
- kvm display port
- kvm displayport
- kvm switch
- kvm switch displayport
- kvm switch usb
- kvm usb
- kvmp
- usb kvm
- usb kvm switch
- usb switch
- usb switcher
- B005-DPUA4
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - IM12D1500P
- DISPLPORT1L
- DISPLPORT3L
- SVA12M2NEUA
- DISPLPORT6L
- SVA12M5NA
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- MDP2DPMM3
- MDP2DPMM6
- MDP2DPMM10
- SV431RACK
- DP2VGA2
- DP2DVIS
- DP2DVID2
- DP2HD4KS
- DP2HD4K60S
Related Products - SV431DPU3A2
- SV231DPUA
- SV231DPU
- SV231DPDDUA2
- SV211DPUA
- SV231DPU2
- SV231DPDDUA
- DISPLPORT25L
- DISPLPORT15L
- USB2HAB15
- MU15MMS
Constrained SKU Alternatives (Limited Stock) SV431DPU3A2 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 220.000 Product Width (mm) 131.000 Product Height (mm) 45.000 Product Weight (g) 1028 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 480 Mbps (USB 2.0) Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @ 60hz Maximum Number of Users 1 MTBF (hours) 138327 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 4 - Green - Online indicator (One LED per port)
- 4 - Red - Select indicator (One LED per port)
- 1 - Power

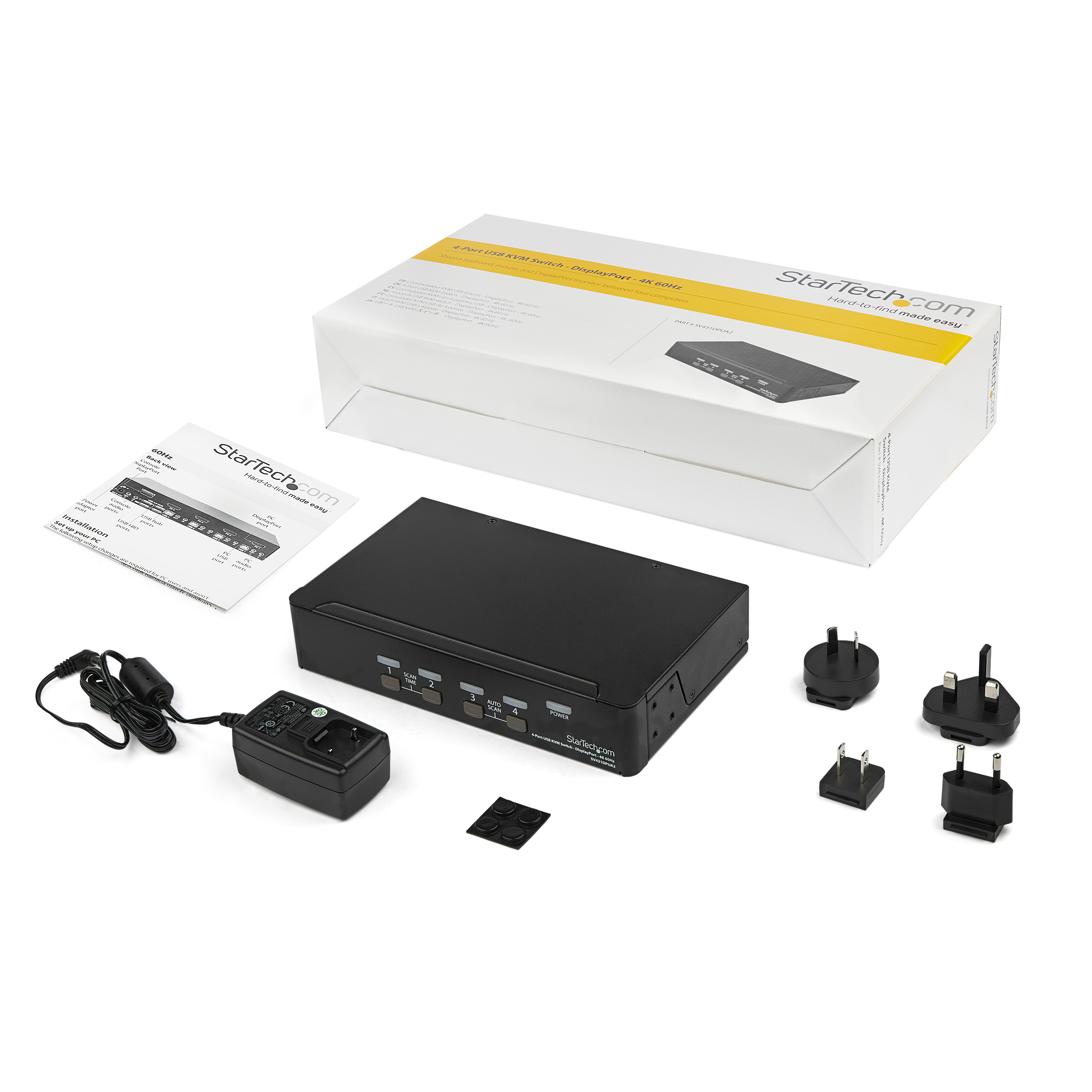

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable Optional Supported Platforms USB U Height 1U Carton Depth (mm) 551 Carton Height (mm) 257 Carton Quantity 6 Carton Weight Gross (g) 10896 Included in Package - 1 - KVM switch
- 4 - foot pads
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - quick-start guide
Package Depth (mm) 412 Package Height (mm) 89 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 1612 Packaging Description 4-Port USB KVM Switch - DisplayPort - 4K 60Hz Packaging Description India 4-Port USB KVM Switch - DisplayPort - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-A (1.5Mbps, 2.5W) Connector 4 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-11-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-12-22 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-10-13 Target Production Release 2017-11-24 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
