Main Image
SV431DUSBU
4 Port USB KVM with OSD
Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port USB KVM with OSD Product Number SV431DUSBU UPC 065030837231 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - VGA KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4Pt USB KVM Switch Product Title (Short) 4 Port 1U Rackmount USB KVM Switch Product Title (Medium) x Product Title (Standard) 4 Port 1U Rackmount USB KVM Switch with OSD, TAA Product Title (Long) 4 Port 1U Rackmount USB KVM Switch with OSD - TAA Product Title (AMZ) 4-Port USB KVM Swith with OSD - TAA Compliant - 1U Rack Mountable VGA KVM Switch (SV431DUSBU) Title Ingram (Part 1) 4 Port 1U Rackmount USB KVM Swit Title Ingram (Part 2) ch with OSD Website Product Headline Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor Bullet 1 Auto-scan function automatically selects computer sequentially Bullet 2 Front panel push-button and Hotkey switching allow easy computer access Bullet 3 Identifies and selects computers by the names assigned using the OSD Bullet 4 USB console connections Bullet 5 OSD security allows each PC to be password protected Bullets (Compact) Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor - USB KVM switch - 4 port KVM switch - VGA KVM switch - Rackmount kvm Bullets (Consolidated) Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor - Compatible with USB enabled computers and VGA enabled monitors and projectors - Supports resolutions up to 1920x1200 - 4 port KVM switch/VGA KVM switch/Rack mount KVM switch/Multiplatform KVM/keyboard VGA monitor and mouse - Create a scalable, streamlined access solution in your datacenter or server farm - Save time and money by adding single console administration to your Co-location or ISP facility Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Ideal for control of multiple PCs in a QA testing environment
Website Search Keyword - 4 Port
- KVM
- Multiplatform
- StarView
- SV431DUSB
- USB Console
- KVM Switch
- B006-VUA4-K-R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SV125
- SV431RACK
- SV565UTPU
- SVECONUS10
- SVECONUS6
- SVSERIALAD
- USB2PS2
- SVECONUS15
- SVUSBVGA6
- SVA9M2NEUA
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV1631DUSB
- SV431D
- SV831DUSB
- SV431DUSB
Constrained SKU Alternatives (Limited Stock) SV411KUSB Input Current 0.2A Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 130 Product Width (mm) 220 Product Height (mm) 43 Product Weight (g) 957 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) Maximum Number of Users 1 MTBF (hours) 143000 hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Wide Screen Supported Yes Audio No Cables Included No CAC Support No Cascadable Yes LED Indicators - 1 - Green - Power
- 4 - Green - Online PC
- 4 - Red - Selected PC

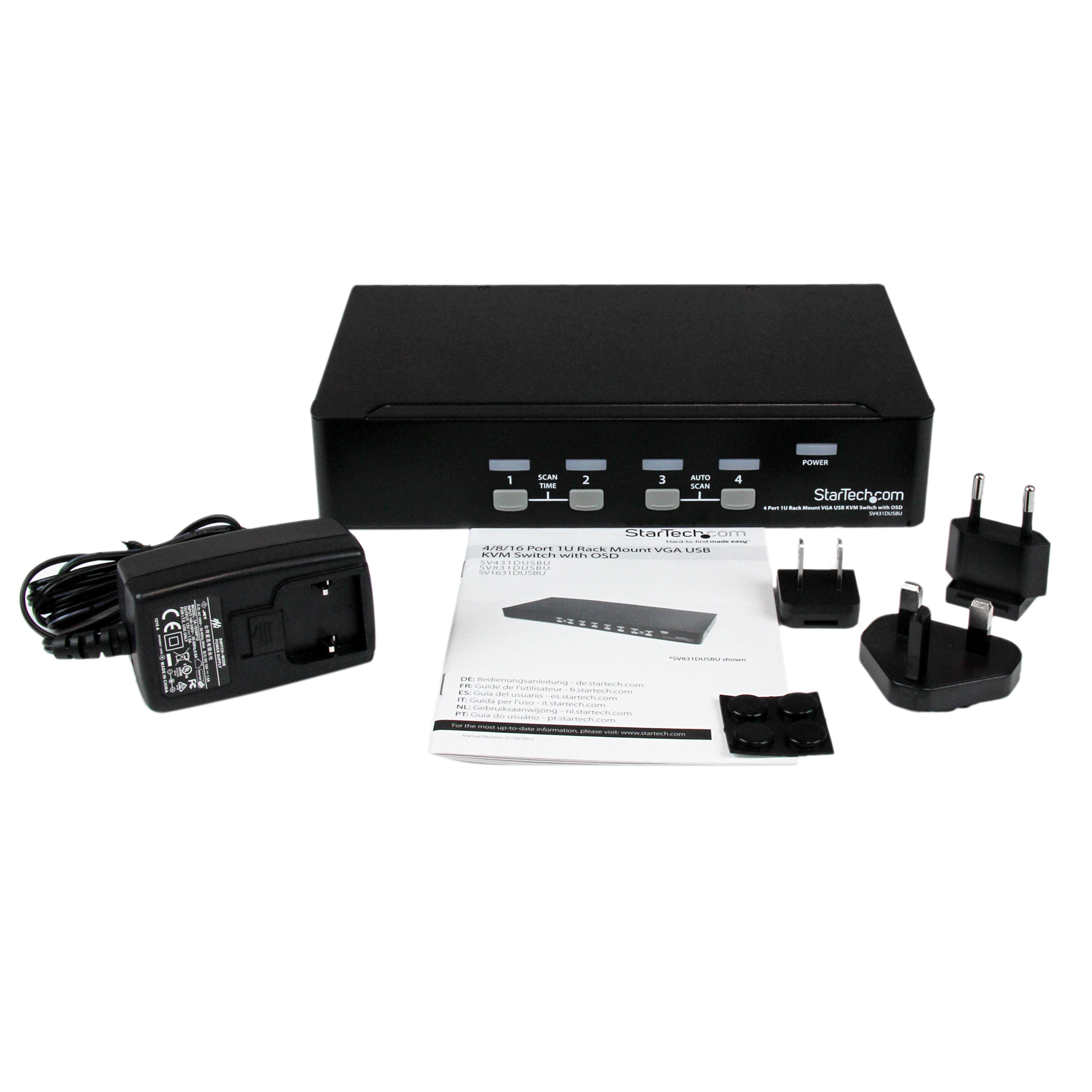

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 551 Carton Height (mm) 258 Carton Quantity 6 Carton Weight Gross (g) 10388 Included in Package - 1 - universal power adapter (NA/EU/UK/AU)
- 1 - 4-port KVM switch
- 1 - instruction manual
- 4 - foot pads
Package Depth (mm) 412 Package Height (mm) 92 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 1536 Packaging Description 4 Port 1U Rack Mount VGA USB KVM Switch Packaging Description India 4 Port 1U Rack Mount VGA USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
