SV431DVIDDU
4 - port Dual DVI USB KVM Switch
Share a keyboard, mouse and dual DVI displays/monitors between four multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 4 - port Dual DVI USB KVM Switch Product Number SV431DVIDDU UPC 065030827003 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Ultra-Short) 4Pt 2xDVI KVM Switch Product Title (Short) 4 Port Dual DVI USB KVM Switch w/ Audio Product Title (Standard) StarTech.com Dual DVI USB KVM Switch with Audio - KVM / audio / USB switch - USB - 4 ports - 1 local user Product Title (Long) 4 Port Dual DVI USB KVM Switch with Audio Product Title (AMZ) 4 Port Dual DVI USB KVM Switch with Audio (SV431DVIDDU) Title Ingram (Part 1) 4 Port Dual DVI USB KVM Switch w Title Ingram (Part 2) ith Audio Website Product Headline Share a keyboard, mouse and dual DVI displays/monitors between four multimedia computers Bullet 1 HDCP compliant Bullet 2 USB style keyboard and mouse control, plus two other USB peripherals Bullet 3 Front-panel push button and keyboard hotkeys for easy switching Bullet 4 Status LED display for easy port status monitoring Bullet 5 Solid metal casing for maximum durability Marketing Copy Applications - Control up to four dual display multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Four system control for single user workstations with dual head video cards, increasing user productivity in the office
Website Search Keyword - 4 port
- USB KVM
- KVM with audio
- DVI
- Dual Display
- USB 2.0
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - USB2HAB6
- USB2HAB10
- USB2HAB15
- DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- SVA9M2NEUA
Related Products - SV221DVIDD
- SV231UADVI
- SV231USBA
- SV421DVIDD
- SV431DVIUA
- SV431UADVI
- SV231DVIDDU
Replacement Product SV431DD2DUA Equivalent Part Number in the UK SV431DVIDGB Input Voltage 115V AC Output Current 1A Output Voltage (V) 9V DC Power Consumption (In Watts) 9 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH Material Steel Operating Temperature 0~40°C Product Length (mm) 0.000 Product Width (mm) 253.000 Product Depth (mm) 100 Product Height (mm) 66.000 Product Weight (g) 1150.000 Storage Temperature -20~60°C TAA Compliant No DVI Support Yes - Single Link Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 @85Hz Maximum Digital Resolutions 1920x1200 @60Hz Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No Cascadable No LED Indicators - 4 - Green - Selected PC
- 4 - Red - HUB link

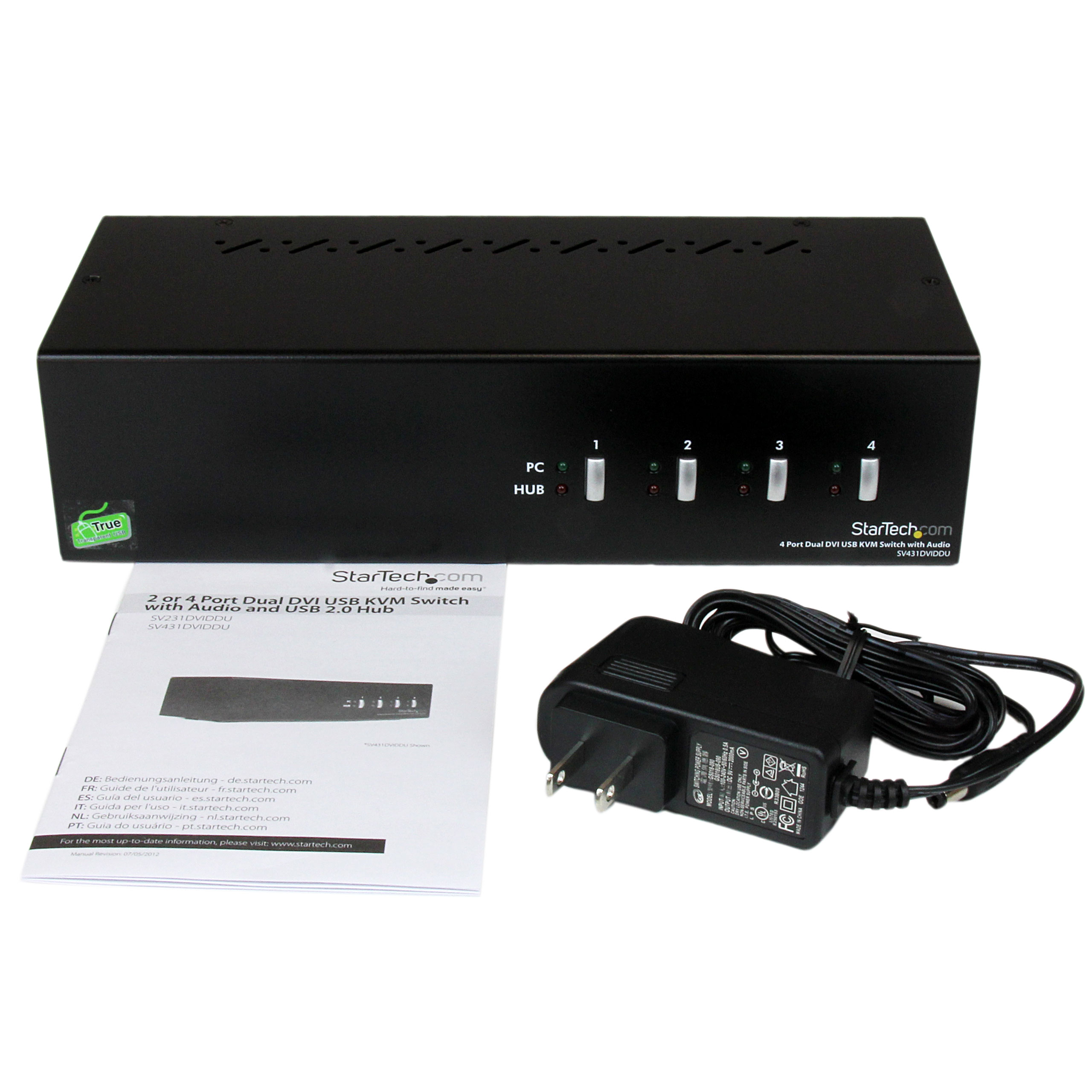

Number of KVM Ports 4 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 620 Carton Height (mm) 310 Carton Quantity 6 Carton Weight Gross (g) 11400 Included in Package - 1 - 4 port Dual DVI KVM Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 162 Package Height (mm) 194 Package Width (mm) 268 Package Quantity 1 Package Weight (g) 1700 Packaging Description 4 Port Dual DVI USB KVM Switch with Audio Packaging Description India 4 Port Dual DVI USB KVM Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 4 Host Connector 2 DVI-I Dual-Link (29-Pin) Host Connector 2 (Quantity) 8 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
