SV431DVIUA
4 Port DVI USB KVM Switch with Audio USB 2 0 Hub
Share keyboard, mouse, speakers and a DVI display between four multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port DVI USB KVM Switch with Audio USB 2 0 Hub Product Number SV431DVIUA UPC 065030824958 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port DVI USB KVM Switch with Audio Product Title (Standard) 4 Port DVI + USB KVM Switch with Audio, KVM switch, USB 2.0 Hub, 2 ports, 1 local user, 1U, TAA Product Title (Long) 4 Port DVI USB KVM Switch with Audio and USB 2.0 Hub - TAA Product Title (AMZ) 4-Port KVM Switch for DVI Computers - 1U Rack-Mount KVM Switch with Audio - DVI KVM switch -2 port - 1U , TAA (SV431DVIUA) Title Ingram (Part 1) 4 Port DVI USB KVM Switch with A Title Ingram (Part 2) udio and USB 2.0 Hub Website Product Headline Share keyboard, mouse, speakers and a DVI display between four multimedia computers Bullet 1 4-port DVI USB KVM switch with audio and microphone switching and 2 x USB 2.0 hub ports Bullet 2 Channel selection/Hub port control by front-panel push buttons Bullet 3 DVI interface technology supports digital video signal transmission Bullet 4 Independent/simultaneous audio & mic channel and PC port selection Bullet 5 USB keyboard and mouse support Bullets (Compact) Share keyboard, mouse, speakers and a DVI display between four multimedia computers - usb kvm switch - DVI KVM Switch - USB DVI KVM Switch Bullets (Consolidated) Share keyboard, mouse, speakers and a DVI display between four multimedia computers - 4 Port DVI USB KVM Switch - 4 Port DVI KVM Switch with Audio - Built-in 4-port USB 2.0 device hub for sharing high-speed USB devices - Perfect for demanding high resolution applications (2560x1600 @60 Hz (Analog) Marketing Copy Applications - Ideal for using desktops, workstations and servers with Flat Panel LCD monitor
- Sharing computers and USB devices in the home/SOHO/multimedia environment
- Switches instantly between PCs
Website Search Keyword - DVI switch
- KVM
- 4 Port
- B004-DUA4-K-R
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - USBDVI4N1A10
- USBDVI4N1A15
- USBDVI4N1A6
- SV431RACK
- SVUSBPOWER
- USB2HAB15
- DVIIDMM6
Related Products - SV231UADVI
- SV431UADVI
- SV431USBAE

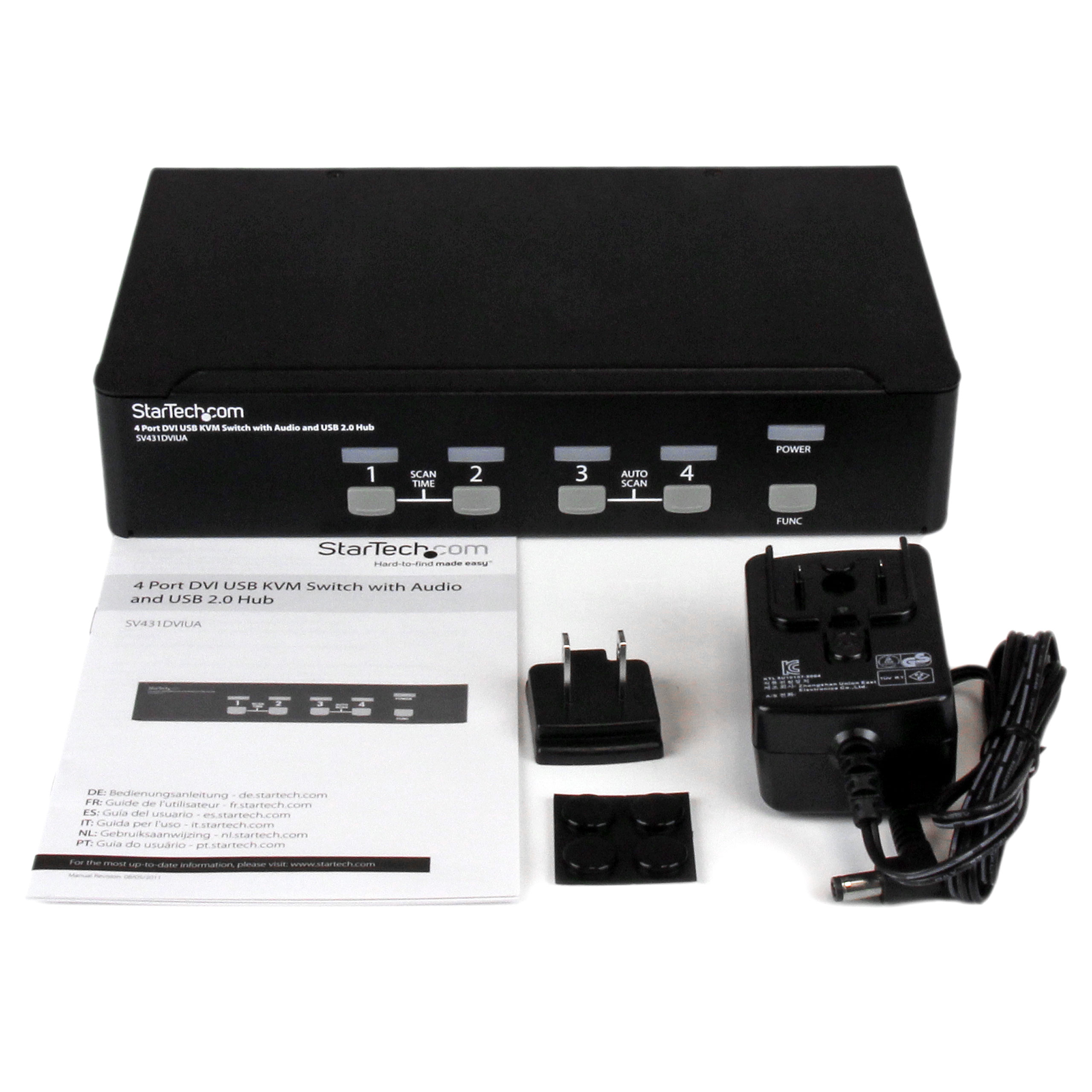

Equivalent Part Number in the UK SV431DVIUAGB Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0%~80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 253 Product Width (mm) 45 Product Height (mm) 115 Product Weight (g) 1034 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 2560x1600 @ 60Hz Maximum Digital Resolutions 1920x1200 @ 60/70Hz Maximum Number of Users 1 MTBF (hours) 136000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Audio Yes Cables Included No CAC Support No Cascadable No Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 546 Carton Height (mm) 257 Carton Quantity 6 Carton Weight Gross (g) 10376 Included in Package - 1 - 4 Port DVI KVM Switch
- 1 - Power Adapter
- 1 - User Manual
- 4 - Rubber Feet
Package Depth (mm) 215 Package Height (mm) 91 Package Width (mm) 414 Package Quantity 1 Package Weight (g) 1526 Packaging Description 4 Port USB DVI KVM Switch with Audio Packaging Description India 4 Port USB DVI KVM Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,JP,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
