Main Image
SV431DVIUAHR
4 Port Dual Link DVI USB KVM Switch with Audio
Control up to 4 high resolution multimedia computers from a single console
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port Dual Link DVI USB KVM Switch with Audio Product Number SV431DVIUAHR UPC 065030831369 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Family DVI Desktop KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port High Res USB DVI Audio KVM Switch Product Title (Standard) 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio Product Title (Long) 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio - TAA Product Title (AMZ) 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio and USB 2.0 Hub (SV431DVIUAHR) Title Ingram (Part 1) 4 Port High Res USB DVI Dual Lin Title Ingram (Part 2) k KVM Switch with Audio Website Product Headline Control up to 4 high resolution multimedia computers from a single console Bullet 1 All metal chassis for long-term durability Bullet 2 Supports dual link DVI resolutions up to 2560x1600 @ 60Hz Bullet 3 Integrated USB 2.0 hub allows you to share up to 3 high-speed USB devices between computers Bullet 4 Compatible with all USB supported Operating Systems Bullet 5 Front panel push button computer selection Bullets (Compact) Control up to 4 high resolution multimedia computers from a single console - USB KVM switch - DVI KVM Switch - USB DVI KVM Switch - DVI Dual Link KVM Bullets (Consolidated) All metal chassis for long-term durability - Supports dual link DVI resolutions up to 2560x1600 @ 60Hz - Up to 3840x2400 supported at lower refresh rates - Integrated USB 2.0 hub - Front panel push button computer selection - HDCP Compliant Marketing Copy Applications - Ideal for switching between desktops, workstations and servers requiring Ultra High resolution displays
- Sharing computers and USB devices in the home/SOHO/multimedia environment
- Switching USB peripherals between connected PC's
- Designed for large and high resolution displays such as Multimedia Display, Apple Cinema Displays, Stock trading setups, and Medical Displays
Website Search Keyword - KVM Switch
- KVM
- 4 Port
- High Resolution
- DVI USB
- Audio
- Dual Link
- B004-DUA4-HR-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Resolutions exceeding 2560x1600 can be obtained by using a lower refresh rate. Example 3840x2400 @30Hz Accessory Products - SV431RACK
- DVID4N1USB6
- DVID4N1USB10
- DVIDDMMBA6
- DVIDDMMTA6
- DVID4N1USB15
- DVIDDMM6
- SVA5N3NEUA
Related Products - SV431USBAE
- SV431USB

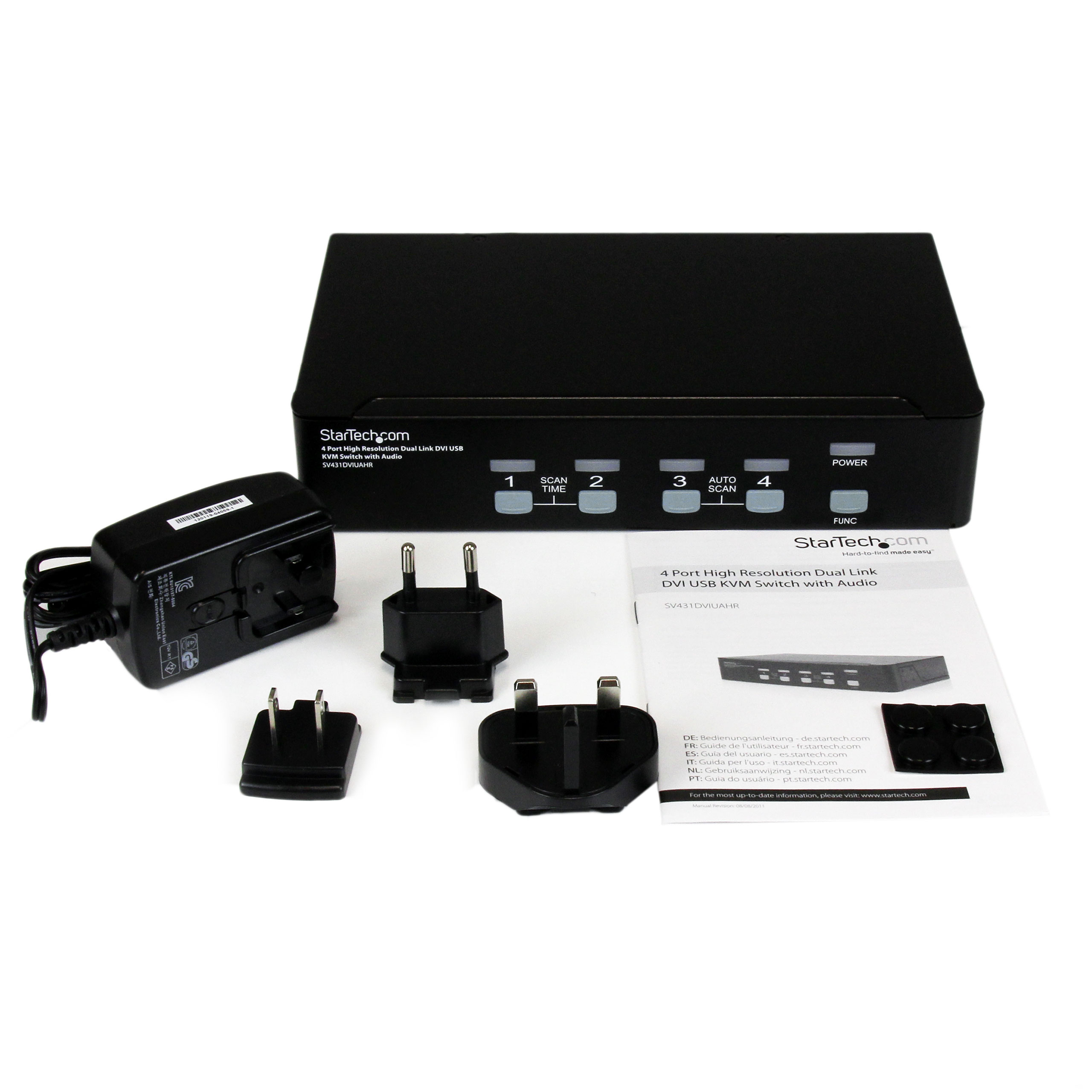

Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 220.000 Product Depth (mm) 130 Product Height (mm) 44.000 Product Weight (g) 1750.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Dual Link General Specifications Hot-Key Selection No KVM IP Control No Maximum Digital Resolutions 2560x1600 @ 60Hz Maximum Number of Users 1 MTBF (hours) 64000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 436 Carton Height (mm) 254 Carton Quantity 6 Carton Weight Gross (g) 10656 Included in Package - 1 - 4 Port Dual Link DVI KVM
- 1 - User Manual
- 1 - Power Adapter
- 1 - Rubber Foot Pad
Package Depth (mm) 217 Package Height (mm) 86 Package Width (mm) 415 Package Quantity 1 Package Weight (g) 1562 Packaging Description 4 Port Dual-Link DVI USB KVM Switch Packaging Description India 4 Port Dual-Link DVI USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
