SV431DVIUAQV
4 Port DVI Quad View KVM Switch

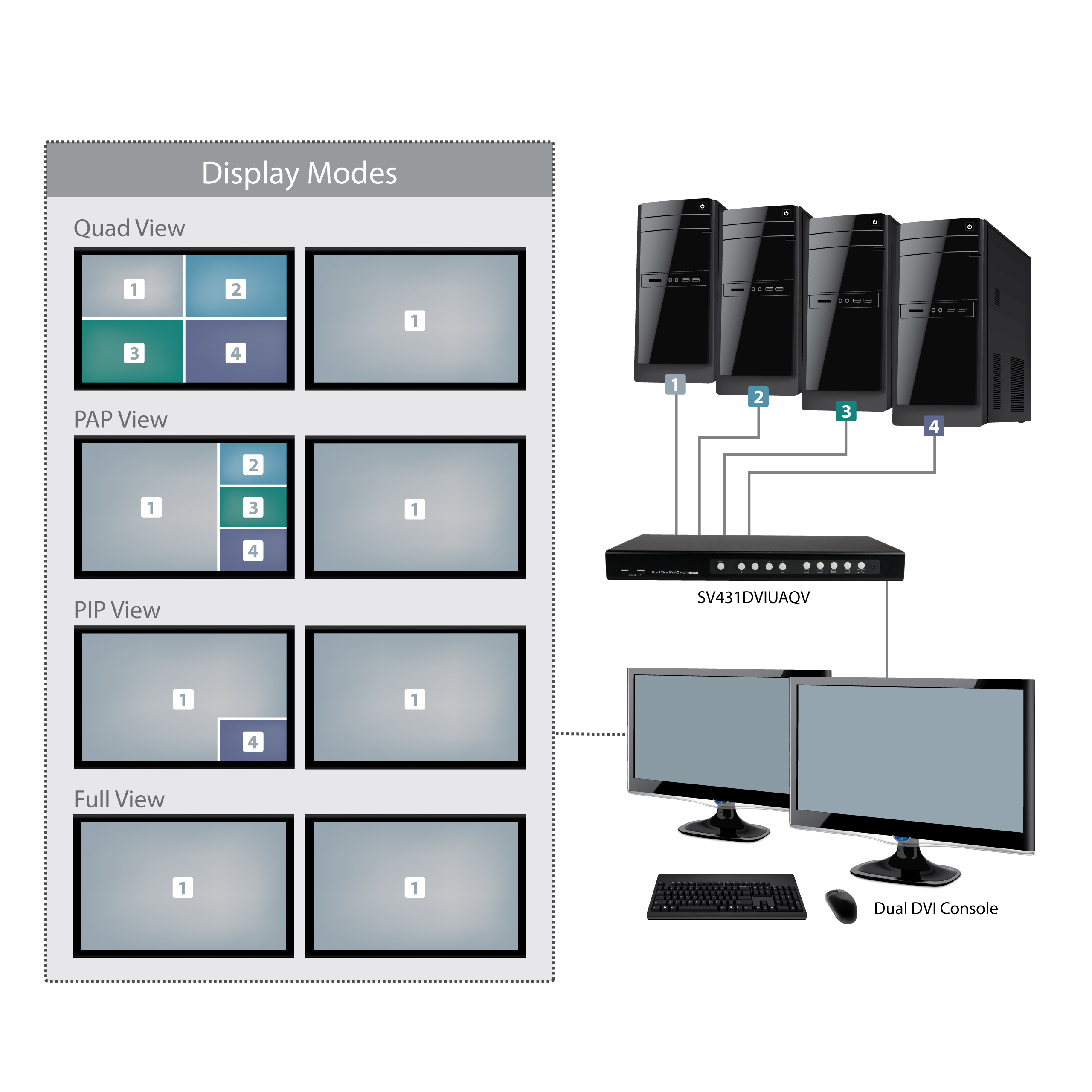

Control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port DVI Quad View KVM Switch Product Number SV431DVIUAQV UPC 065030855228 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 4Pt Quad-View KVM Product Title (Short) 4 Port DVI Quad-View KVM Switch Product Title (Medium) 4 Port DVI USB KVM Switch with Dual DVI Console and Quad-View 4-in-1 Display Product Title (Standard) 4 Port DVI USB KVM Switch with Dual DVI Console and Quad-View 4-in-1 Display Product Title (Long) 4 Port DVI USB KVM Switch with Dual DVI Console and Quad-View 4-in-1 Display Product Title (AMZ) 4 Port DVI USB KVM Switch with Dual DVI Console and Quad View 4-in-1 Display - KVM Switch with Quad Screen Splitter (SV431DVIUAQV) Title Ingram (Part 1) 4Port USB DVI KVM Switch with Title Ingram (Part 2) Quad Screen Splitter Website Product Headline Control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes Bullet 1 Several display modes to choose from, including: Quad-View, PAP, PIP and Full-View Bullet 2 Supports HD resolutions up to 1920x1200 Bullet 3 Includes KVM Cables (DVI / USB / Audio) Bullet 4 Integrated 2-port USB 2.0 hub Bullet 5 Rack-mountable 1U design Bullets (Compact) Control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes - 4 Port DVI USB KVM Switch with Dual DVI Console and Quad-View 4-in-1 Display - KVM Switch with Quad Screen Splitter Bullets (Consolidated) Control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes - 4 Port DVI USB KVM Switch with Dual DVI Console and Quad-View 4-in-1 Display - KVM Switch with Quad Screen Splitter - Picture in Picture KVM Switch - Supports HD resolutions up to 1920x1200 - Includes KVM Cables Marketing Copy Applications - Use in test labs, help desks and office environments where visibility of multiple systems is required
- Perfect for monitoring multiple PC-based security systems simultaneously
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - DVIDDMM10
- USB2HAB10
- MU10MMS
- SVA12M5NA
Related Products - SV431TDVIUA
- SV231TDVIUA
- SV231QDVIUA
- SV431DLU3A
- SV431DVIUDDM
Input Current 1.8 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 60 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 438.000 Product Width (mm) 200.000 Product Height (mm) 44.000 Product Weight (g) 2480.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Audio Yes Cables Included Yes Cascadable Yes LED Indicators - 4 - PC Selection indicators
- 4 - Display Mode indicators

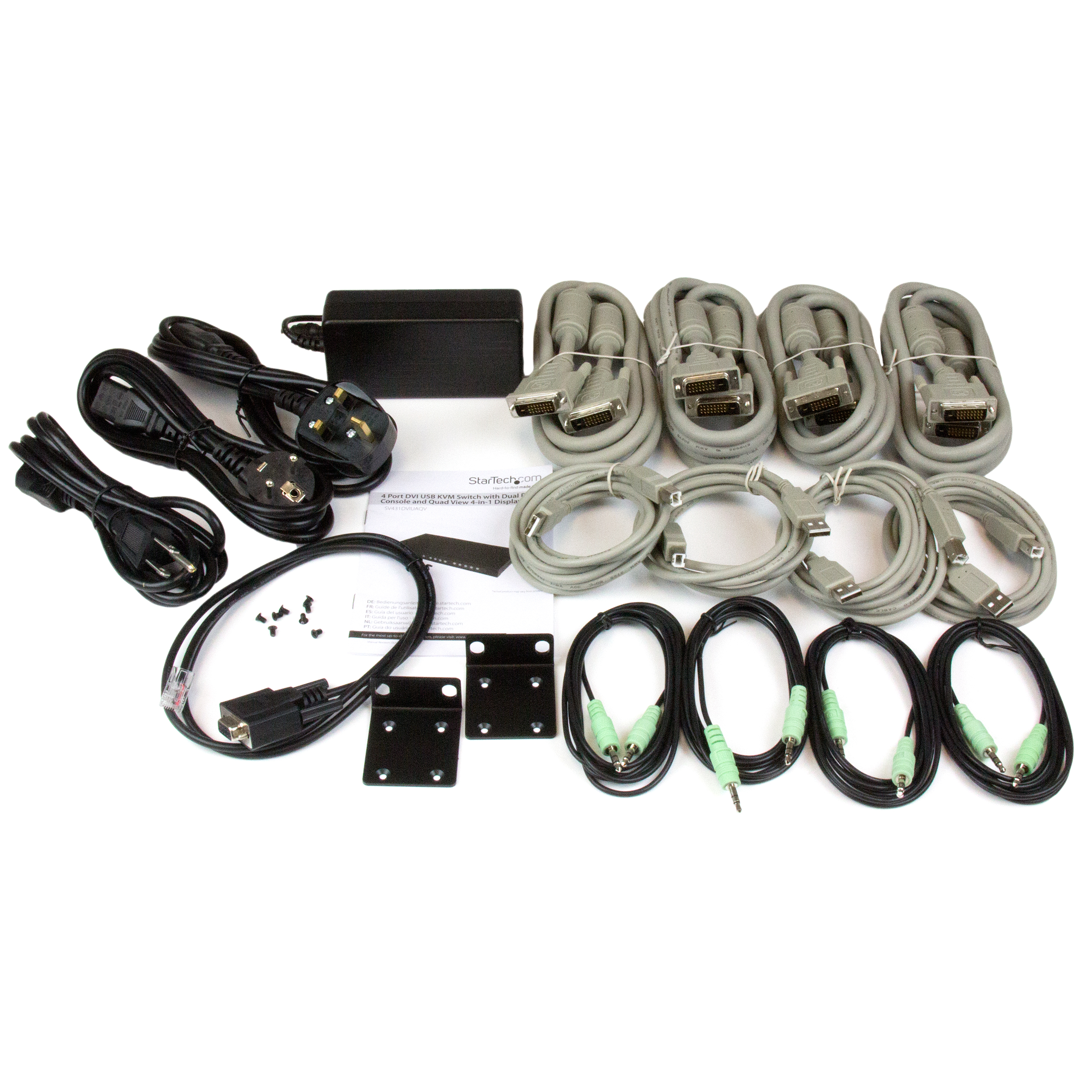

Number of KVM Ports 4 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 419 Carton Height (mm) 120 Carton Quantity 2 Carton Weight Gross (g) 6050 Included in Package - 1 - DVI USB Quad View KVM Switch
- 4 - DVI Cables
- 4 - USB A-B Cables
- 1 - Upgrade Cable
- 2 - Rack Mount Brackets
- 1 - Power Adapter
- 3 - Power Cords (NA / UK / EU)
- 4 - 3.5mm Audio Cables

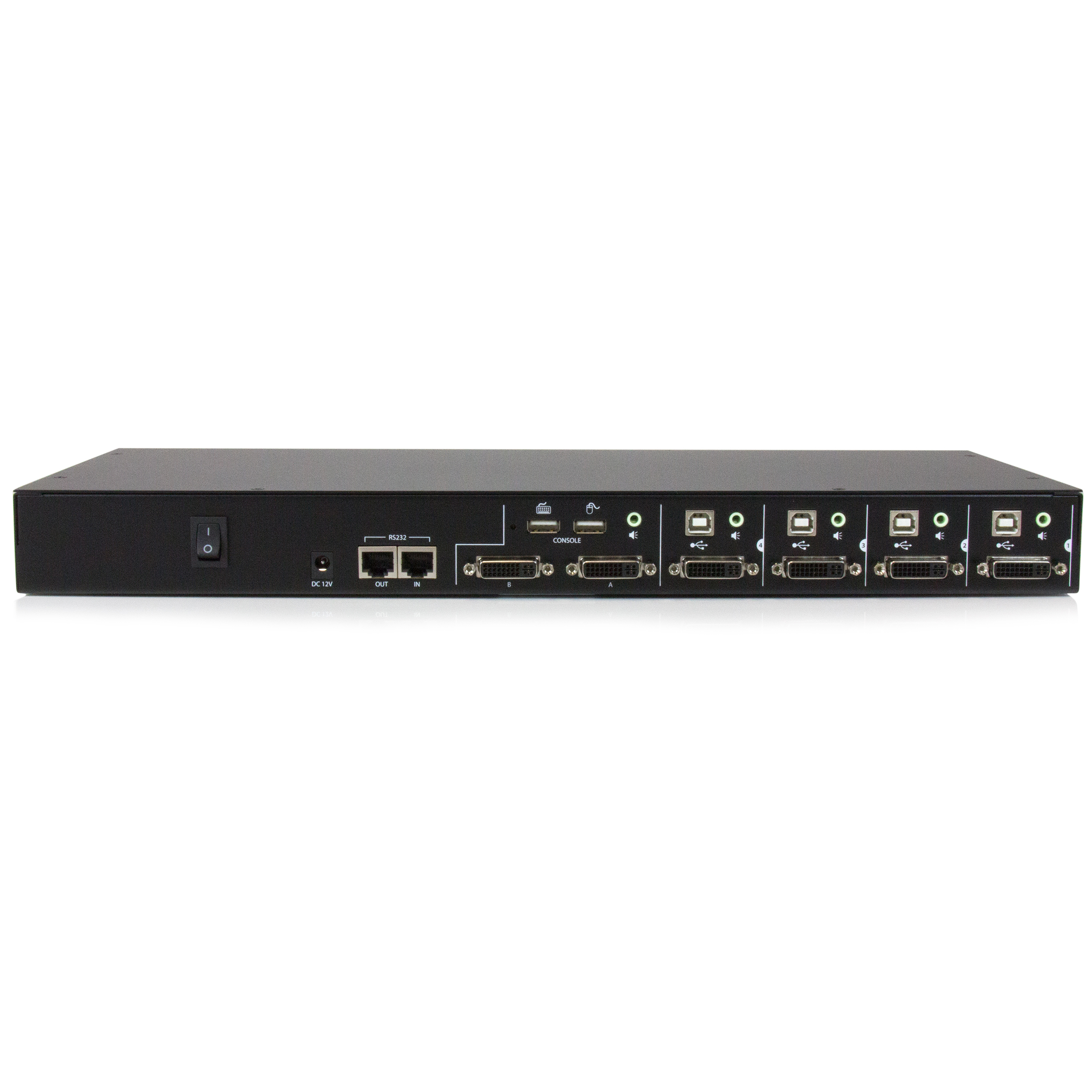

Package Depth (mm) 419 Package Height (mm) 120 Package Width (mm) 502 Package Quantity 1 Package Weight (g) 6050 Packaging Description 4 Port DVI USB KVM Switch with 4-in-1 Quad View Packaging Description India 4 Port DVI USB KVM Switch with 4-in-1 Quad View Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 2 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 2 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 1 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-25 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
