Main Image
SV431DVIUDDM
4 Port DVI KVM Switch w/ DDM Fast Switching
Control 4 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port DVI KVM Switch w/ DDM Fast Switching Product Number SV431DVIUDDM UPC 065030858199 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 4Pt USB DVI KVM DDM Product Title (Short) 4 Port USB DVI KVM Switch with DDM Product Title (Medium) 4 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables Product Title (Standard) 4 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables Product Title (Long) 4 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables Product Title (AMZ) 4 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables - Four Port DVI USB KVM Switch - DDM KVM Switch (SV431DVIUDDM) Title Ingram (Part 1) 4Port DVI USB KVM Switch Title Ingram (Part 2) with Cables - USB DDM Switch Website Product Headline Control 4 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time Bullet 1 USB DDM technology and Dual-Core design for lag-free switching Bullet 2 Supports HD resolutions up to 1920x1200 Bullet 3 Supports DDC copy and emulation to all ports Bullet 4 Includes four 6ft KVM Cables (USB/DVI) Bullet 5 Integrated 2-port USB 2.0 hub Bullets (Compact) Control 4 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time - 4 Port USB DVI KVM Switch with DDM Fast Switching Technology - Four Port DVI USB KVM Switch - DDM KVM Switch - Cables Included Bullets (Consolidated) Control 4 DVI USB-equipped PCs with a single peripheral set with USB Dynamic Device Mapping to avoid switching lag-time - 4 Port USB DVI KVM Switch with DDM Fast Switching Technology - Four Port DVI USB KVM Switch - DDM KVM Switch - Cables Included - Supports HD resolutions up to 1920x1200 - Integrated 2 port USB 2.0 hub Marketing Copy Marketing Copy (No HTML) Applications - Control 4 USB-enabled computers using a single keyboard, mouse, and DVI monitor
- Use in call centers, help desks, education, and home office environments to control multiple systems
- Ideal for financial/banking industries, graphic designers, multimedia applications and industries using CAD/CAM applications
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - DVIDDMM10
- DVIDDMM15
- USB2HAB10
- USB2HAB15
- SVA5M3NEUA
Related Products - SV231DVIUDDM
- SV431USBDDM
- SV231USBDDM
- SV431DLU3A
- SV231DLU3A
- SV231DD2DUA
Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2.0A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 66.000 Product Width (mm) 138.000 Product Height (mm) 22.000 Product Weight (g) 1150.000 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included Yes Cascadable No LED Indicators - 4 - PC Selection Indicators
- 4 - Hot-Key Selection Indicators

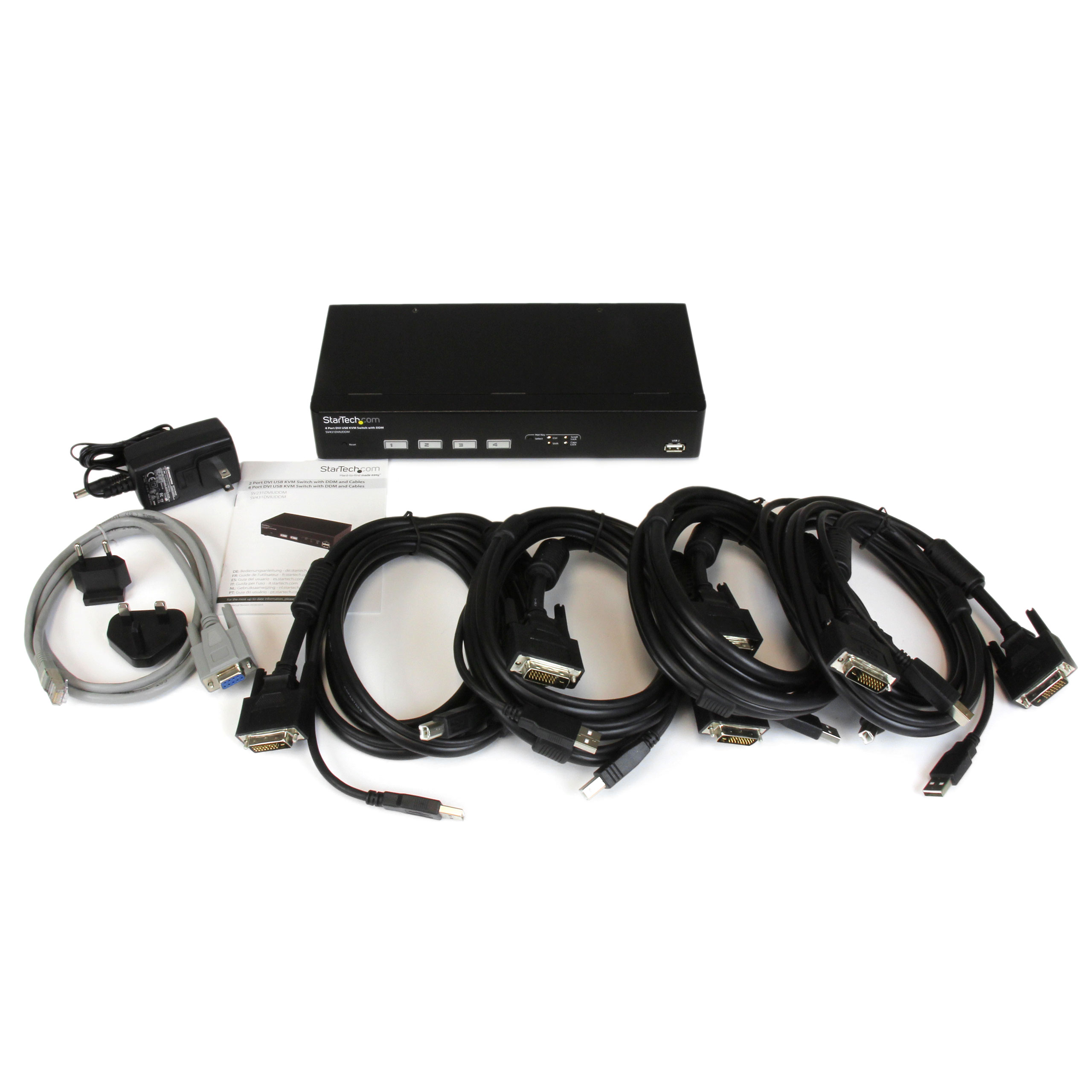

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 434 Carton Height (mm) 386 Carton Quantity 6 Carton Weight Gross (g) 22308 Included in Package - 1 - KVM Switch
- 4 - 6ft DVI-D USB KVM Cables
- 1 - Firmware Upgrade Cable
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 254 Package Height (mm) 134 Package Width (mm) 352 Package Quantity 1 Package Weight (g) 3420 Packaging Description 4 Port DVI KVM w/ DDM Fast Switching and Cables Packaging Description India 4 Port DVI KVM w/ DDM Fast Switching and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-08-07 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
