SV431HDU3A
4 Port HDMI KVM Switch w/ USB 3.0 Hub & Cables
Control 4 HDMI®, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port HDMI KVM Switch w/ USB 3.0 Hub & Cables Product Number SV431HDU3A UPC 065030854481 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - HDMI KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Ultra-Short) 4Pt USB 3 HDMI KVM Product Title (Short) 4 Port USB 3.0 HDMI KVM Switch w/ Cables Product Title (Standard) 4 Port SuperSpeed USB 3.0 HDMI KVM Switch with Audio and Cables Product Title (Long) 4 Port SuperSpeed USB 3.0 HDMI KVM Switch with Audio and Cables Product Title (AMZ) 4 Port SuperSpeed USB 3.0 HDMI KVM Switch with Audio and Cables - USB 3 KVM Switch - HDMI USB KVM with Audio - Full 1080p (SV431HDU3A) Title Ingram (Part 1) 4Port USB 3 HDMI KVM Switch Title Ingram (Part 2) w/ USB 3.0 Hub Audio & Cables Website Product Headline Control 4 HDMI®, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Integrated USB 3.0 (5 Gbps) hub Bullet 2 Hot-key and front-panel push buttons for easy computer selection Bullet 3 Video, audio and USB cables included Bullet 4 USB keyboard and mouse console connections Bullet 5 Supports Full 1080p resolution Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 3.0 hub and Mic/Audio allows the user to have full multimedia control of two computers and share USB peripherals in a home or office
- Control four HDMI USB computers with a single set of console peripherals (Keyboard, Mouse, and Monitor)
Website Search Keyword - hdmi kvm
- HDMI KVM switch
- 4 port kvm switch
- 4 port kvm
- 4 port hdmi kvm switch
- kvm usb 3.0
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - USB3SAB10
- USB3SAB10BK
- MU10MMS
- HDMIMM10HS
- HDMIMM10FL
Related Products - SV231HDU3A
- SV231U3A
- SV231DLU3A
- SV431DLU3A
- SV431DPU3A
- SV431U3A
- SV231DPU3A
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 255 Product Width (mm) 102 Product Height (mm) 45 Product Weight (g) 1000 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 1920 x 1080 MTBF (hours) 126,695 Hours OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 4 - PC Selection Indicator
- 4 - Hub selection indicator

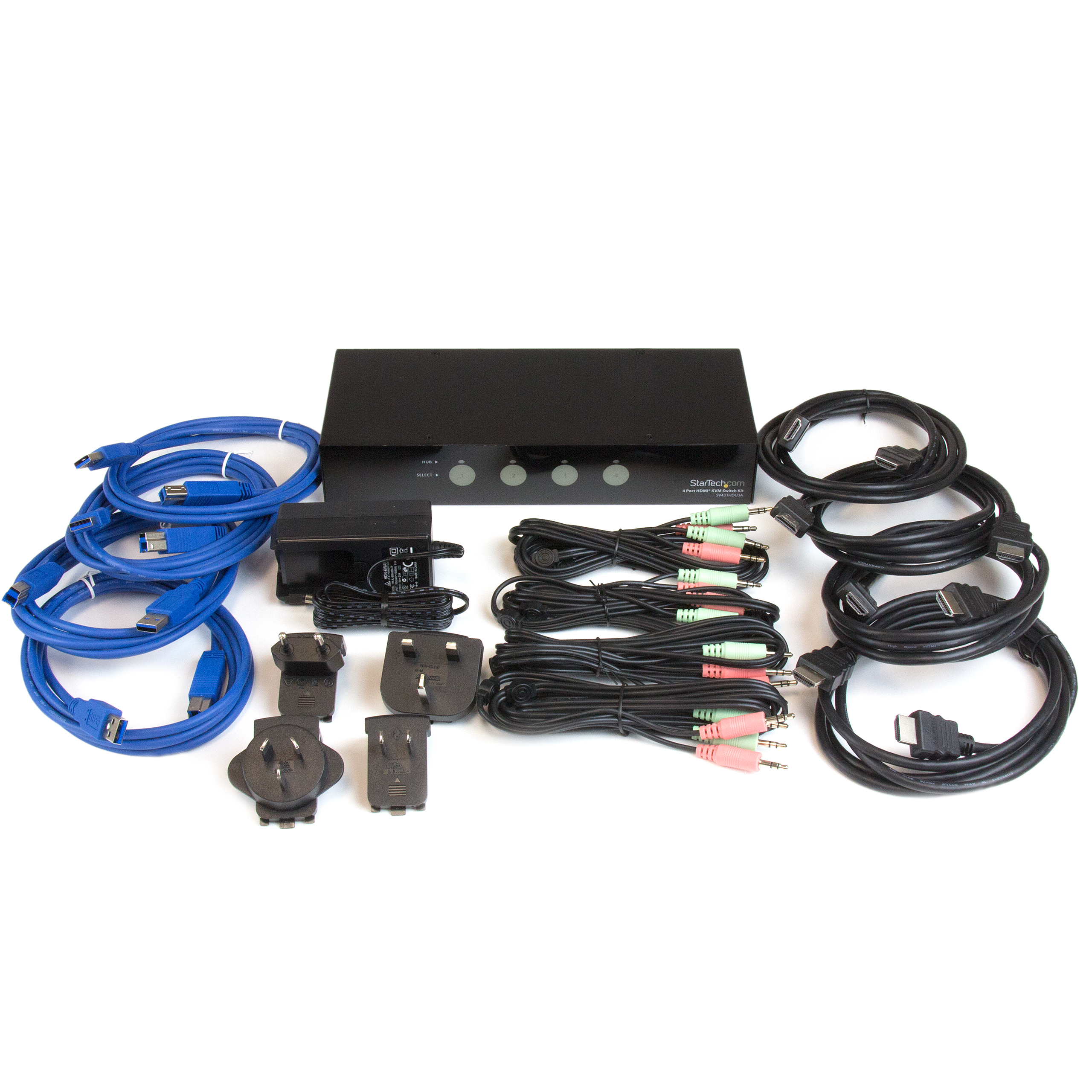

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 495 Carton Height (mm) 213 Carton Quantity 6 Carton Weight Gross (g) 15200 Included in Package - 1 - 4 Port USB 3.0 KVM Switch
- 4 - HDMI M/M Cables
- 4 - USB 3.0 A-B Cables
- 4 - 3.5mm Audio/Mic Cables
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 160 Package Height (mm) 191 Package Width (mm) 268 Package Quantity 1 Package Weight (g) 2400 Packaging Description 4 Port HDMI® KVM w/ USB 3.0 Hub, Audio and Cables Packaging Description India 4 Port HDMI® KVM w/ USB 3.0 Hub, Audio and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
