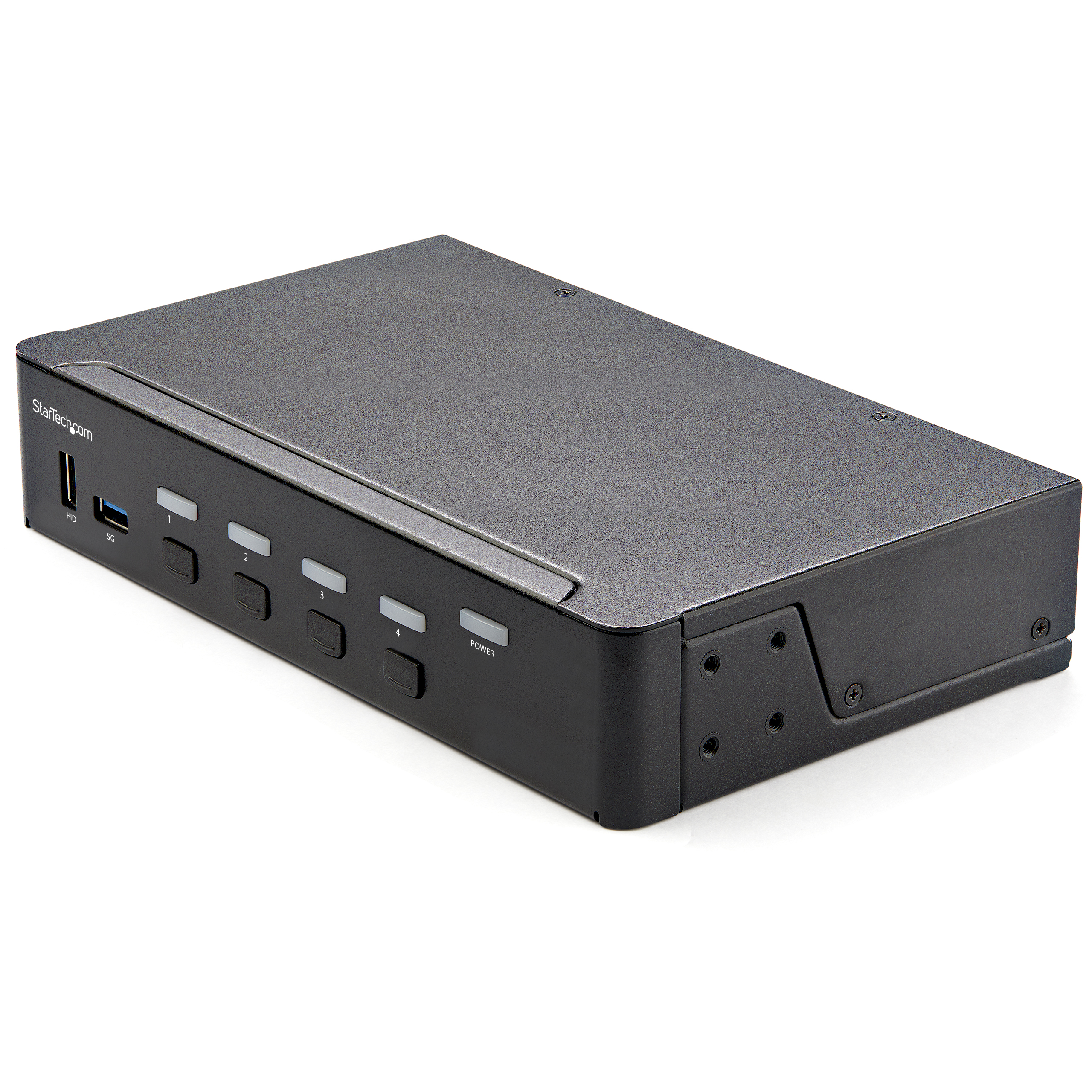

Main Image
SV431HU34K6
4 Port HDMI 4K60 KVM w Audio and USB 3 0 Hub
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio
Main Image

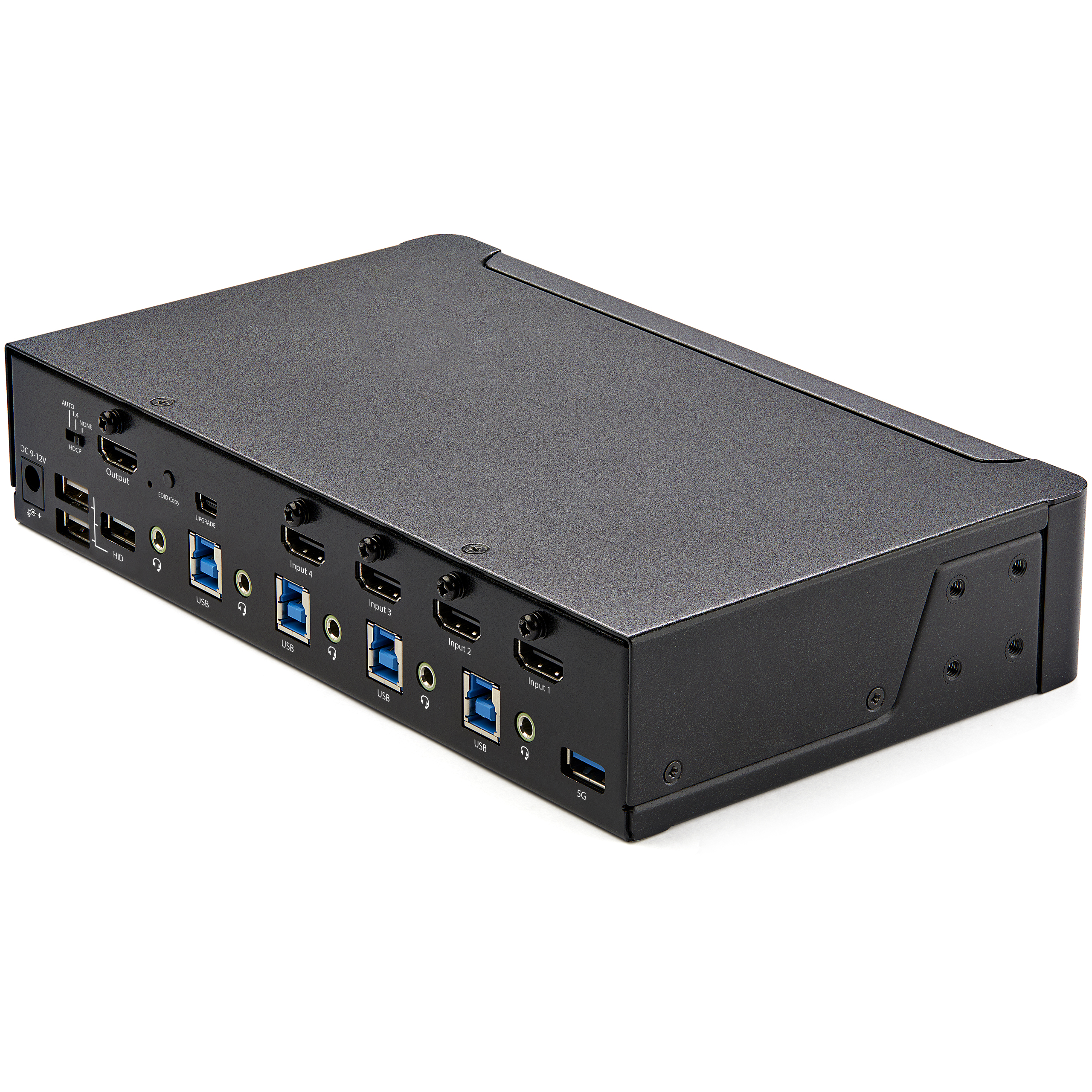

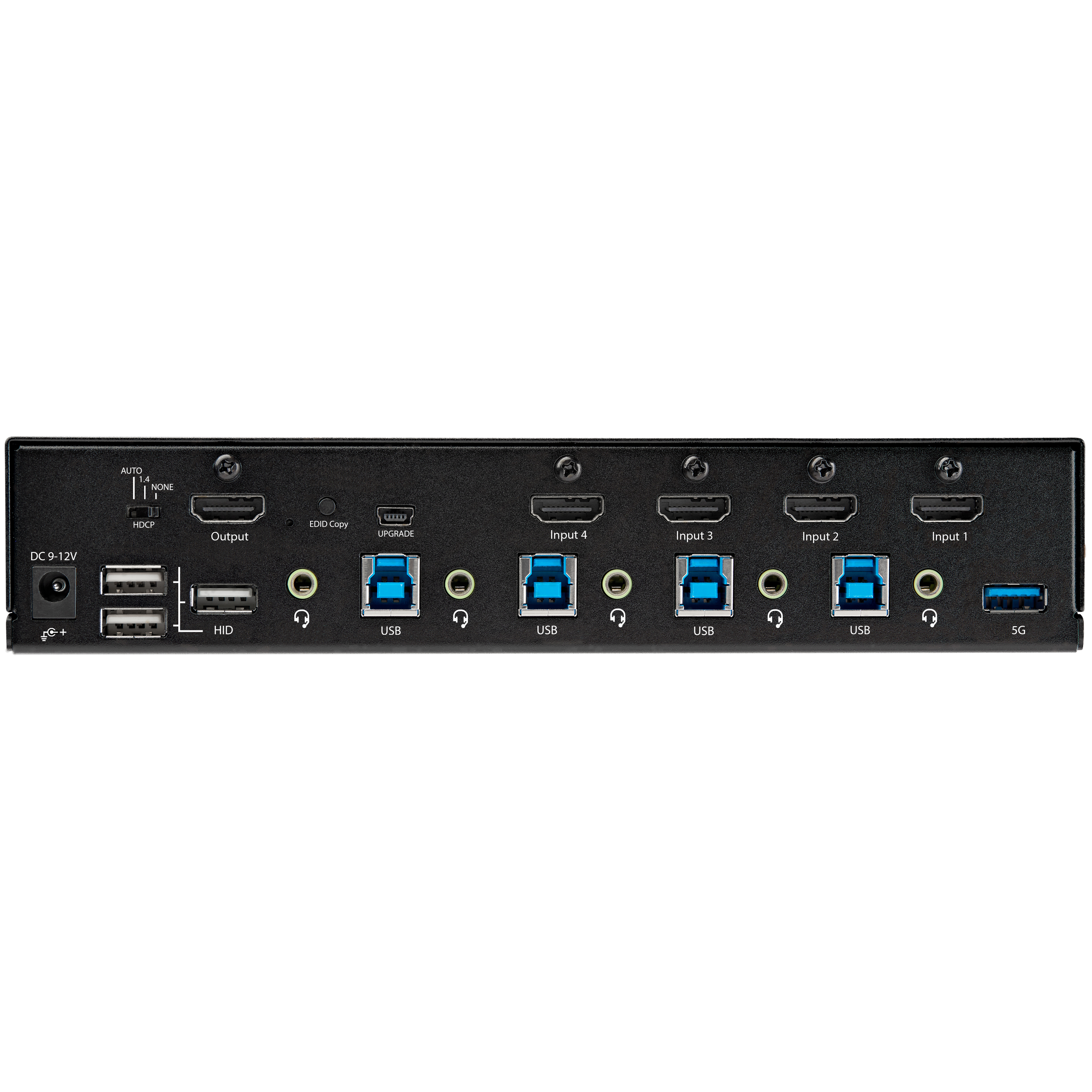

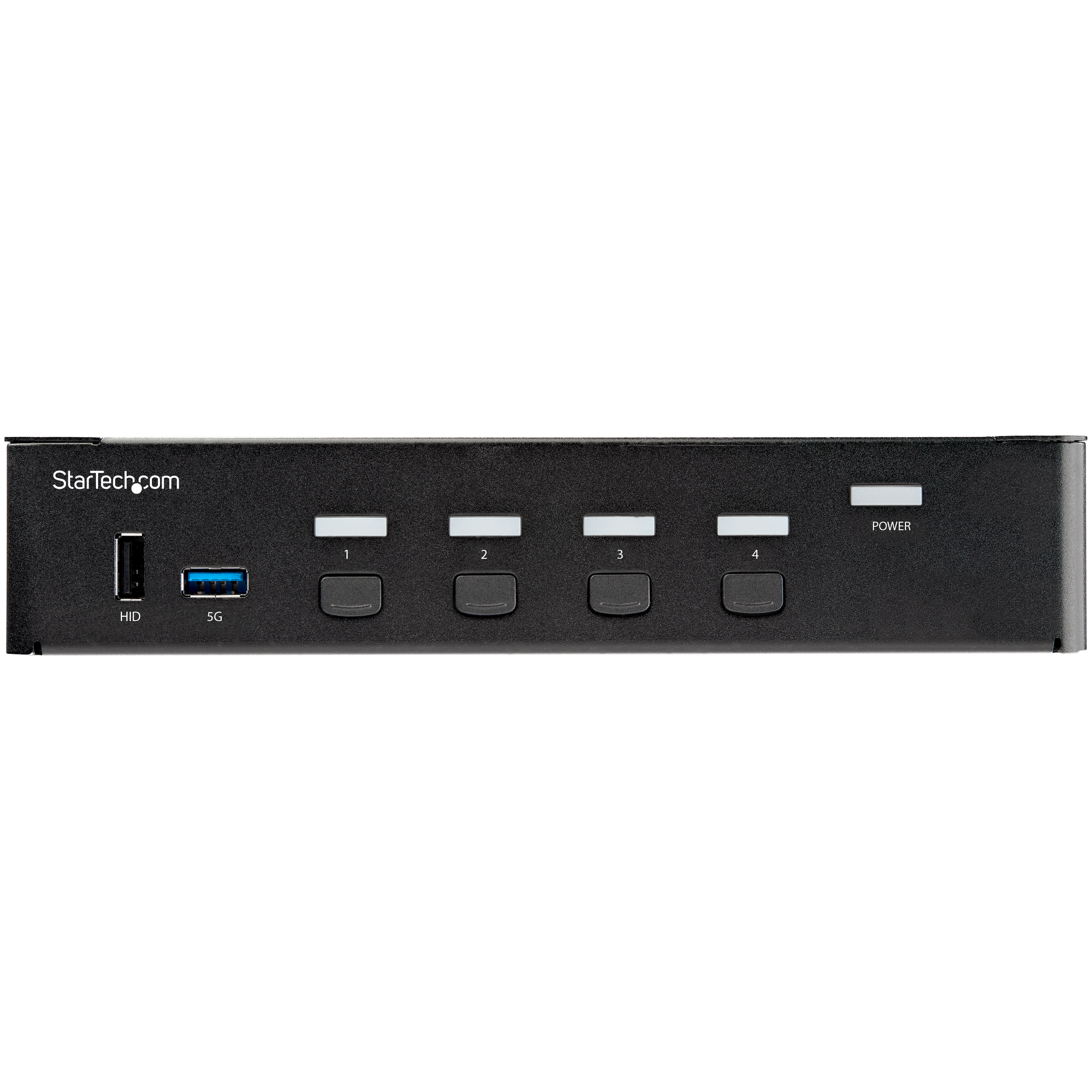

Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 4 Port HDMI 4K60 KVM w Audio and USB 3 0 Hub Product Number SV431HU34K6 UPC 065030882019 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - HDMI KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4 Pt HDMI KVM Switch Product Title (Short) 4 Port HDMI KVM Switch 4K 60Hz w/USB Hub Product Title (Medium) 4 Port HDMI KVM Switch Product Title (Standard) 4 Port HDMI KVM Switch 4K 60Hz UHD HDR, HDMI 2.0 Single Monitor, 2 Port USB 3.0 Hub, 4x USB HID, Audio, Hotkey Switching, TAA Product Title (Long) 4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching - TAA Product Title (AMZ) 4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching - TAA Title Ingram (Part 1) 4 Pt HDMI KVM Switch Title Ingram (Part 2) 4K 60Hz Ultra HD Website Product Headline KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio Bullet 1 4K 60Hz UHD: 4 Port HDMI KVM switch supports up to 4K at 60Hz on one monitor for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo Bullet 2 FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 4 computers Bullet 3 TECH SPECS: 4-Port HDMI 2.0 | 3840 x 2160 | HDCP 2.2 | HDR10 Support | 2 Port USB 3.0 Hub (5Gbps)| 4x USB HID | Hotkey, Push Buttons | Stereo Analog + 7.1 Digital Audio | EDID & HDCP Emulation | OS Independent Bullet 4 USER-FRIENDLY: KVM switch with compact & durable steel housing featuring easily accessible buttons & front-mounted integrated USB switch (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers Bullet 5 STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years; This KVM (Keyboard, Video/Monitor, Mouse) Switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) 4 Port HDMI KVM Switch with 2 Port USB 3.0 Hub 5Gbps - Hotkey/Push Button - Ultra HD 4K 60Hz HDR10 HDMI 2.0 (3840x2160) - HDCP 2.2 - EDID, HDCP Emulation - Front Facing USB 3.0 Port - 4x USB HID - 2 or 7.1ch Audio - OS Independent - 2 Year Warr - TAA Bullets (Consolidated) 4 Port HDMI KVM Switch with hotkey and manual switching - Fast Switching between 4 systems with HDMI 2.0 and USB 3.0 Hub from 1 console - Up to 4K 60Hz on 1 monitor w/ EDID and HDCP emulation - HDMI 2.0 | 3840x2160 60Hz | 4K 60Hz HDR10 | 2 Port USB 3.0 Hub | 4x USB HID | HDCP 2.2 | 2ch or 7.1ch Audio | Hotkey + Push Button | OS Independent - Keyboard Video Mouse Switch with durable steel housing | Front-facing USB 3.0 Port 5Gbps (USB 3.1 /3.2 Gen 1) - TAA | StarTech.com 2-year warranty Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - HDMM1MP
- HDMM2MP
- HDMM3MP
- USB3CAB1M
- USB3CAB2M
- USB3SAB10BK
- USB31CB1M
- USB315CB2M
- USB2CB3M
- HDMIDVIFM
- HDMIDVIMF
- DP2HD4K60H
Related Products - SV211HDUA4K
- SV231HU34K6
- SV231DHU34K6
- SV231TDPU34K
- SV431DD2DU3A
- SV431DL2DU3A
- SV431RACK
Constrained SKU Alternatives (Limited Stock) SV431HDU3A2 Input Current 1.0A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0%~80% Material Steel Operating Temperature 0℃~40℃ Product Length (mm) 220.000 Product Width (mm) 130.000 Product Height (mm) 44.000 Product Weight (g) 1088.000 Storage Temperature -10℃~60℃ TAA Compliant Yes Audio Specifications - HDMI - 7.1 Channel Audio
- HDMI - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 3, 8, 15 & 30 seconds Hot-Key Selection Yes KVM IP Control No Maximum Number of Users 1 MTBF (hours) 143 000 hrs On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions 3840 x 2160 @60Hz Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Chipset ID Genesys Logic - GL3523 LED Indicators - 1 - Green (Power)
- 4 - Green (PC Power/Sync)
- 4 - Red (Selected Host)
Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable Optional Supported Platforms USB 3.2 Gen 1 (5Gbps) U Height 1U Carton Depth (mm) 553 Carton Height (mm) 255 Carton Quantity 6 Carton Weight Gross (g) 11990 Included in Package - 1 - KVM Switch
- 1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
- 4 - Rubber Feet
- 1 - Quick-Start Guide
Package Depth (mm) 215 Package Height (mm) 89 Package Width (mm) 411 Package Quantity 1 Package Weight (g) 1796 Packaging Description 4-Port USB 3.0 KVM Switch - HDMI - 4K 60Hz Packaging Description India 4-Port USB 3.0 KVM Switch - HDMI - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Mini-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 USB-A (1.5Mbps, 2.5W) Connector 5 (Quantity) 4 Host Connector 1 HDMI Host Connector 1 (Quantity) 4 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 4 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 4 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-09-10 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2021-03-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-05-07 Target Production Release 2020-09-10 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
