SV431U3A
4Port USB 3 VGA KVM Switch with Cables and Audio
Control 4 VGA, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 4Port USB 3 VGA KVM Switch with Cables and Audio Product Number SV431U3A UPC 065030854498 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Ultra-Short) 4Pt USB3 VGA KVM Swt Product Title (Short) 4 Port USB 3 VGA KVM Switch Audio Cables Product Title (Standard) 4 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio and Cables Product Title (Long) 4 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio and Cables Product Title (AMZ) 4 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio - Cables Included - 4 Port USB 3 KVM Switch Kit (SV431U3A) Title Ingram (Part 1) 4Port USB 3 VGA KVM Switch with Title Ingram (Part 2) Cables and Audio Website Product Headline Control 4 VGA, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Integrated USB 3.0 (5 Gbps) hub Bullet 2 Hot-key and front-panel push buttons for easy computer selection Bullet 3 Video, audio and USB cables included Bullet 4 USB keyboard and mouse console connections Bullet 5 Supports resolutions up to 2048x1536 Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 3.0 hub and Mic/Audio allows the user to have full multimedia control of two computers and share USB peripherals in a home or office
- Control four VGA USB computers with a single set of console peripherals (Keyboard, Mouse and Monitor)
Accessory Products - MXT101MMHQ10
- MXT101MMHD10
- USB3SAB10
- USB3SAB10BK
- MU10MMS
- SVA9M2NEUA
Related Products - SV431DPU3A
- SV231HDU3A
- SV431DLU3A
- SV231DLU3A
- SV431HDU3A
- SV231U3A
- SV231DPU3A
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 254 Product Width (mm) 102 Product Height (mm) 45 Product Weight (g) 938 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Cable Length (mm) 10000 MTBF (hours) 183,411 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 4 - PC Selection Indicator
- 4 - Hub selection indicator

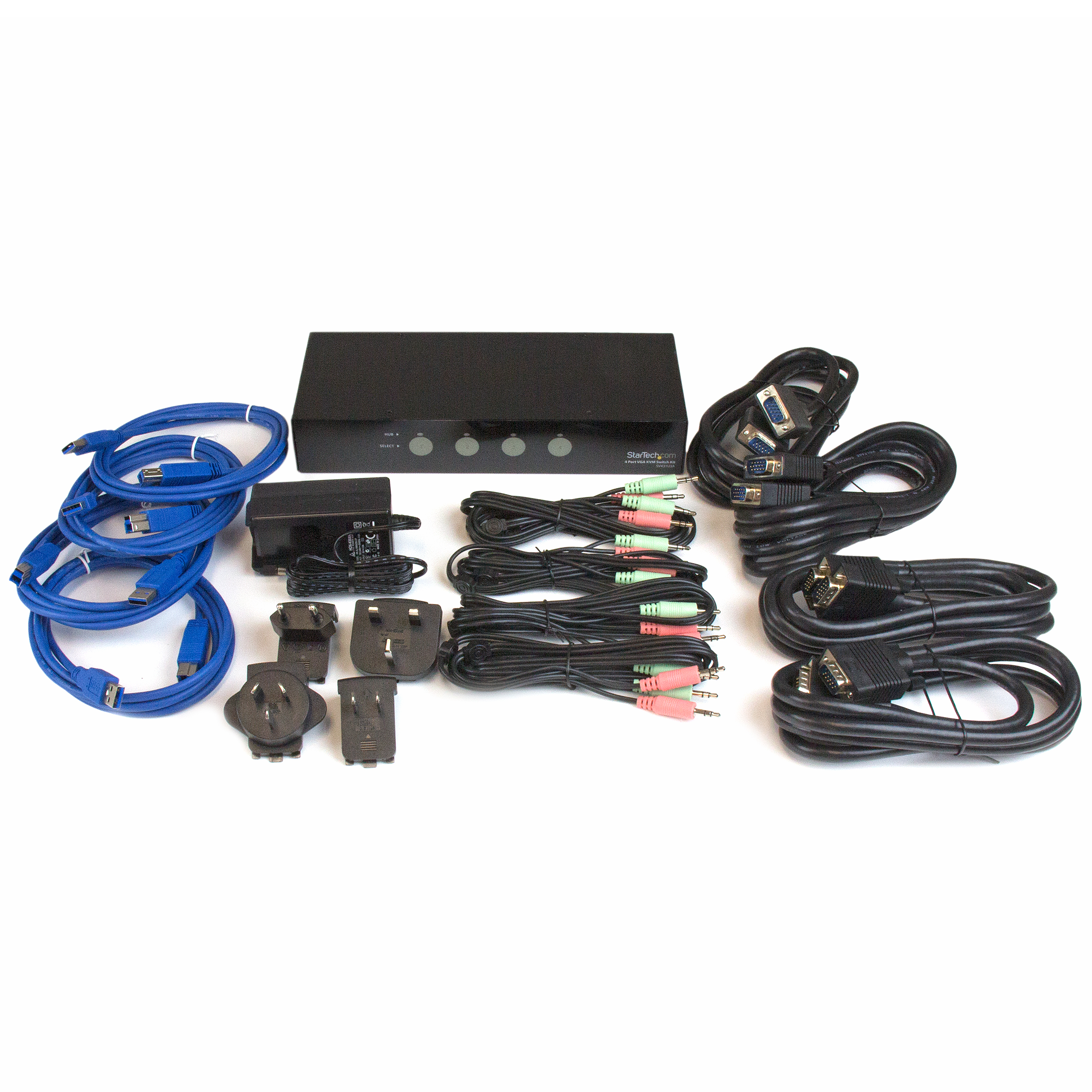

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 495 Carton Height (mm) 213 Carton Quantity 6 Carton Weight Gross (g) 20000 Included in Package - 1 - 4 Port USB 3.0 KVM Switch
- 4 - VGA M/M Cables
- 4 - USB 3.0 A-B Cables
- 4 - 3.5mm Audio/Mic Cables
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 191.5 Package Height (mm) 160 Package Width (mm) 270 Package Quantity 1 Package Weight (g) 3127 Packaging Description 4 Port VGA KVM w/ USB 3.0 Hub, Audio and Cables Packaging Description India 4 Port VGA KVM w/ USB 3.0 Hub, Audio and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-08 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
