SV431USBAE
4 - port StarView USB KVM Switch With Audio
Share keyboard, mouse, speakers and a VGA display between four multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 4 - port StarView USB KVM Switch With Audio Product Number SV431USBAE UPC 065030826778 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - VGA KVMs Family VGA Desktop KVMs with audio Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port USB KVM Switch & USB 2.0 Hub Product Title (Standard) StarTech.com 4 Port Rack Mountable USB KVM Switch With Audio and USB 2.0 Hub - KVM / audio / USB switch - USB - 4 ports - Rack Mountable - 1 local user - 1U Product Title (Long) 4 Port Rack Mountable USB KVM Switch with Audio & USB 2.0 Hub - TAA Product Title (AMZ) 4 Port Rack Mountable USB KVM Switch with Audio & USB Hub - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop (SV431USBAE) Title Ingram (Part 1) 4 Port Rack Mountable USB KVM Sw Title Ingram (Part 2) itch with Audio & USB Hub Website Product Headline Share keyboard, mouse, speakers and a VGA display between four multimedia computers Bullet 1 Designed for high-resolution applications: up to 1920x1440 pixels supported Bullet 2 All metal chassis for long-term durability Bullet 3 Integrated USB 2.0 hub allows you to share up to four high-speed USB devices between computers Bullet 4 Audio switching with microphone and speaker connectivity Bullet 5 Auto-scan function automatically selects computer sequentially Bullets (Compact) Share keyboard, mouse, speakers and a VGA display between four multimedia computers - USB KVM switch - 4 port KVM switch - VGA KVM switch - Rackmount KVM Bullets (Consolidated) Share keyboard - mouse - speakers and a VGA display between four multimedia computers - USB KVM Switch - 4 Port KVM Switch - KVM Switch - Rack Mount KVM - 4-Port Rack Mountable USB KVM Switch with Audio and USB Hub - Supports Resolutions up to 1920x1440 Marketing Copy Applications - Control up to four computers, sharing a single keyboard, mouse, monitor and speakers.
- Integrated USB 2.0 hub allows you to share up to three USB peripherals between the four computers.
Website Search Keyword - USB KVM
- Audio
- 4 Port
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SVUSB2N1_15
- MXT101HQ
- MXT101HQ3
- SVUSB2N1_6
- SVUSB2N1_10
- MXT101HQ10
- SVUSBPOWER
- SV431RACK
- SVA5N3NEUA
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - SV431H
- SV231USB
- SV231USBA
- SV431USBA
- SV231USBAN
- SV215MICUSBA

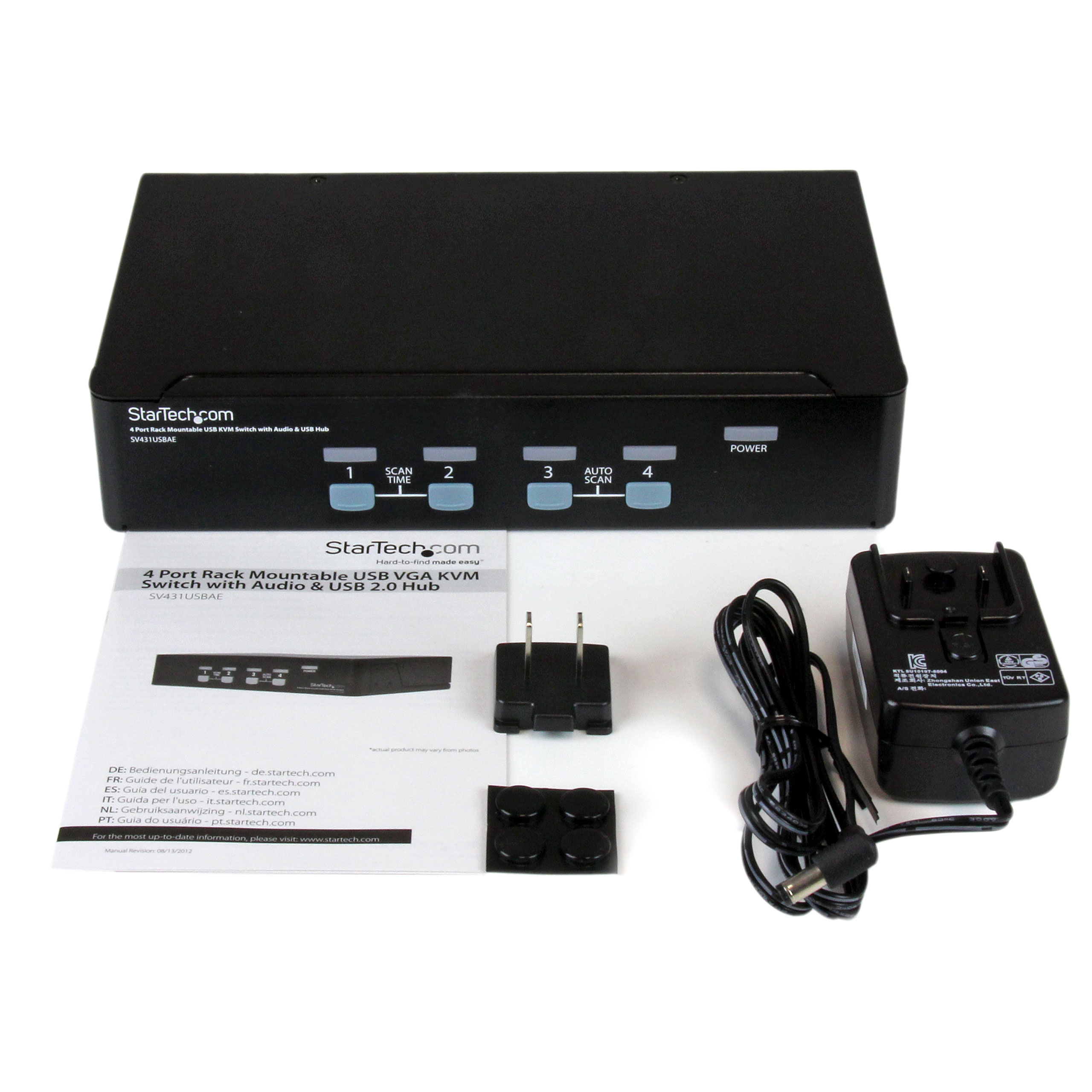

Constrained SKU Alternatives (Limited Stock) SV431USB Equivalent Part Number in the UK SV431USBAEGB Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0 - 80 % Material Steel Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Primary Material Steel Product Length (mm) 220.000 Product Width (mm) 130.000 Product Height (mm) 44.500 Product Weight (g) 1004.000 Storage Temperature –10°C ~ 60°C (14°F ~ 140°F) TAA Compliant Yes DVI Support No Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1920x1440 Maximum Number of Users 1 MTBF (hours) 136000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Audio Yes Cables Included No Cascadable No Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Optional Supported Platforms USB U Height 1U Carton Depth (mm) 442 Carton Height (mm) 256 Carton Quantity 6 Carton Weight Gross (g) 10334 Included in Package - 1 - 4 Port USB KVM Switch With Audio
- 1 - Manual
- 1 - Power Adapter
- 1 - Pack Rubber Feet
Package Depth (mm) 90 Package Height (mm) 215 Package Width (mm) 412 Package Quantity 1 Package Weight (g) 1516 Packaging Description 4 Port USB VGA KVM Switch w/ Audio & USB Hub Packaging Description India 4 Port USB VGA KVM Switch w/ Audio & USB Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CL,CO,MX,PE,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
