SV431USBAGB

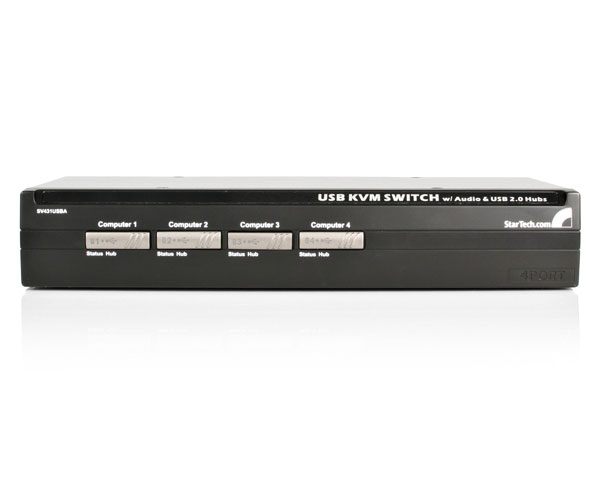

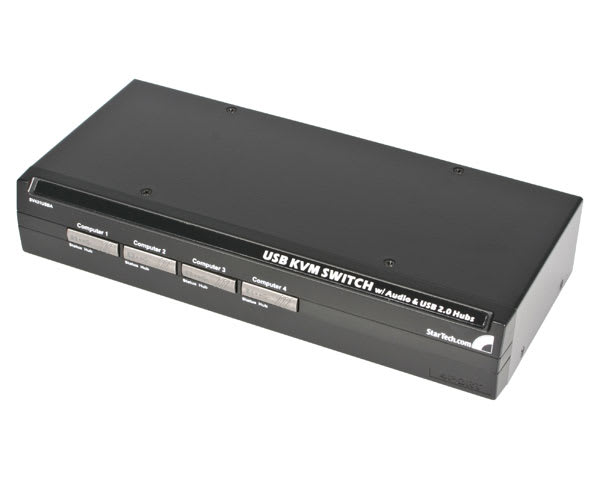

4 Port Desktop KVM USB/Audio/VGA
Share a VGA display, USB keyboard/mouse and speakers between four computers
Main Image
Product Images
Product Images
Product Images
Product Name 4 Port Desktop KVM USB/Audio/VGA Product Number SV431USBAGB UPC 065030823906 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 4 Port USB KVM Switch w/ Audio & USB Hub Product Title (Standard) StarTech.com 4 Port Steel USB KVM Switch with Audio - USB Hub - KVM / audio / USB switch - USB - 4 ports - 1 local user Product Title (Long) 4 Port Steel USB KVM Switch with Audio and USB Hub Title Ingram (Part 1) 4 Port Steel USB KVM Switch with Title Ingram (Part 2) Audio and USB Hub Website Product Headline Share a VGA display, USB keyboard/mouse and speakers between four computers Bullet 1 Designed for high-resolution applications: up to 2048 x 1536 pixels supported Bullet 2 Hotkey switching for ease-of-use Bullet 3 Metal chassis for long-term durability Bullet 4 Integrated USB 2.0 hub allows you to share high-speed USB devices between computers Bullet 5 Audio and/or USB Hub can be locked to a particular port when switching between computers Marketing Copy Applications - Controlling two computers using a single keyboard, mouse and monitor
- Integrated USB 2.0 hub allows you to share USB peripherals between computers
Website Search Keyword RoHS Accessory Products - SVUSB2N1_6
- SVUSB2N1_10
- SVUSB2N1_15
- USBVGA4N1A6
- USBVGA4N1A10
- GC15HSM
- MU6MM
Related Products - SV231USBAGB
- SV231UADVIGB
Output Current 1A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Width (mm) 255 Product Depth (mm) 115 Product Height (mm) 45 Product Weight (g) 1800 TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No Cascadable No Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 540 Carton Height (mm) 340 Carton Quantity 10 Carton Weight Gross (g) 18800 Included in Package - 1 - 4 Port KVM Switch
- 1 - Power Adapter

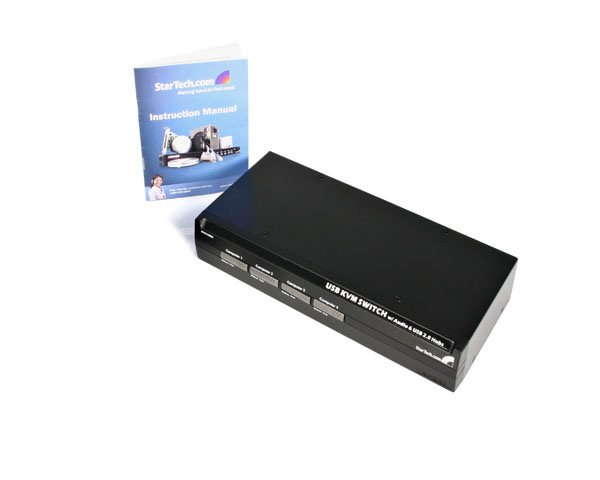

- 1 - Instruction Manual

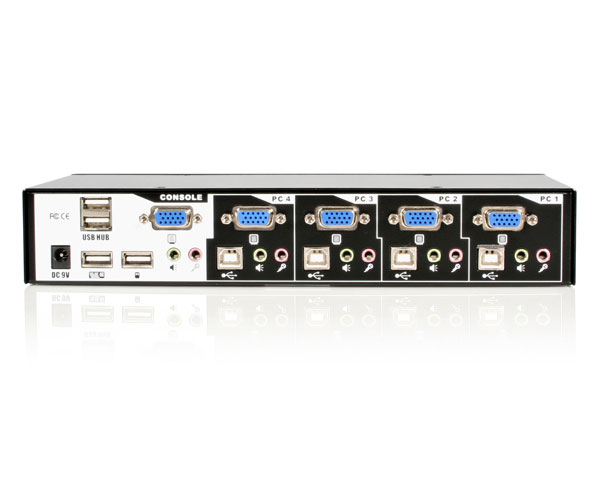

Package Depth (mm) 78 Package Height (mm) 254 Package Width (mm) 295 Package Weight (g) 1360.8 Packaging Description 4 Port USB VGA KVM Switch w/ Audio and USB Hub Packaging Description India 4 Port USB VGA KVM Switch w/ Audio and USB Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
