SV431USBAN
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port USB KVM Switch with Ethernet Switch Product Number SV431USBAN UPC 065030830348 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Short) 4 Port USB KVM Switch w/ Network Switch Product Title (Standard) StarTech.com 4 Port USB KVM Switch with Audio & Ethernet Hub - KVM / audio / USB switch - USB - 4 ports - 1 local user Product Title (Long) 4 Port USB KVM Switch with Ethernet Switch and Audio & USB Hub Title Ingram (Part 1) 4 Port USB KVM Switch w/ Etherne Title Ingram (Part 2) t Switch and Audio & USB Hub Bullet 1 2-year Warranty Bullet 2 Multi-function USB KVM switch integrates a USB 2.0 hub, Ethernet switch, and audio Bullet 3 Controls four computers with a single VGA monitor, USB keyboard and mouse Bullet 4 Built-in USB 2.0 Hub allows peripheral sharing for printers, scanners, portable hard drives, etc., with data transfer rates of up to 480 Mbps. Bullet 5 Built-in 5 port 10/100 Mbps Ethernet Hub allows you to easily network and share Internet with your computers Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution display units are needed
- Great for imaging machines where network connections are limited
Website Search Keyword - 4-Port KVM
- Ethernet Switch
- KVM with Audio
- KVM Ethernet Swtich
- USB KVM
- USB hub
System and Cable Requirements Accessory Products - M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - SV231USBAN
- SV231USB
- SV431USB
- SV211KUSB
- SV411KUSB
Equivalent Part Number in the UK SV431USBANGB Input Voltage 115V AC Output Current 2.4A Output Voltage (V) 5.3 DC Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 0 ~ 80% RH Material Steel Operating Temperature 0 ~ 50°C Product Width (mm) 270 Product Depth (mm) 85 Product Height (mm) 55 Product Weight (g) 920 Storage Temperature -20 ~ 60°C TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 4 - Orange - PC Activity and Select indicator
- 4 - Green - Indicates a USB connection to USB HUB
- 10 - Green - Ethernet Link and Activity

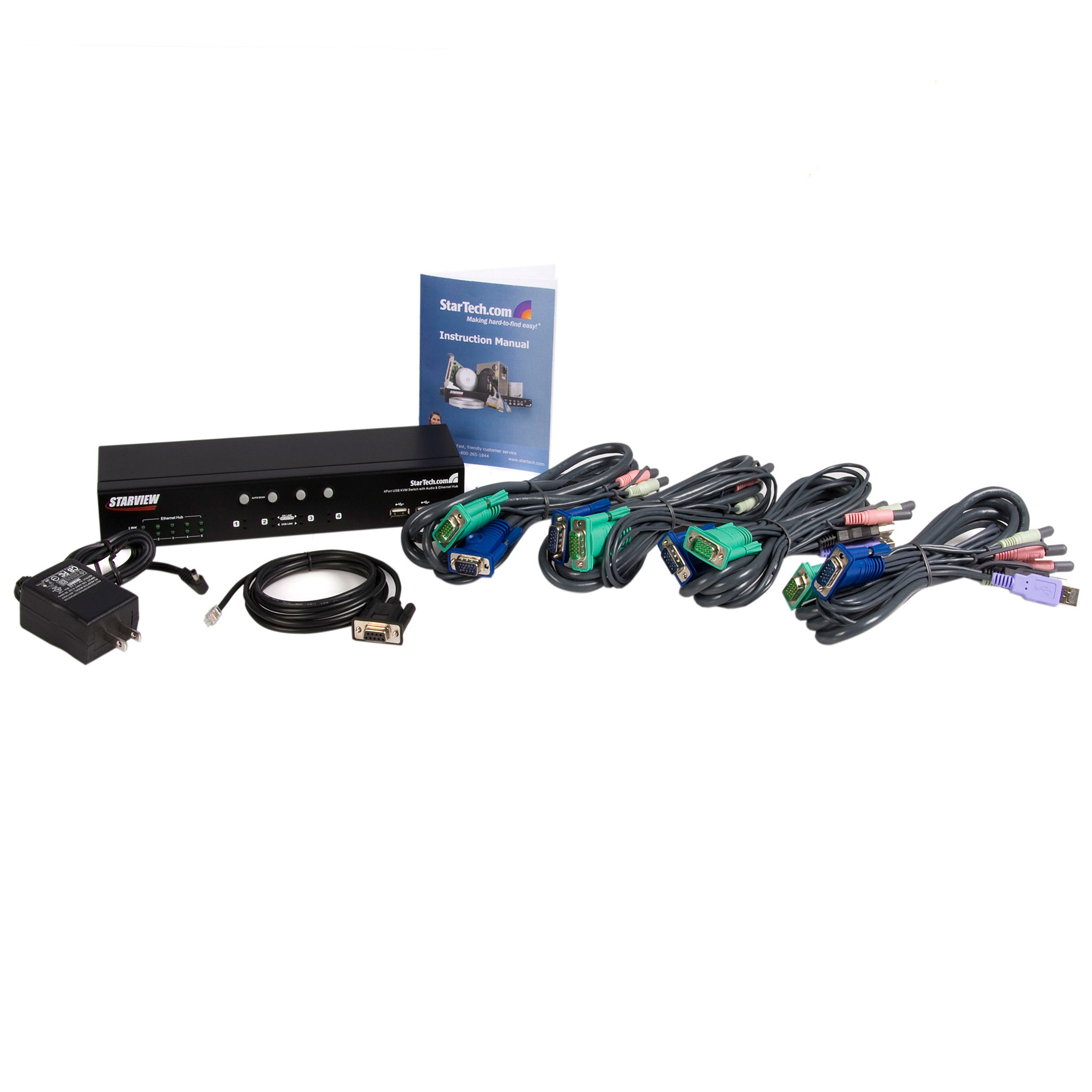

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 505 Carton Height (mm) 235 Carton Quantity 5 Carton Weight Gross (g) 13600 Included in Package - 1 - 4-Port KVM Switch
- 4 - USB KVM Cables
- 1 - Firmware Upgrade Cable
- 1 - Power Adapter
- 1 - User Manual
Package Depth (mm) 100 Package Height (mm) 216 Package Width (mm) 330 Package Weight (g) 2481.19 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 RJ-11 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
