Main Image
SV431USBANEU

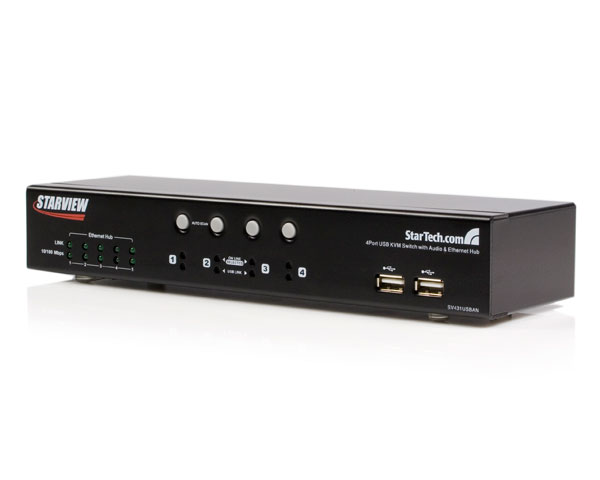

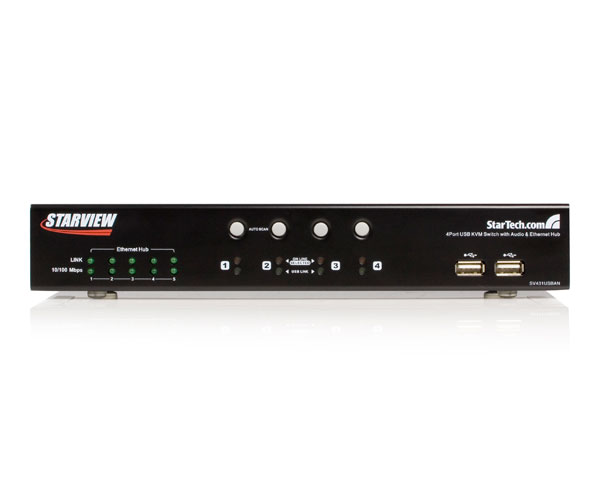

4 Port USB KVM Switch with Ethernet Switch and Audio & USB Hub
4 Port USB KVM Switch with Network switch and Audio UPC:065030831628
Main Image
Product Images
Product Images
Product Name 4 Port USB KVM Switch with Ethernet Switch and Audio & USB Hub Product Number SV431USBANEU UPC 065030831628 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Short) 4 Port USB KVM Switch w/ Network Switch Product Title (Standard) StarTech.com 4 Port USB KVM Switch with Audio & Ethernet Hub - KVM / audio / USB switch - USB - 4 ports - 1 local user Product Title (Long) 4 Port USB KVM Switch with Ethernet Switch and Audio & USB Hub Title Ingram (Part 1) 4 Port USB KVM Switch w/ Etherne Title Ingram (Part 2) t Switch and Audio & USB Hub Website Product Headline 4 Port USB KVM Switch with Network switch and Audio UPC:065030831628 Bullet 1 2-year Warranty Bullet 2 Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus Bullet 3 Built-in 5 port 10/100 Mbps Ethernet switch allows you to easily network and share Internet with your computers Bullet 4 Built-in USB 2.0 Hub allows peripheral sharing for printers, scanners, portable hard drives, etc., with data transfer rates of up to 480 Mbps. Bullet 5 Controls four computers with a single VGA monitor, USB keyboard and mouse Marketing Copy Applications - Great for imaging machines where network connections are limited
- Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution display units are needed
Website Search Keyword - KVM Switch
- KVM
- 4 Port
- USB hub
- Network Ethernet Switch
- Audio
- ethernet hub
Accessory Products - M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - SV231USB
- SV431USB
- SV211KUSB
- SV411KUSB
Input Voltage 230 AC Output Current 2.4A Output Voltage (V) 5.3 DC Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 0 - 80% RH Material Steel Operating Temperature 0 - 50°C Product Width (mm) 270 Product Depth (mm) 85 Product Height (mm) 55 Product Weight (g) 920 Storage Temperature -20 - 60°C TAA Compliant No KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes LED Indicators - 4 - Orange - PC Activity and Select indicator
- 4 - Green - Indicates a USB connection to USB HUB
- 10 - Green - Ethernet Link and Activity
Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Included in Package - 1 - 4-Port KVM Switch
- 4 - USB KVM Cables
- 1 - Firmware Upgrade Cable
- 1 - Power Adapter
- 1 - User Manual

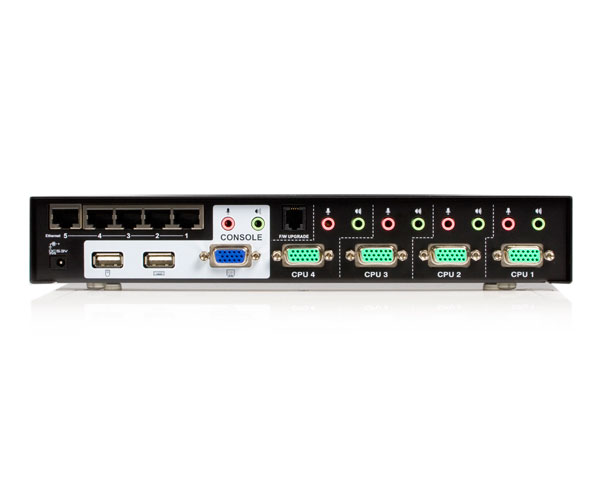

Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 RJ-11 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 8 en-US Content Approved Yes
