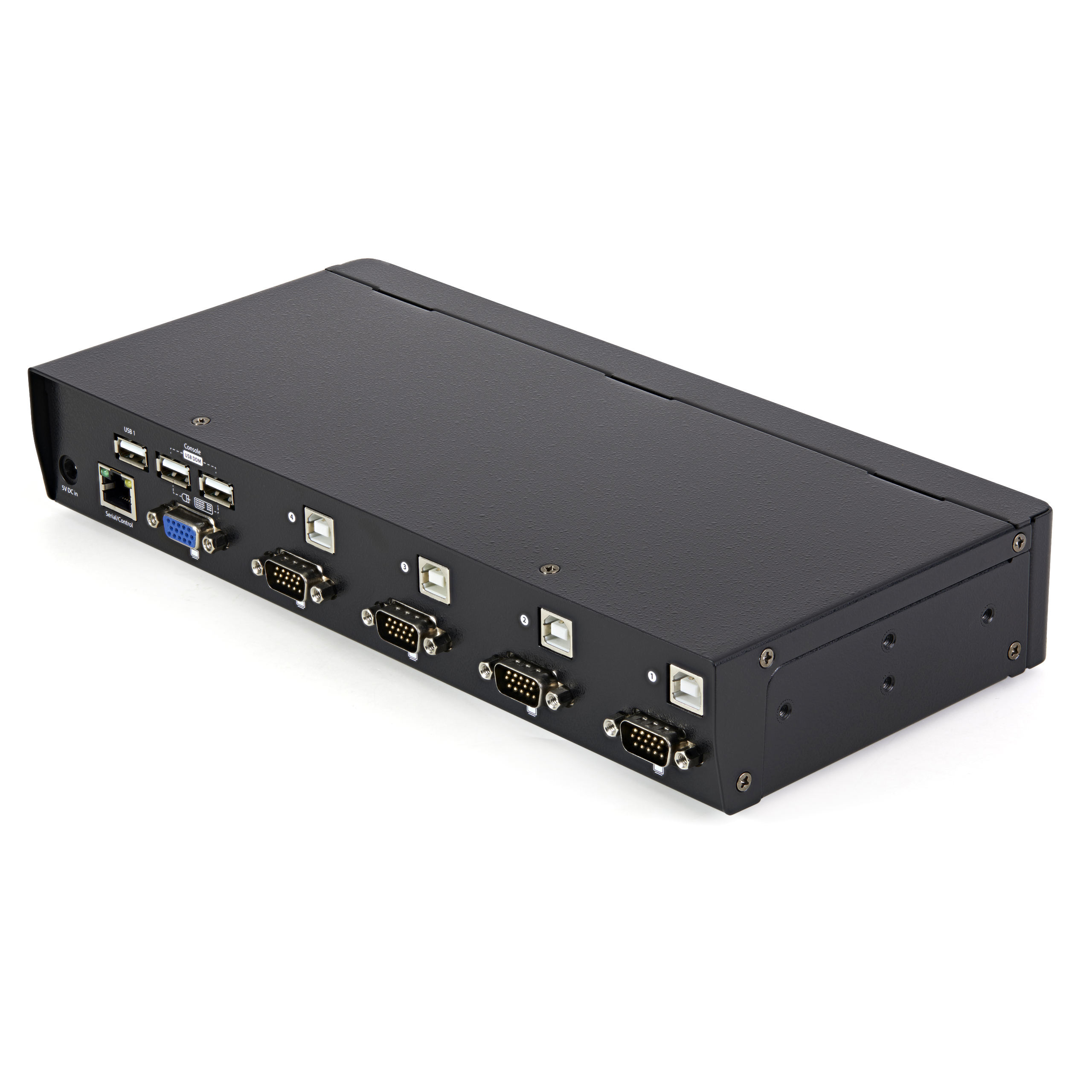

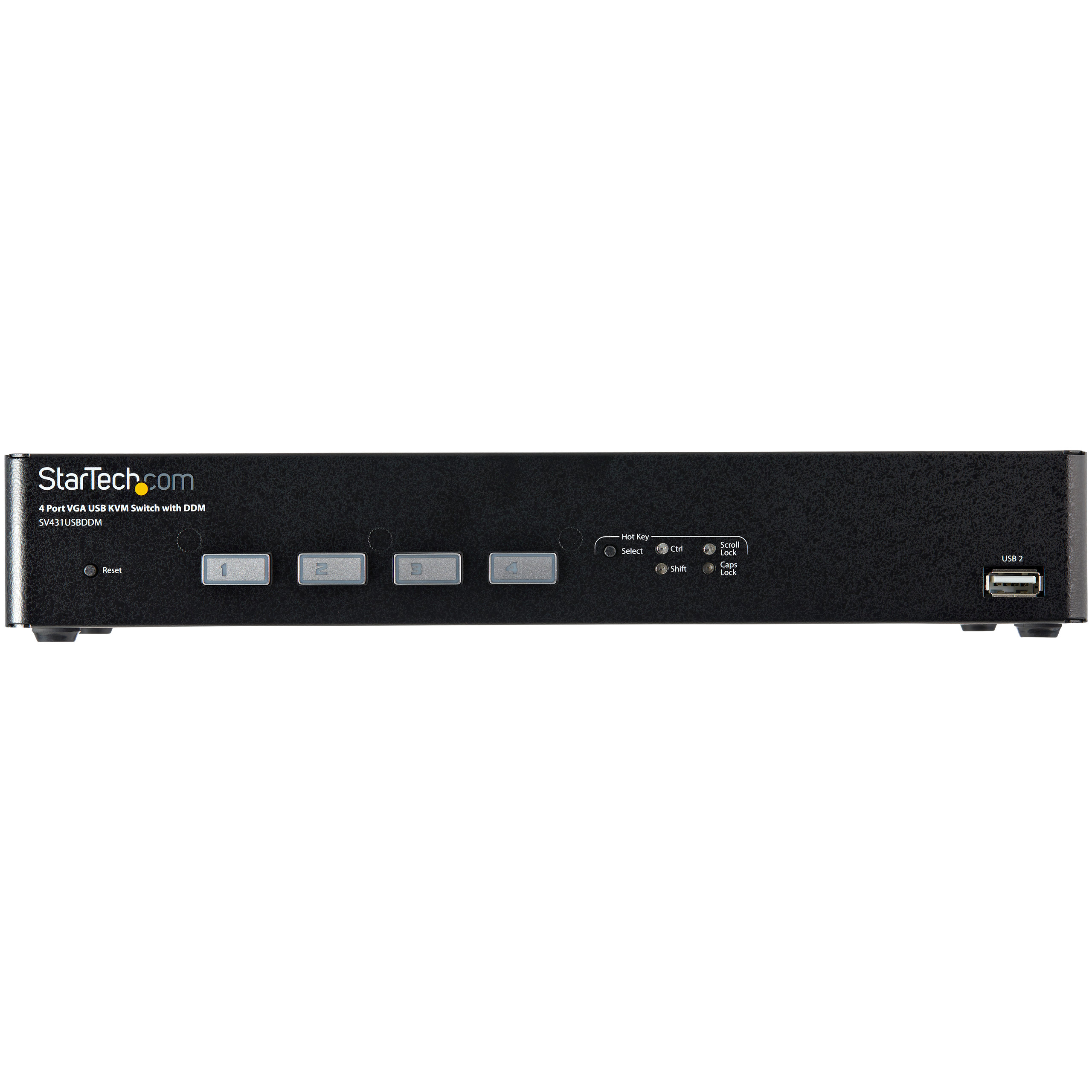

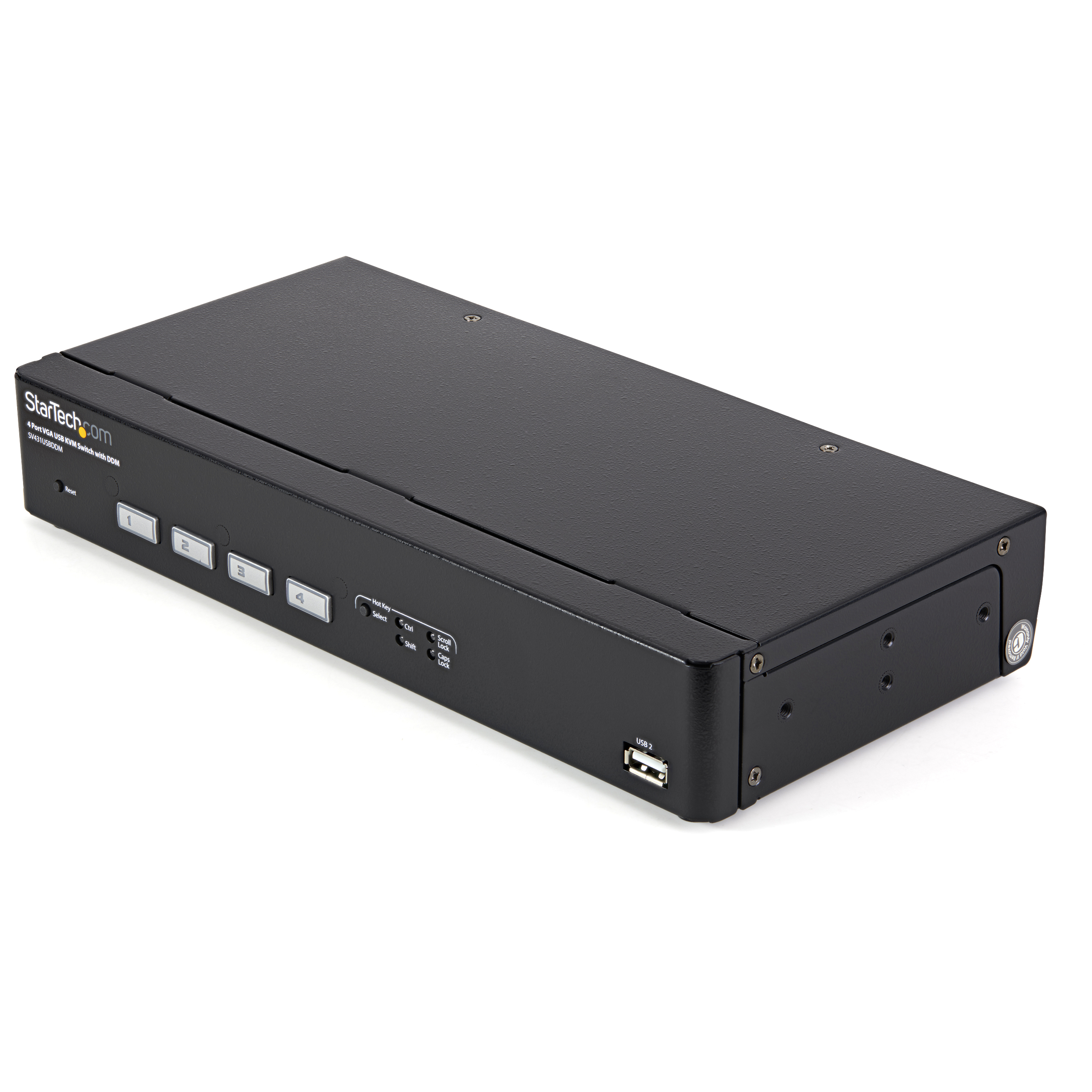

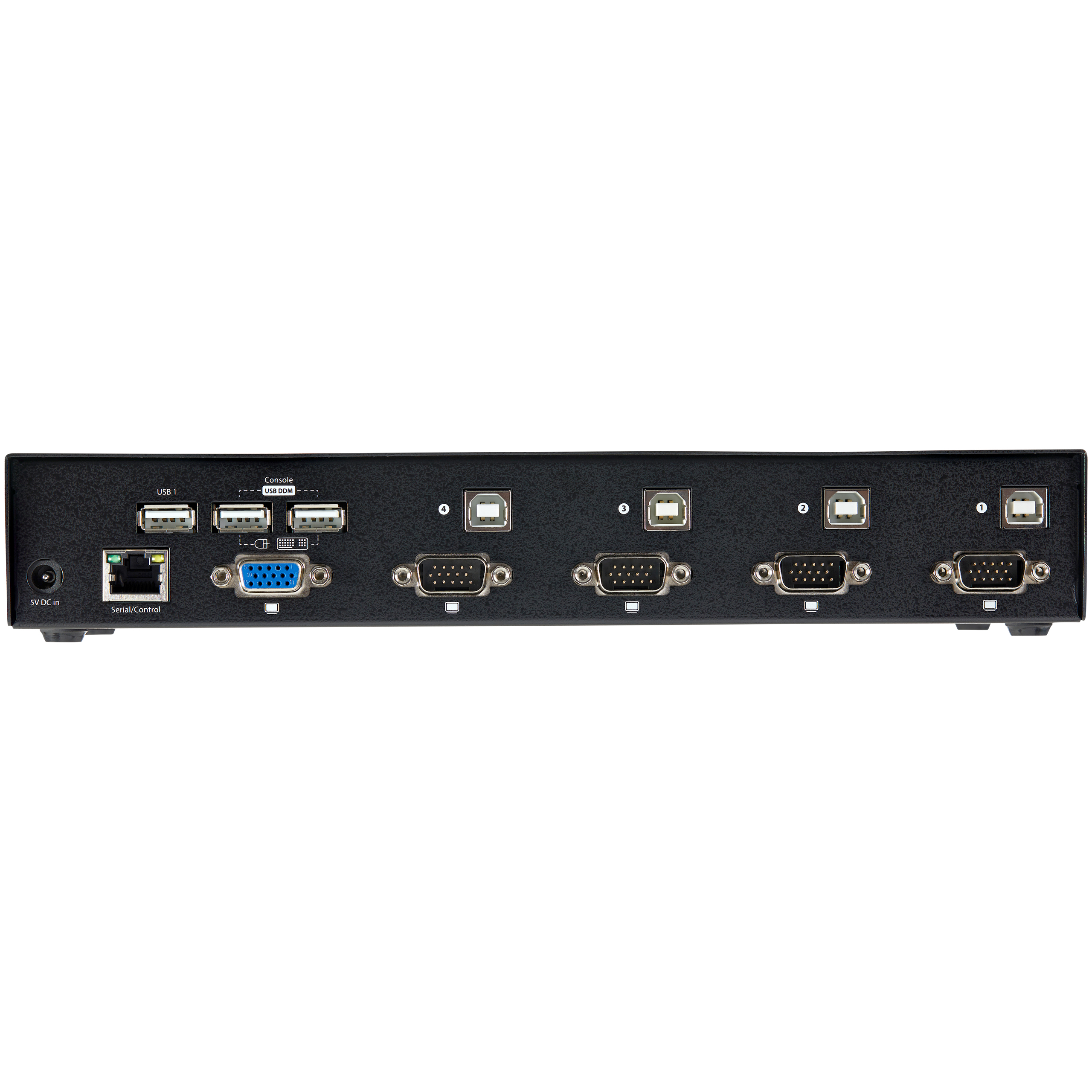

SV431USBDDM
4 Port USB VGA KVM Switch with DDM
Control 4 VGA, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port USB VGA KVM Switch with DDM Product Number SV431USBDDM UPC 065030852814 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - VGA KVMs Family VGA Desktop KVMs - DDM Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 4Pt USB VGA KVM DDM Product Title (Short) 4 Port USB VGA KVM Switch with DDM Product Title (Standard) 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables Product Title (Long) 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables - TAA Product Title (AMZ) 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables - VGA USB KVM Switch - DDM KVM Switch (SV431USBDDM) Title Ingram (Part 1) 4Port VGA USB KVM Switch Title Ingram (Part 2) with Cables - USB DDM Switch Website Product Headline Control 4 VGA, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time Bullet 1 USB DDM technology and Dual-Core design for lag-free switching Bullet 2 Supports HD resolutions up to 1920x1440 Bullet 3 All-time Full DDC communication for proper display detection Bullet 4 Includes four 6ft KVM Cables (USB/VGA) Bullet 5 Integrated 2 port USB 2.0 hub Bullets (Compact) Control 4 VGA, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time - 4 Port USB VGA KVM Switch with DDM Fast Switching Technology - VGA USB KVM Switch - DDM KVM Switch - Cables Included Bullets (Consolidated) Control 4 VGA USB-equipped PCs with a single peripheral set with USB Dynamic Device Mapping to avoid switching lag-time - 4 Port USB VGA KVM Switch with DDM Fast Switching Technology - VGA USB KVM Switch - DDM KVM Switch - Cables Included Marketing Copy Marketing Copy (No HTML) Applications - Control 4 USB-enabled computers using a single keyboard, mouse, and VGA monitor
- Use in call centers, help desks, education, and home office environments to control multiple systems
- Ideal for financial/banking industries, graphic designers, multimedia applications and industries using CAD/CAM applications
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - USB2HAB10
- USB2HAB15
- SVA5M3NEUA
- SVUSB2N1_6
- SVUSB2N1_10
- SVUSB2N1_15
Related Products - SV231DVIUDDM
- SV231DVIUA
- SV231DVIUAHR
Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2.0A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 275.000 Product Width (mm) 130.000 Product Height (mm) 46.000 Product Weight (g) 1153.000 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920x1440 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included Yes Cascadable No LED Indicators - 4 - PC Selection Indicators
- 4 - Hot-Key Selection Indicators

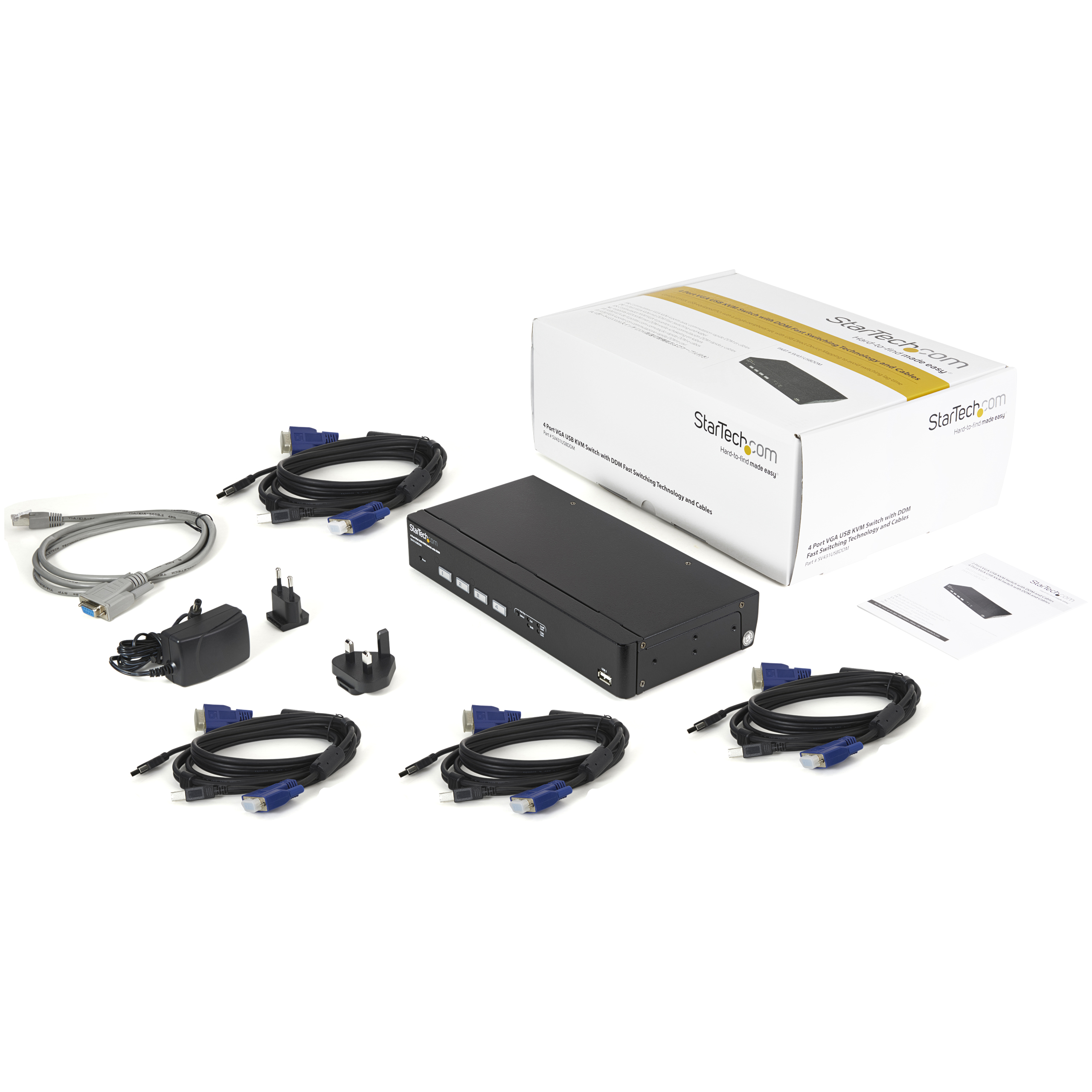

Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 436 Carton Height (mm) 390 Carton Quantity 6 Carton Weight Gross (g) 20544 Included in Package - 1 - KVM Switch
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Firmware Upgrade Cable
- 4 - 6ft VGA USB KVM Cables
Package Depth (mm) 256 Package Height (mm) 134 Package Width (mm) 350 Package Quantity 1 Package Weight (g) 3144 Packaging Description 4 Port VGA KVM w/ DDM Fast Switching and Cables Packaging Description India 4 Port VGA KVM w/ DDM Fast Switching and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-25 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
