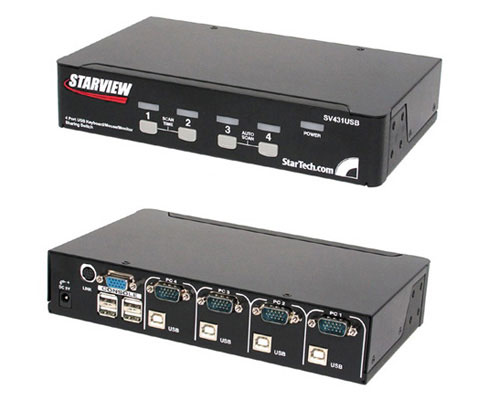

4 Port Professional VGA USB KVM Switch with Hub

Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

Main Image

Product Name	4 Port Professional VGA USB KVM Switch with Hub
Product Number	SV431USBEU
UPC	065030811804
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--kUs3ynaP--/c99b09ecdebaea1ae11f2eb435490678c4e2b8a0.pdf

Product Title (Long)	4 Port Professional VGA USB KVM Switch with Hub
Website Product Headline	Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers
Bullet 1	Supports hot-plug and disconnect – computers can be added or removed without the need to reboot other connected systems
Bullet 2	Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets
Bullet 3	Front panel push-buttons for quick and easy switching
Bullet 4	High 1920x1440 resolution capability
Bullet 5	OS independent - No driver or software installation required
Marketing Copy
Applications	Sharing computers and USB devices in the home/SOHO/multimedia environment Perfect for manufacturing line computer control, simplifying access to multiple systems Great for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice Dual system control for single user workstations increasing user productivity in the office

Accessory Products	ICUSB1284 ICUSB232 ICUSBSCSI2 IDECASE525U SV431RACK SVUSB2N1_10 SVUSB2N1_15 SVUSB2N1_6 USB1S1P USB2PS2 USBFAB_10 USBFAB_15 USBFAB_6 USBFAB10T USBFAB15T USBFAB6T USBFLASHCFSM USBTVTUNER USBVIDEOCAP
Related Products	SV231USB SV431H

General Specifications	Auto Scan Intervals: 3, 8, 15 and 30 seconds Cable Length (Max): VGA-100ft (30m) USB-15ft (5m) Hot Plug Capability: Yes NOTE: In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, you must use the optional StarTech SVUSBPOWER power supply. Optional Power Supply: SVUSBPOWER (5V DC, 2 Amps, + Centre)
Maximum Analog Resolutions	1920 x 1440
Maximum Number of Users	1
