SV441DUSBI

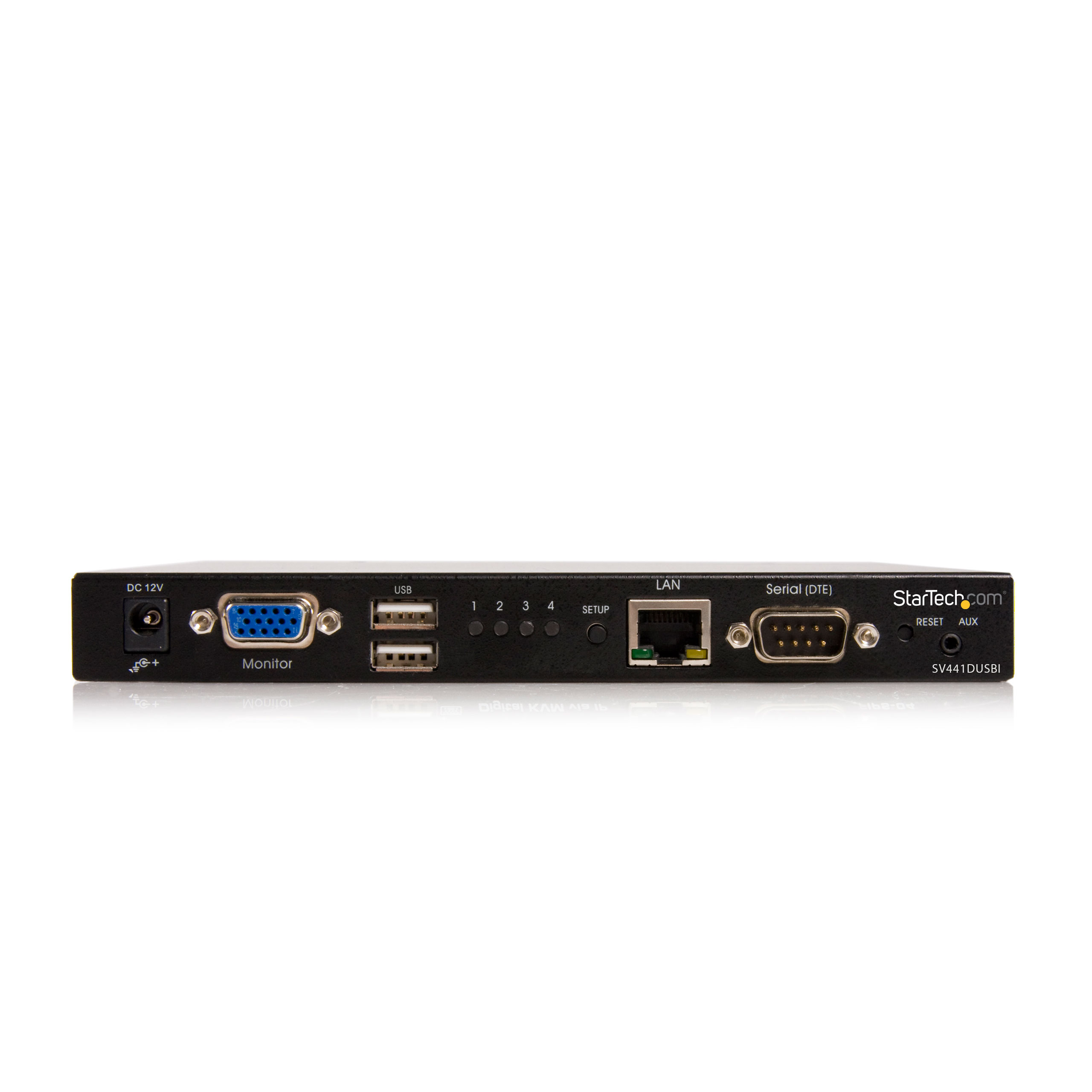

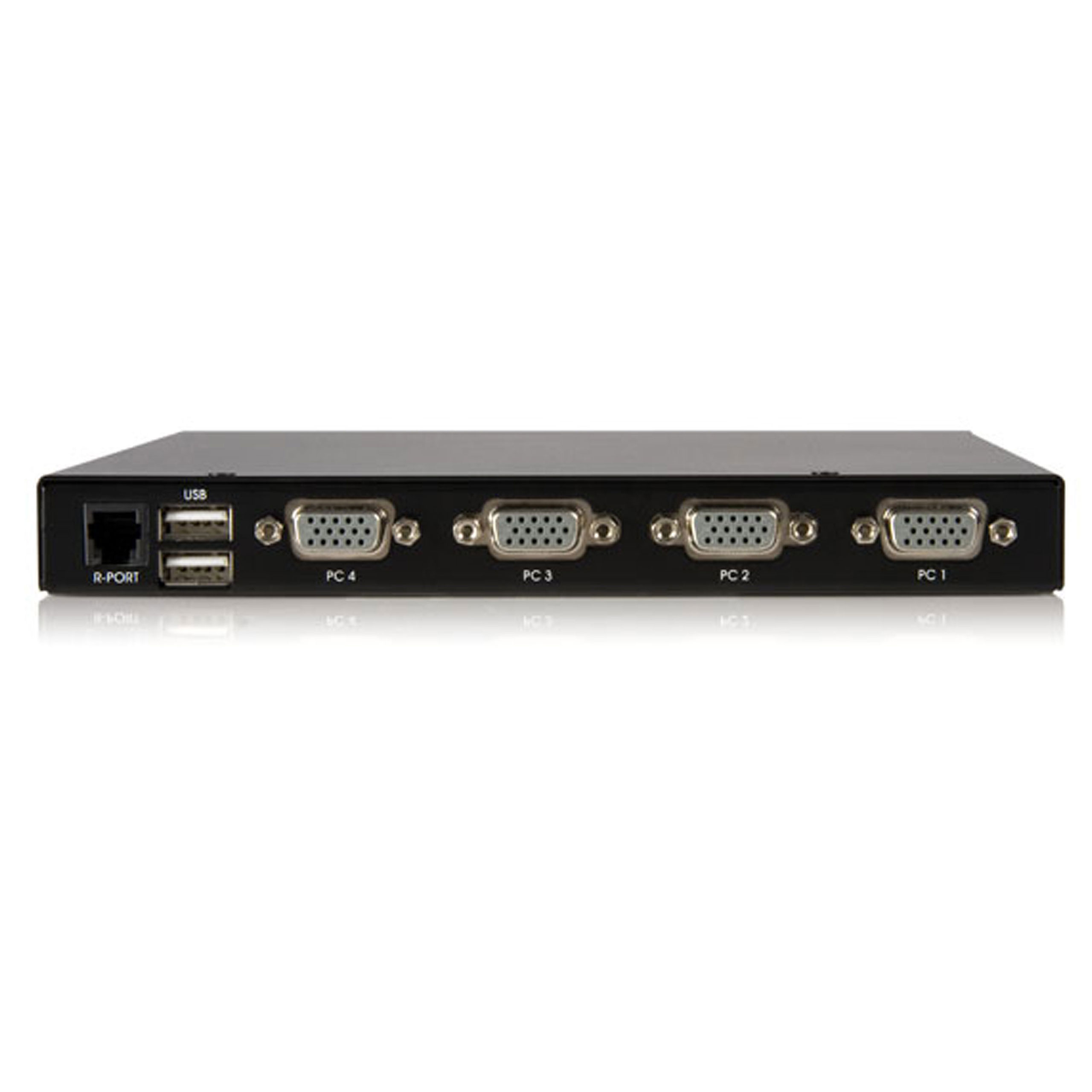

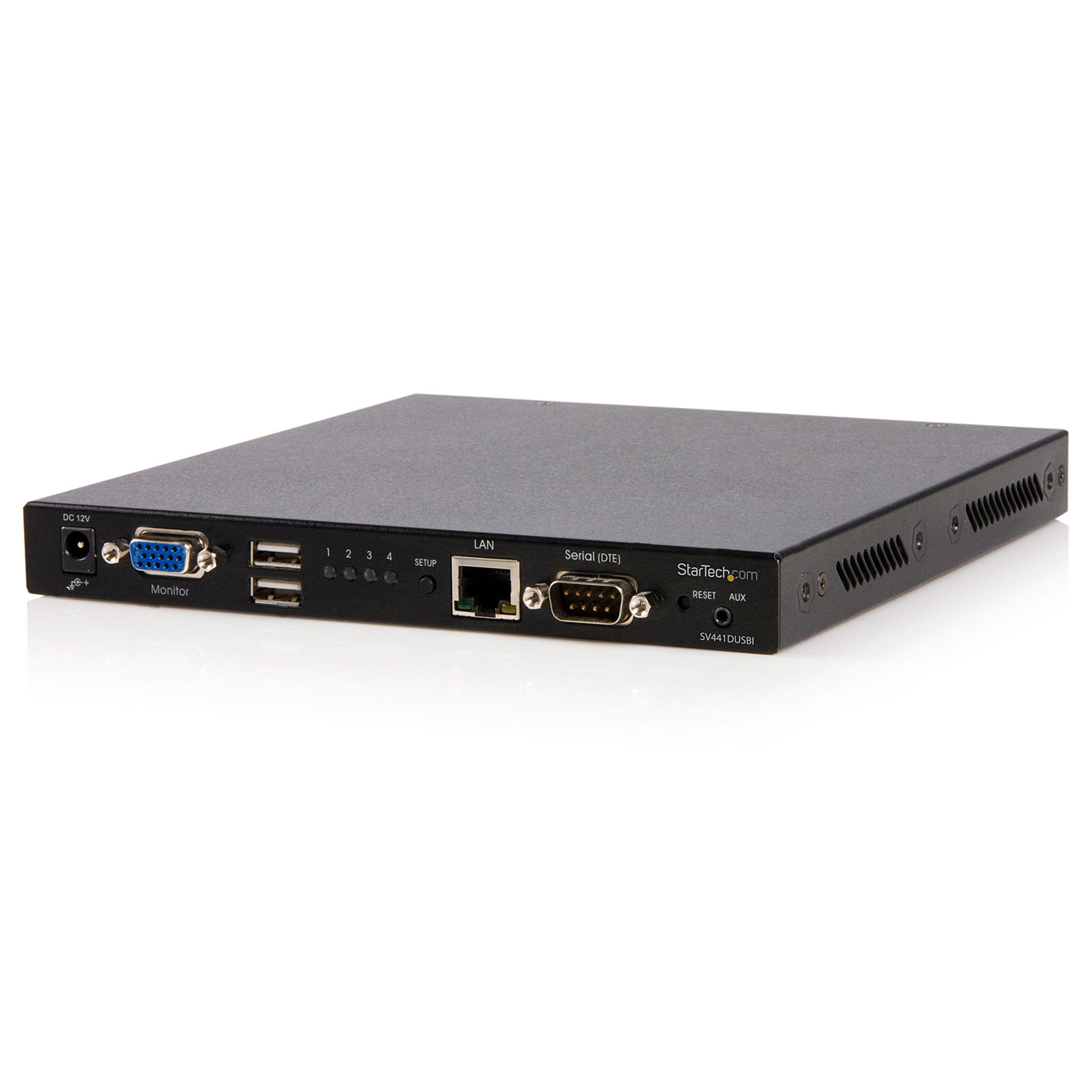

4 Port IP KVM Switch with USB Console
Control up to 4 USB VGA computers remotely over an IP network or the internet
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port IP KVM Switch with USB Console Product Number SV441DUSBI UPC 065030832373 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port USB VGA KVM Switch Virtual Media Product Title (Standard) 4 Port USB VGA IP KVM Switch with Virtual Media Product Title (Long) 4 Port USB VGA IP KVM Switch with Virtual Media - TAA Product Title (AMZ) 4 Port USB VGA IP KVM Switch with Virtual Media - 4 Port Remote KVM over IP (SV441DUSBI) Title Ingram (Part 1) 4 Port USB VGA IP KVM Switch wit Title Ingram (Part 2) h Virtual Media Website Product Headline Control up to 4 USB VGA computers remotely over an IP network or the internet Bullet 1 Remote, BIOS level access to all connected systems Bullet 2 Works with PC, Mac, Linux and Sun Systems Bullet 3 Supports DHCP or manual IP configuration Bullet 4 User ID and SSL password secure web console Bullet 5 Supports 32 user accounts with SSL encrypted session and web communication data Bullets (Consolidated) Control up to 4 USB VGA computers remotely over an IP network or the internet - IP KVM Switch - KVM Over IP - 4 Port KVM Over IP - Remote KVM - IP KVM - 4 Port USB VGA IP KVM Switch with Virtual Media Marketing Copy Applications - Access your server BIOS from remote locations
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Enables access to existing KVM switches via TCP/IP for single console remote administration
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice and allows remote access
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers, increasing uptime
Website Search Keyword - 4 Port
- IP
- KVM
- multiplatform
- USB
- File Transfer
- Virtual Media
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - RPORT
- 1110EXTRACK
- SVUSBVGA6
- SVUSBVGA10
- PCM815SHNA
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV1641HDIE
- SV841HDIE
- SV441HDIE
- SV1115IPEXT
Input Current 1.8A Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Primary Material Steel Product Length (mm) 200.000 Product Width (mm) 187.000 Product Height (mm) 22.000 Product Weight (g) 900.000 TAA Compliant Yes DVI Support No General Specifications - TLS version supported: 1.0
- Note: The SSL certificate provided is for testing and initialization purposes only and provides minimum strength security. We strongly recommend users upgrade the included certificate with individual SSL Certificate.</i>

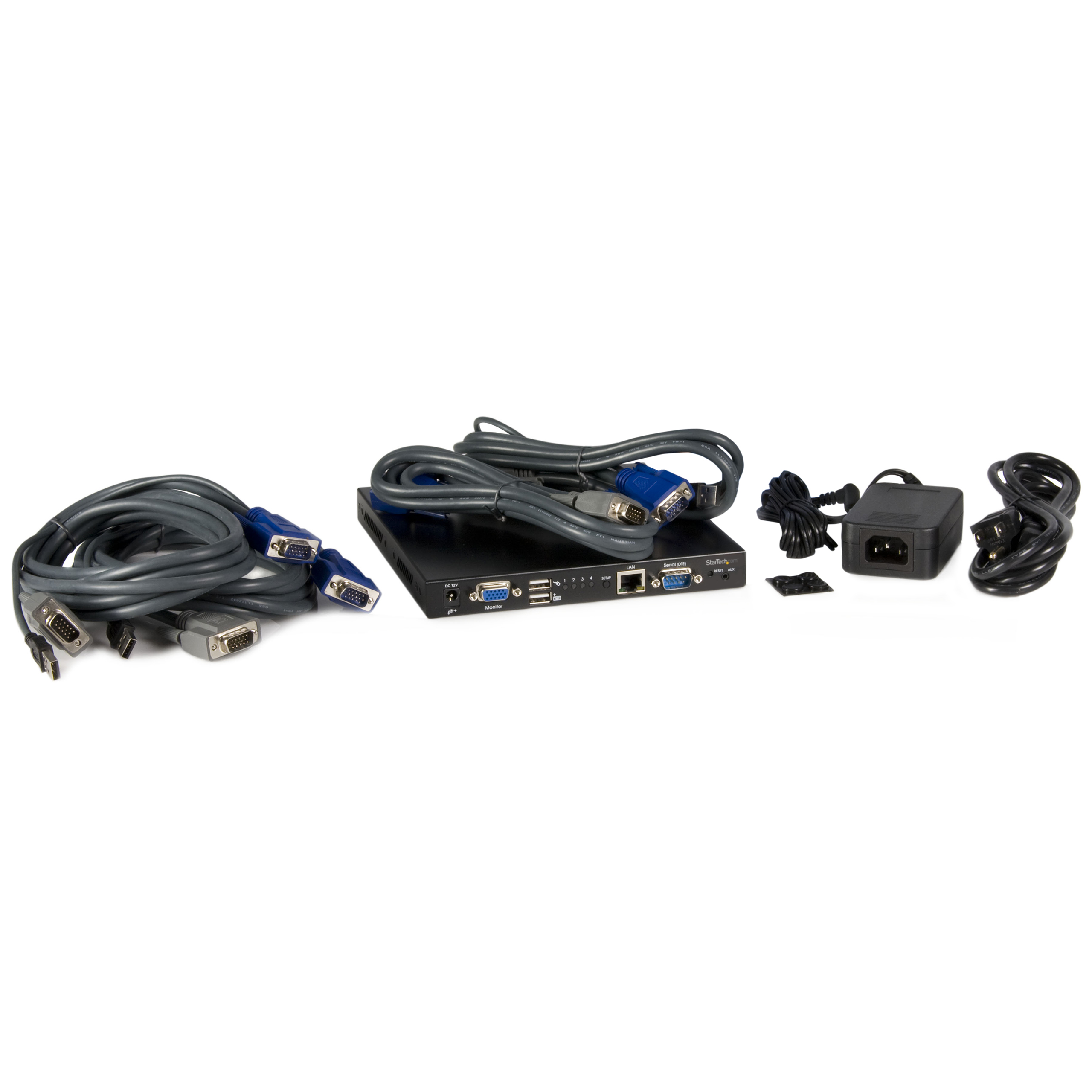

Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1920 x 1440 pixels local console Maximum Digital Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user plus up to 4 viewing On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cables Included Yes Cascadable No Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 561 Carton Height (mm) 333 Carton Quantity 6 Carton Weight Gross (g) 25920 Included in Package - 1 - universal power adapter (NA/EU/UK/AU)
- 1 - 4-port USB KVM switch
- 4 - KVM cables
- 1 - instruction manual
Package Depth (mm) 114 Package Height (mm) 276 Package Width (mm) 304 Package Quantity 1 Package Weight (g) 4120 Packaging Description 4 Port USB VGA KVM Switch Virtual Media Packaging Description India 4 Port USB VGA KVM Switch Virtual Media Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
