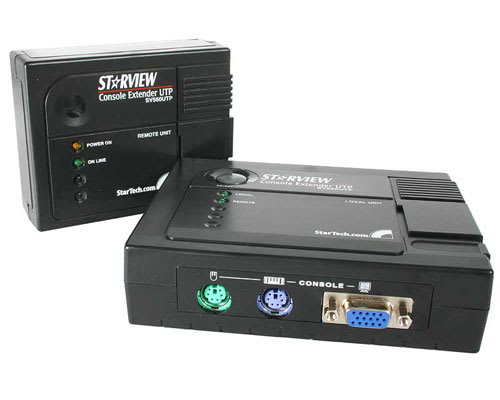

PS/2 UTP Console Extender for StarView

Main Image

Product Name	PS/2 UTP Console Extender for StarView
Product Number	SV560UTP
UPC	065030781787
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX006X

Manual https://images.salsify.com/image/upload/s--d9z4q58q--/fc027eb8bec613152ce107502016febcaa86b60a.pdf

Product Title (Long)	PS/2 UTP Console Extender for StarView
Bullet 1	Consists of 1 Local unit for the local display, and 1 Remote unit for the remote display.
Bullet 2	Uses standard Category 5 straight-through wired UTP patch cable.
Bullet 3	Two consoles can be connected to share control of a PC (1 local, 1 remote).
Bullet 4	High quality video resolution of up to 1024x768
Bullet 5	Supports VGA, SVGA, and Multisync monitors
Marketing Copy	The StarTech.com UTP Console Extender provides convenient and remote access to a computer located up to 150 m (500 ft.) away from a keyboard, monitor, and mouse. Your main system box can be placed in a safe and secure location away from where you need to access it. It consists of a local unit and remote unit which are connected over long distances using standard Ethernet network patch cable.
Applications	Extends keyboard, monitor, and mouse cables by up to 150 m (500 ft.)

General Specifications	Keyboard Connectors (Local Unit): (2) 6-pin MiniDIN Female Monitor Connectors (Local Unit): High Density DB15 Male, High Density DB15 Female Keyboard Connector (Remote Unit): 6-pin MiniDIN Female Mouse Connector (Remote Unit): 6-pin MiniDIN Female Monitor Connector (Remote Unit): High Density DB15 Female Maximum Cable Length: 150m (500 ft.) Housing: Plastic Weight (Local Unit): 300g Weight (Remote Unit): 220g Dimensions (Local Unit): 130x100x35mm (5.1x3.9x1.4 in) Dimensions (Remote Unit): 100x80x35mm (3.9x3.1x1.4 in) Power Consumption: 9V DC (0.5A)
Maximum Analog Resolutions	1024 x 768 pixels
Maximum Cable Length (mm)	150

Carton Depth (mm)	320
Carton Height (mm)	300
Carton Quantity	6
Carton Weight Gross (g)	10690
Included in Package	2 - SERVER SWITCHES 2 - POWER ADAPTORS-AC 9V 500ma 1 - 3-in-1 cable (keyboard MM, mouse MM, monitor MF) 1 - INSTRUCTION MANUAL
Package Depth (mm)	248
Package Height (mm)	87
Package Width (mm)	297
Package Weight (g)	1392.55
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Accessory Products	RJ45PATCH25 RJ45PATCH35 RJ45PATCH50 RJ45PATCH75 RJ45PATCH100 SVPS23N1_6 SVPS23N1_10 SVPS23N1_15 SVPS23N1_25 SVPS23N1_35 SVPS23N1_50
Replacement Product	SV565UTP

en-US Content Approved	Yes
Product Manager	Daryl Hunt
