Main Image
SV560UTPEU
Main Image

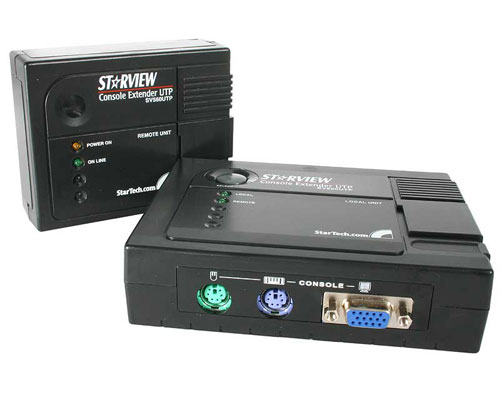

Product Name PS/2 UTP Console Extender for StarView Product Number SV560UTPEU UPC 065030811620 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) PS/2 UTP Console Extender for StarView Bullet 1 Consists of 1 Local unit for the local display, and 1 Remote unit for the remote display. Bullet 2 High quality video resolution of up to 1024x768 Bullet 3 Include AC power adapters for both remote and base units, and auxillary cables for keyboard, mouse, and monitor connections. Category 5 UTP or STP patch cable with RJ-45 connectors is also required (not included). Bullet 4 Supports VGA, SVGA, and Multisync monitors Bullet 5 Two consoles can be connected to share control of a PC (1 local, 1 remote). Marketing Copy The StarTech.com UTP Console Extender provides convenient and remote access to a computer located up to 150 m (500 ft.) away from a keyboard, monitor, and mouse. Your main system box can be placed in a safe and secure location away from where you need to access it. It consists of a local unit and remote unit which are connected over long distances using standard Ethernet network patch cable. Applications Extends keyboard, monitor, and mouse cables by up to 150 m (500 ft.) Accessory Products - RJ45PATCH100
- RJ45PATCH25
- RJ45PATCH35
- RJ45PATCH50
- RJ45PATCH75
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_25
- SVPS23N1_35
- SVPS23N1_50
- SVPS23N1_6
Power Consumption (In Watts) 0.5W Color Black TAA Compliant No General Specifications - Dimensions (Local Unit): 130x100x35mm (5.1x3.9x1.4 in)
- Dimensions (Remote Unit): 100x80x35mm (3.9x3.1x1.4 in)
- Housing: Plastic
- Keyboard Connector (Remote Unit): 6-pin MiniDIN Female
- Keyboard Connectors (Local Unit): (2) 6-pin MiniDIN Female
- Maximum Cable Length: 150m (500 ft.)
- Monitor Connector (Remote Unit): High Density DB15 Female
- Monitor Connectors (Local Unit): High Density DB15 Male, High Density DB15 Female
- Mouse Connector (Remote Unit): 6-pin MiniDIN Female
- Power Consumption: AC 9V 500mA (max.)
- Video Resolution: 1024x768
- Weight (Local Unit): 300g
- Weight (Remote Unit): 220g
Maximum Analog Resolutions 1024 x 768 Maximum Cable Length (mm) 150 Included in Package - 1 - 3-in-1 cable (keyboard MM, mouse MM, monitor MF)
- 1 - INSTRUCTION MANUAL
- 2 - POWER ADAPTORS-AC 9V 500ma
- 2 - SERVER SWITCHES
Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 2 Connector 3 RJ-45 Connector 3 (Quantity) 1 en-US Content Approved Yes
