Main Image
SV565DUTPU

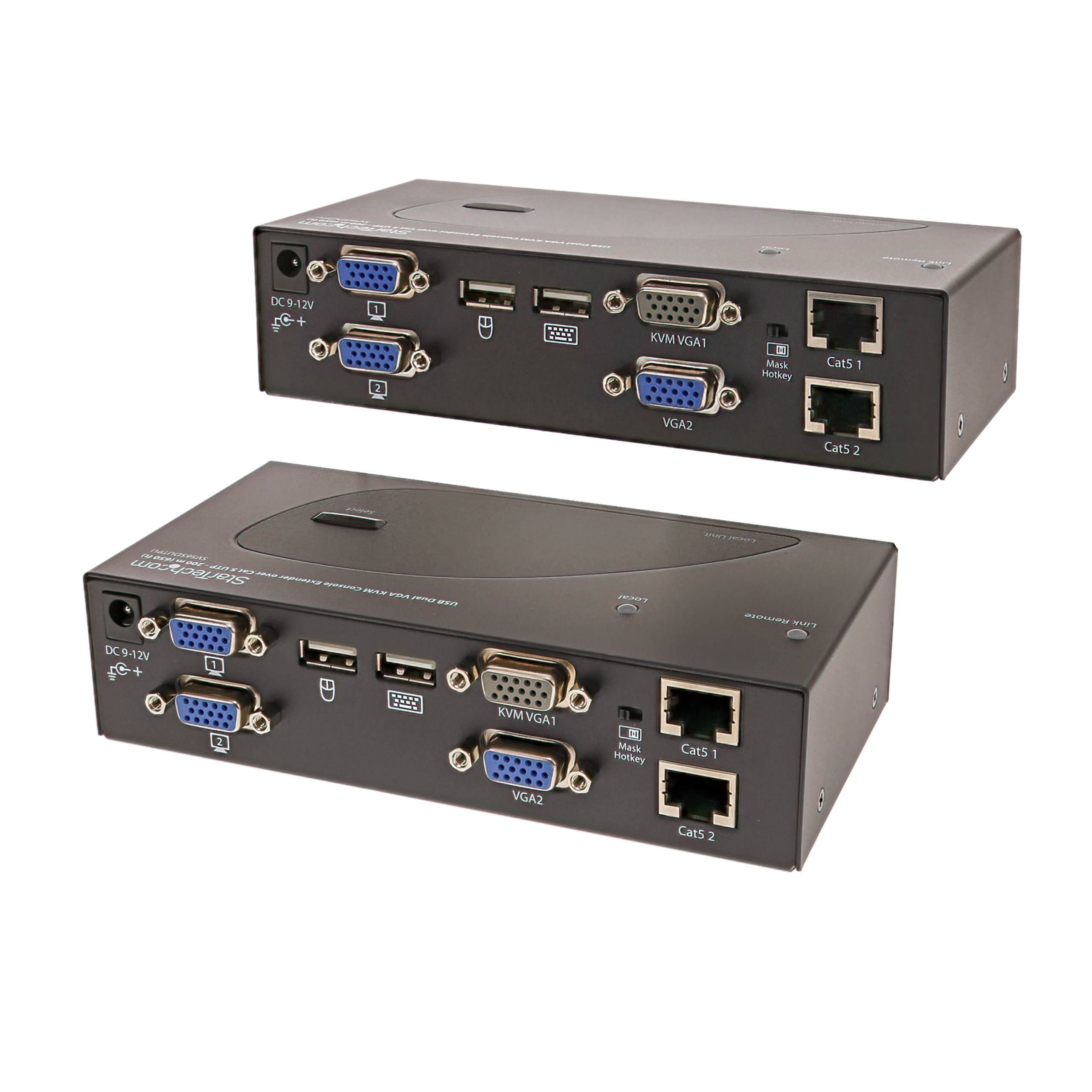

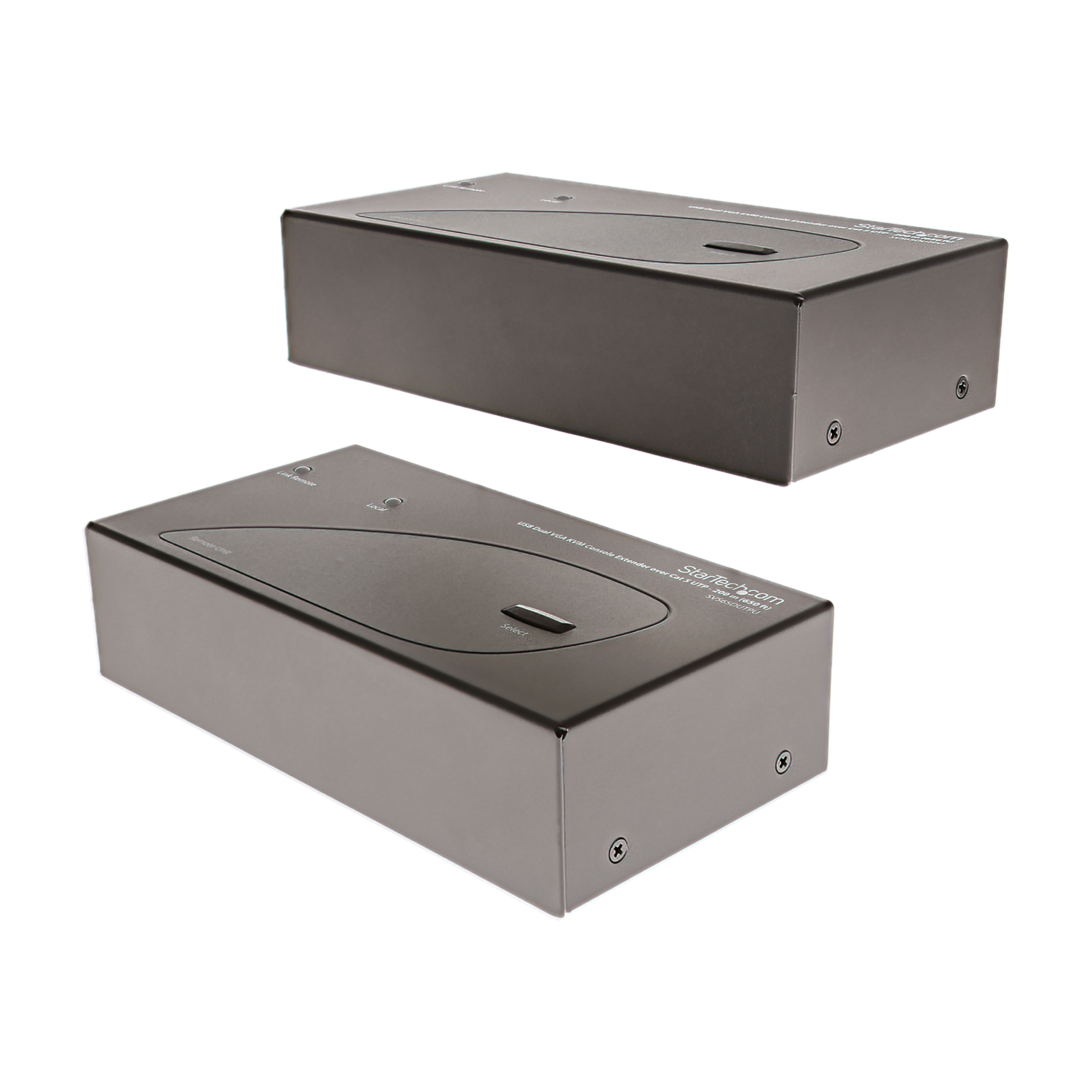

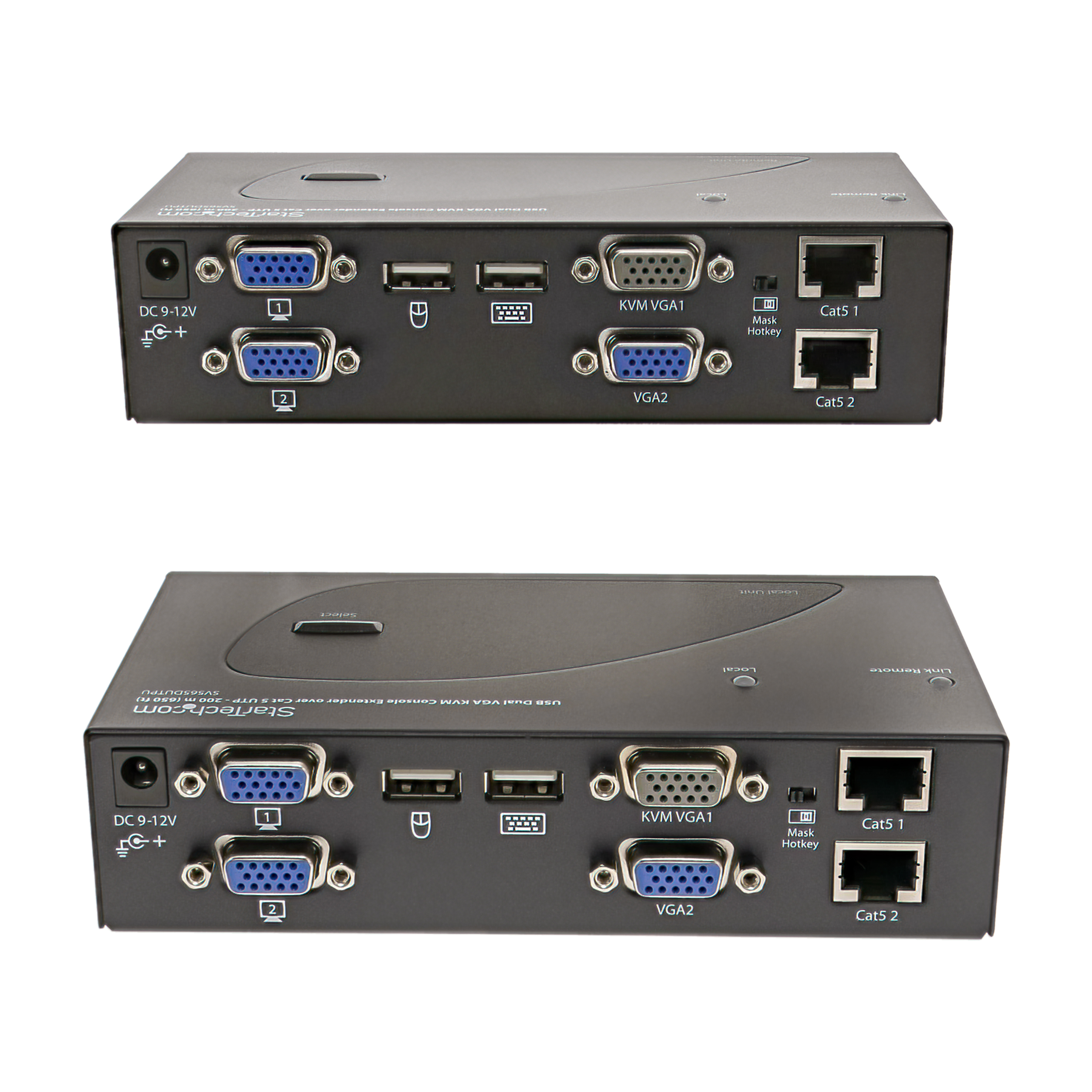

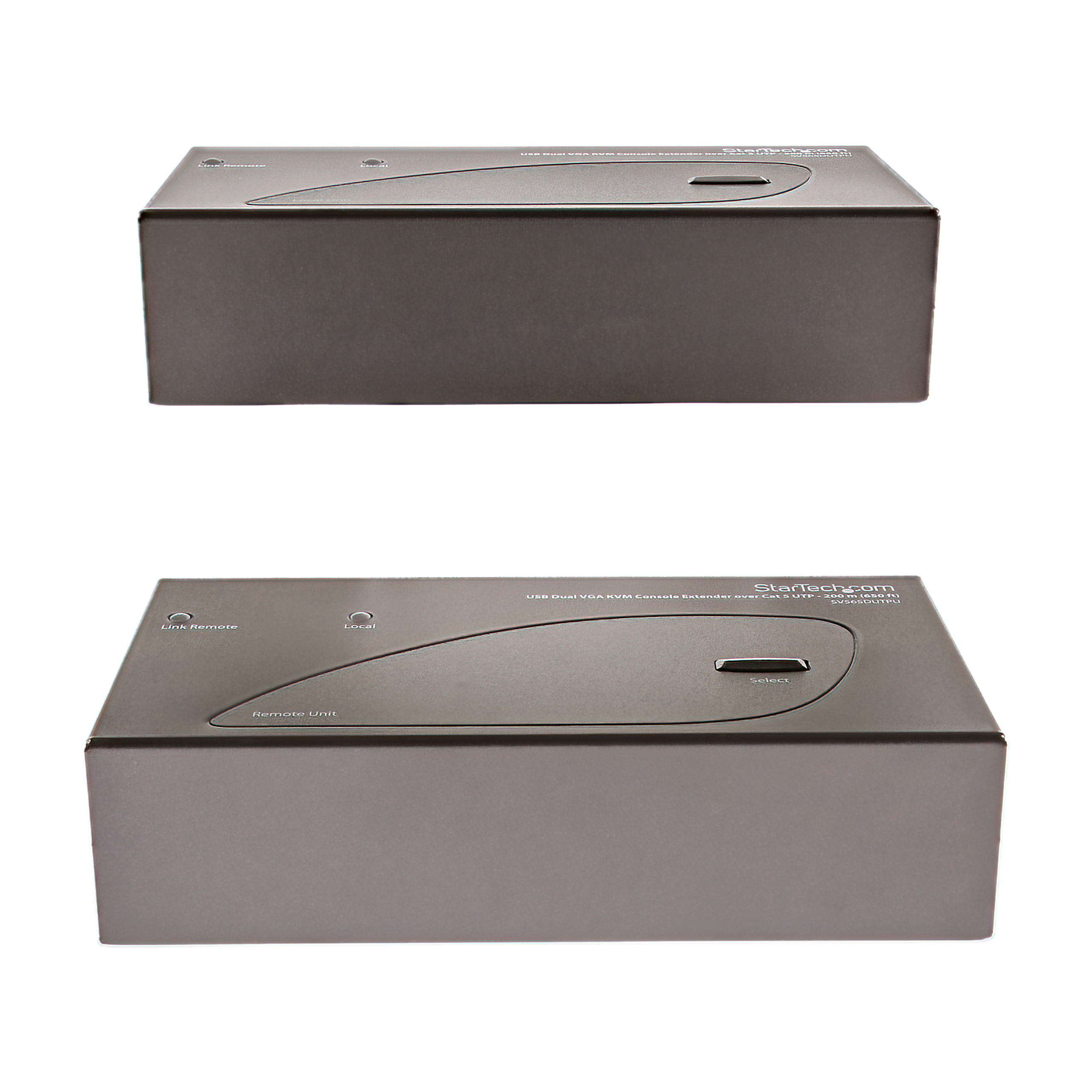

CAT5 Dual VGA USB KVM Extender
Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name CAT5 Dual VGA USB KVM Extender Product Number SV565DUTPU UPC 065030848237 Lifecycle status Active Warranty 3 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 VGA KVM Extenders Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) USB Dual VGA over Cat5 KVM Extender Product Title (Medium) x Product Title (Standard) USB Dual VGA over Cat5 KVM Console Extender, 650 ft / 200m, TAA Product Title (Long) USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m - TAA Product Title (AMZ) 650 ft/200m USB 2.0 Dual VGA KVM Console Extender over Cat5 UTP -for Dual VGA, USB-enabled PC or KVM Switch - Upto 1920x1200 , TAA (SV565DUTPU) Title Ingram (Part 1) USB Dual VGA KVM Extender over C Title Ingram (Part 2) at5 UTP - 650ft / 200m Website Product Headline Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally Bullet 1 Can be used with a single computer or connected to an existing KVM switch Bullet 2 Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables Bullet 3 Intuitive hot-key commands for fine-tuning video Bullet 4 Supports most combo keyboard and mouse sets (including Wireless) Bullet 5 Dual VGA KVM extender at 1920x1200 resolution Bullets (Compact) Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally - Access your KVM over long distances while not exposing yourself to the network security risks of IP KVMs - Make your KVM remotely accessible with a KVM Extender Bullets (Consolidated) Operate a Dual VGA - USB-enabled PC up to 650ft away - as if it was installed locally - Dual VGA KVM Extender - Cat5 KVM Extender - KVM Console Extender - VGA KVM Extender - VGA USB Extender Marketing Copy Marketing Copy (No HTML) Applications - Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
- Control/Monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
- Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
- Use one or more servers in a server room from a remote location within the same building or campus
Website Search Keyword - KVM Extender
- Console Extender
- USB Console
- Keyboard mouse extender
- Server extender
- USB extender
- Remote user station
- Dual VGA KVM Extender
- Dual VGA USB KVM Extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Product weights/measurements and connector types indicate a single unit only (either Host or Remote) Accessory Products - SVECONUS10
- SVECONUS15
- SVECONUS6
- SVA9M2NEUA
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVA12M2NEUA
- SVA12M5NA

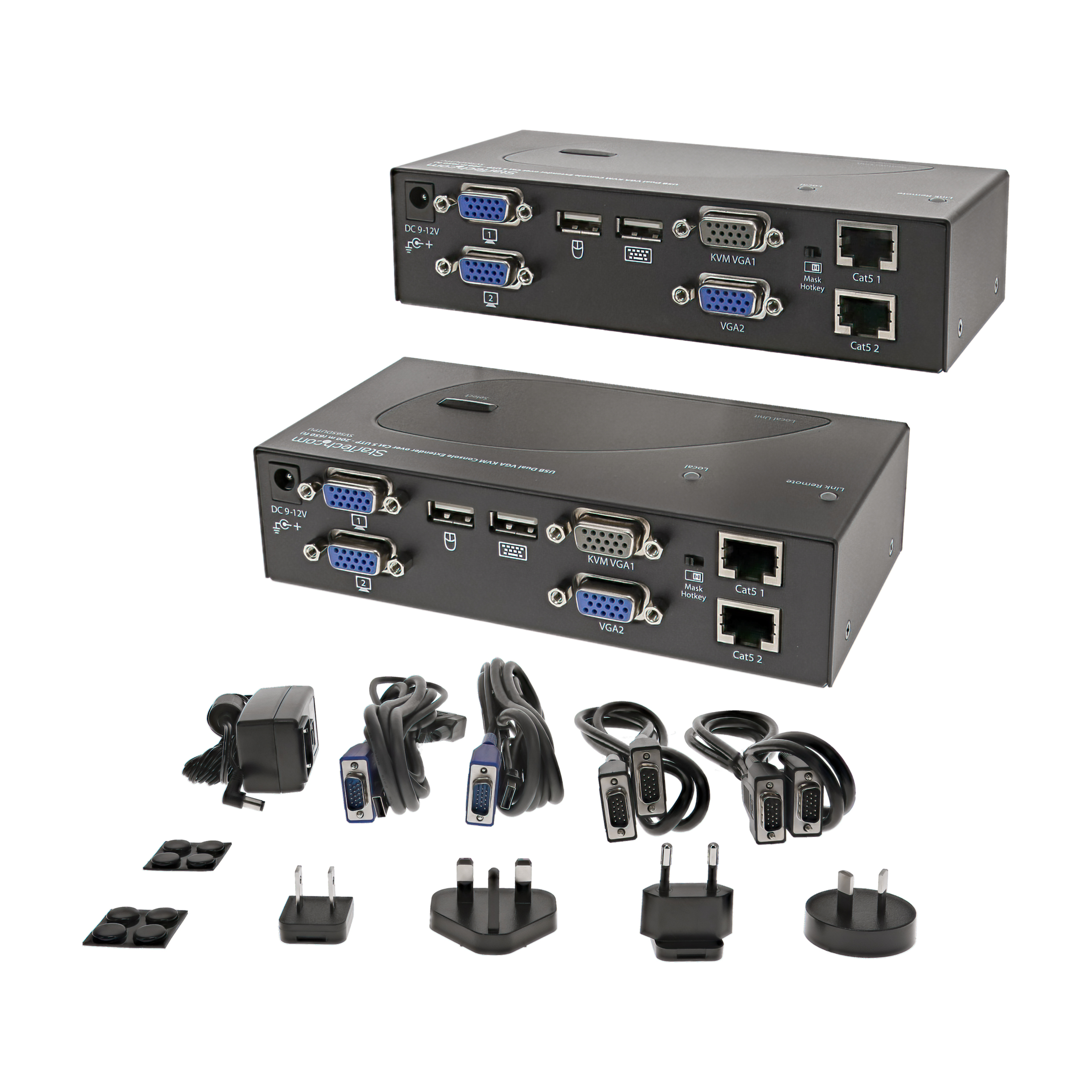

Input Current 0.2A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 155 Product Width (mm) 80 Product Height (mm) 40 Product Weight (g) 535 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1920x1200 Max Transfer Distance 200m [656ft] MTBF (hours) 65000 hours OS Compatibility OS Independent Supported Resolutions 1920x1200 @ 650 ft (200m) Audio No Cables Included Yes Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 394 Carton Height (mm) 274 Carton Quantity 6 Carton Weight Gross (g) 13844 Included in Package - 1 - Remote Unit
- 1 - Local Unit
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Instruction Manual
- 2 - 6ft 2-in-1 USB VGA KVM Cables
- 8 - Rubber Feet
- 2 - 4ft VGA Cables
Package Depth (mm) 237 Package Height (mm) 77 Package Width (mm) 366 Package Quantity 1 Package Weight (g) 2128 Packaging Description USB Dual VGA KVM Console Extender - 650ft Packaging Description India USB Dual VGA KVM Console Extender - 650ft Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
