SV565FXDUSA
USB DVI KVM Extender Over MultiMode Fiber
Extend DVI-D (or HDMI) video, USB, audio, and Serial signals up to 2km (6562ft) over fiber
Main Image
Product Images
Product Images
BOM Image
Product Name USB DVI KVM Extender Over MultiMode Fiber Product Number SV565FXDUSA UPC 065030839426 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 DVI KVM Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) USB DVI KVM Console Extender Over Fiber Product Title (Standard) USB DVI KVM Extender Over Fiber 2km - Serial/Audio Product Title (Long) USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km - TAA Product Title (AMZ) USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km - Fiber DVI KVM Extender (SV565FXDUSA) Title Ingram (Part 1) USB DVI KVM Console Extender w/ Title Ingram (Part 2) Serial & Audio Over MM Fiber Website Product Headline Extend DVI-D (or HDMI) video, USB, audio, and Serial signals up to 2km (6562ft) over fiber Bullet 1 High definition resolution support up to 1920 x 1200 (and HD 1080p) Bullet 2 Maximum supported distance of 2000m (6562 ft) Bullet 3 Hot-key and push-button controls Bullet 4 Fully compatible with DVI-D and HDMI standards by DDWG Bullet 5 HDCP compliant Bullets (Compact) Extend DVI-D (or HDMI) video, USB, audio, and Serial signals up to 2km (6562ft) over fiber - KVM extender - Fiber KVM extender - Fiber DVI extender Bullets (Consolidated) Extend DVI-D signals up to 2km (6562ft) over fiber with this KVM extender - Extends multiple signals: USB keyboard and mouse/RS232 serial/Digital video and audio - Compatible with DVI-D and HDMI standards by DDWG - 30m (98ft) Multimode fiber cable included - HDCP compliant extender - Fiber KVM extender - Fiber DVI extender Marketing Copy Applications - Control/Monitor a remote PC from a harsh environment (factory, warehouse, mining, etc.)
- Secure remote control of physically secured inaccessible servers
- High end video editing, CGI, and other CPU intensive activities can be performed on a remote high end blade type server from a desktop with only peripherals
- Extend and control large digital signage displays or kiosks with full digital high definition 1080p+ quality
- Enables remote and local access to a server rack without sacrificing work space and control
Website Search Keyword - Console Extender
- KVM Extender
- Port Extender
- rack server desktop console
- Remote Console
- remote kiosk
- Remote Server
- Server Extender
- USB Extender
- USB KVM
- VGA Audio Serial Extender
- DVI USB KVM
- KVM Console Extender
- Digital video extender
- Digital console extender
- hdmi console extender
- dvi console extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Supports most combo keyboard and mouse sets (including Wireless) Accessory Products - USBDVI4N1A6
- USBDVI4N1A10
- USBDVI4N1A15
- SV431RACK
- 50FIBSCSC1
- 50FIBSCSC2
- 50FIBSCSC3
- 50FIBSCSC5
- 50FIBSCSC10
- FIBSCSC1
- FIBSCSC2
- FIBSCSC3
- FIBSCSC5
- FIBSCSC10
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- SVA12M2NEUA
- SVA12M5NA
Related Products - PS2UTPEXT
- SV565UTP
- SV565UTPU
- SV565UTPUSA
- SV565UTPUL
Input Current 0.5A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Width (mm) 220 Product Depth (mm) 135 Product Height (mm) 44 Product Weight (g) 1030 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Single Link KVM IP Control No Maximum Digital Resolutions 1920 x 1200 (1920 x 1080 widescreen - 1080p) Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 190000 hours OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cascadable No LED Indicators - 2 - Serial Indicators (RX/TX status)

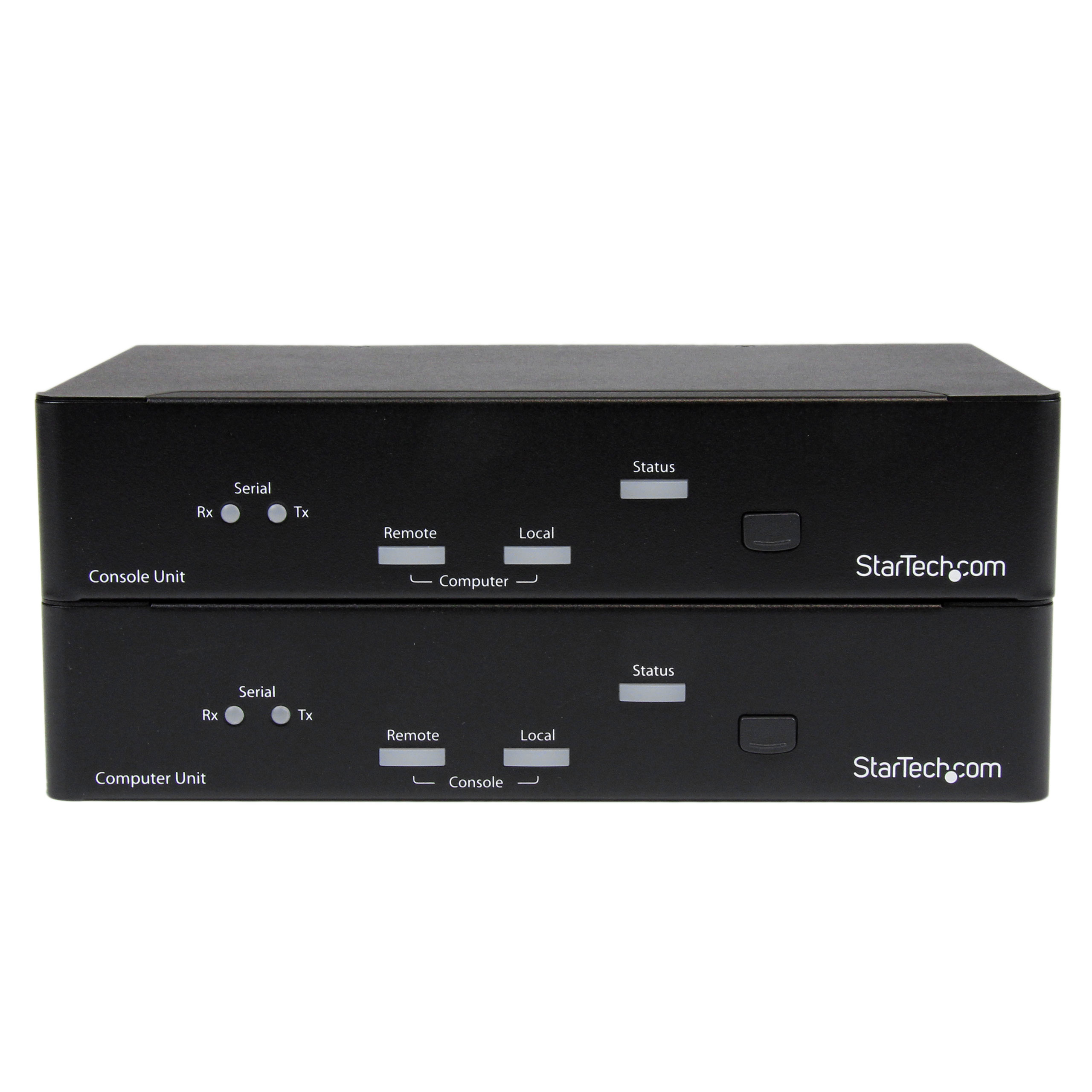

- 1 - Status Indicator (Green - Powered On, Blue - Powered On and Connected)
- 1 - Remote Indicator
- 1 - Local Indicator

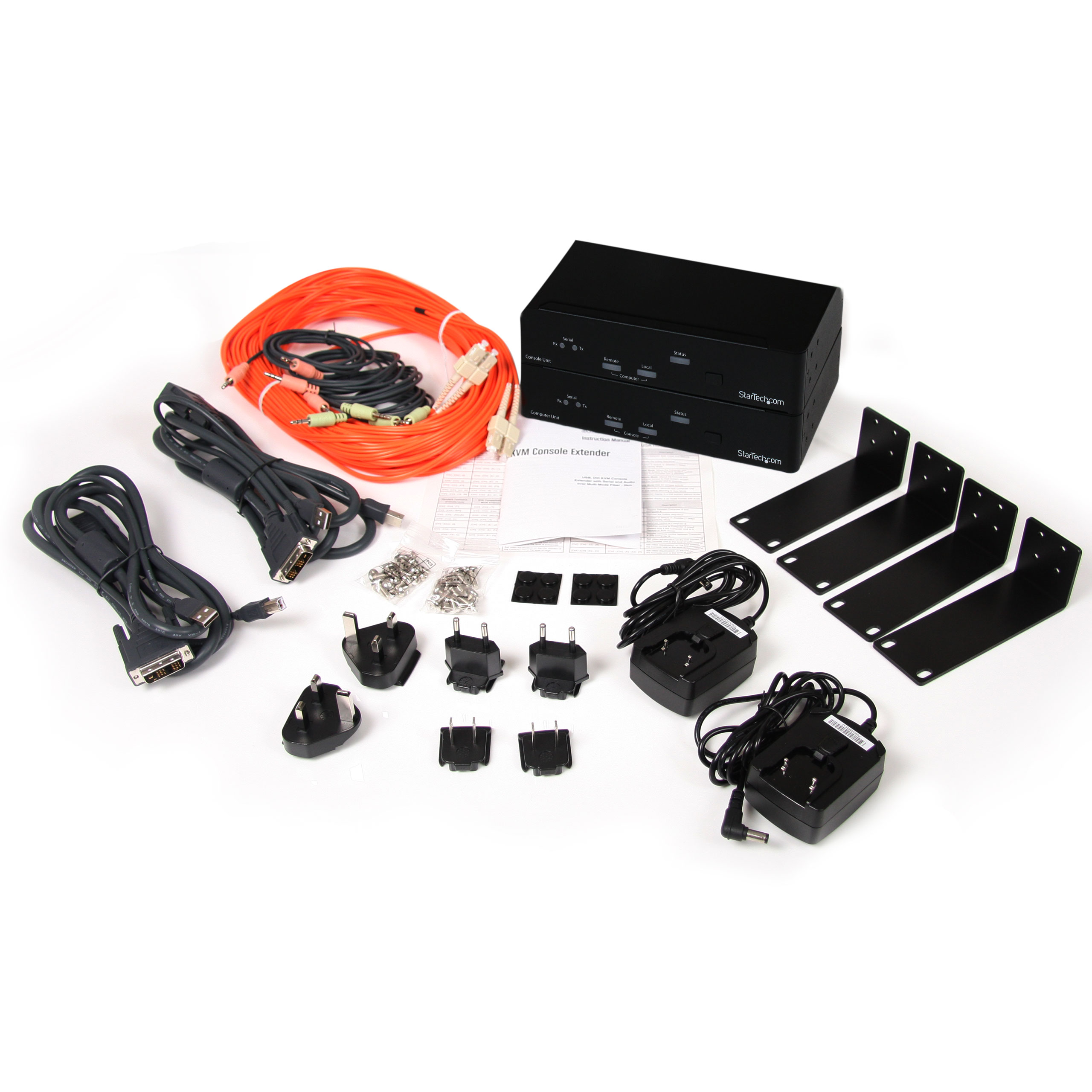

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable Yes Supported Platforms USB Carton Depth (mm) 388 Carton Height (mm) 408 Carton Quantity 3 Carton Weight Gross (g) 17138 Included in Package - 1 - Remote Extender Unit
- 1 - Local Extender Unit
- 1 - Manual
- 2 - Universal Power Adapter (US/UK/EU)
- 1 - Rubber feet
- 2 - Sets of DVI USB and Audio cables
- 1 - 30m (98ft) MM Fiber cable
- 4 - Rackmount Brackets

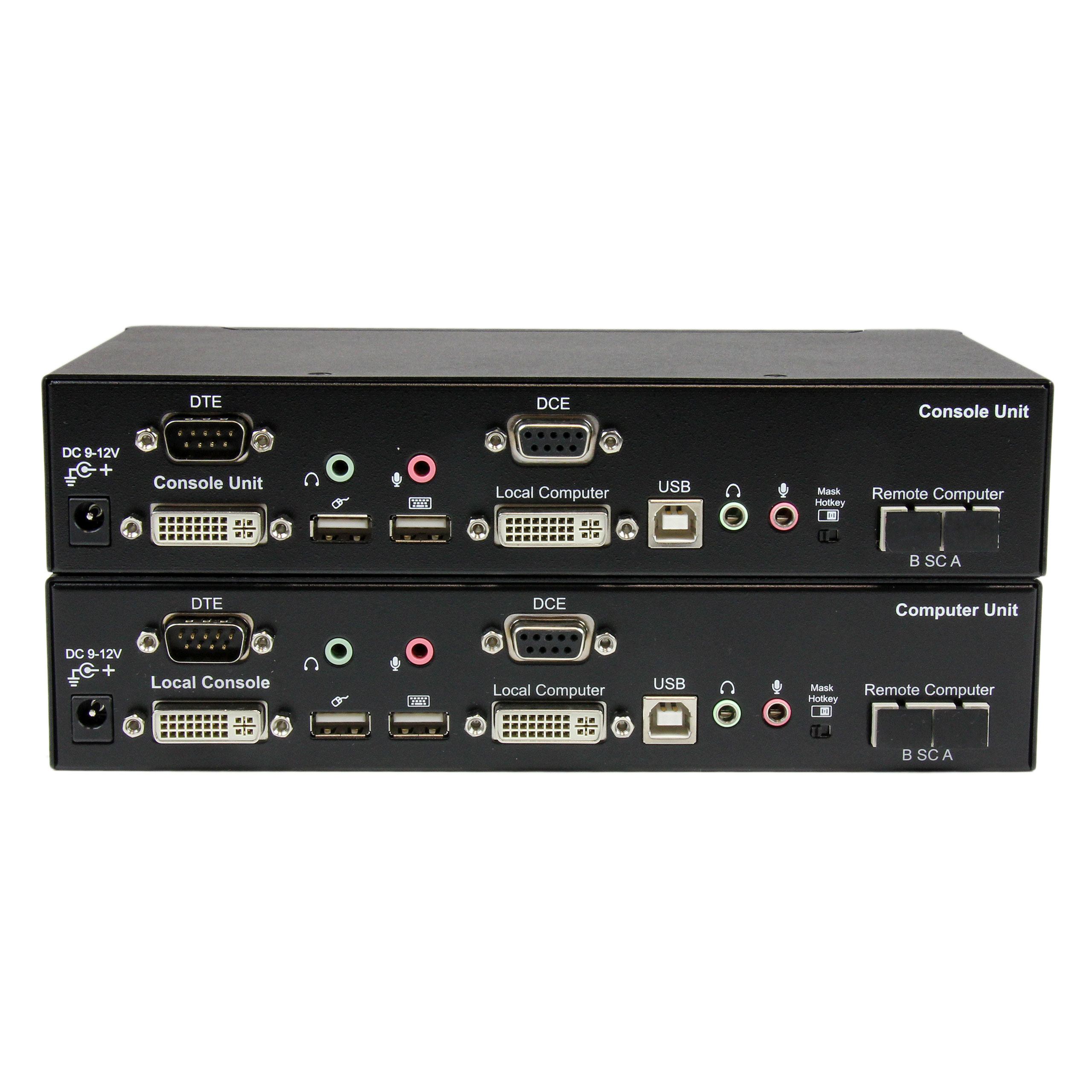

Package Depth (mm) 358 Package Height (mm) 122 Package Width (mm) 512 Package Quantity 1 Package Weight (g) 5342 Packaging Description USB DVI KVM Console Extender Over Fiber - 2km Packaging Description India USB DVI KVM Console Extender Over Fiber - 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 2 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 4 Connector 3 DB-9 Serial Connector 3 (Quantity) 2 Connector 4 DVI-I Dual-Link (29-Pin) Connector 4 (Quantity) 2 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 4 Host Connector 1 3.5mm (3 Conductors, TRS) Host Connector 1 (Quantity) 4 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 2 Host Connector 3 DVI-I Dual-Link (29-Pin) Host Connector 3 (Quantity) 2 Host Connector 4 USB-B (480Mbps, 2.5W) Host Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
