SV565FXHD
Fiber HDMI KVM Extender with Audio and IR
Operate the keyboard and mouse while viewing the HDMI display of a PC or KVM switch, from up to 1km (3280ft) away over fiber optic cabling
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Fiber HDMI KVM Extender with Audio and IR Product Number SV565FXHD UPC 065030859769 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI KVM Extender Product Title (Short) HDMI over Fiber KVM Extender - 1KM Product Title (Medium) HDMI over Fiber KVM Console Extender – USB or PS2 keyboard and mouse – 1KM Product Title (Standard) HDMI over Fiber KVM Console Extender – USB or PS2 keyboard and mouse – 1KM Product Title (Long) HDMI over Fiber KVM Console Extender - USB or PS2 - 1KM Product Title (AMZ) HDMI over Fiber KVM Console Extender – USB or PS2 Keyboard and Mouse – Single mode or Multimode - KVM support - 1KM (3280ft) (SV565FXHD) Title Ingram (Part 1) KVM Extender over Fiber - HDMI Title Ingram (Part 2) + PS2 or USB -1 KM Website Product Headline Operate the keyboard and mouse while viewing the HDMI display of a PC or KVM switch, from up to 1km (3280ft) away over fiber optic cabling Bullet 1 Long connection distances with support for HDMI console extension up to 1 km (3280ft) away from your computer Bullet 2 Brilliant picture quality with support for high-definition TV resolutions up to 1920x1080 (1080p), and PC resolutions up to 1920x1200 Bullet 3 Broad compatibility with support for single mode and multimode fiber runs Bullet 4 Local transmitter and remote receiver units included Bullet 5 Works with PS/2 and USB computers Bullets (Compact) Operate an HDMI equipped PC or KVM switch from up to 1km (3280ft) away over fiber optic cabling - Works with HDMI devices such as computers, TVs, monitors & projectors - Extend your KVM signal between buildings - Extends over Fiber without EMI Bullets (Consolidated) Operate an HDMI equipped PC or KVM switch from up to 1km (3280ft) away over fiber optic cabling - Compatible with HDMI epuipped computers and HDMI televisions monitors and projectors - KVM Extender/KVM Console Extender/Fiber Optic Extender/Single mode or Multimode Fiber Extender/HDMI Keyboard and USB or PS2 Mouse over Fiber - Extend your console in interference-sensitive environments, such as hospitals or industrial sites, with no EMI - Extend your KVM signal between buildings Marketing Copy Applications - Extend your console in interference-sensitive environments, such as hospitals or industrial sites, with no EMI (electromagnetic interference)
- Connect your console to a computer system up to 1 km away, across an arena, stadium or large shopping complex, or between buildings
- Use this extender with any HDMI KVM switch to control multiple computers or servers
- Create a digital signage solution by extending an IR signal along with your video source and console to control, enabling you to control the display from the computer end of your setup
Website Search Keyword - KVM Extender
- KVM Console Extender
- Fiber Optic Extender
- Single mode
- Multimode
- HDMI extender
- keyboard extender
- Mouse extender
- HDMI over fiber
- 1 KM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - SV231HDMIUA
- SV211HDUA
- SV231HDU3A
- SV431HDU3A
- 50FIBPSCSC1
- 50FIBPSCSC2
- 50FIBPSCSC3
- 50FIBPSCSC5
- USB2HAB6
- USB2HAB10
- USB2HAB15
- KYC1MF
- HDMM6
- HDMM10
- HDMM15
Related Products - SV565UTPUSA
- SV565UTPUL
- SV565UTPU
- SV565UTP

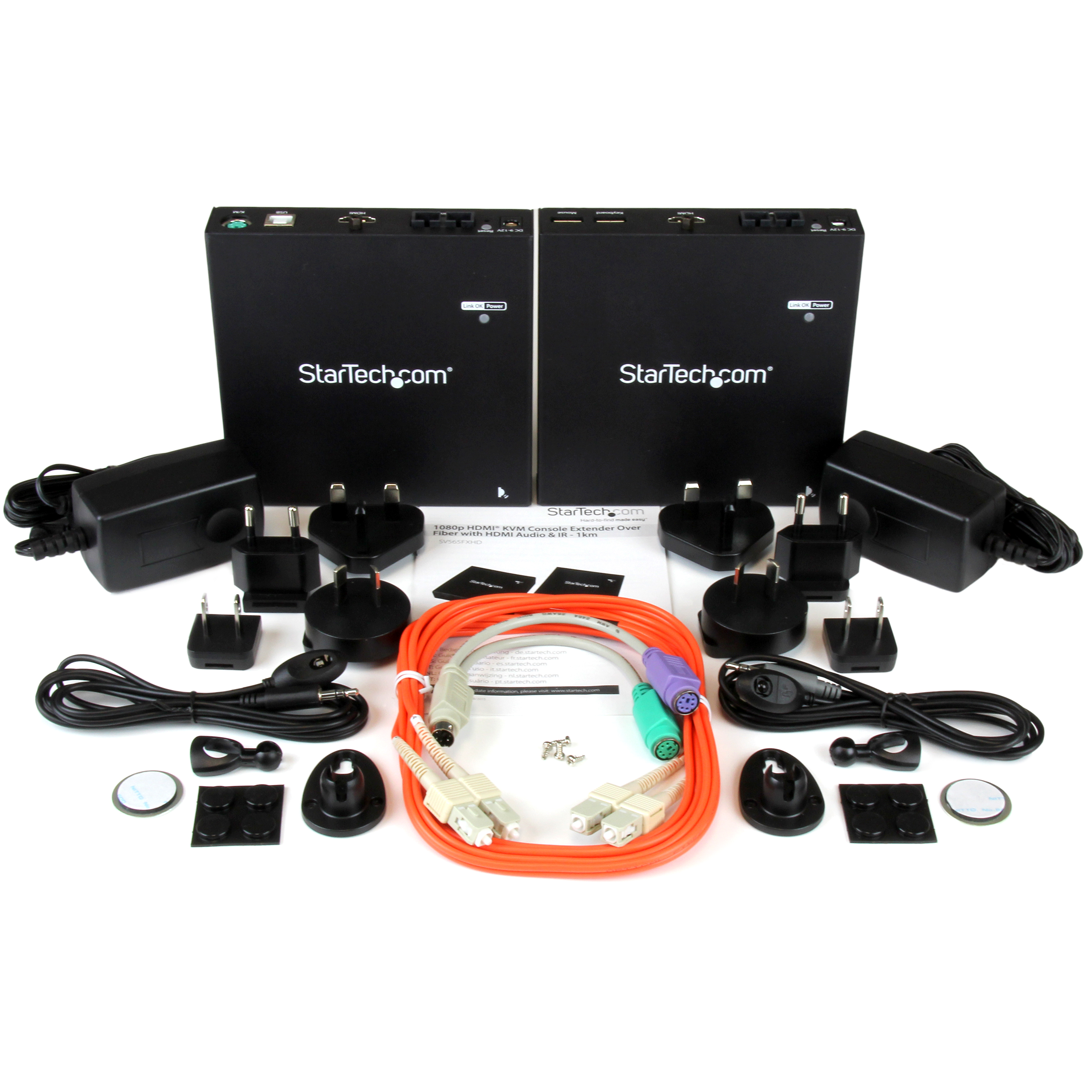

Input Current 0.6 Input Voltage 100 - 240 AC Output Current 1.25A Output Voltage (V) 12V DC Power Consumption (In Watts) 15W Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Humidity 0~80% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 132.000 Product Width (mm) 130.000 Product Height (mm) 28.000 Product Weight (g) 560.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Digital Resolutions 1920 x 1200 (1920 x 1080 widescreen - 1080p) Max Transfer Distance 1 km (0.6 mi) MTBF (hours) 190000 hours OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes Cables Included No Cascadable No LED Indicators 2 - Reset LED (extender & receiver) Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 390 Carton Height (mm) 276 Carton Quantity 6 Carton Weight Gross (g) 13620 Included in Package - 1 - local extender unit
- 1 - remote extender Unit
- 1 - PS/2 y-cable
- 1 - external IR sensor Kit
- 1 - 2m (6.56ft) SC-SC fiber optic cable
- 2 - universal power adapters (NA, EU, UK, ANZ)
Package Depth (mm) 233 Package Height (mm) 76 Package Width (mm) 371 Package Quantity 1 Package Weight (g) 2079 Packaging Description 1080p HDMI® KVM Console Extender Over Fiber - 1km Packaging Description India 1080p HDMI® KVM Console Extender Over Fiber - 1km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 Infrared (IrDA) Connector 4 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 SC Duplex Fiber Host Connector 2 (Quantity) 1 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 Host Connector 4 PS/2 Host Connector 4 (Quantity) 1 Host Connector 5 Infrared (IrDA) Host Connector 5 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-10-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,CO,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-12-29 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
