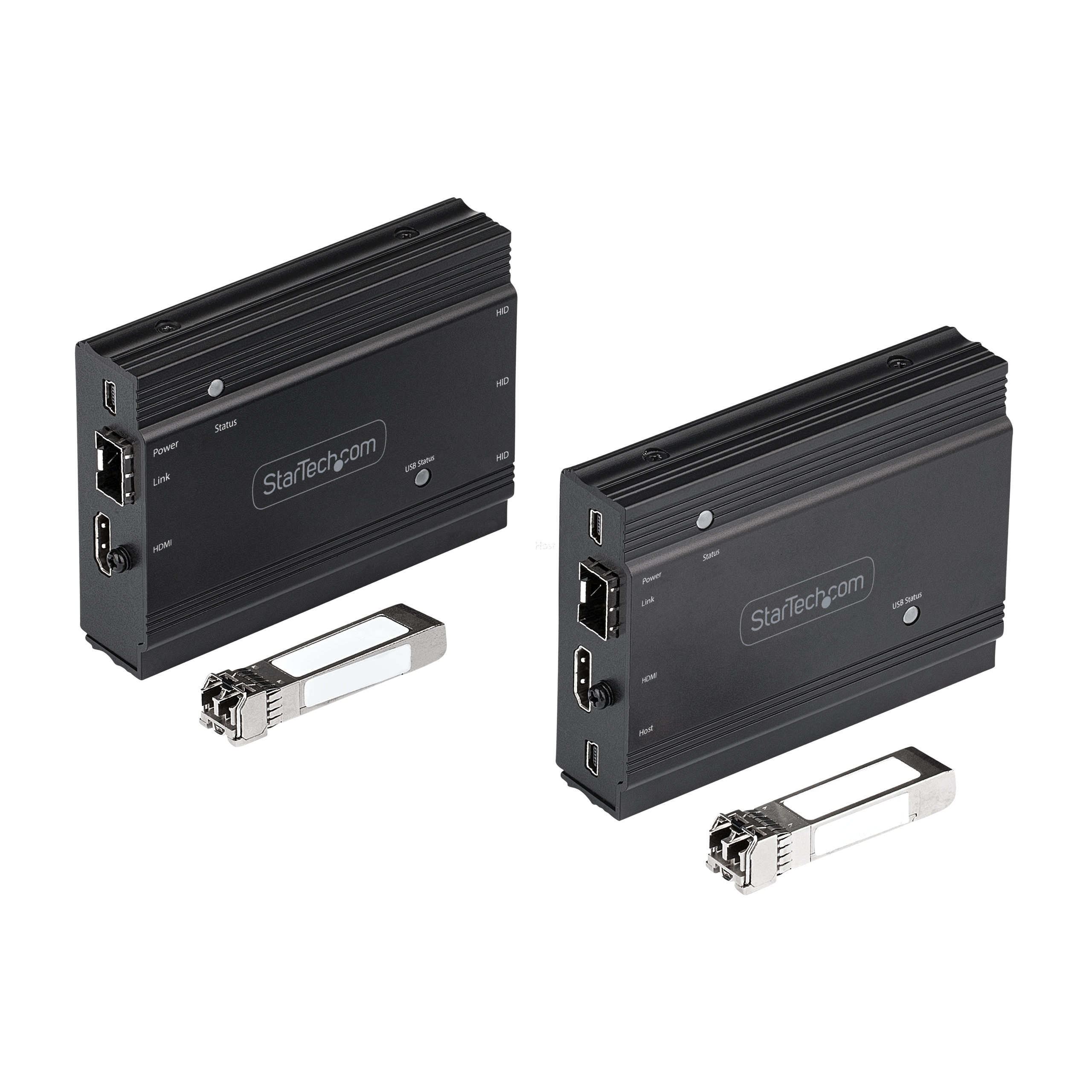

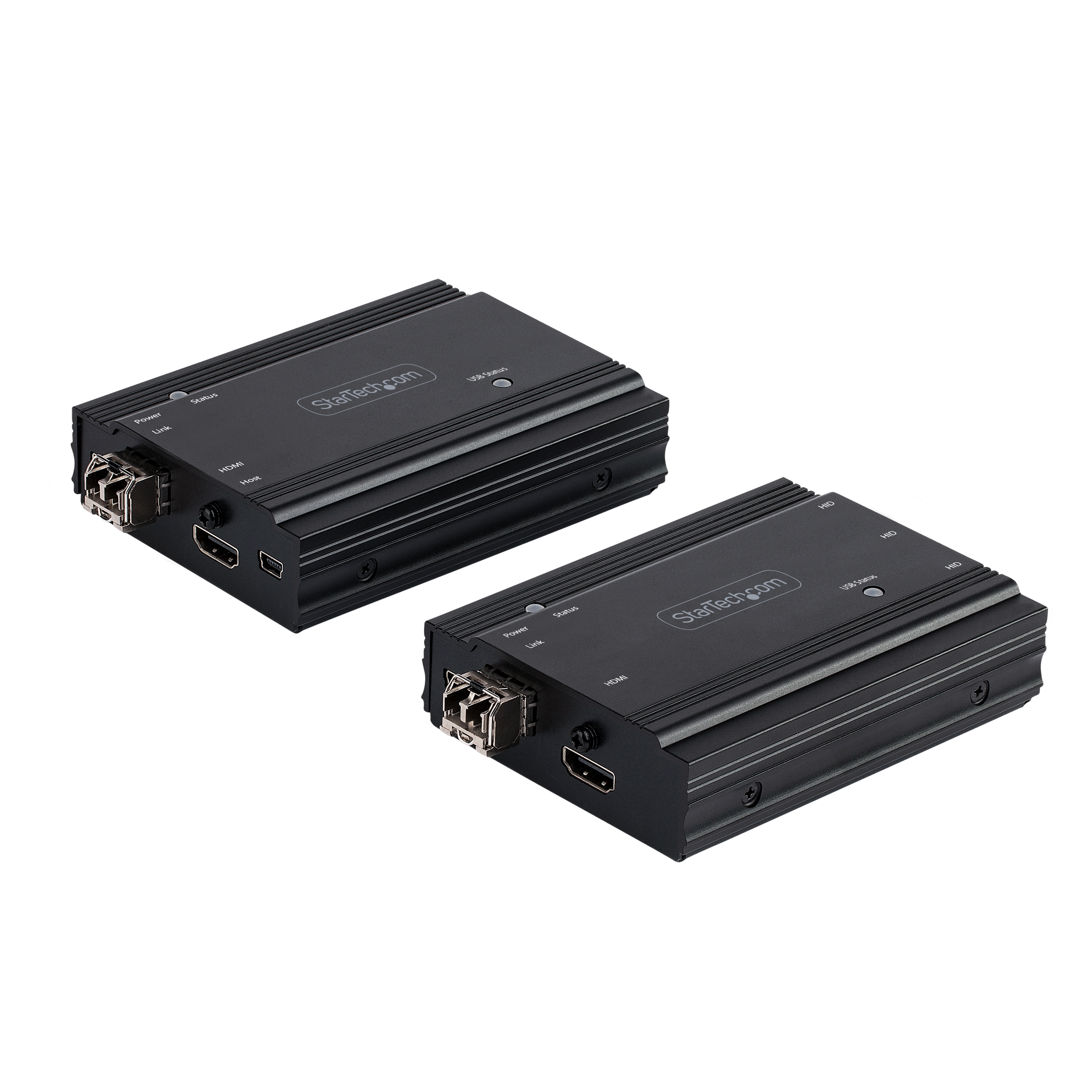

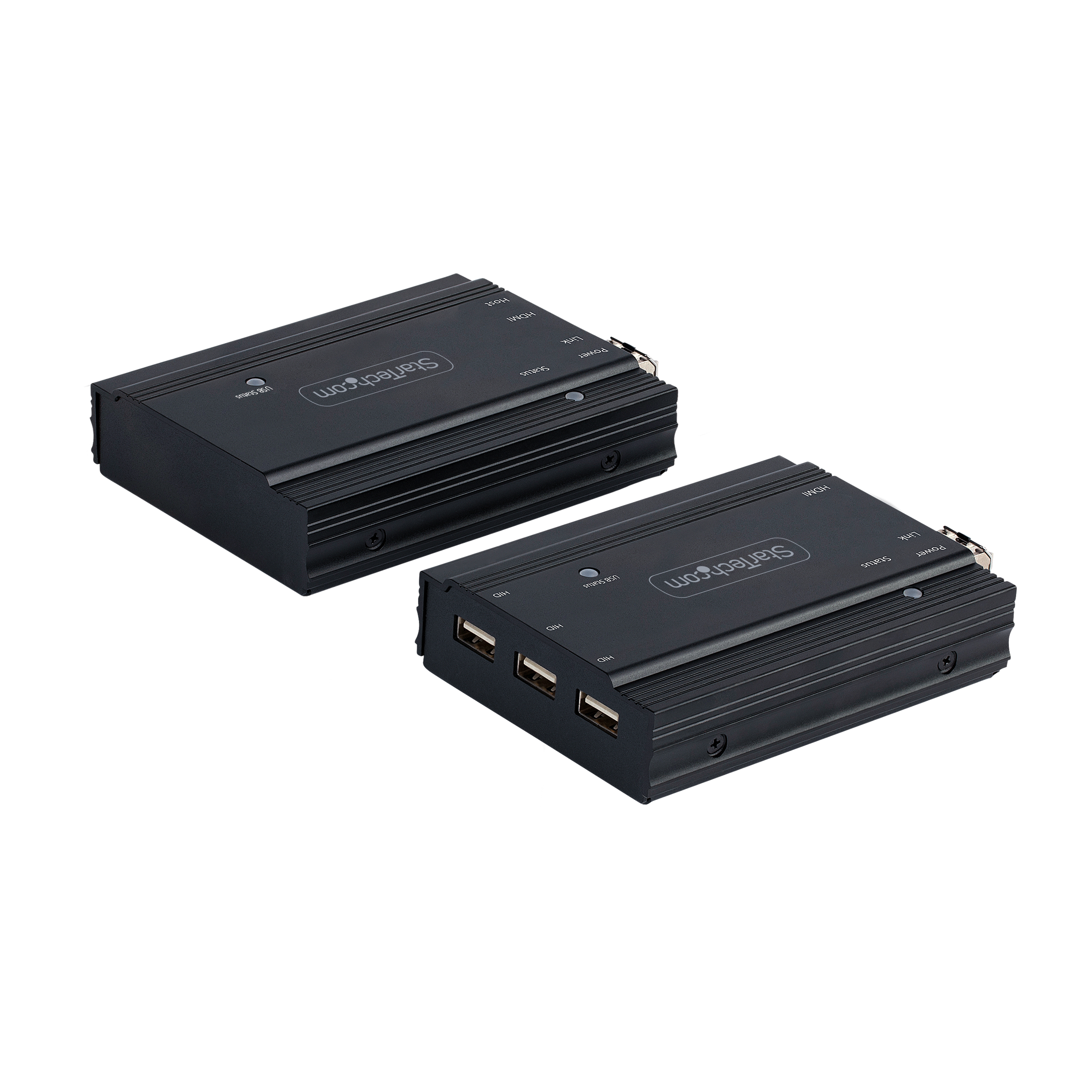

Main Image
SV565FXHD4KU
HDMI and USB over Fiber KVM Console Extender
HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI and USB over Fiber KVM Console Extender Product Number SV565FXHD4KU UPC 065030887694 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4K HDMI KVM Extender Product Title (Short) 4K HDMI USB KVM Extender over Fiber, Kit Product Title (Medium) 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote- 2x 10G MMF SFP+ Product Title (Standard) 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ Modules, TAA Product Title (Long) 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX) - TAA Product Title (AMZ) 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX) , TAA Title Ingram (Part 1) 4K HDMI Extender over Fiber Kit Title Ingram (Part 2) HDMI Video and USB over Fiber Website Product Headline HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included Bullet 1 REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules Bullet 2 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security Bullet 3 DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support Bullet 4 SPECS: HDMI 2.0 Fiber Optic KVM Extender | 3x USB 1.1 HID | OS Independent | EDID Passthrough | Supports MM or SM SFP+ | 2x 10G Multimode SFP+ modules inc. | LC Connectors | 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range | 2 year Warranty Bullet 5 EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5 Bullets (Compact) HDMI and USB KVM extender kit controls a KVM switch/console or PC using fiber optic cable up to 984ft (multimode) or 1640ft (single mode) - 4K 60Hz UHD/3x USB 1.1 HID/EDID Passthrough/HDCP 2.2/Digital 7.1 Audio/Open SFP+ Slots/2x 10G MM SFP+/LC Bullets (Consolidated) USB and 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using fiber optic cable up to 984' (multimode) or 1640' (single mode) - 4K 60Hz UHD video (up to 3840 x 2160 60Hz)/4:4:4 sampling - Open SFP+ slots allows for MSA compliant 10G SFP+ modules - 3x USB 1.1 HID | OS Independent | EDID Passthrough | HDCP 2.2 | Digital 7.1 Audio | Supports MM/SM SFP+ | Incl. 2x 10G MM SFP+ | LC Connectors | Transmitter + Receiver Kit - No proprietary software/network settings to configure Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - USB2HABM3
- USB2HABM6
- USB2HABM10
- A50FBLCLC15
- A50FBLCLC10
- A50FBLCLC5
- 450FBLCLC25
- 450FBLCLC20
Replacement Product - SV565DUTPU
- SV565FXDUSA
- SV565HDIP
- SV565UTPDUV
- SV565UTPHDU
- SV565UTPU
- USB2004EXT2NA
- USB2G4LEXT2NA
- USB2002EXT2NA
- USB2004EXT100
Constrained SKU Alternatives (Limited Stock) SV565FXDUSA Input Current 0.3A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10W Power Source AC Adapter Included Color Black Humidity 0 - 80 RH, Non-Condensing Material Metal Operating Temperature 0°C to 50°C Product Length (mm) 100.000 Product Width (mm) 75.000 Product Height (mm) 28.000 Product Weight (g) 490.000 Storage Temperature -10°C to 60°C TAA Compliant Yes Audio Specifications HDMI - 7.1 Channel Audio Compatible Networks 10 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Multi Mode Hot-Key Selection No Max Transfer Distance 300 m (Multi-Mode OM3 Fiber) MTBF (hours) 1,000,000 Hours On-Screen Display No OS Compatibility OS Independent Supported Resolutions Wavelength 850nm Wide Screen Supported Yes Audio Yes Cables Included No Fiber Connector LC Industry Standards IEEE 802.3ae 10GBASE-SR LED Indicators - 2 - Power/Connection LED
- 2 - USB Status LED

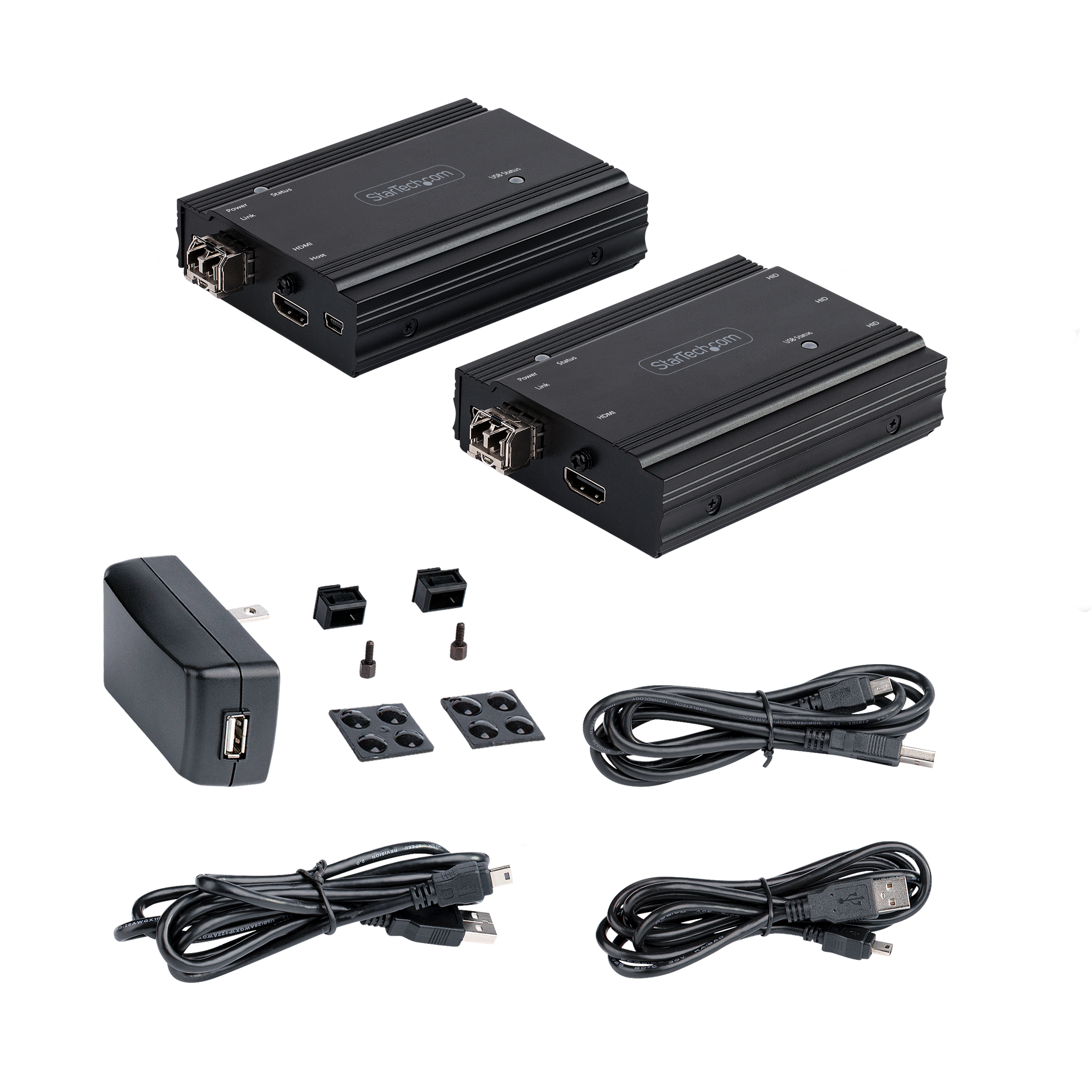

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 405 Carton Height (mm) 265 Carton Quantity 6 Carton Weight Gross (g) 7050 Included in Package - 1 - Transmitter for Host Computer
- 1 - Receiver for Remote Console
- 2 - 10G Multimode 10G SFP+ Module (Pre-Installed)
- 2 - Universal Power Adapter
- 3 - USB-A to Mini USB-B Cables
- 1 - Quick-Start Guide

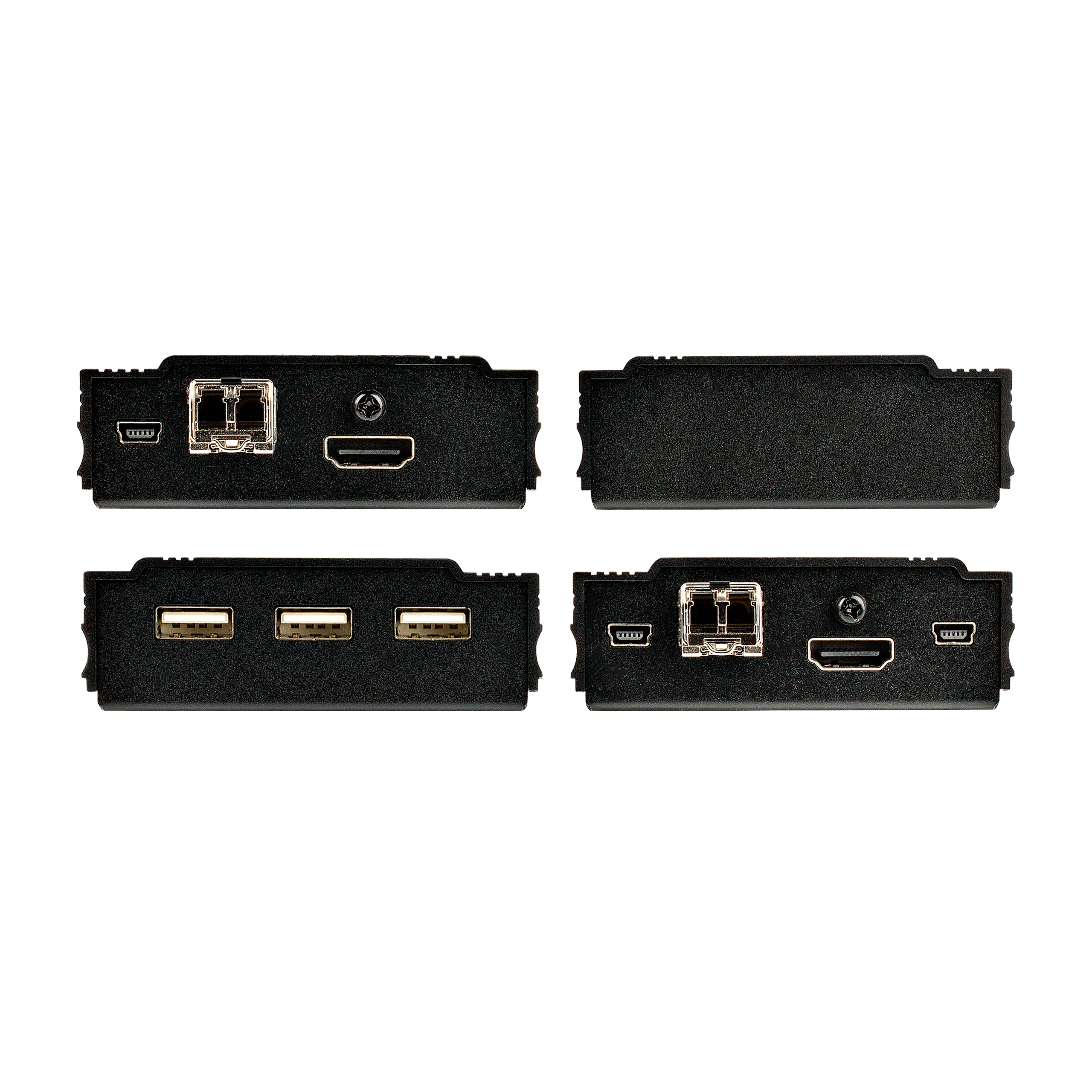

Package Depth (mm) 180 Package Height (mm) 74 Package Width (mm) 310 Package Quantity 1 Package Weight (g) 1028 Packaging Description 4K HDMI® KVM Console Extender Over Fiber Packaging Description India 4K HDMI® KVM Console Extender Over Fiber Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFP+ Slot Connector 1 (Quantity) 1 Connector 2 USB-A (1.5Mbps, 2.5W) Connector 2 (Quantity) 3 Connector 3 HDMI Connector 3 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 SFP+ Slot Host Connector 2 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-12-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2021-07-26 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology - None
- HDMI 2.0 / 4K 60 Hz and HDR
