SV565HDIP
HDMI 4K 30Hz KVM extender over IP
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI 4K 30Hz KVM extender over IP Product Number SV565HDIP UPC 065030877947 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI KVM Extender Product Title (Short) HDMI KVM Extender over IP/Ethernet 4K Product Title (Medium) HDMI KVM Extender over LAN - 4K 30Hz Product Title (Standard) HDMI KVM Extender over IP Network, 4K 30Hz HDMI and USB over LAN or Cat5e/Cat6 Ethernet (100m/330ft), Remote KVM Console, TAA Product Title (Long) HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit - TAA Product Title (AMZ) HDMI KVM Extender over IP - 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit , TAA (SV565HDIP) Title Ingram (Part 1) HDMI KVM Extender over LAN - 4K Title Ingram (Part 2) 30Hz - KVM Console Extender Over IP Website Product Headline KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through Bullet 1 REMOTE ACCESS: HDMI KVM extender over IP controls a KVM Switch/Console or PC from up to 328ft (100 m) away over Cat5e/6 Ethernet cable or over IP-enabled local area network (LAN) for unlimited range Bullet 2 4K VIDEO QUALITY: HDMI transmitter & extender kit achieves ultra HD resolutions up to 3840 x 2160 4K at 30Hz supports large video signage display at remote locations; Mounting hardware incl. Bullet 3 HDMI | 4K 30Hz 3840 x 2160 | USB 2.0 HID | OS Independent | 2 x 3.5mm Analog Audio + Mic | Digital 7.1 Surround Audio | EDID Passthrough | IP Routable/Switchable | 100m Max Direct Connection | 2yr War Bullet 4 ADVANCED AUDIO & VIDEO: EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI offers theatre-grade sound Bullet 5 VIDEO WALL SUPPORT: Connect receivers (sold separately) to distribute HDMI signal to multiple displays at remote location or combine source to create a 9x9 video wall; Configure using an intuitive GUI Bullets (Compact) HDMI KVM Extender over IP transmitter & receiver kit remotely controls KVM switch/console or PC from up to 330ft/100m over Cat5e/6 Ethernet network cable/IP enabled LAN - 4K UHD 30Hz /EDID Passthrough/USB2.0 HID/ Large Signage Display or Video Wall Bullets (Consolidated) HDMI KVM Extender over IP transmitter and receiver kit remotely controls KVM switch/console or PC from up to 328ft/100m over Cat5e/6 Ethernet cable or over IP-enabled local area network - 4K UHD 30Hz 3840 x 2160 for large signage display - USB 2.0 HID | OS Independent |2 x 3.5mm Analog Audio + Mic |Digital 7.1 Surround Audio |IP Routable/Switchable - EDID Passthrough transfers display capabilities to video source -Video wall support w/receivers sold separately - Mounting hardware incl. Marketing Copy Marketing Copy (No HTML) Applications - Control a computer (or multiple computers with a KVM) from a remote location
- Distribute the video source from your computer(s) to multiple locations around your site
- Combine the video source from your computer(s) to create a remote video wall
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled Accessory Products - ST12MHDLAN4R
- HDMM3
- HDMM6
- HDMM10
- HDMM3M
- HDMM10M
- RJ45PATCH100
- S45PATCH100B
- S45PATCH75BL
- S45PATCH50BL
- RJ45PATCH75
- RJ45PATCH50
- N6PATCH150BL
- N6PATCH125BL
- N6PATCH100BL
- N6PATCH75BL
- N6PATCH50BL
- C6PATCH100BL
- C6PATCH75BL
- C6PATCH50BL
- USB2HABM1
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USB2HABM3RA
- USB2HABM3LA
- USB2HABM6RA
- USB2HABM6LA
Related Products - ST12MHDLAN4K
- ST12MHDLANU
- ST12MHDLAN2K
- SV565UTPHDU
- SV565FXHD
- SV565UTPDUV
- SV565FXDUSA
- SV565UTPU
- SV565UTPUL
- SV565DUTPU
Constrained SKU Alternatives (Limited Stock) SV565UTPU Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18W Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% to 80% Material Steel Operating Temperature 0℃ to 40℃ (32°F to 104°F) Primary Material Steel Product Length (mm) 130.000 Product Width (mm) 117.000 Product Height (mm) 28.000 Product Weight (g) 610.000 Storage Temperature -10℃ to 60℃ (14°F to 140°F) TAA Compliant Yes DVI Support Yes Hot-Key Selection No KVM IP Control No Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 12MBps Maximum Digital Resolutions 3840 x 2160 @ 30Hz (4K) Max Transfer Distance 100m [328ft] MTBF (hours) 60000 hours On-Screen Display Yes Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included Yes Cascadable No Chipset ID ASPEED - AST1520 LED Indicators - 1 - Transmitter: Green - No Link; Blue - Good Link; Flashing Blue/Green - Linked but no video
- 1 - Transmitter: Flashing Orange - Network connection
- 1 - Receiver: Red - No Link; Blue - Good Link; Flashing Blue/Red - Linked but no video
- 1 - Receiver: Flashing Orange - Network connection

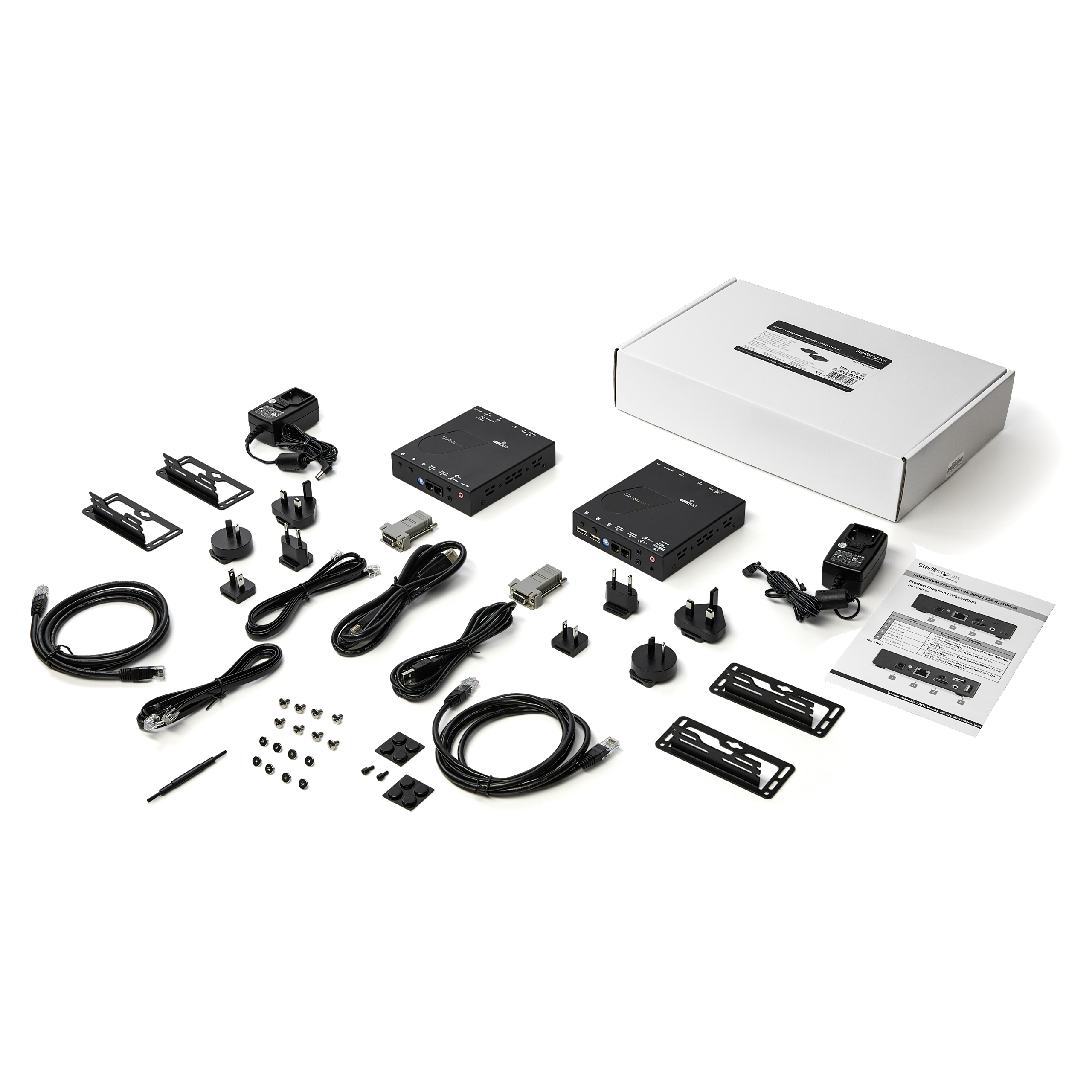

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type HDMI Supported Platforms USB Carton Depth (mm) 394 Carton Height (mm) 272 Carton Quantity 6 Carton Weight Gross (g) 15908 Included in Package - 1 - Transmitter Unit
- 1 - Receiver Unit
- 2 - Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
- 2 - Mounting Kits
- 2 - Ethernet Cables
- 2 - DB9 Serial Adapters
- 2 - RJ11 Serial Cables
- 1 - Plastic Screwdriver
- 1 - Quick-Start Guide
- 1 - HDMI Cable (1.2 m)
- 1 - USB Cable (1.5 m)
- 8 - Rubber Feet
Package Depth (mm) 354 Package Height (mm) 80 Package Width (mm) 368 Package Quantity 1 Package Weight (g) 2430 Packaging Description HDMI® KVM Extender - 4K 30Hz Packaging Description India HDMI® KVM Extender - 4K 30Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 RJ-11 Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Connector 6 USB-A (480Mbps, 2.5W) Connector 6 (Quantity) 2 Connector 7 USB-A (1.5Mbps, 2.5W) Connector 7 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Host Connector 3 RJ-11 Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 2 Host Connector 5 3.5mm (3 Conductors, TRS) Host Connector 5 (Quantity) 2 Host Connector 6 USB Mini-B (480Mbps, 2.5W) Host Connector 6 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-01-17 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-03-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-01-18 Target Production Release 2019-02-08 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
