SV565LANDUA

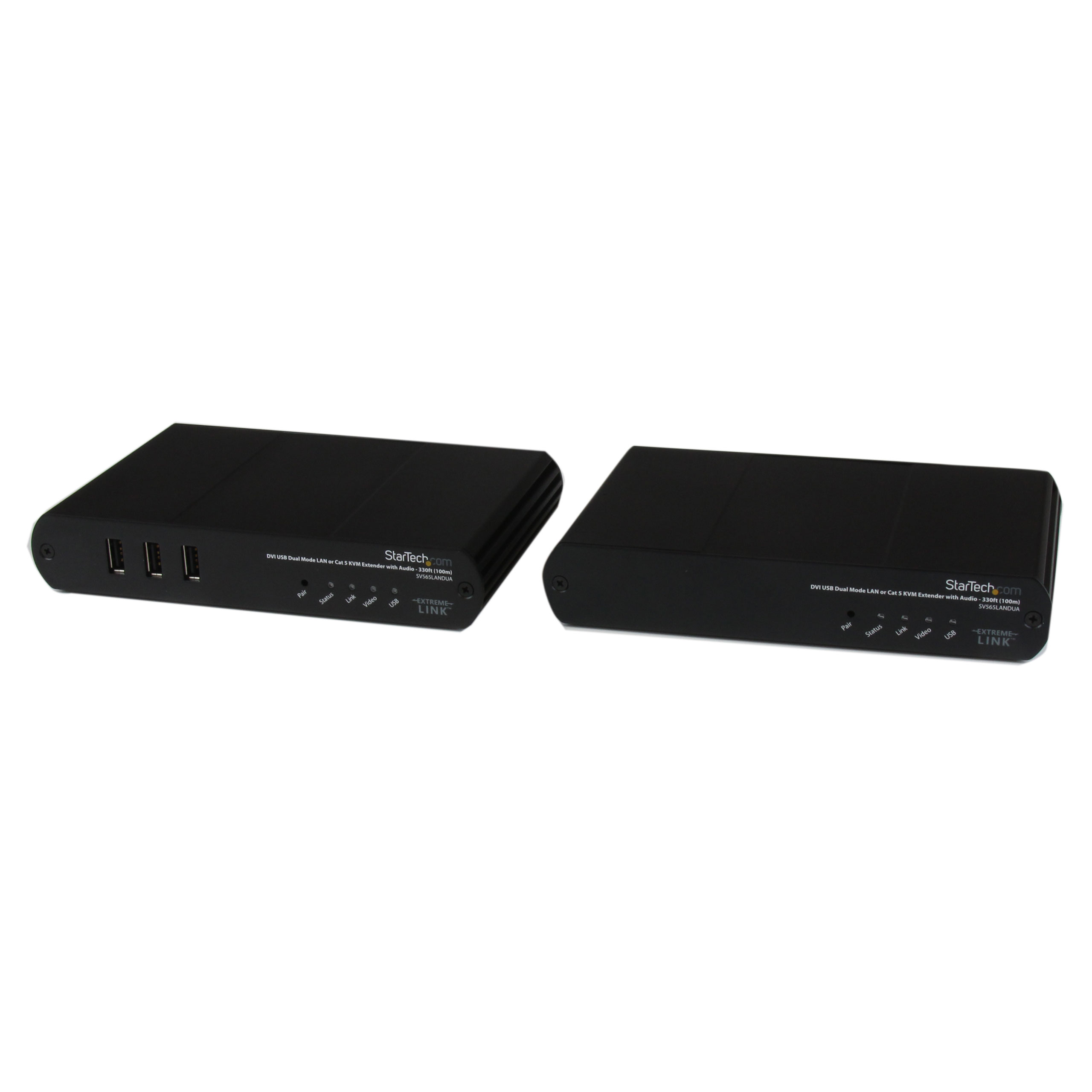

USB DVI Cat5 KVM Console Extender - 330ft/100m
Extend DVI-D (or HDMI) video, USB and Audio through a LAN, or Cat 5 cabling, up to 100m (330ft)
Main Image
Product Images
Product Images
BOM Image
Product Name USB DVI Cat5 KVM Console Extender - 330ft/100m Product Number SV565LANDUA UPC 065030847957 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 DVI KVM Extenders Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Ultra-Short) USB DVI KVM Extender Product Title (Short) USB DVI KVM Console Extender over Cat5 Product Title (Standard) USB DVI KVM Console IP Extender over Cat5 with Audio - 1680x1050 330 ft (100m) Product Title (Long) USB DVI KVM Console IP Extender over Cat5 with Audio - 1680x1050 330 ft (100m) Product Title (AMZ) USB DVI KVM Console IP Extender over Cat5 with Audio - 1680x1050 330 ft (100m) (SV565LANDUA) Title Ingram (Part 1) USB DVI Cat5 KVM Console Extende Title Ingram (Part 2) r - Audio - 1680x1050 330ft/100m Website Product Headline Extend DVI-D (or HDMI) video, USB and Audio through a LAN, or Cat 5 cabling, up to 100m (330ft) Bullet 1 Supports resolutions up to 1680x1050 Bullet 2 Dual Mode KVM Extender connects through a LAN or via direct Cat5 (or better) cabling Bullet 3 Supports 100 Mbps or 1 Gbps LAN connections Bullet 4 2-Channel stereo audio and microphone connections Bullet 5 High Speed USB 2.0 (480 Mbps) ports Bullets (Consolidated) Extend DVI-D (or HDMI) video - USB and Audio through a LAN - or Cat 5 cabling - up to 100m (330ft) and#8212; DVI KVM Extender and#8212; Cat5 KVM Extender and#8212; DVI USB Extender and#8212; KVM Console Extender w/ Audio and#8212; IP KVM Extender - Extends over LAN or CAT 5 Direct - 1680x1050 Marketing Copy Applications - Use one or more servers in a server room from a remote location within the same building or campus
- Control remote machines and security monitoring systems
- Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
- Control/Monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
- Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
- Secure remote control of physically secured inaccessible servers
System and Cable Requirements 100 Mbps or 1 Gbps network connection for LAN mode (1 Gbps recommended) Accessory Products - DVID4N1USB6
- DVID4N1USB10
- N6PATCH100BL
- WIRC6CMRBL
- DVIDDMM6
Related Products - SV565UTPDUA
- SV565FXDUSA
- SV565UTPUSA
- SV565UTP

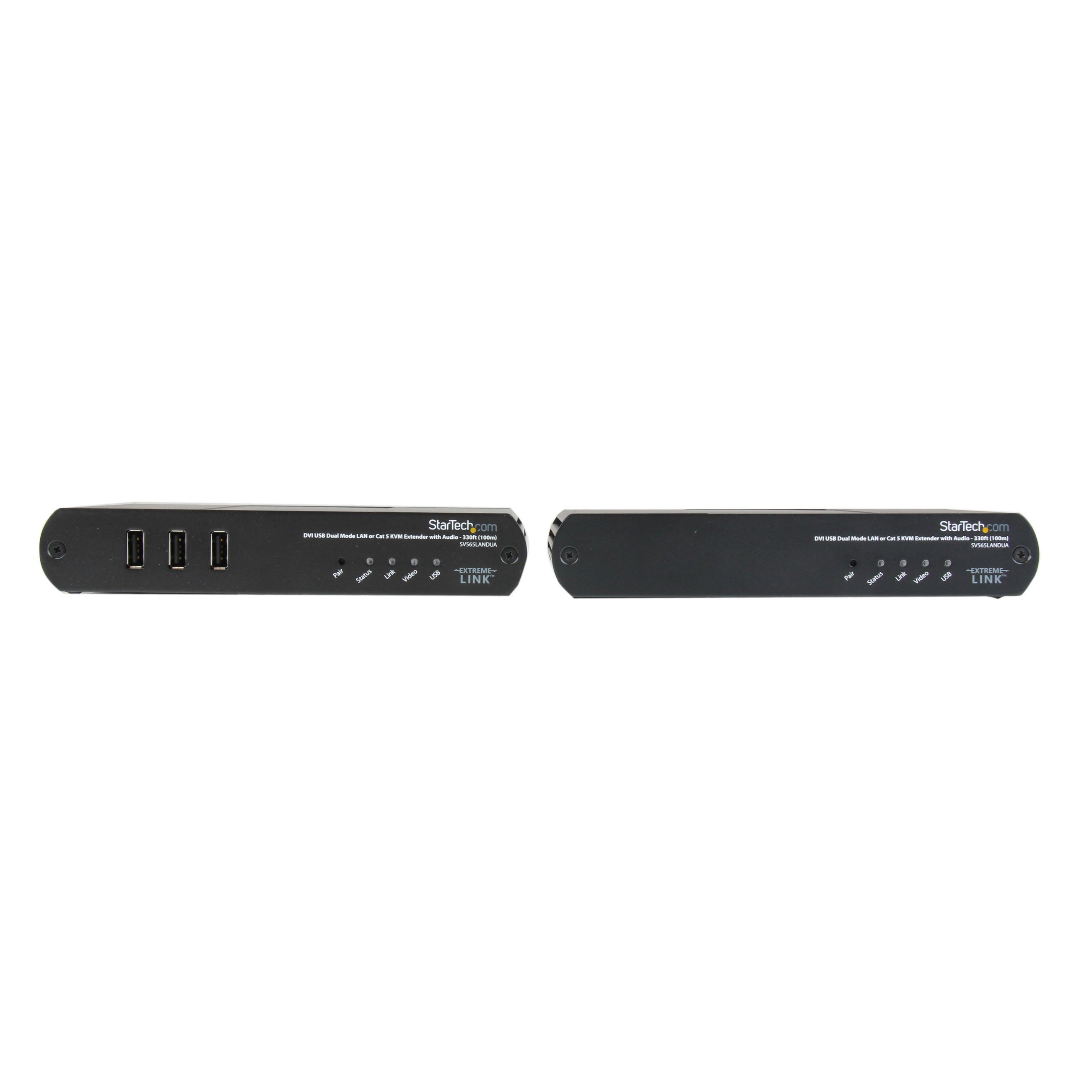

Input Current 0.6 A Input Voltage 110V-240V AC Output Current 3 A / 1 A Output Voltage (V) 24 / 5 DC Power Source 2 AC Adapters Included Plug Type C / M Color Black Humidity 20~80% RH Non-condensing Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 175 Product Width (mm) 118 Product Height (mm) 31 Product Weight (g) 420 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No DVI Support Yes - Single Link KVM IP Control Yes Maximum Data Transfer Rate Maximum Digital Resolutions 1680x1050 @ 60Hz Max Transfer Distance 100m [328ft] OS Compatibility OS Independent Supported Resolutions Audio Yes Cascadable Yes LED Indicators - 1 - Status (Green)
- 1 - Link (Green)
- 1 - Video (Green/Amber)
- 1 - USB (Green/Amber)

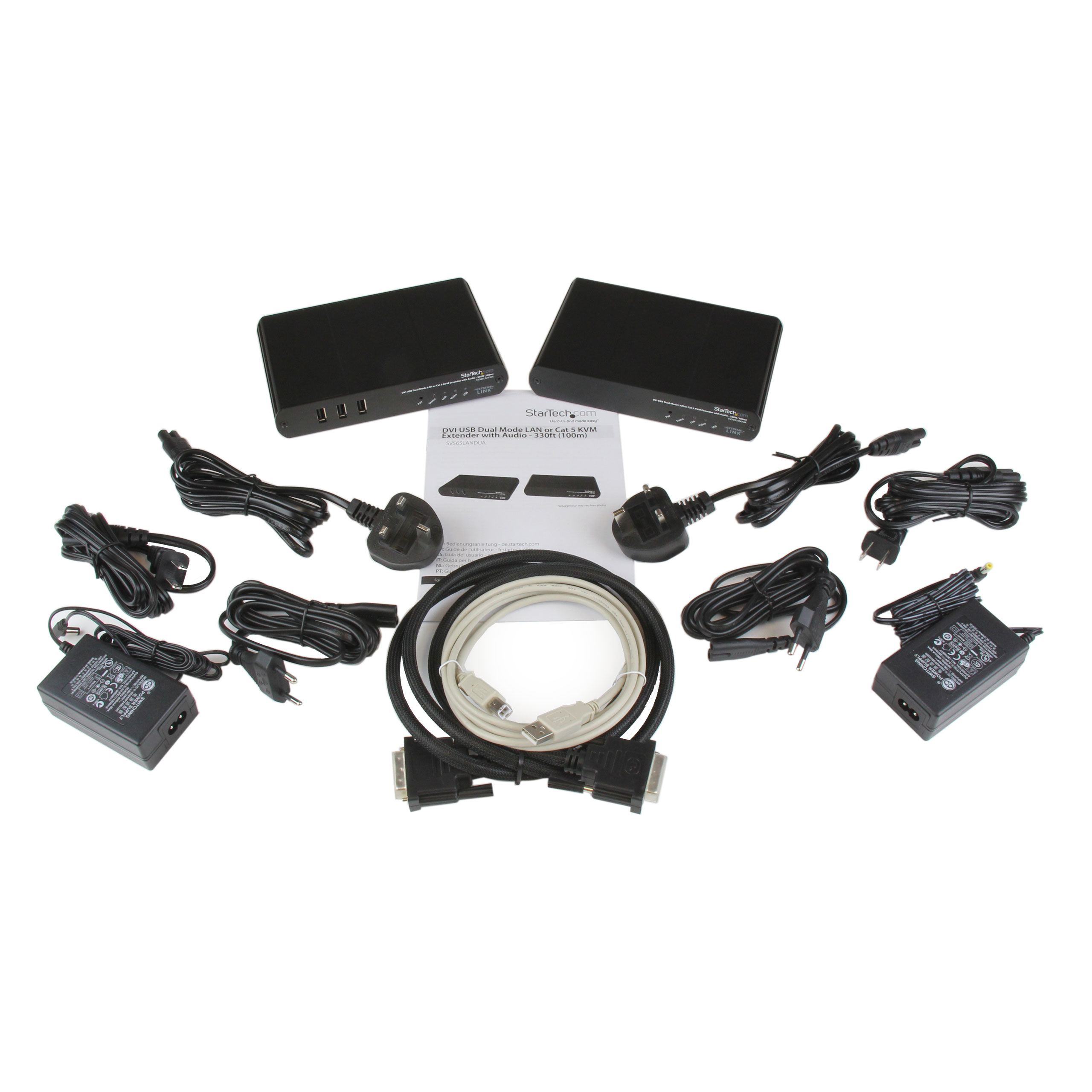

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 515 Carton Height (mm) 520 Carton Quantity 16 Carton Weight Gross (g) 32800 Included in Package - 1 - Local Unit
- 1 - Remote Unit
- 1 - 5V 3A Power Adapter (w/ NA, UK, EU Cords)
- 1 - Instruction Manual
- 1 - 24V 1A Power Adapter (w/ NA, UK, EU Cords)
- 1 - 1.5m DVI Cable
- 1 - 2m USB Cable (A-B)

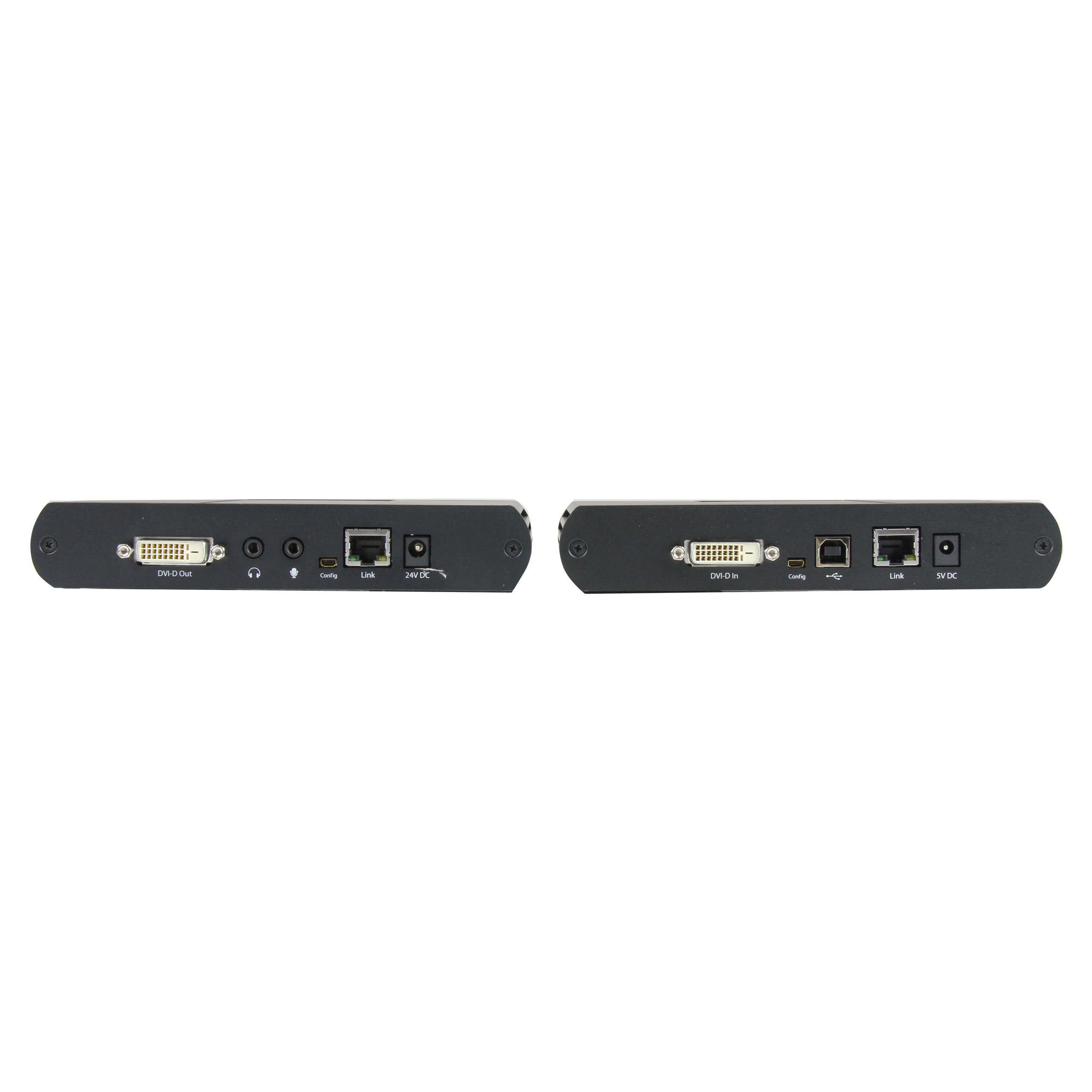

Package Depth (mm) 210 Package Height (mm) 107 Package Width (mm) 295 Package Quantity 1 Package Weight (g) 1990 Packaging Description DVI USB LAN or Cat 5 KVM Extender - 100m Packaging Description India DVI USB LAN or Cat 5 KVM Extender - 100m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-D Dual-Link (25-Pin) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 3 Connector 4 RJ-45 Connector 4 (Quantity) 1 Host Connector 1 DVI-D Dual-Link (25-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
