SV565UTPDUA
USB DVI KVM Console Extender with True USB & Audio
Extend DVI-D (or HDMI), USB, and audio signals up to 500m with full USB 2.0 compatibility and speed
Main Image
Product Images
Product Images
BOM Image
Product Name USB DVI KVM Console Extender with True USB & Audio Product Number SV565UTPDUA UPC 065030842273 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 DVI KVM Extenders Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Ultra-Short) USB DVI KVM Extender Product Title (Short) USB DVI KVM Console Extender w/ True USB Product Title (Standard) USB DVI KVM Console Extender w/ True USB 2.0 and Audio - 500m Product Title (Long) USB DVI KVM Console Extender w/ True USB 2.0 and Audio - 500m Product Title (AMZ) USB DVI KVM Console Extender w/ True USB 2.0 and Audio - 500m (SV565UTPDUA) Title Ingram (Part 1) USB DVI KVM Console Extender w/ Title Ingram (Part 2) True USB 2.0 and Audio 500m Website Product Headline Extend DVI-D (or HDMI), USB, and audio signals up to 500m with full USB 2.0 compatibility and speed Bullet 1 500m (1640ft) extension over Cat 5 or better cable (Cat 5e, Cat 6) Bullet 2 Supports High-Speed USB 2.0 (480 Mbps) Bullet 3 Supports up to 13 USB devices and 4 hub levels Bullet 4 3.5mm audio and microphone connections Bullet 5 Supports DVI-D resolutions up to 1680x1050 Marketing Copy Applications - Use one or more servers in a server room from a remote location within the same building or campus
- Control remote machines and security monitoring systems
- Control/Monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
- Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
- Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
Website Search Keyword - KVM Extender
- Console Extender
- USB Console
- Keyboard mouse extender
- Server extender
- USB extender
- Remote user station
- USB 2.0 extender
- 480Mbps
- hard drive extender
- DVI video extender
- Long distance video extender
- cat 6 extender
- cat 5e extender
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes This product includes a 5V DC power adapter for the Local unit and a 24V DC power adapter for the Remote unit. Accessory Products - DVIDDMM6
- DVIDDMM10
- USB2HAB6
- USB2HAB10
- MU6MM
- MUMFRCA
- RJ45PATCH10
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
Related Products - SV565FXDUSA
- SV565UTPUSA
- SV565UTPUL
- SV565UTP
- SV565UTPU

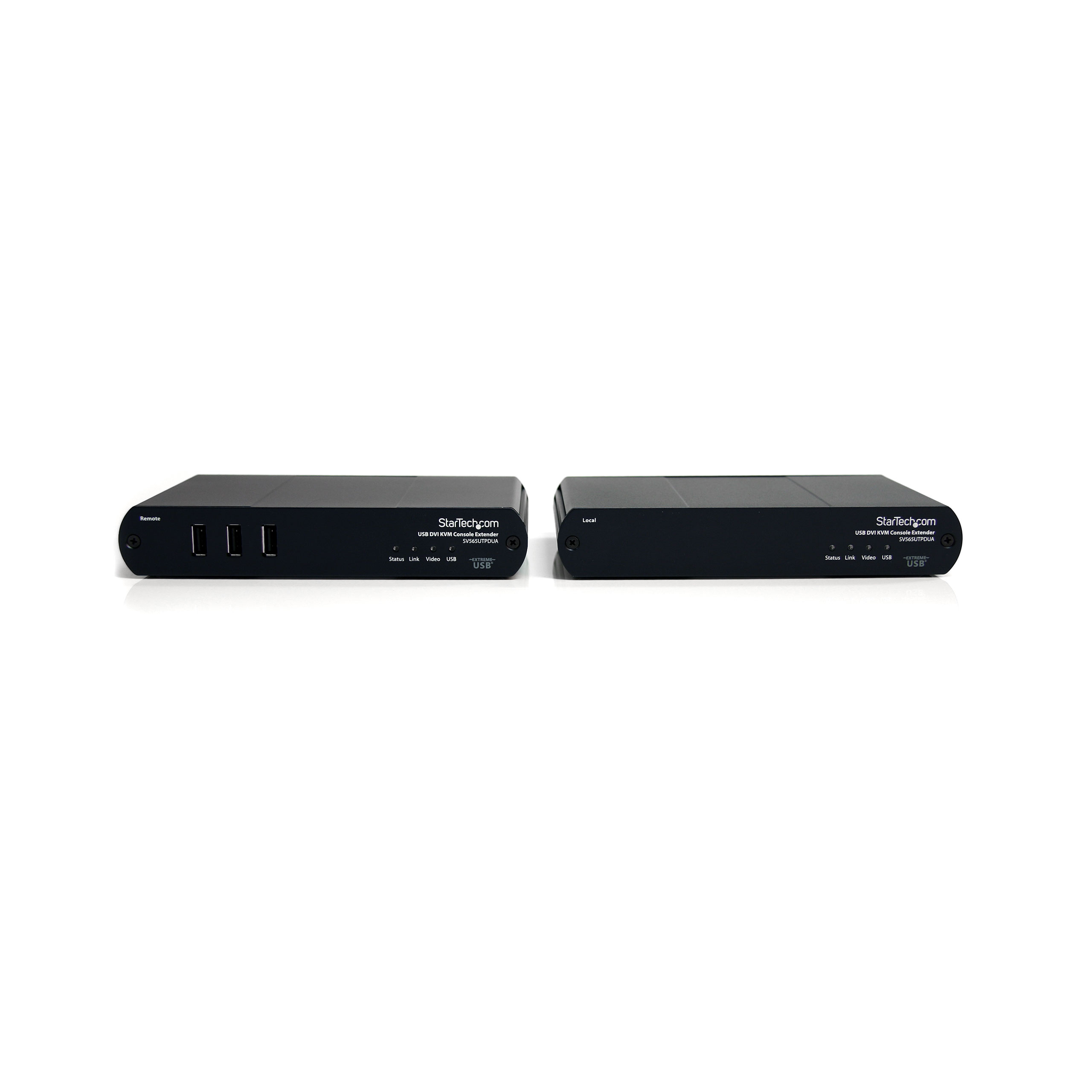

Input Current 0.6 A Input Voltage 110V-240V AC Output Current 3 A / 1 A Output Voltage (V) 24 / 5 DC Power Consumption (In Watts) 5.4 Power Source 2 AC Adapters Included Plug Type C / M Center Tip Polarity Positive Color Black Humidity 20~80% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Product Width (mm) 112 Product Depth (mm) 175 Product Height (mm) 30 Product Weight (g) 400 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes DVI Support Yes - Single Link KVM IP Control No Maximum Digital Resolutions 1680x1050 Max Transfer Distance 500m [1640ft] OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes LED Indicators - 1 - Local/Remote: Status(Green), Indicates power
- 1 - Local/Remote: Link(Green), Indicates link between local and remote unit
- 1 - Local/Remote: Video(Green/Amber), Indicates video data/connection or fault
- 1 - Local/Remote: USB(Green/Amber), Indicates USB data or fault

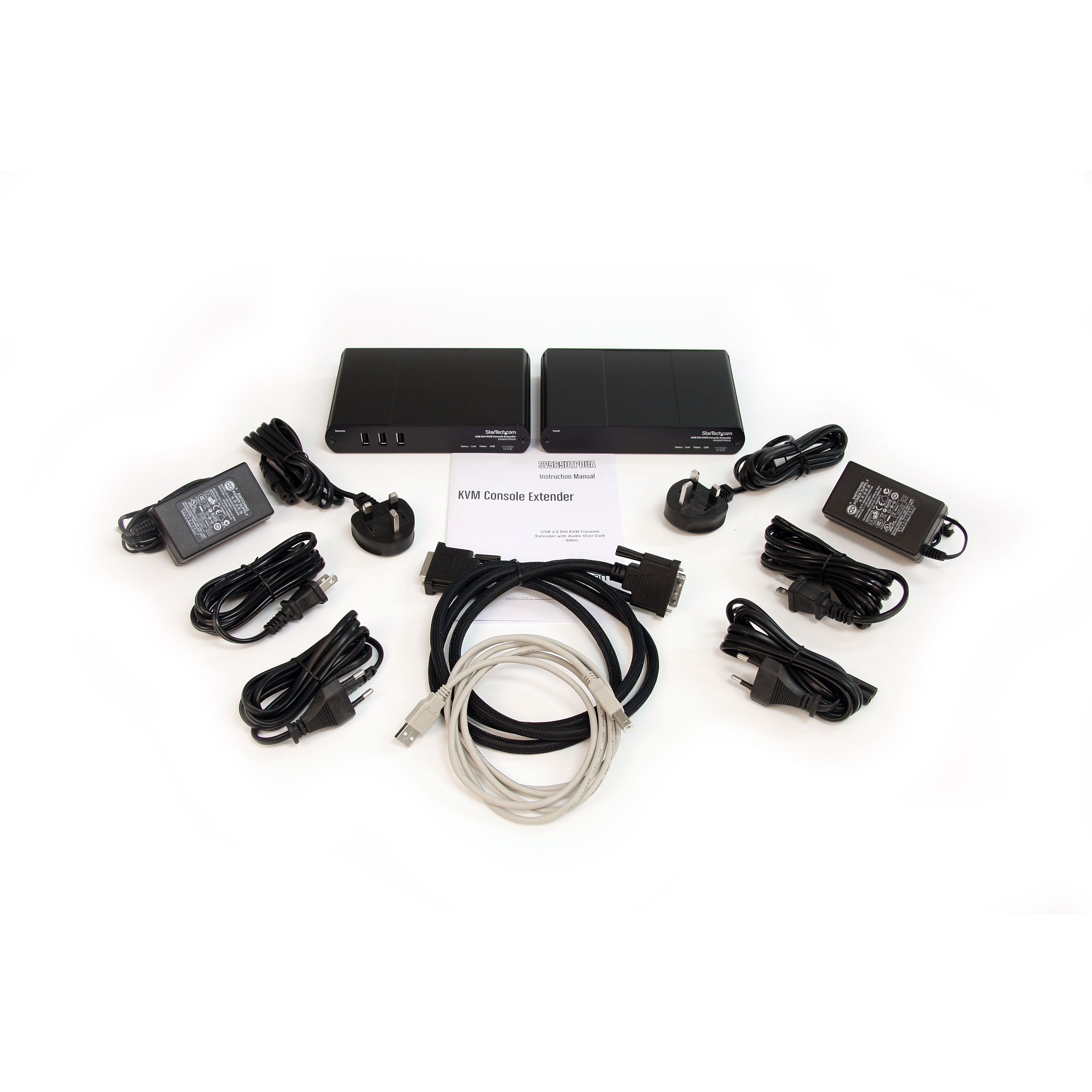

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 508 Carton Height (mm) 528 Carton Quantity 16 Carton Weight Gross (g) 29465 Included in Package - 1 - Local Unit
- 1 - Remote Unit
- 2 - Universal Power Adapter (US/UK/EU)
- 1 - User Manual
- 1 - 6ft USB Cable
- 1 - 5ft DVI-D cable

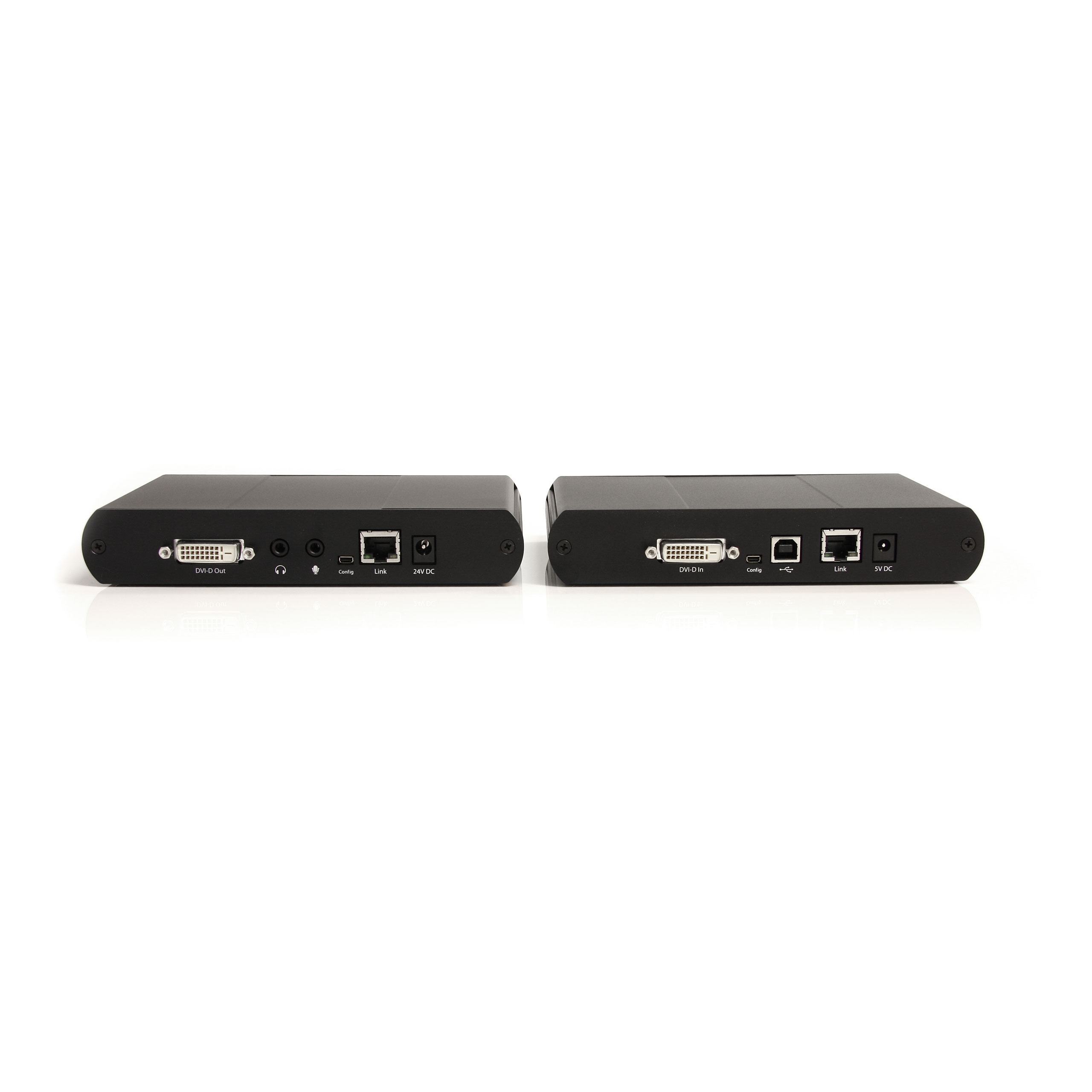

Package Depth (mm) 213 Package Height (mm) 112 Package Width (mm) 297 Package Quantity 1 Package Weight (g) 1841.6 Packaging Description DVI USB KVM Console Extender w/ True USB Packaging Description India DVI USB KVM Console Extender w/ True USB Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-D Single-Link (19-Pin) Connector 1 (Quantity) 1 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 DVI-D Single-Link (19-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 3 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
