SV565UTPDUV
USB DVI Extender over Cat5e Cat6 HD Extender 330ft
Operate a PC from up to 100m away, with uncompressed 1920x1200 DVI video and USB keyboard / mouse
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Product Name USB DVI Extender over Cat5e Cat6 HD Extender 330ft Product Number SV565UTPDUV UPC 065030853347 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 DVI KVM Extenders Family No family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Ultra-Short) DVI Cat 5e/6 KVM Ext Product Title (Short) USB DVI over Cat5e Cat6 KVM Extender Product Title (Standard) USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m) Product Title (Long) USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m) Product Title (AMZ) USB DVI over Cat 5e / Cat 6 KVM Console Extender - 1920x1200 - KVM / USB extender - up to 328 ft (SV565UTPDUV) Title Ingram (Part 1) USB DVI Extender over Cat5e Title Ingram (Part 2) Cat6 - HD Video Extender 330ft Website Product Headline Operate a PC from up to 100m away, with uncompressed 1920x1200 DVI video and USB keyboard / mouse Bullet 1 Uncompressed 1920x1200 HD video extension Bullet 2 Extend up to 330 ft (100m) over a single Cat5e / Cat6 cable Bullet 3 OS independent - no software or drivers required Bullet 4 3 USB 2.0 ports with transfer rates up to 30Mbps Bullet 5 Supports connection to a single computer or cascading to an existing KVM switch Bullets (Compact) Operate a PC from up to 100m away, with uncompressed 1920x1200 DVI video and USB keyboard & mouse - Control a large DVI computer from a remote console - Resolutions up to 1920x1200 - 330 ft (100m) DVI console extender - Supports CAT5e & CAT6 cabling Bullets (Consolidated) Control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection - Works with uncompressed 1920x1200 DVI video - Access to up to 3 connected USB devices - Ethernet Extender/KVM Extender/CAT5 Extender/CAT6 Extender Marketing Copy Marketing Copy (No HTML) The SV565UTPDUV USB DVI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1920x1200 DVI video and access to up to 3 connected USB devices. A flexible solution for powering large high-definition displays remotely, this DVI USB extender supports uncompressed 1920x1200 video resolution at maximum distance, with 24-bit color depth. This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Use for remote control of secured, physically inaccessible servers
- Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
- Control and monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
- Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
- Operate one or more servers from a remote location within the same building or campus
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Product measurements indicate a single unit only (either Host or Remote)</br> Config port: reserved for manufacturer use Accessory Products - N6PATCH100BL
- WIRC6CMRBL
- C6ASPAT3BL
- S45PATCH100B
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- SVA5M4NEUA
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - SV565UTPHDU
- SV565DUTPU
- SV565LANDUA
- SV565UTPDUA
- SV565FXDUSA
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source 2 AC Adapters Included Plug Type C Center Tip Polarity Positive Color Black Humidity 20~80% RH (Non-Condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 175 Product Width (mm) 118 Product Height (mm) 30 Product Weight (g) 857 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No KVM IP Control No Maximum Data Transfer Rate 30 Mbps (USB) Maximum Digital Resolutions Full Uncompressed 1920x1200 Max Transfer Distance 100m [328ft] OS Compatibility OS Independent Audio No Cascadable Yes LED Indicators - 1 - Power
- 1 - Link
- 1 - USB
- 1 - Video

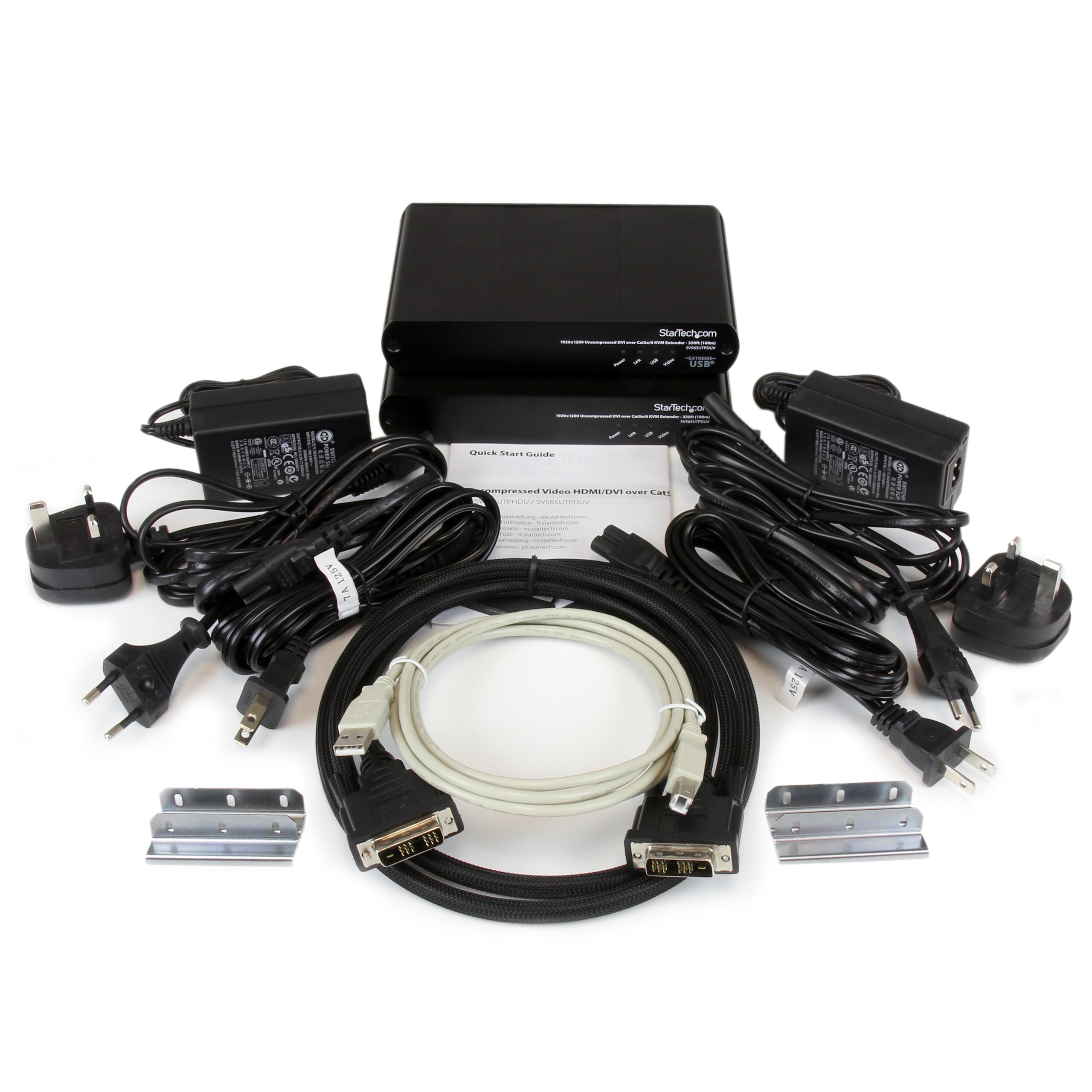

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 322 Carton Height (mm) 350 Carton Quantity 4 Carton Weight Gross (g) 13578 Included in Package - 1 - local transmitter unit
- 1 - remote receiver unit
- 1 - DVI cable
- 1 - USB cable
- 2 - universal power adapters (NA, EU, UK)
- 1 - mounting kit
- 1 - quick-start guide
Package Depth (mm) 226 Package Height (mm) 154 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 3066 Packaging Description 1920x1200 DVI Cat5e/6 KVM Extender 330ft (100m) Packaging Description India 1920x1200 DVI Cat5e/6 KVM Extender 330ft (100m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-D Dual-Link (25-Pin) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 3 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 DVI-D Dual-Link (25-Pin) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-13 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-12-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
