SV565UTPHDU
USB HDMI Extender over Cat5e 6 HD Extender 330ft
Operate a PC from up to 100m away, with uncompressed 1080p HDMI® video and USB keyboard / mouse
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB HDMI Extender over Cat5e 6 HD Extender 330ft Product Number SV565UTPHDU UPC 065030853057 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Basic Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX040X Product Title (Ultra-Short) HDMI Cat5e/6 KVM Ext Product Title (Short) USB HDMI over Cat5e Cat6 KVM Extender Product Title (Standard) USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m) Product Title (Long) USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m) Product Title (AMZ) 330ft (100m) USB HDMI over CAT5e / CAT6 KVM Extender - 1080p Uncompressed HD Video - IT Grade KVM Console Extender for PC (SV565UTPHDU) Title Ingram (Part 1) USB HDMI Extender over Cat5e Title Ingram (Part 2) Cat6 - HD Video Extender 330ft Website Product Headline Operate a PC from up to 100m away, with uncompressed 1080p HDMI® video and USB keyboard / mouse Bullet 1 Uncompressed 1080p and 1920x1200 HD video extension Bullet 2 Supports connection to a single computer or cascading to an existing KVM switch Bullet 3 Supports most combo keyboard and mouse sets (including Wireless) Bullet 4 Extend up to 330 ft (100m) over a single Cat5e / Cat6 cable Bullet 5 HDCP, CEC and Lip Sync pass-through support Bullets (Compact) Operate a PC from up to 100m away, with uncompressed 1080p HDMI® video and USB keyboard / mouse - HDMI Extender Cat 5e Cat 6 - USB KVM Extender - 1080p HD Uncompressed Video Extender - 330 ft (100m) - Console Extender - USB HDMI over Cat5e Cat6 Bullets (Consolidated) Operate a PC from up to 100m away - with uncompressed 1080p HDMI video and USB keyboard/mouse - HDMI Extender Cat 5e Cat 6 - USB KVM Extender - 1080p HD Uncompressed Video Extender - 330 ft (100m) - Console Extender - USB HDMI over Cat5e Cat6 Marketing Copy Marketing Copy (No HTML) Applications - Use for remote control of secured, physically inaccessible servers
- Can act as a thin client for power users controlling powerful rack-mounted servers as their desktop machines
- Control and monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
- Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable, such as a television broadcast studio
- Operate one or more servers from a remote location within the same building or campus
Website Search Keyword B013-HU-4K Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Product measurements indicate a single unit only (either Host or Remote)</br> Config port: reserved for manufacturer use Accessory Products - N6PATCH100BL
- WIRC6CMRBL
- C6ASPAT3BL
- S45PATCH100B
- HDMM6
- HDMM10
- HDMM15
- SVA5M4NEUA
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - SV565UTPDUV
- SV565DUTPU
- SV565LANDUA
- SV565UTPDUA
- SV565FXDUSA
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source 2 AC Adapters Included Plug Type C Center Tip Polarity Positive Color Black Humidity 20~80% RH (Non-Condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 175.000 Product Width (mm) 112.000 Product Height (mm) 30.000 Product Weight (g) 847.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No KVM IP Control No Maximum Data Transfer Rate 30 Mbps (USB) Maximum Digital Resolutions Max Transfer Distance 100m [328ft] OS Compatibility OS Independent Audio No Cascadable Yes LED Indicators - 1 - Link

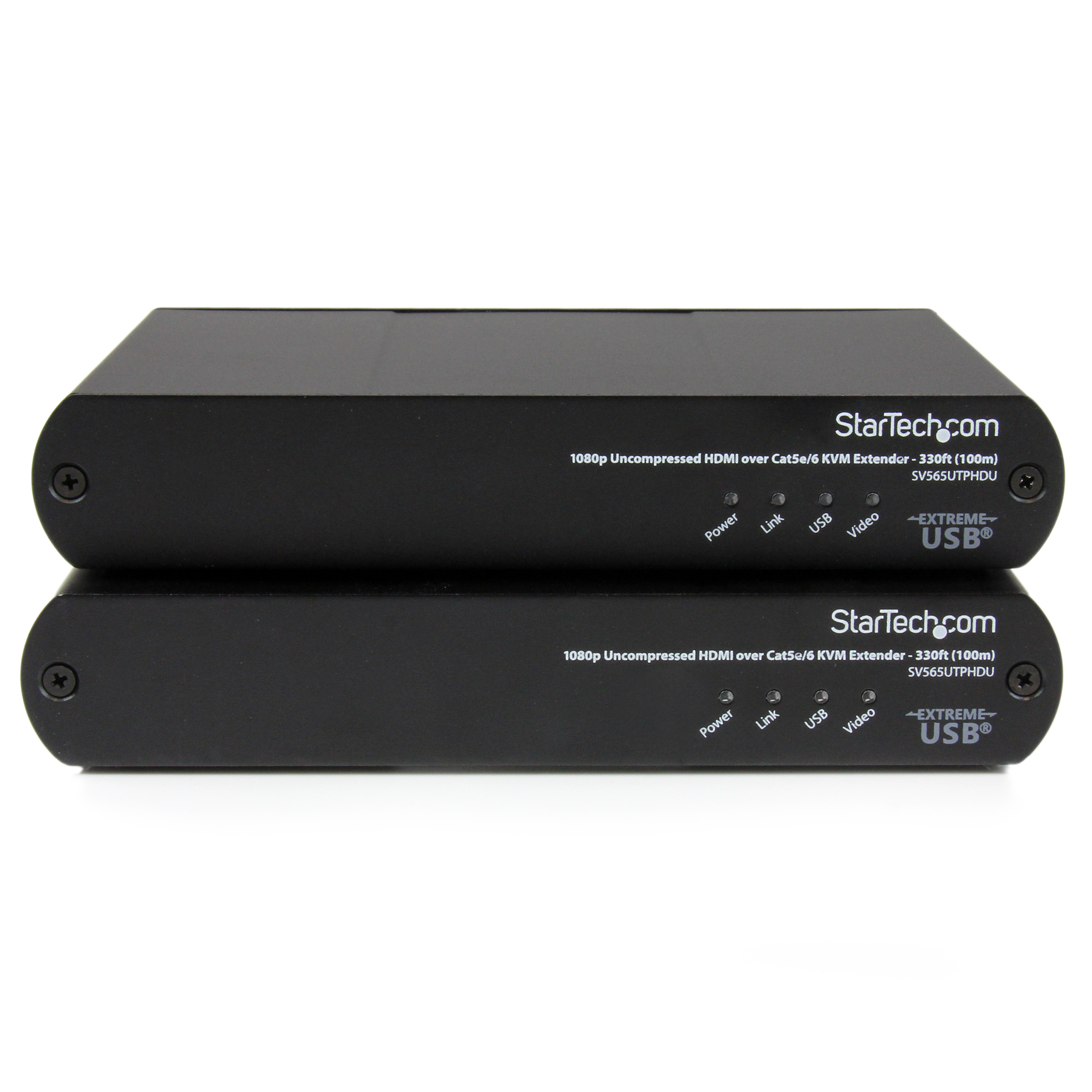

- 1 - Video
- 1 - Power
- 1 - USB

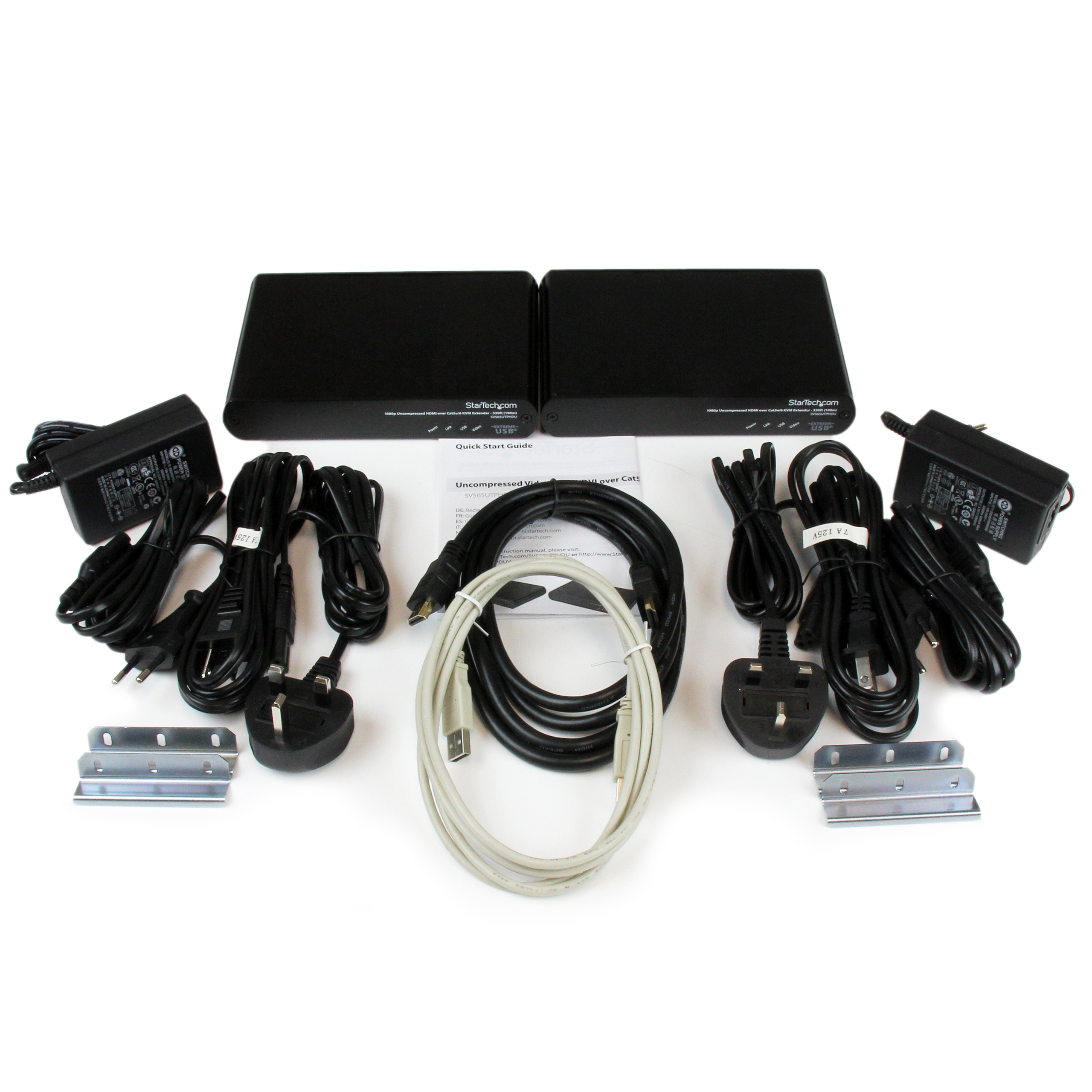

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 320 Carton Height (mm) 342 Carton Quantity 4 Carton Weight Gross (g) 13198 Included in Package - 1 - local transmitter unit
- 2 - universal power adapters (NA, EU ,UK)
- 1 - remote receiver unit
- 1 - HDMI cable
- 1 - USB cable
- 1 - quick-start guide
- 1 - mounting kit

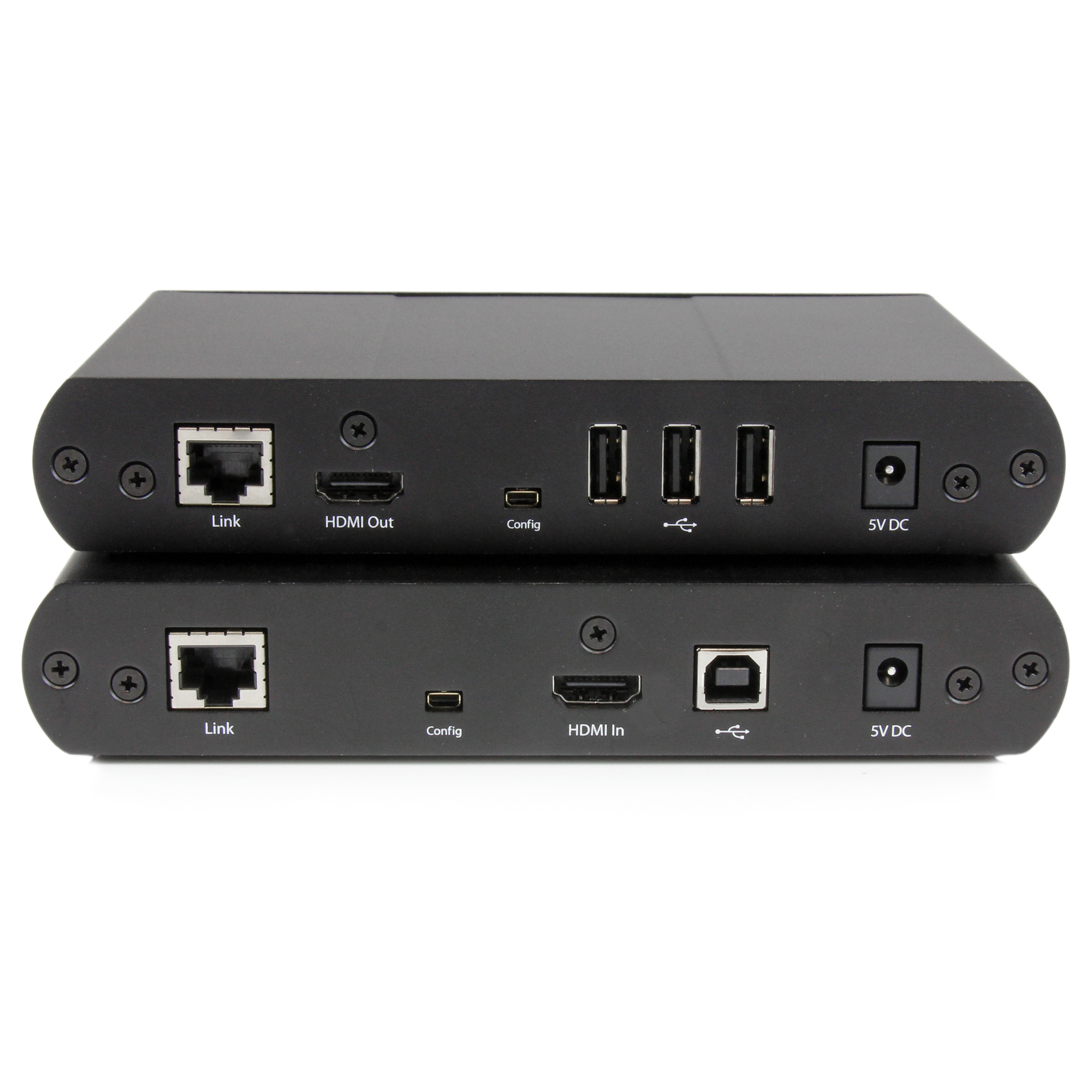

Package Depth (mm) 227 Package Height (mm) 155 Package Width (mm) 299 Package Quantity 1 Package Weight (g) 3010 Packaging Description 1080p HDMI® Cat5e/6/7 KVM Extender 330ft (100m) Packaging Description India 1080p HDMI® Cat5e/6/7 KVM Extender 330ft (100m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 3 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 HDMI Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-12-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
