SV565UTPU

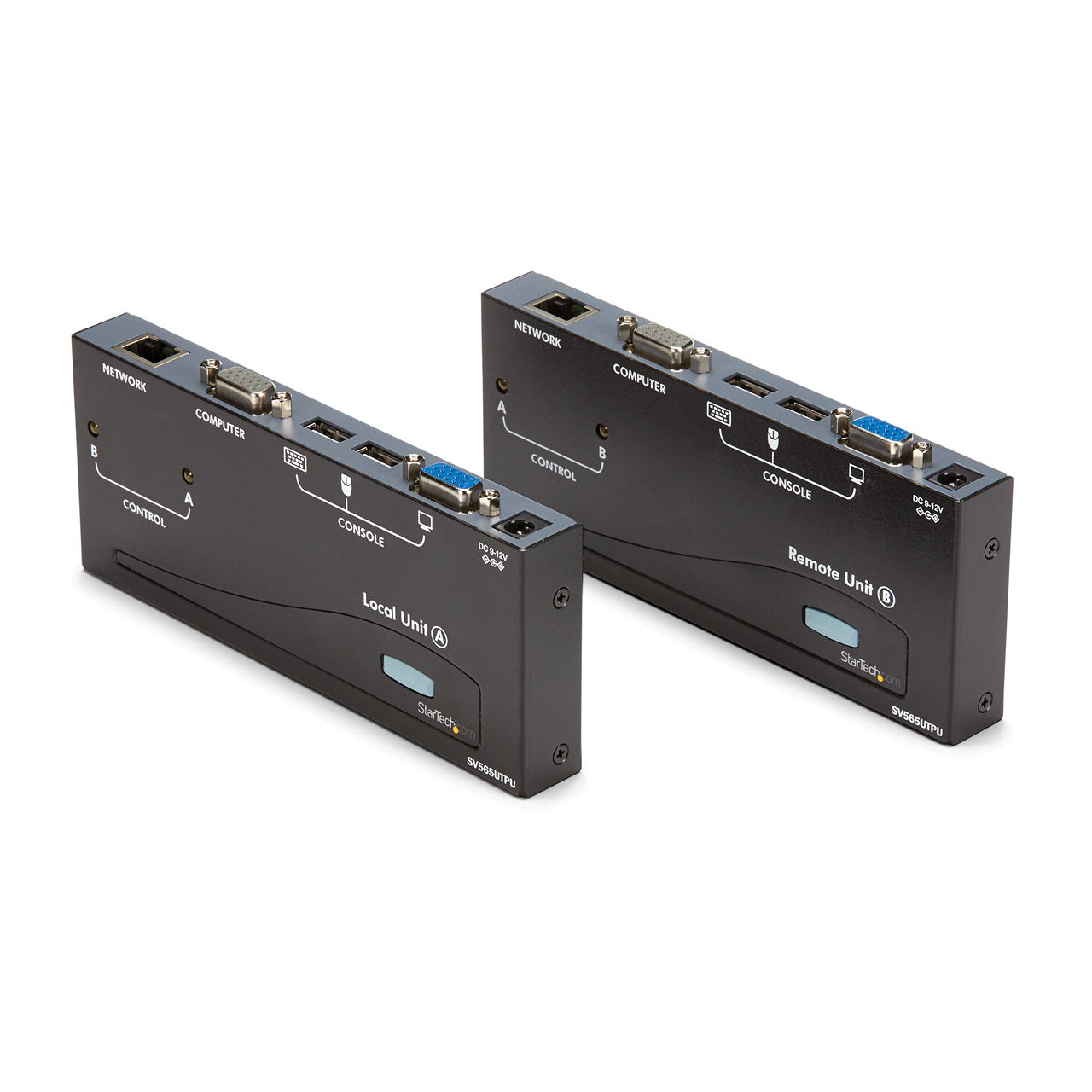

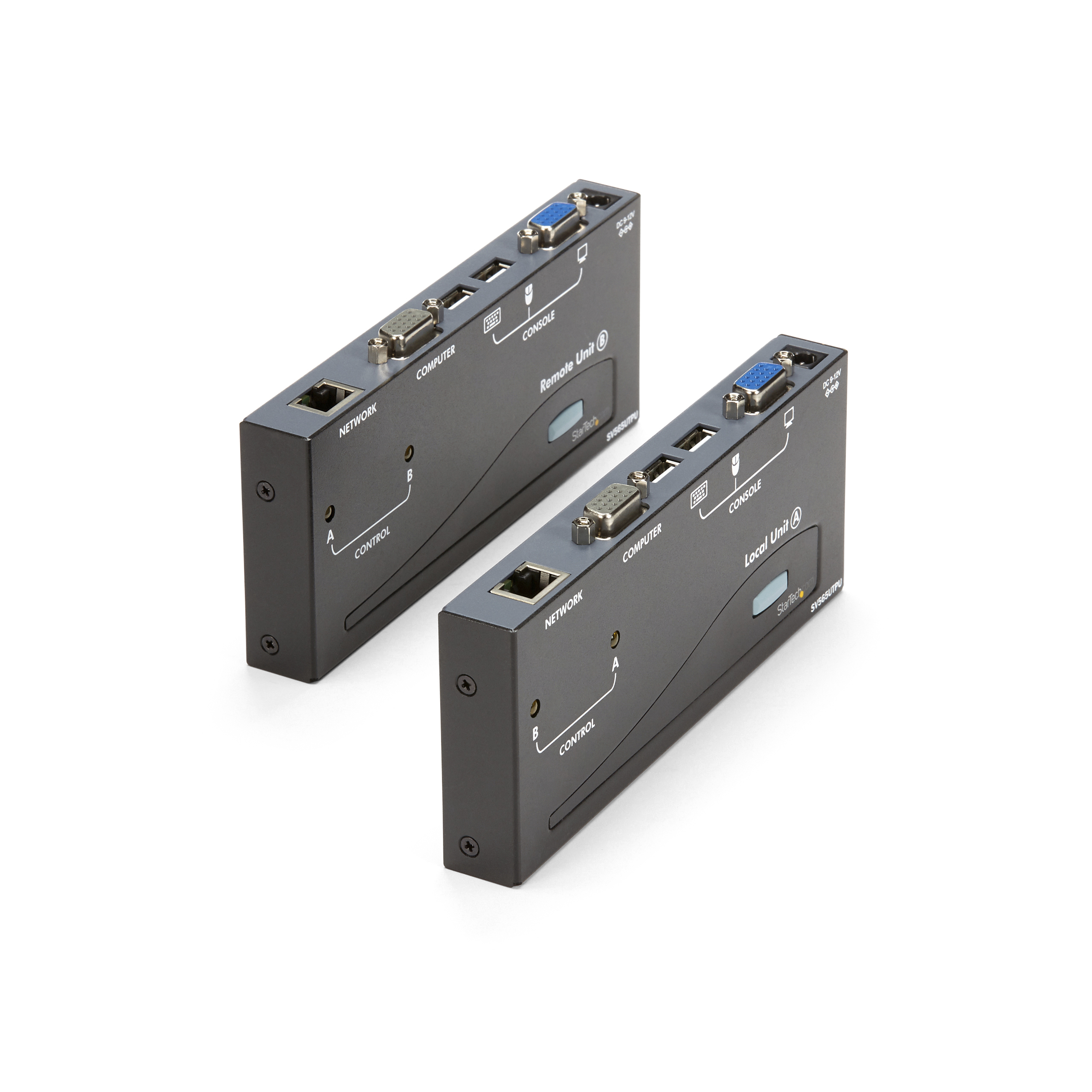

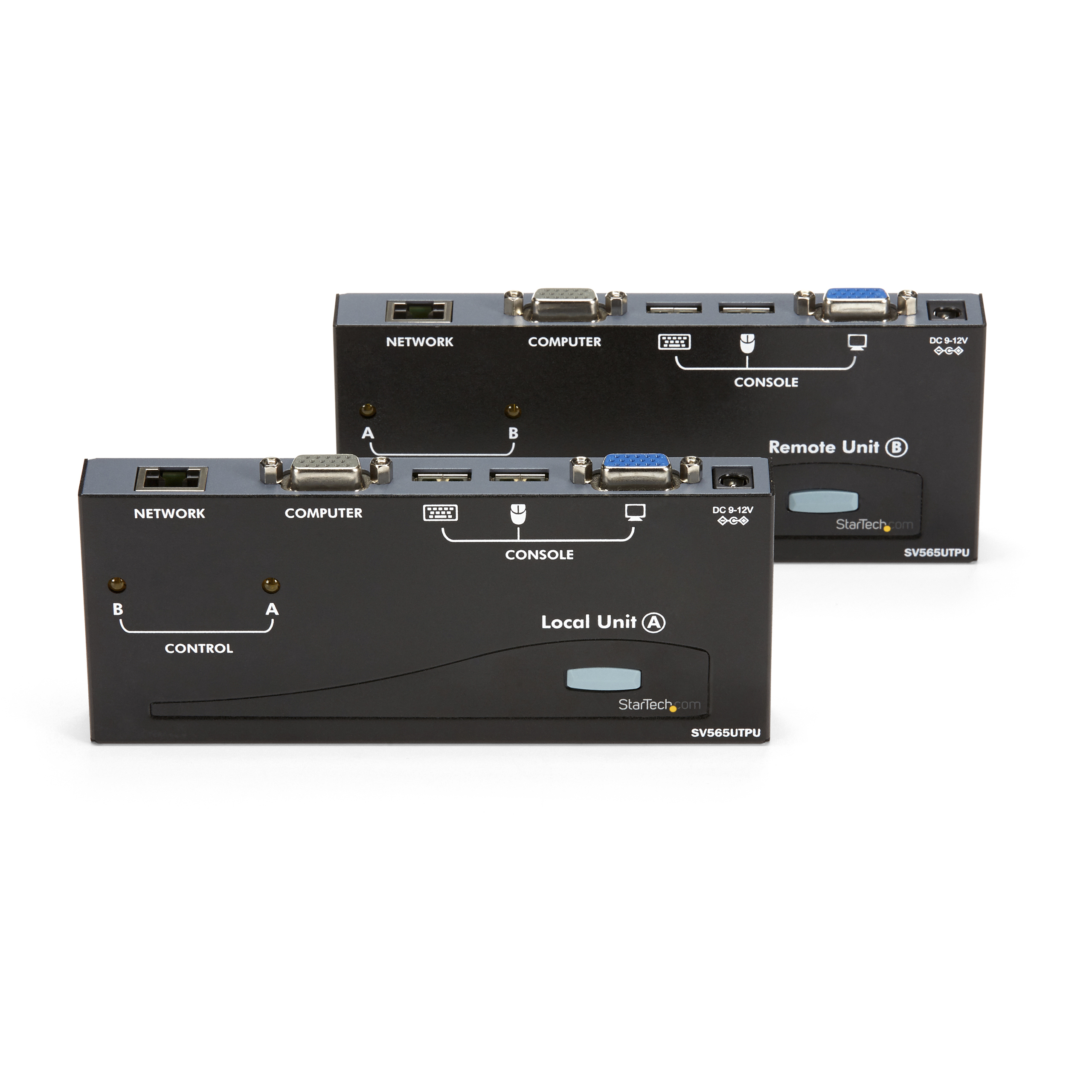

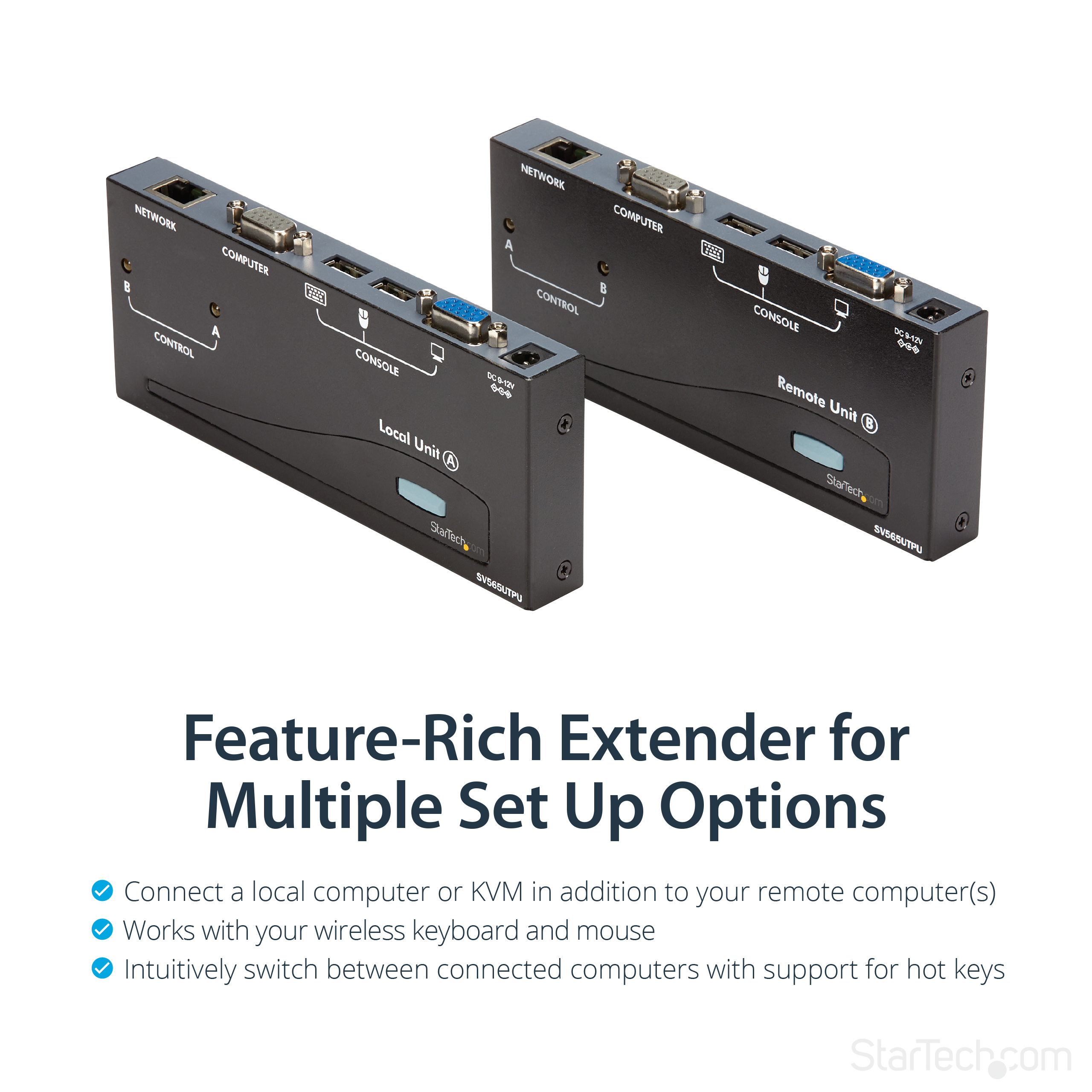

USB VGA Cat5 UTP Console Extender

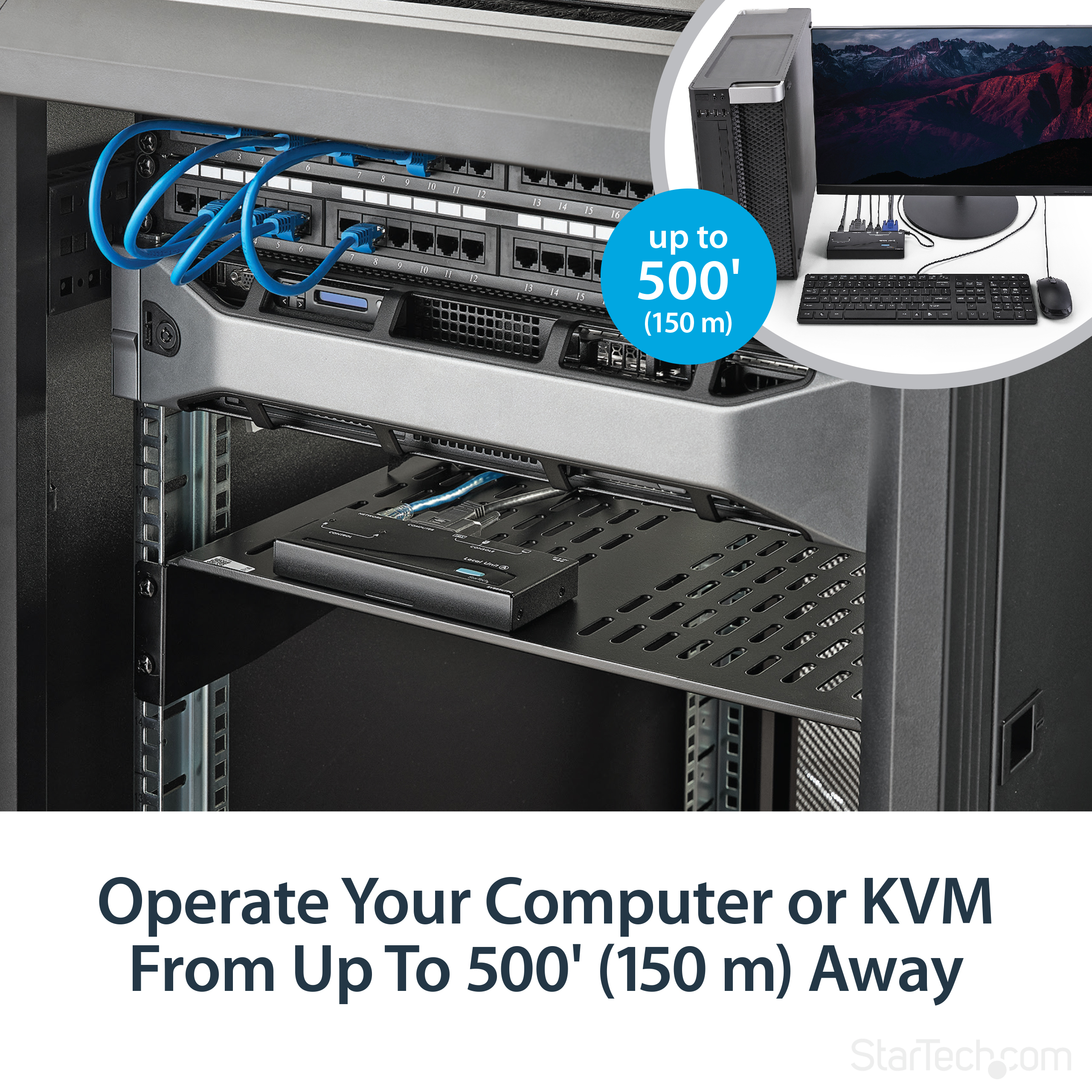

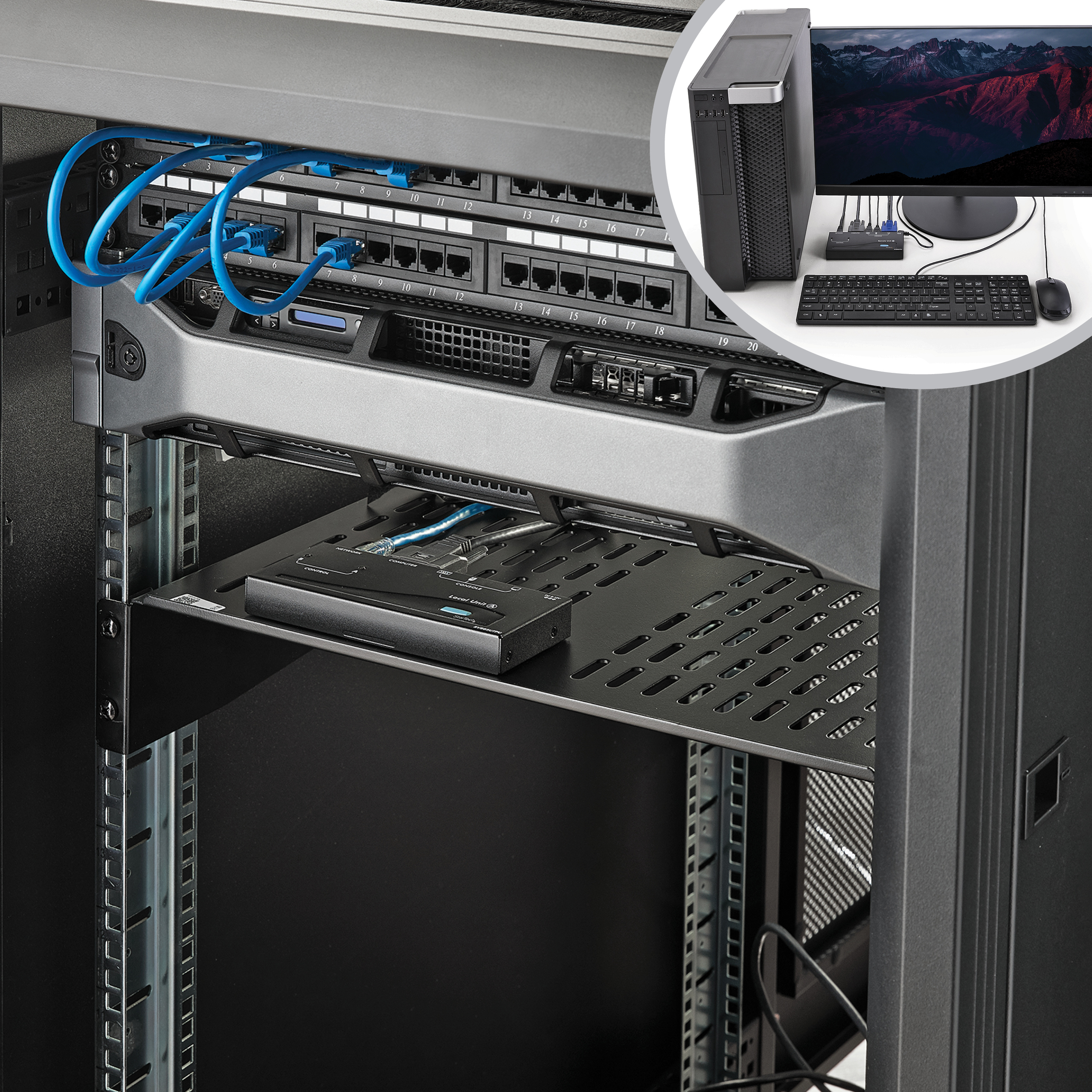

Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB VGA Cat5 UTP Console Extender Product Number SV565UTPU UPC 065030832625 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 VGA KVM Extenders Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) . Product Title (Short) USB VGA KVM Console Extender over CAT5 Product Title (Standard) USB VGA KVM Console Extender over CAT5 UTP (500 ft), TAA Product Title (Long) USB VGA KVM Console Extender over CAT5 UTP (500 ft) - TAA Product Title (AMZ) 500ft (150m) VGA KVM Extender - PS/2 & USB Host - KVM Console Over CAT5 Ethernet for Multiple Servers / Computers, TAA Title Ingram (Part 1) USB VGA KVM Console Extender ov Title Ingram (Part 2) er CAT5 UTP (500 ft) Website Product Headline Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you Bullet 1 COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware Bullet 2 FLEXIBLE CONFIGURATION: KVM console extender can be used with a single computer or connected to an existing KVM switch; Offers broad support for USB keyboards, mice, and even most combo/wireless configurations Bullet 3 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance Bullet 4 EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install Bullet 5 REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control Bullets (Compact) Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you - kvm extender - KVM Extender CAT5 - Console extender Bullets (Consolidated) Operate a USB and VGA KVM or PC up to 500ft away as if it were right in front of you - KVM Extender - KVM Extender CAT5 - Console Extender - USB to VGA KVM Console Extender - USB VGA KVM Extender Cat 5 UTP Marketing Copy Marketing Copy (No HTML) Applications - Monitor computer-controlled equipment in a factory or warehouse

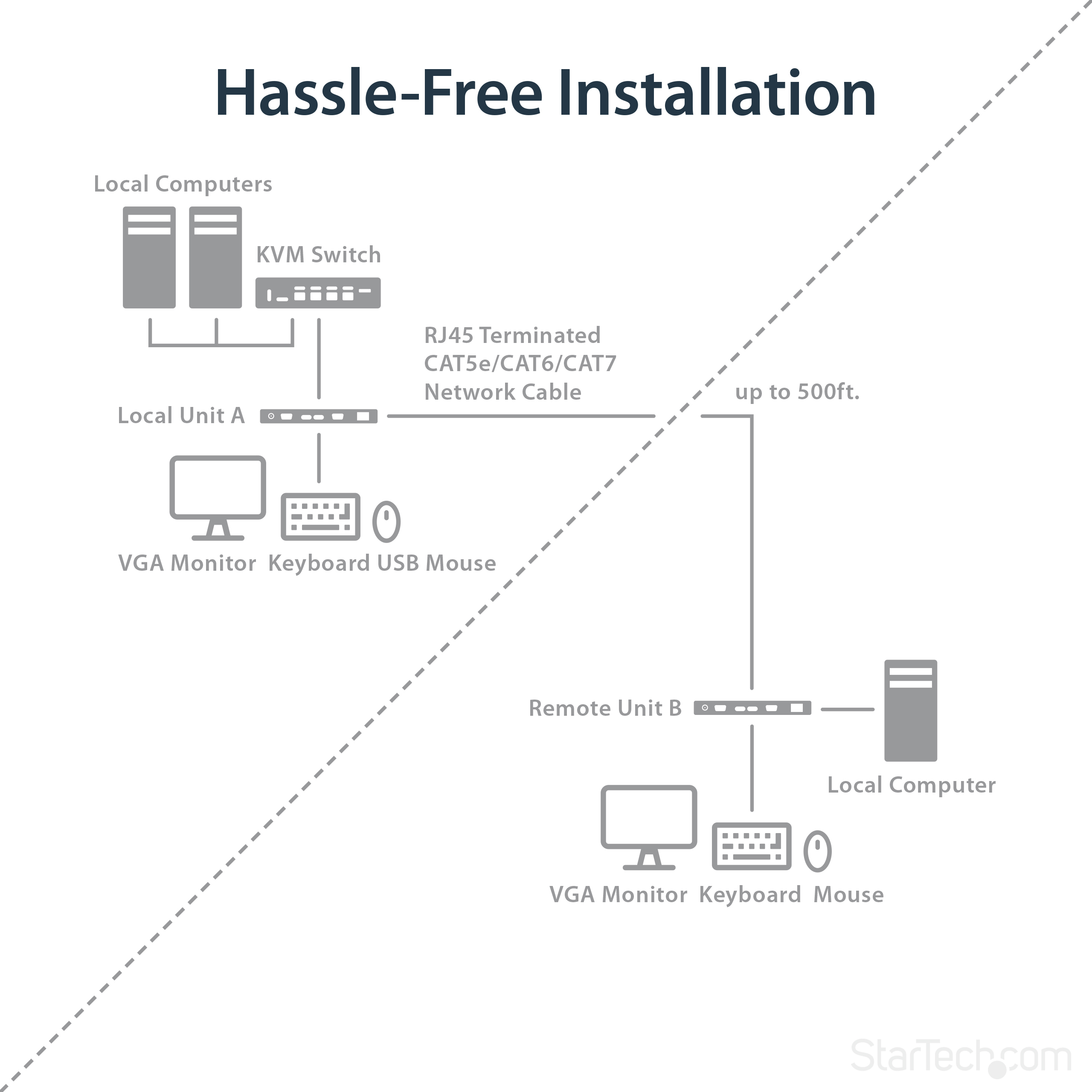

- Use one or more servers in a server room from a remote location
- Control remote machines and security monitoring systems
Website Search Keyword - KVM Extender
- Console Extender
- USB Console
- Keyboard mouse extender
- Server extender
- USB extender
- Remote user station
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Product weights/measurements and connector types indicate a single unit only (either Host or Remote) Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVPOWER
- SVECONUS6
- SVECONUS10
- SVECONUS15
- N6PATCH10BL
- N6PATCH15BL
- N6PATCH20BL
- N6PATCH25BL
- N6PATCH30BL
- N6PATCH35BL
- N6PATCH50BL
- N6PATCH75BL
- N6PATCH100BL
- N6PATCH125BL
- N6PATCH150BL
- RJ45PATCH10
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA9M2NEUA
Related Products - SV565UTP
- SV565UTPUL
- SV565UTPUSA
- SV565DUTPU
- SV565UTPDUV
- SV565FXDUSA
- SV565UTPDUA
- SV565UTPHDU
- SV565FXHD

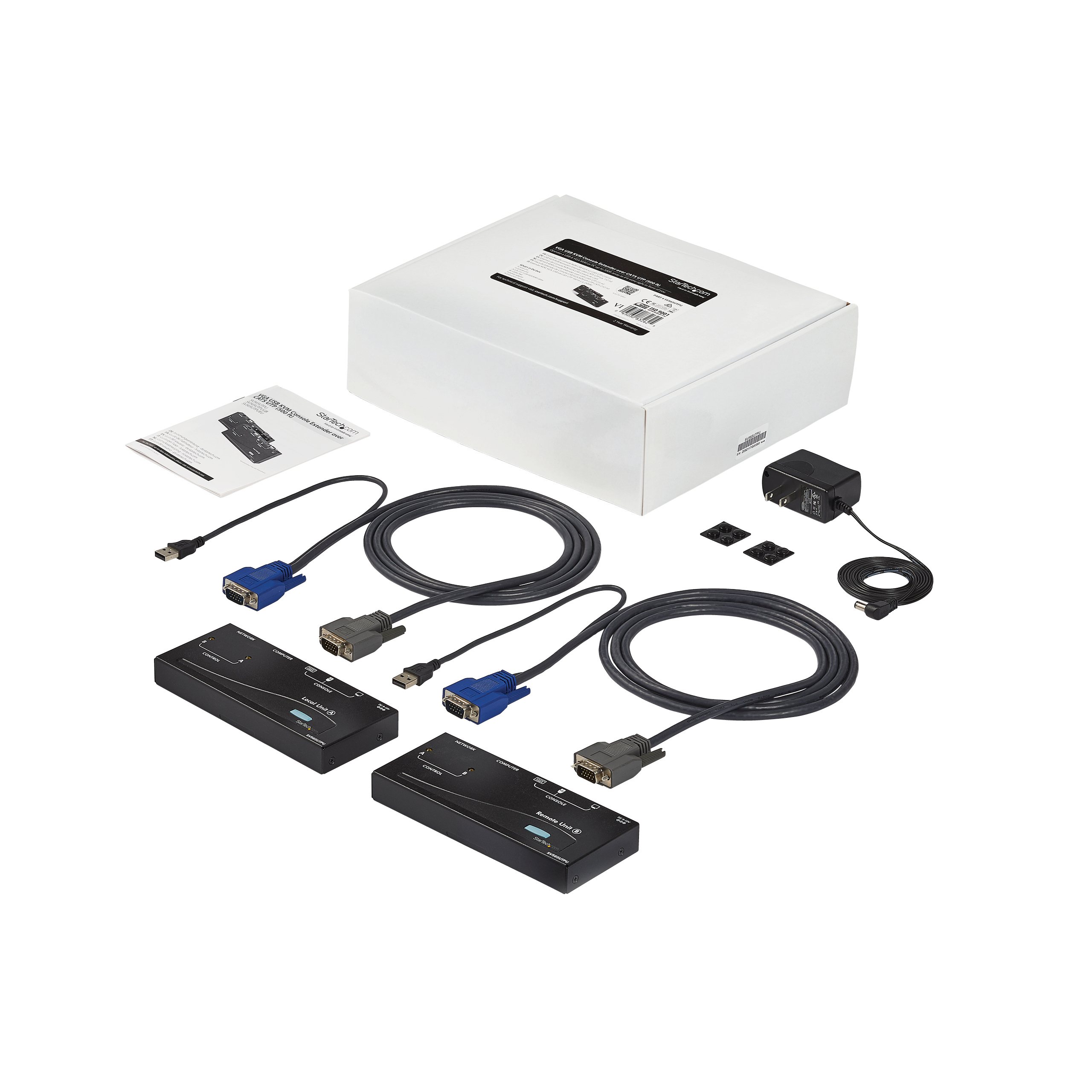

Constrained SKU Alternatives (Limited Stock) SV565HDIP Equivalent Part Number in the EU SV565UTPUEU Equivalent Part Number in the UK SV565UTPUGB Input Current 0.2A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 75.000 Product Width (mm) 155.000 Product Height (mm) 20.000 Product Weight (g) 612.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Max Transfer Distance 150m [492ft] MTBF (hours) 126000 hours OS Compatibility OS Independent Supported Resolutions Audio No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 514 Carton Height (mm) 302 Carton Quantity 6 Carton Weight Gross (g) 9224 Included in Package - 1 - remote unit
- 1 - host unit
- 1 - power adapter
- 1 - instruction manual
- 2 - 6 ft 2-in-1 USB VGA KVM cables
- 8 - rubber feet

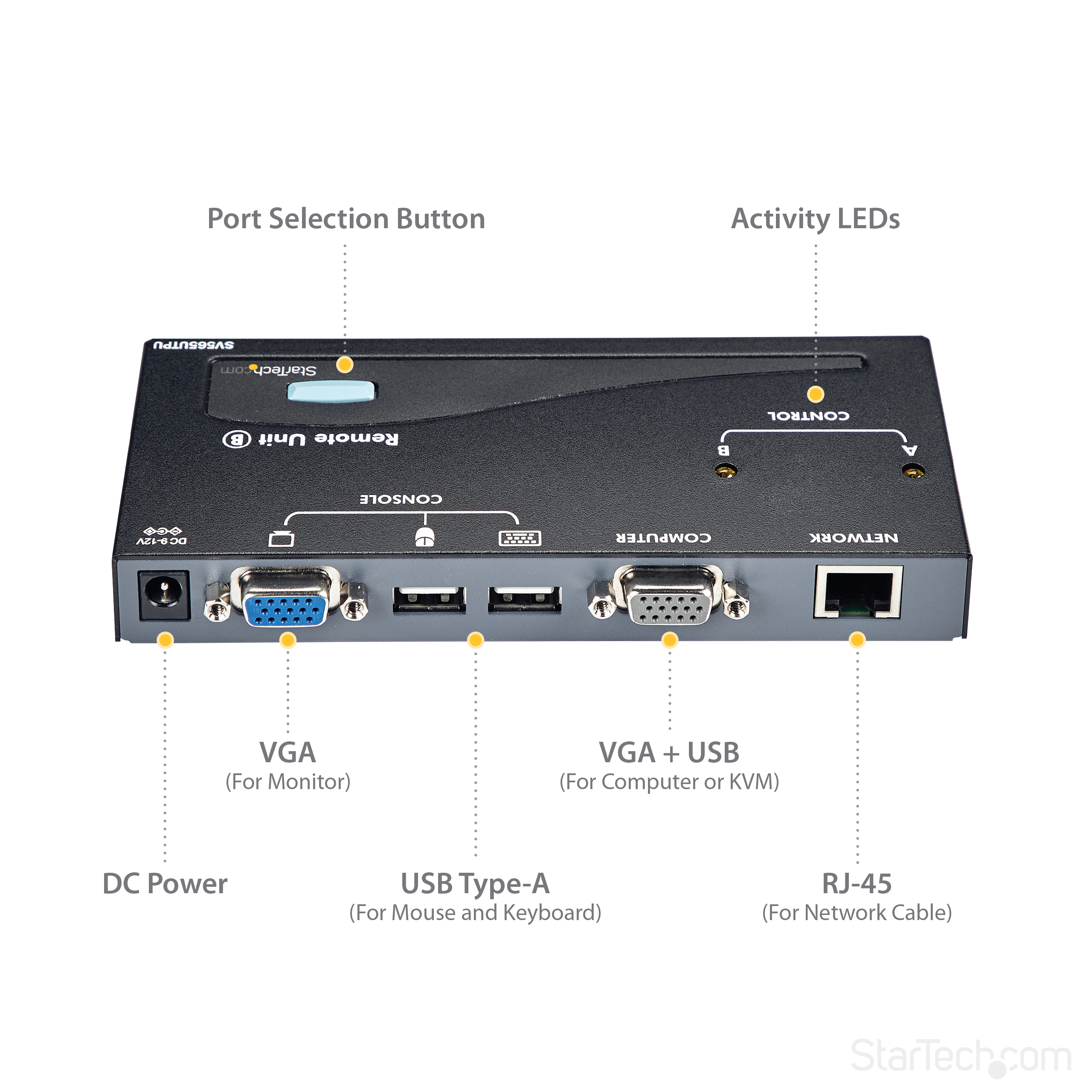

Package Depth (mm) 302 Package Height (mm) 88 Package Width (mm) 247 Package Quantity 1 Package Weight (g) 1392 Packaging Description USB VGA KVM Console Extender - 500ft Packaging Description India USB VGA KVM Console Extender - 500ft Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,HK,JP,MX,NZ,PE,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
