SV565UTPUGB
USB VGA Console Extender over CAT5 UTP 500 ft
Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB VGA Console Extender over CAT5 UTP 500 ft Product Number SV565UTPUGB UPC 065030834490 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 VGA KVM Extenders Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) USB VGA Console Extender over CAT5 UTP Product Title (Standard) console extender, USB VGA over Cat5- 500 ft, TAA Product Title (Long) USB VGA Console Extender over CAT5 UTP (500 ft) - TAA Product Title (AMZ) 500 ft. USB VGA Console Extender over CAT5e/CAT6 UTP - 150 m KVM Console Extender , TAA (SV565UTPUGB) Title Ingram (Part 1) USB VGA Console Extender over CA Title Ingram (Part 2) T5 UTP (500 ft) Website Product Headline Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you Bullet 1 Can be used with a single computer or connected to an existing KVM switch Bullet 2 Easy installation using industry-standard UTP network cable Bullet 3 Intuitive hotkey commands Bullet 4 Supports auto-switching between host and remote users or dedicated control Bullet 5 USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console) Bullets (Compact) Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you - KVM extender - KVM Extender CAT5 - Console extender Bullets (Consolidated) Operate a USB and VGA KVM or PC from up to 500 ft away - USB computers are supported at the host and remote locations - Cables Included for a ready out of the box setup - Easy installation using industry-standard UTP network cable - Supports wireless keyboard and mouse combos. KVM extender - KVM Extender CAT5 - Console extender Marketing Copy Applications - Monitor computer-controlled equipment in a factory or warehouse
- Use one or more servers in a server room from a remote location
- Control remote machines and security monitoring systems
Website Search Keyword - KVM Extender
- Console Extender
- USB Console
- Keyboard mouse extender
- Server extender
- USB extender
- Remote user station
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Product weights, measurements and connectors indicate a single unit only (either Host or Remote) Accessory Products - SVECONUS10
- SVECONUS15
- SVECONUS6
- SVA9M2NEUA

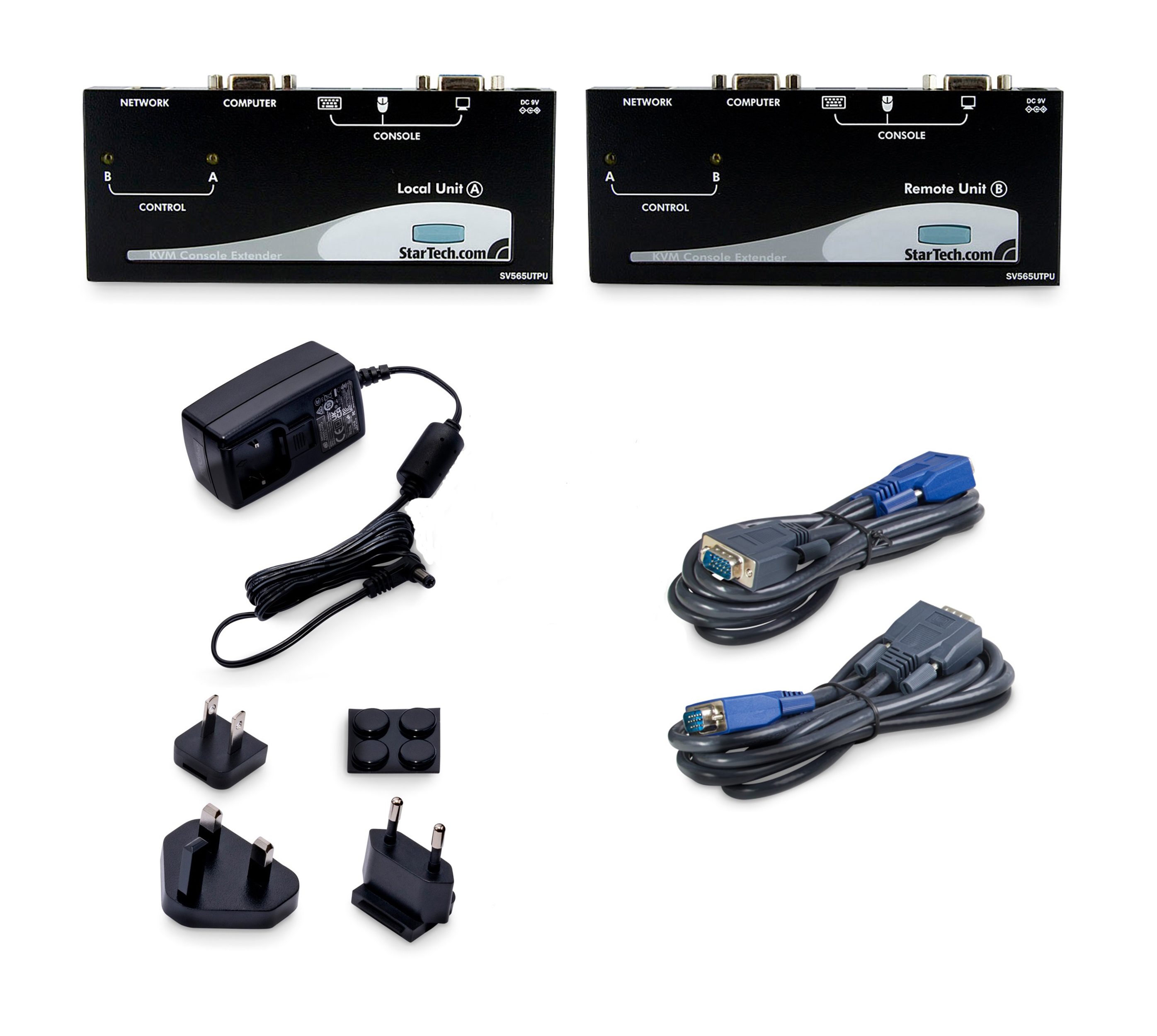

Related Products SV565UTPGB Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 0.6 A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 75 Product Width (mm) 155 Product Height (mm) 20 Product Weight (g) 299 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Max Transfer Distance 150m [492ft] MTBF (hours) 126000 hours OS Compatibility OS Independent Supported Resolutions Audio No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 315 Carton Height (mm) 300 Carton Quantity 10 Carton Weight Gross (g) 18400 Included in Package - 2 - 6 ft 2-in-1 USB VGA KVM cables
- 1 - Host Unit
- 1 - Manual
- 1 - Power Adapter
- 1 - Remote Unit
- 2 - Packs Rubber Feet
Package Depth (mm) 250 Package Height (mm) 90 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 1720 Packaging Description USB VGA KVM Console Extender - 500ft Packaging Description India USB VGA KVM Console Extender - 500ft Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) ES,EU,FR,IE,UK Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
