SV565UTPUL

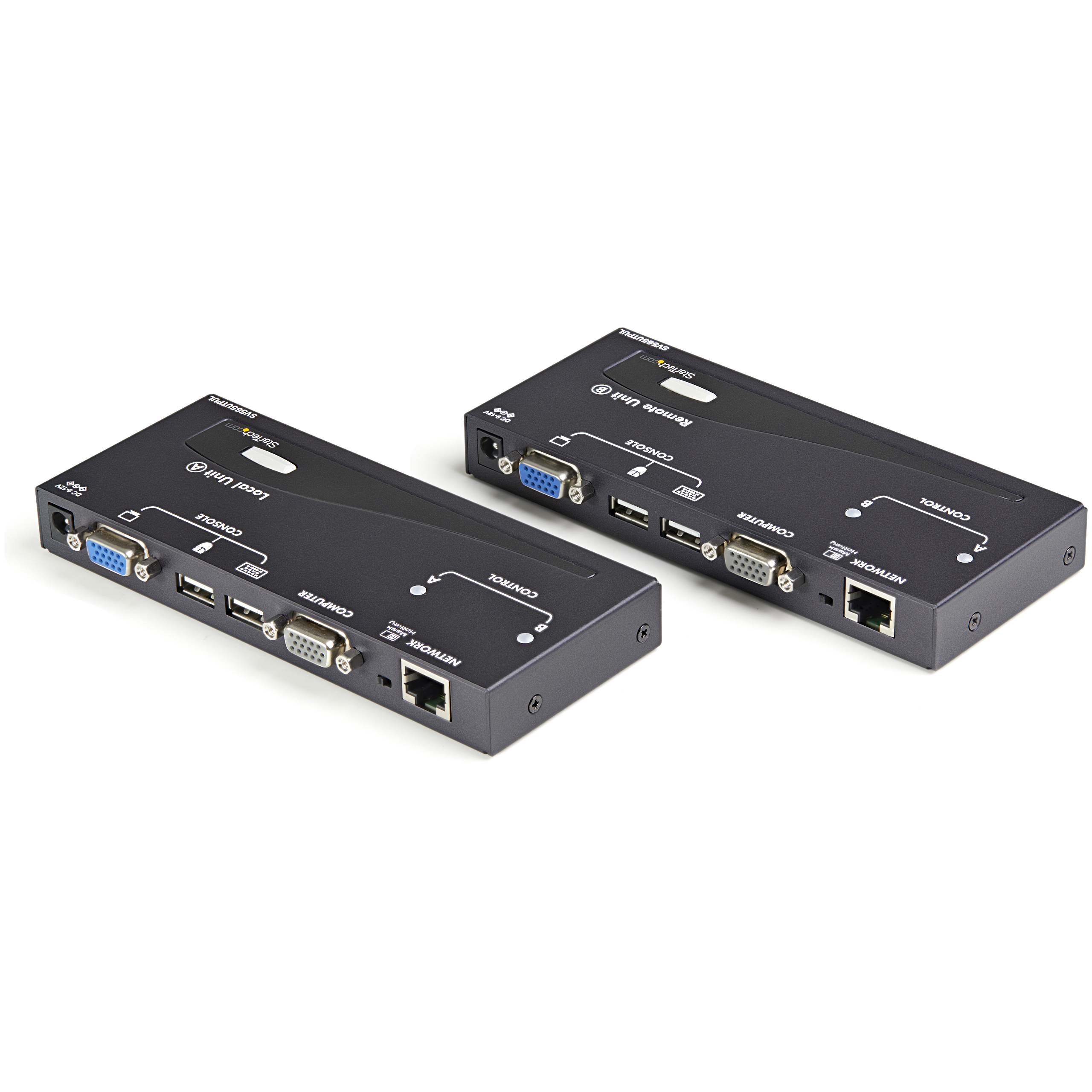

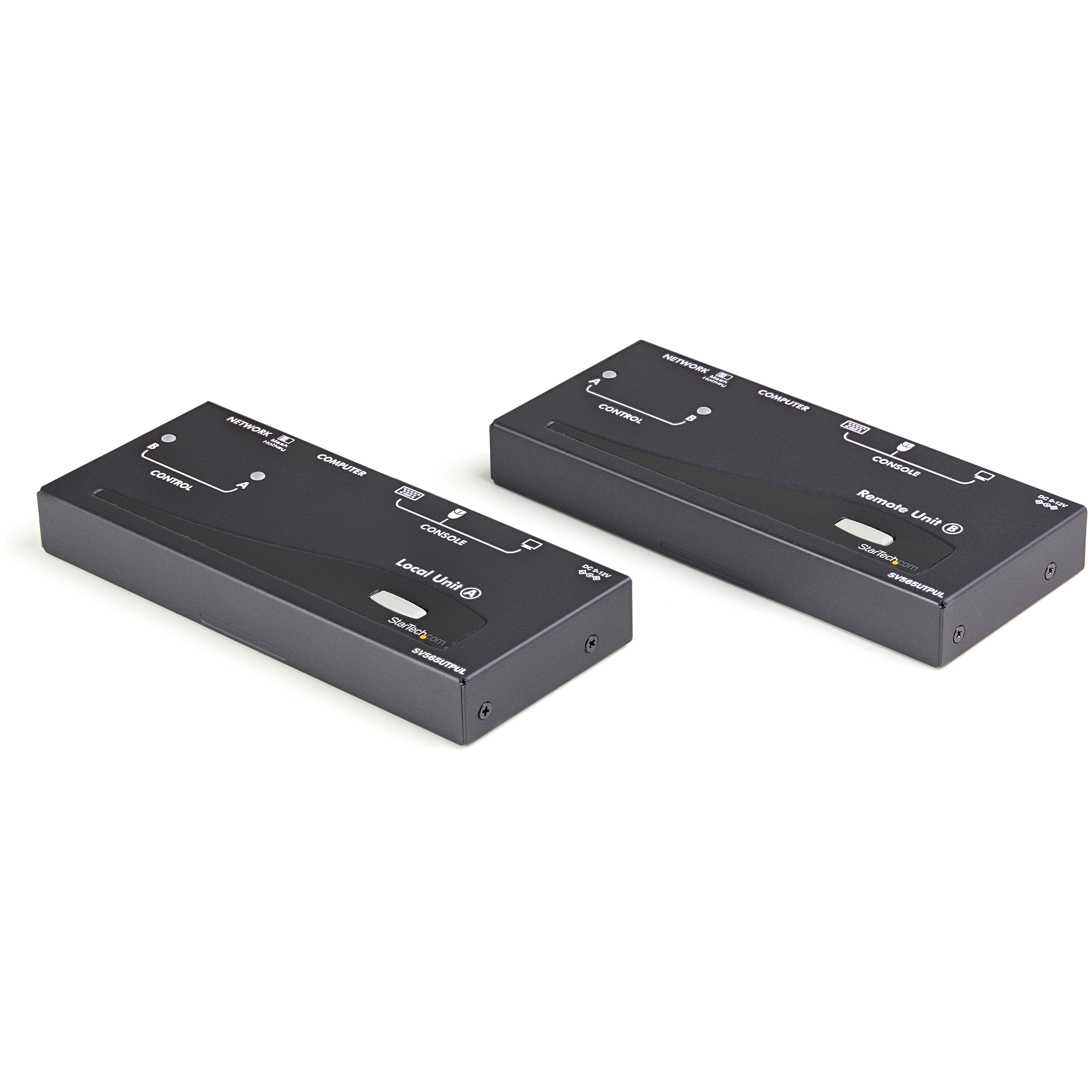

USB VGA Console Extender over CAT5 UTP 1000 ft
Control a KVM or server from up to 300m (984ft) away
Main Image
Product Images
Product Images
BOM Image
Product Name USB VGA Console Extender over CAT5 UTP 1000 ft Product Number SV565UTPUL UPC 065030839259 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 VGA KVM Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) USB VGA KVM Console Extender over Cat5 Product Title (Standard) USB VGA KVM Console Extender over Cat5 UTP 1000 ft Product Title (Long) Long Range USB VGA KVM Console Extender over Cat5 UTP - 1000 ft - TAA Product Title (AMZ) Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender - KVM Console Over Ethernet for multiple servers/PC's IT Grade (SV565UTPUL) Title Ingram (Part 1) Long Range USB VGA KVM Console E Title Ingram (Part 2) xtender over Cat5 UTP 1000ft Website Product Headline Control a KVM or server from up to 300m (984ft) away Bullet 1 Compatible with CAT 5, 5e, or 6 UTP cabling Bullet 2 Intuitive hotkey commands Bullet 3 Supports auto-switching between host and remote users or dedicated control Bullet 4 USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console) Bullet 5 High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA) Bullets (Compact) Control a KVM or server from up to 300m (984ft) away - KVM extender - KVM Extender CAT5 - Console extender Bullets (Consolidated) Control a KVM or server from up to 300m (1000ft) away - KVM Extender - KVM Extender CAT5 - Console Extender - Kit includes both local and remote units - 1000 ft Marketing Copy Marketing Copy (No HTML) Applications - Control remote machines and security monitoring systems
- Monitor computer-controlled equipment in a factory or warehouse at a distance
- Use one or more servers in a server room from a remote location
- Allow two users to share one PC or KVM
Website Search Keyword - Console Extender
- Keyboard mouse extender
- KVM Extender
- Remote user station
- Server extender
- USB Console
- USB extender
- Long Range Extender
- cat5 extender
- cat6 extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Supports most combo keyboard and mouse sets (including Wireless) Accessory Products - SVECONUS10
- SVECONUS15
- SVECONUS6
- IM12D1500P
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVA12M2NEUA
- SVA12M5NA
- RJ45PATCH10
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
Related Products - SV565UTP
- SV565UTPU
- SV565UTPUSA
- SV565FXDUSA
Constrained SKU Alternatives (Limited Stock) SV565UTPU Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 157.000 Product Depth (mm) 70 Product Height (mm) 20.000 Product Weight (g) 622.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions UXGA - 1600x1200, WUXGA - 1920x1200 Max Transfer Distance 300m [984ft] MTBF (hours) 164000 hours OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio No Cables Included Yes LED Indicators - 2 - Remote indicator
- 2 - Local indicator

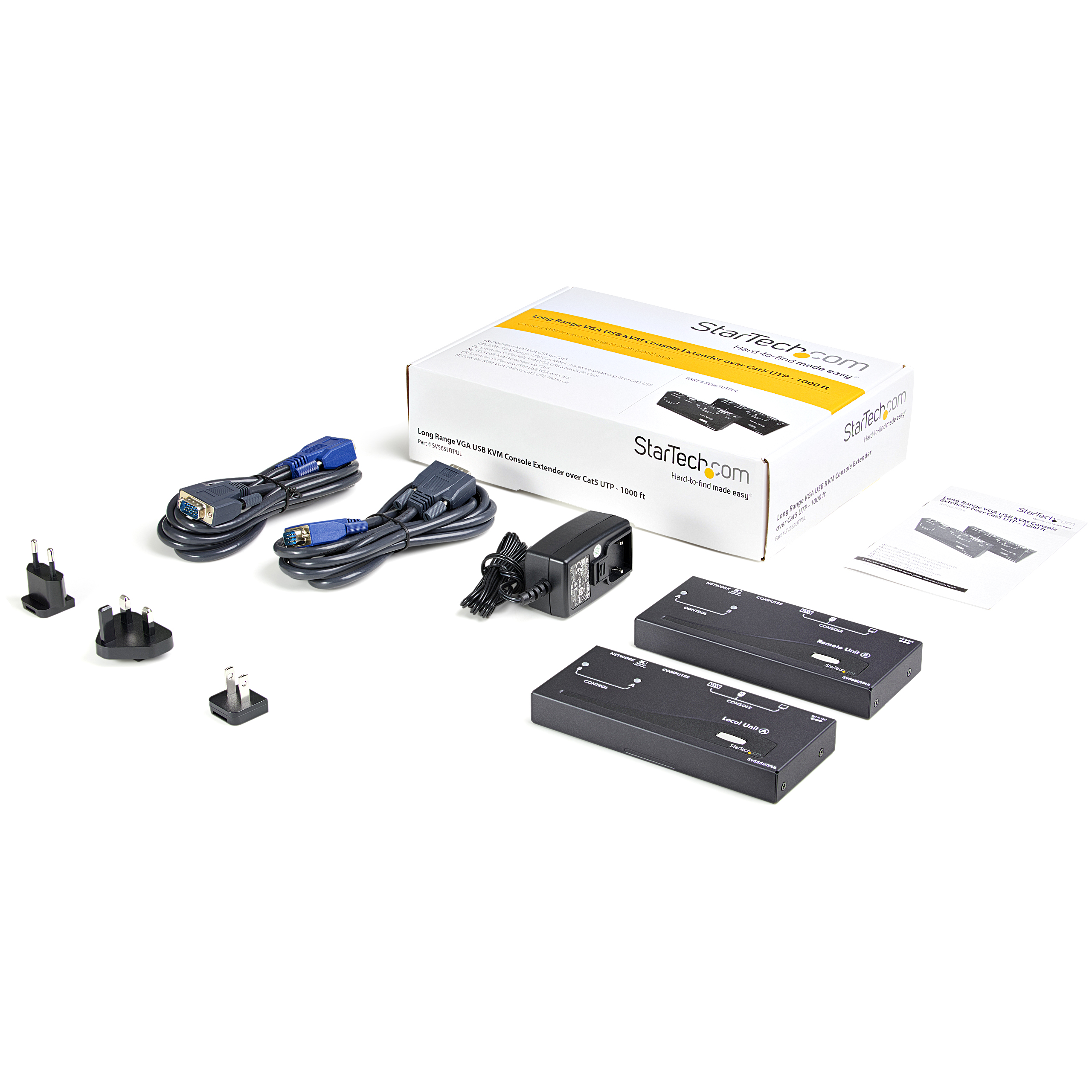

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 409 Carton Height (mm) 323 Carton Quantity 12 Carton Weight Gross (g) 17394 Included in Package - 2 - KVM Extenders (1x Local, 1x Remote)
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - User Manual
- 1 - Rubber Feet
- 2 - 2n1 USB VGA KVM Cables

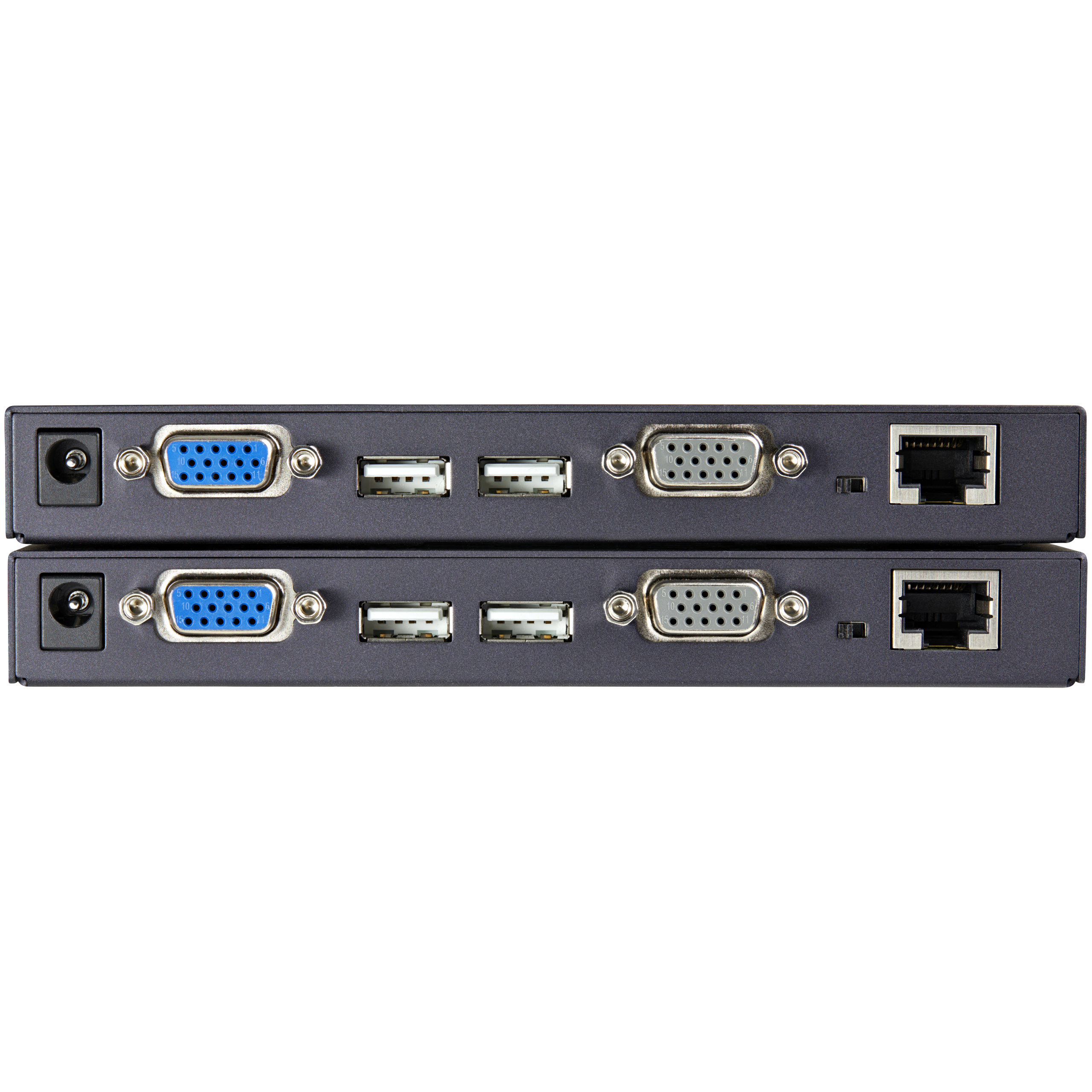

Package Depth (mm) 197 Package Height (mm) 72 Package Width (mm) 294 Package Quantity 1 Package Weight (g) 1371 Packaging Description VGA USB KVM Console Extender over Cat5 Packaging Description India VGA USB KVM Console Extender over Cat5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
