SV565UTPUSA
VGA USB 2.0 Serial / Audio UTP Console Extender
Extend VGA video, USB, audio and serial signals up to 300m (1000ft) over Cat 5 or better cabling
Main Image
Product Images
BOM Image
Product Name VGA USB 2.0 Serial / Audio UTP Console Extender Product Number SV565UTPUSA UPC 065030835329 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 VGA KVM Extenders Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Ultra-Short) Cat5 KVM Extender Product Title (Short) KVM Console Extender w/ Serial Over Cat5 Product Title (Standard) StarTech.com USB VGA KVM Console/Extender with Audio Product Title (Long) USB VGA KVM Console Extender w/ Serial & Audio Over Cat5 UTP - 1000 ft Product Title (AMZ) USB VGA KVM Console Extender w/ Serial & Audio Over Cat5 UTP - 1000 ft (SV565UTPUSA) Title Ingram (Part 1) USB VGA KVM Console Extender w/ Title Ingram (Part 2) Serial & Audio Over Cat5 UTP Website Product Headline Extend VGA video, USB, audio and serial signals up to 300m (1000ft) over Cat 5 or better cabling Bullet 1 High resolution support up to 1920 x 1080 @60Hz Bullet 2 Maximum supported distance of 1000ft (300m) Bullet 3 Automatic image calibration and adjustment Bullet 4 Upgradable Firmware Bullet 5 Manual configuration via serial interface Bullets (Consolidated) Extend VGA video USB audio and serial signals up to 300m (1000ft) over Cat 5 or better cabling - KVM Extender - KVM Extender CAT5 - Console Extender - High resolution support up to 1920 x 1080 - Marketing Copy Applications - Ideal for high security environments where the server and data contained within a server room, while the user has no direct access to the hardware
- Extend USB keyboard and mouse, RS232 serial, VGA, and audio up to 1000ft away
- Monitor computer-controlled equipment in a factory or warehouse
- Perfect for adding console controls for areas not environmentally suitable for a full PC or server
- Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
- Full serial support for remote applications such as touchscreens, barcode scanners, etc.
Website Search Keyword - USB KVM
- Remote Console
- VGA Audio Serial Extender
- USB Extender
- KVM Extender
- Console Extender
- Port Extender
- Server Extender
- Remote Server
- thin client
- dumb terminal
- remote kiosk
- secure pc
- rack server desktop console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Supports most combo keyboard and mouse sets (including Wireless) Accessory Products - M45PATCH6BL
- M45PATCH10BL
- M45PATCH15BL
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ3
- USB2HAB6
- USB2HAB10
- MU6MMS
- MU10MMS
- MU15MMS
Related Products - SV565UTP
- SV565UTPU
- PS2UTPEXT
- SV565UTPUL
Equivalent Part Number in the EU SV565USAGB Equivalent Part Number in the UK SV565USAGB Input Current 0.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Width (mm) 156 Product Depth (mm) 112 Product Height (mm) 26 Product Weight (g) 296 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1920 x 1080 @60Hz Max Transfer Distance 300m [984ft] OS Compatibility OS Independent Audio Yes Cascadable Yes LED Indicators - 0 - RJ45 Link LED (Local and Remote)
- 0 - USB Link (Keyboard and Mouse on Local, Single USB on Remote)
- 0 - Power LED Link (Receiver and Transmitter)
- 0 - Setup LED (Local)

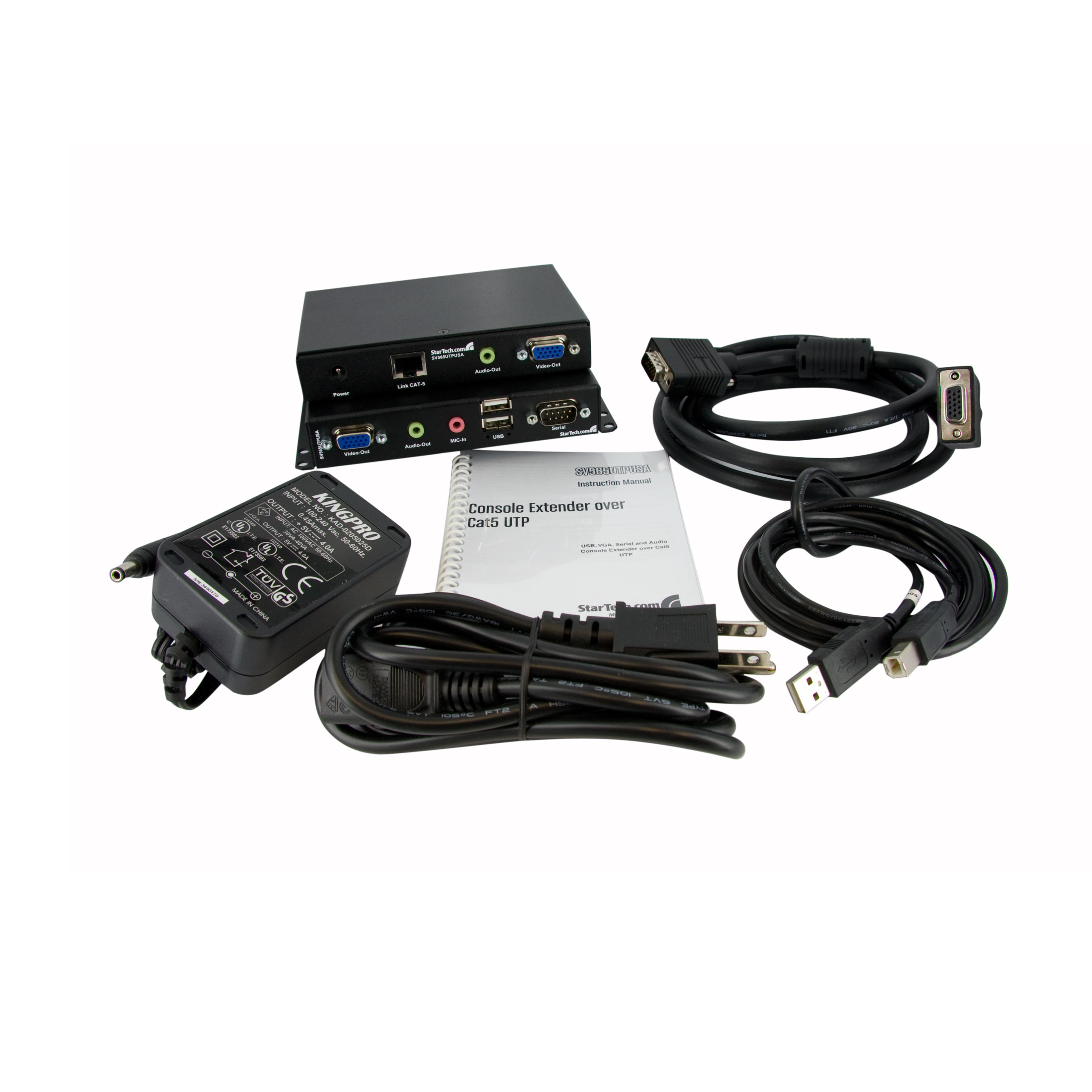

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 370 Carton Height (mm) 275 Carton Quantity 40 Carton Weight Gross (g) 13074 Included in Package - 1 - Remote Transmitter
- 1 - Local Receiver
- 1 - Power Adapter
- 1 - USB Cable
- 1 - VGA cable
- 1 - Instruction Manual
Number of Sub-Cartons 4 Package Depth (mm) 200 Package Height (mm) 37 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 305 Packaging Description USB VGA KVM Console Extender Over Cat5 - 300m Packaging Description India USB VGA KVM Console Extender Over Cat5 - 300m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 3069 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Connector 6 3.5mm (3 Conductors, TRS) Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 1 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 2 Host Connector 5 RJ-45 Host Connector 5 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
