Main Image
SV5CONS
Remote User Station for SV1653DXI
Control your StarTech.com Enterprise IP KVM Switch remotely without the need for a PC
Main Image
Product Images
Product Images
BOM Image
Product Name Remote User Station for SV1653DXI Product Number SV5CONS UPC 065030831741 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Short) Remote User Station for IP KVM Switch Product Title (Standard) StarTech.com Remote User Station for Enterprise IP KVM Switch Product Title (Long) Remote User Station for Enterprise IP KVM Switch Title Ingram (Part 1) Remote User Station for Enterpri Title Ingram (Part 2) se IP KVM Switch Website Product Headline Control your StarTech.com Enterprise IP KVM Switch remotely without the need for a PC Bullet 1 Supports a resolution of up to 1280 x 1024 @75, 1000ft. (300m) away Bullet 2 LED indicator for KVM identification Bullet 3 Supports most standard USB keyboards and mice Bullet 4 Hot-key support Bullet 5 Compact design, with durable hardened metal casing Marketing Copy Applications - Allows a remote user to have local access to the KVM and attached servers.
- Control two enterprise series KVMs from one remote location up to 1000ft. away.
Website Search Keyword - IP KVM Switch
- KVM over IP
- console extender
Related Products - SV1653DXI
- SV3253DXI
Input Voltage 115V AC Output Current 3A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Aluminum Product Length (mm) 102 Product Width (mm) 112 Product Height (mm) 24 Product Weight (g) 190 TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280 x 1024 @75Hz Max Transfer Distance 300m [984ft] Audio No LED Indicators 1 - Green – Port Indicator Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 450 Carton Height (mm) 258 Carton Quantity 10 Carton Weight Gross (g) 7800 Included in Package - 1 - Remote User Station

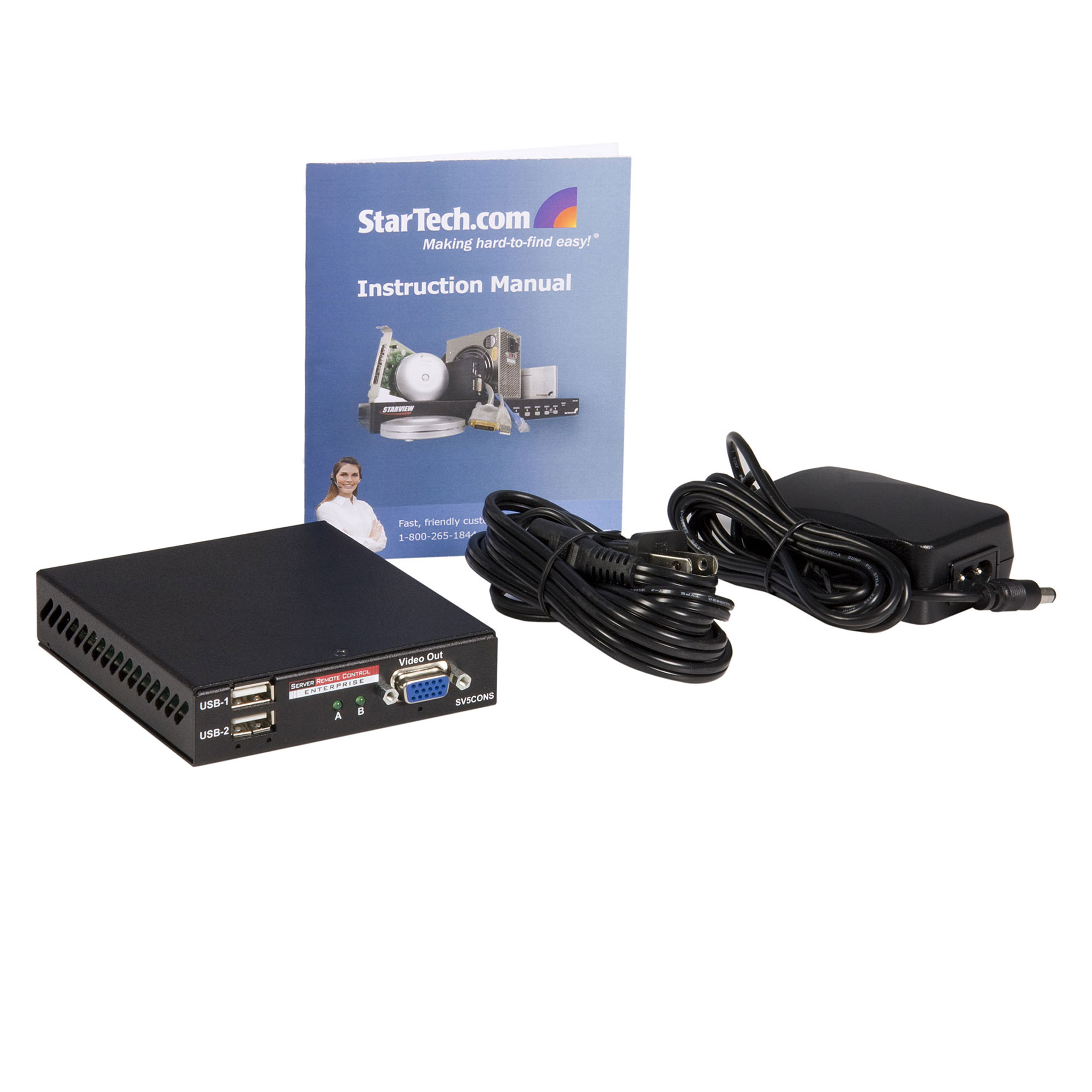

- 1 - Instruction Sheet
- 1 - Power Adapter
Package Depth (mm) 63 Package Height (mm) 132 Package Width (mm) 320 Package Weight (g) 660 Packaging Description Remote User Station for Enterprise IP KVMs Packaging Description India Remote User Station for Enterprise IP KVMs Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
