SV621
Main Image

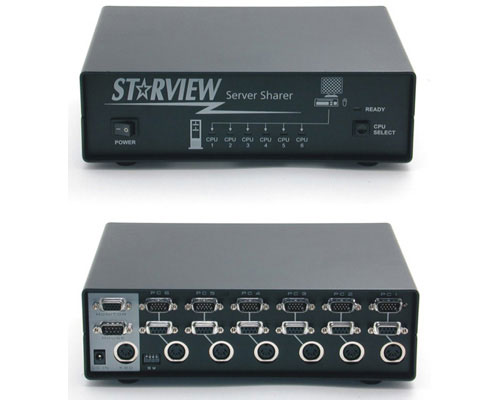

Product Name *D*StarView Server Sharer 6-Port KVM Switch Product Number SV621 UPC 065030772853 Warranty 3 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*StarView Server Sharer 6-Port KVM Switch Bullet 1 CPU's are selected using keyboard HOT-KEYS or by front panel pushbutton Bullet 2 Autoscan mode cycles through all CPU's automatically. The time spent on each CPU can be set from 3 to 40 seconds. Bullet 3 Supports VGA, SVGA, and multisync monitors of up to 100MHz bandwidth. Bullet 4 Units can be cascaded into each other to allow expansion as your needs grow Bullet 5 Keyboard emulation feature allows any CPU to be powered up without resulting in a keyboard error. Marketing Copy The StarTech.com StarView is an 6 port KVM switch that allows up to 6 computers to be controlled from 1 monitor, keyboard, and mouse. This saves the user space by only needing one control console for several computers, and saves the time spent moving between the PC's. Ports are switched by pressing a button on the front of the unit, or by a simple keyboard hot-key sequence. PCs with serial style mouse connections can be connected and used transparently. The StarView prevents bootup errors by providing keyboard and mouse emulation to the non-selected PC. StarViews can be cascaded to control a maximum of 216 PC's. It's low cost, rackmount capability, and high 1600 x 1280 resolution display capability make this switch perfect for test labs, server rooms, or power users who want fast, easy control of many PCs. Applications - Allows 1 console to control 6 computers (standalone mode)
- Allows 1 console to control up to 216 computers (cascaded mode)
Accessory Products - SVAT3N1_10
- SVAT3N1_15
- SVAT3N1_50
- SV421RACK
- SVPOWER
- SVPOWERBRIT
TAA Compliant No General Specifications - Keyboard Connector: 5-pin DIN Female
- Mouse Connector: DB9
- Monitor Connectors: High Density DB15 Male to PCs, Female to Console
- Weight: 2550g (6.7 lb)
- Dimensions: 254 x 180 x 82 mm
- LED Status Indicators: 1 indicates Scan or Manual mode and 1 for the status of each port
- Enclosure: Heavy duty metal, Optional rack mount capability for SV621, SV421
- VGA Video Bandwidth: 100 MHz
- Selectable Scan Intervals: 3, 10, 20, 40 seconds
- Ports: 6 for connecting PCs, 1 for connecting the control console
Included in Package - 1 - StarView Server Sharing Switch - 6 port
- 1 - Power Adaptor
- 1 - Instruction Manual
en-US Content Approved Yes
