SV821
Main Image

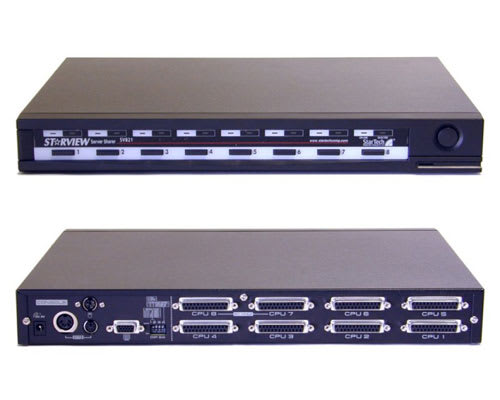

Product Name *D*StarView Server Sharer 8-Port KVM Switch *D* Product Number SV821 UPC 065030779869 Warranty 3 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*StarView Server Sharer 8-Port KVM Switch *D* Bullet 1 Emulates keyboard and mouse while booting so PCs can boot unattended. Bullet 2 Supports serial and PS/2 mouse connections. Serial mouse signals from PCs are translated to PS/2. Bullet 3 Multiple units can be cascaded to control up to 302 PCs. Bullet 4 Can be switched by hot-key commands or by pressing front panel buttons. Bullet 5 Can be put into scan mode that automatically switches between active PCs. Marketing Copy The StarTech.com StarView is an 8 port KVM switch that allows up to 8 computers to be controlled from 1 monitor, keyboard, and mouse. This saves the user space by only needing one control console for several computers, and saves the time spent moving between the PC's. Ports are switched by pressing a button on the front of the unit, or by a simple keyboard hot-key sequence. PCs with either PS/2 or serial style mouse connections can be connected and used transparently. The StarView prevents bootup errors by providing keyboard and mouse emulation to the non-selected PC. StarViews can be cascaded to control a maximum of 302 PC's. It's low cost, rackmount capability, and high 1600 x 1280 resolution display capability make this switch perfect for test labs, server rooms, or power users who want fast, easy control of many PCs. Applications - Allows 1 console to control 8 computers (standalone mode)
- Allows 1 console to control up to 302 computers (cascaded mode)
Accessory Products - SV110
- USB2PS2
Related Products - SV831
- SV832DS
- SV831D
TAA Compliant No General Specifications - VGA Video Bandwidth: 100 MHz
- Ports: 8 for connecting PCs, 1 for connecting the control console
- LEDs: 8 for active PCs, 8 for the selected PC
- Selectable Scan Intervals: 3, 10, 20, 40 seconds
- Keyboard Connectors: 5-pin DIN and 6-pin MiniDIN Female
- PS/2 Mouse Connectors: 6-pin MiniDIN Female
- Monitor Connectors: High Density DB15 Female
- Metal Enclosure Dimensions: 366 x 250 x 45 mm (10 x 7 x 2.75 in)
- Weight: 2650g (5.83 lb)
Included in Package - 1 - 8 PORT STARVIEW
- 1 - INSTRUCTION MANUAL
- 1 - ADAPTOR
- 1 - HOT KEY QUICK REFERENCE
