Main Image
SV821EM
Main Image

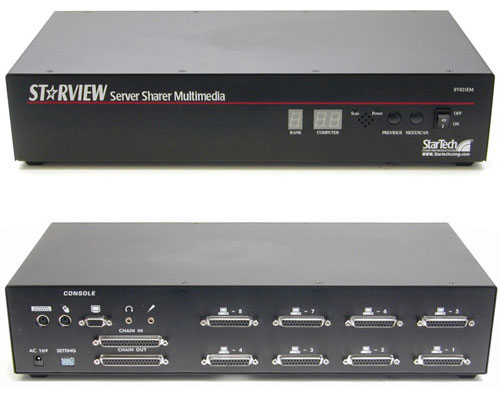

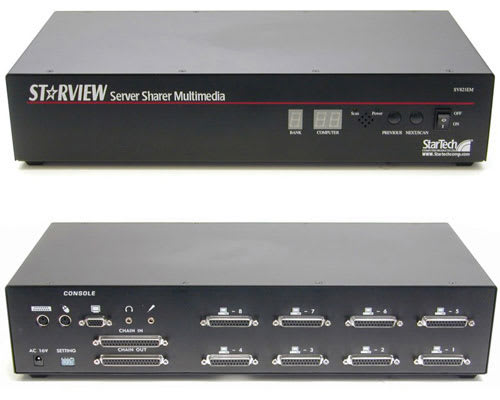

Product Name *D*StarView Multimedia 8-Port KVM Switch *D* Product Number SV821EM UPC 065030785020 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*StarView Multimedia 8-Port KVM Switch *D* Bullet 1 2-year Warranty Bullet 2 Keyboard and Mouse emulation for all inactive channels Bullet 3 Supports SVGA, VGA and Multisync monitors Bullet 4 Supports VESA DCC1/2B standard Bullet 5 On-Screen Display (OSD) feature allows user to choose the computer controlled from an On-Screen menu Marketing Copy The StarTech.com Enterprise StarView is an 8 port KVM switch that allows up to 8 computers to be controlled from 1 monitor, keyboard, and mouse. This saves the user space by only needing one control console for several computers, and saves the time spent moving between the PC's. Ports are switched by calling up an On-Screen menu, pressing a button on the front of the unit, or by a simple keyboard hot-key sequence. PCs with either PS/2 or serial style mouse connections can be connected and used transparently. The StarView prevents bootup errors by providing keyboard and mouse emulation to the non-selected PC. Up to 8 Enterprise StarViews can be daisy chained to control a maximum of 64 PC's. The switch also has microphone and speaker connections, allowing it to be used in multimedia applications. It's low cost, rackmount capability, and high 1600 x 1280 resolution display capability make this switch perfect for professional test labs or server room environments. Applications - Allows 1 console to control 8 computers (standalone mode)
- Allows 1 console to control up to 64 computers (daisy chained)
Related Products - SV831D
- SV832DS
TAA Compliant No General Specifications - Ports: 8 for connecting PCs, 1 for connecting control console, 1 Cascade IN, 1 Cascade OUT
- PC Selection Method: Pushbutton/Keyboard Hot Keys/OSD Menu
- Scan Interval: 5/10/20/40 seconds
- Signal Type: VGA/Keyboard/Mouse/Stereo Audio/Microphone
- VGA Bandwidth: 150MHz
- Console Connectors: High Density DB15 Female, 6 DIN Female, mini DIN6 Female, 3.5mm stereo socket, 3.5mm mono socket
- PC Port Connector: DB25 Female
- Chain Connector: DB37 Female
- Cable Length: PC to Switch: 35m, Console to Switch: 50 m
- Enclosure: Metal, Rackmountable
- Dimensions: W17.3xD7.9xH3.5" (44x20x9cm)
- Weight: 7.55 lb (3425g)
- Power: AC 16V 1000mA (AC 120V adapter included)
- Certifications: FCC Part 15 Class A, CE Mark
Included in Package - 1 - 8 PORT SWITCH
- 1 - CONNECTING CABLE
- 1 - RACKMOUNT
- 1 - INSTRUCTION MANUAL
- 1 - POWER ADAPTOR
en-US Content Approved Yes
