Main Image
SV831
Main Image
Product Images
Product Images
BOM Image

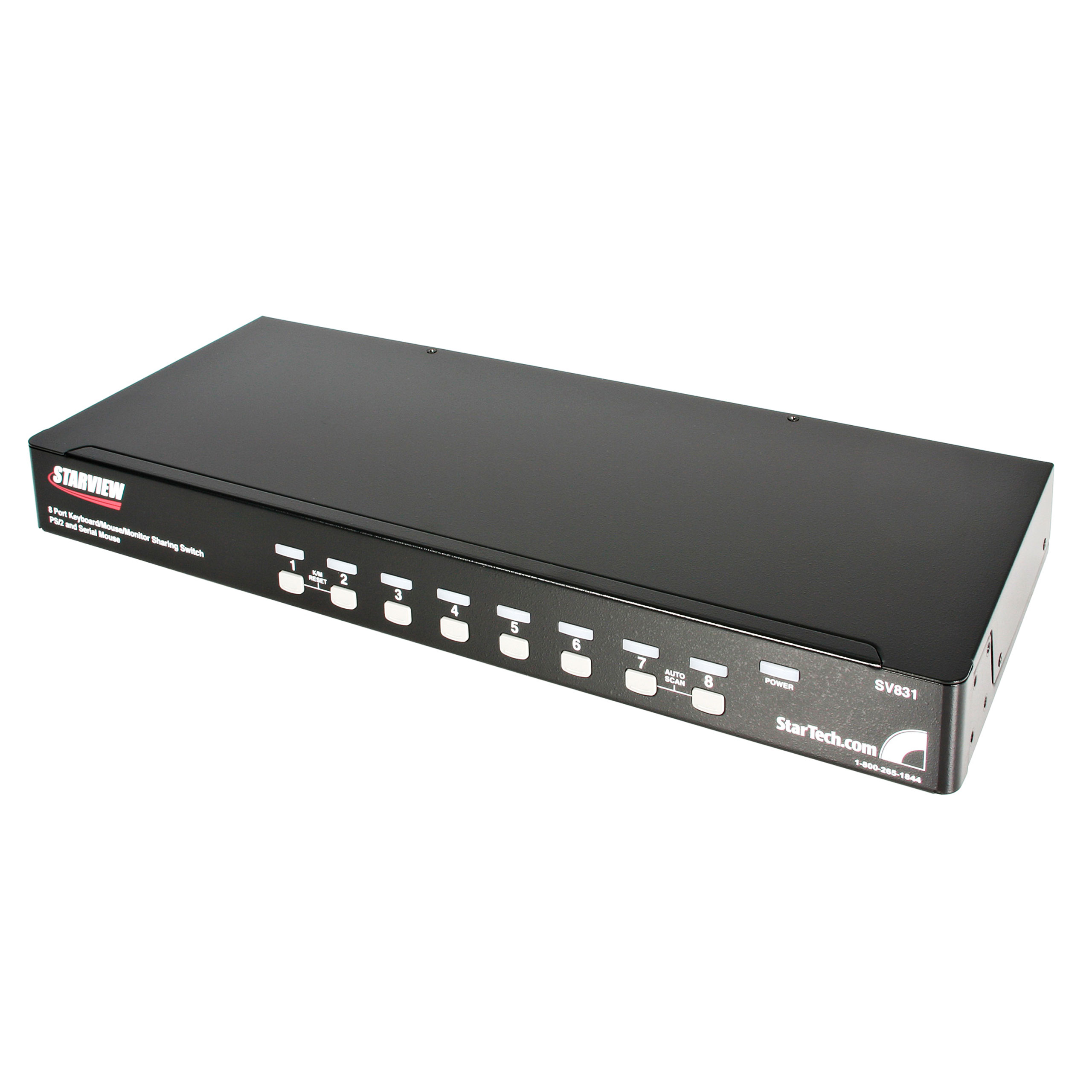

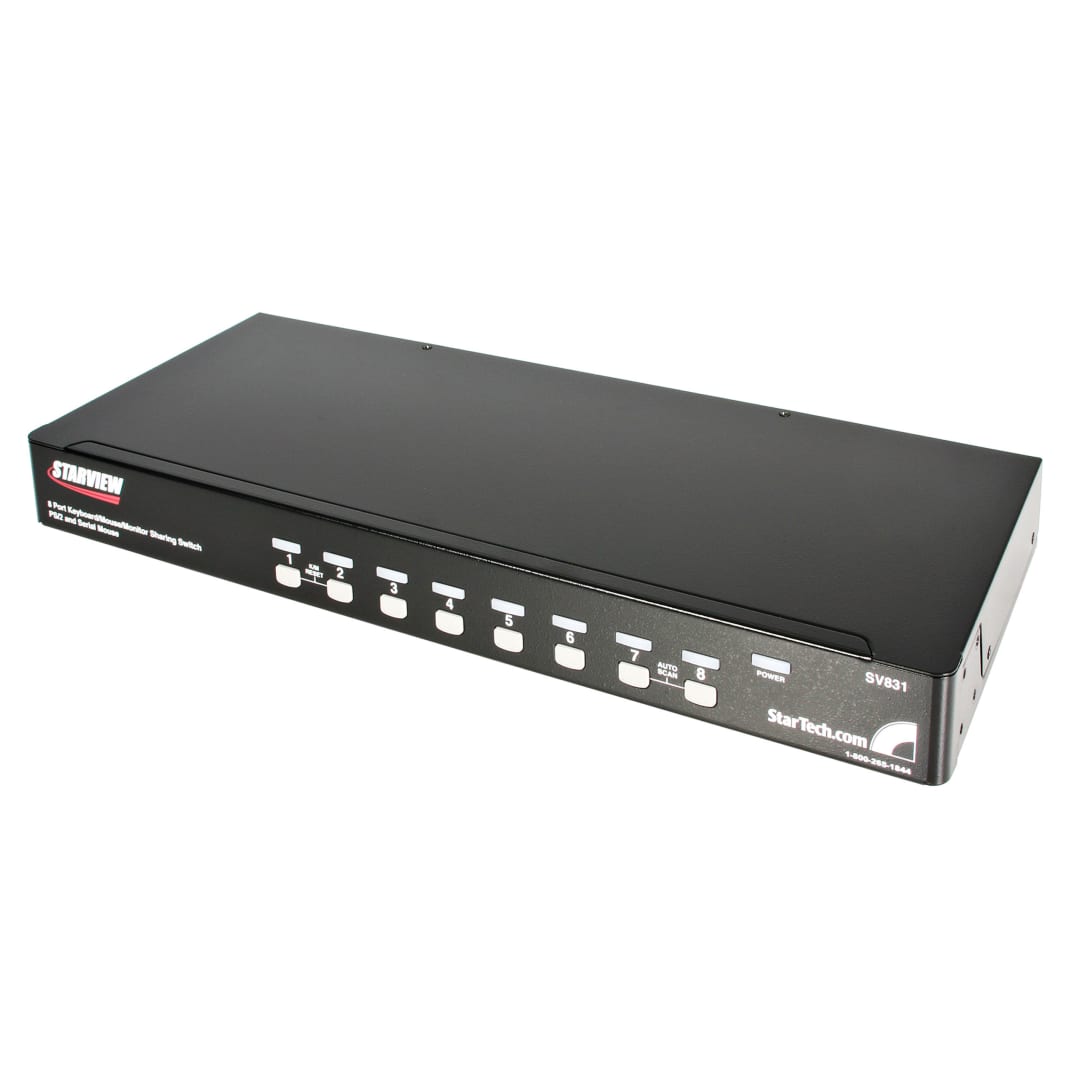

Product Name 8 Port StarView KVM Switch Product Number SV831 UPC 065030787703 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port 1U Rackmount PS/2 KVM Switch Product Title (Standard) StarTech.com KVM switch - PS/2 - 8 ports - 1 local user - Rackmount Product Title (Long) 8 Port 1U Black Rackmount PS/2 KVM Switch Title Ingram (Part 1) 8 Port 1U Rackmount PS/2 Console Title Ingram (Part 2) KVM Switch Bullet 1 A dependable 3-year warranty provides peace of mind. Bullet 2 Can function as a dual display 8 PC KVM with add-on module SV831MEDIA. Bullet 3 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 4 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems. Bullet 5 Compatible with all notebook computers. Marketing Copy Applications - Datacenter computer control
- Manufacturing computer control
- PC test/burn-in computer control
- Expandable design allows feature modules to be connected, adding new functions to the switch. ie. audio capabilites, dual monitor support, etc.
Accessory Products - SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- SV560UTP
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- USB2PS2
- GC56MF
- SVSERIALAD
- SVPOWER
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SV125
- SV1115IPEXT
- SV831MEDIA
Related Products - SV832DS
- SV831D
- SV431
- SV831MEDIA
- SV431D
- SV1115IPEXT

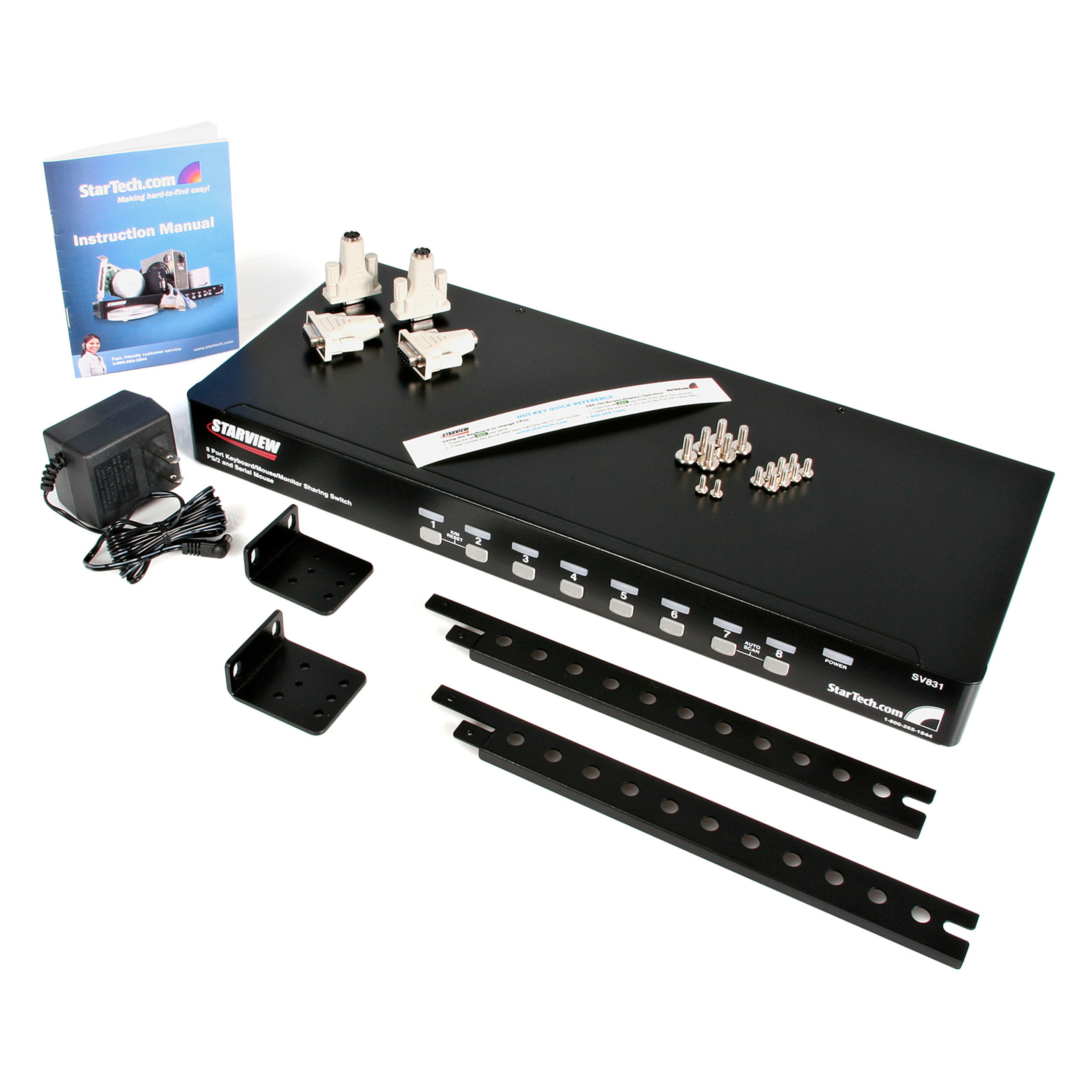

Equivalent Part Number in the UK SV831GB Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 430 Product Width (mm) 179 Product Height (mm) 44 Product Weight (g) 2385 TAA Compliant No DVI Support No Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 Audio No Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 13170 Included in Package - 1 - Instruction Manual
- 1 - 8 Port 1U StarView KVM Switch
- 1 - Set of left and right rackmount brackets
- 1 - Hot key reference
- 4 - Sticky feet
- 1 - 9V Power Adapter Power Adapter
- 4 - PS/2 to serial mouse adapters

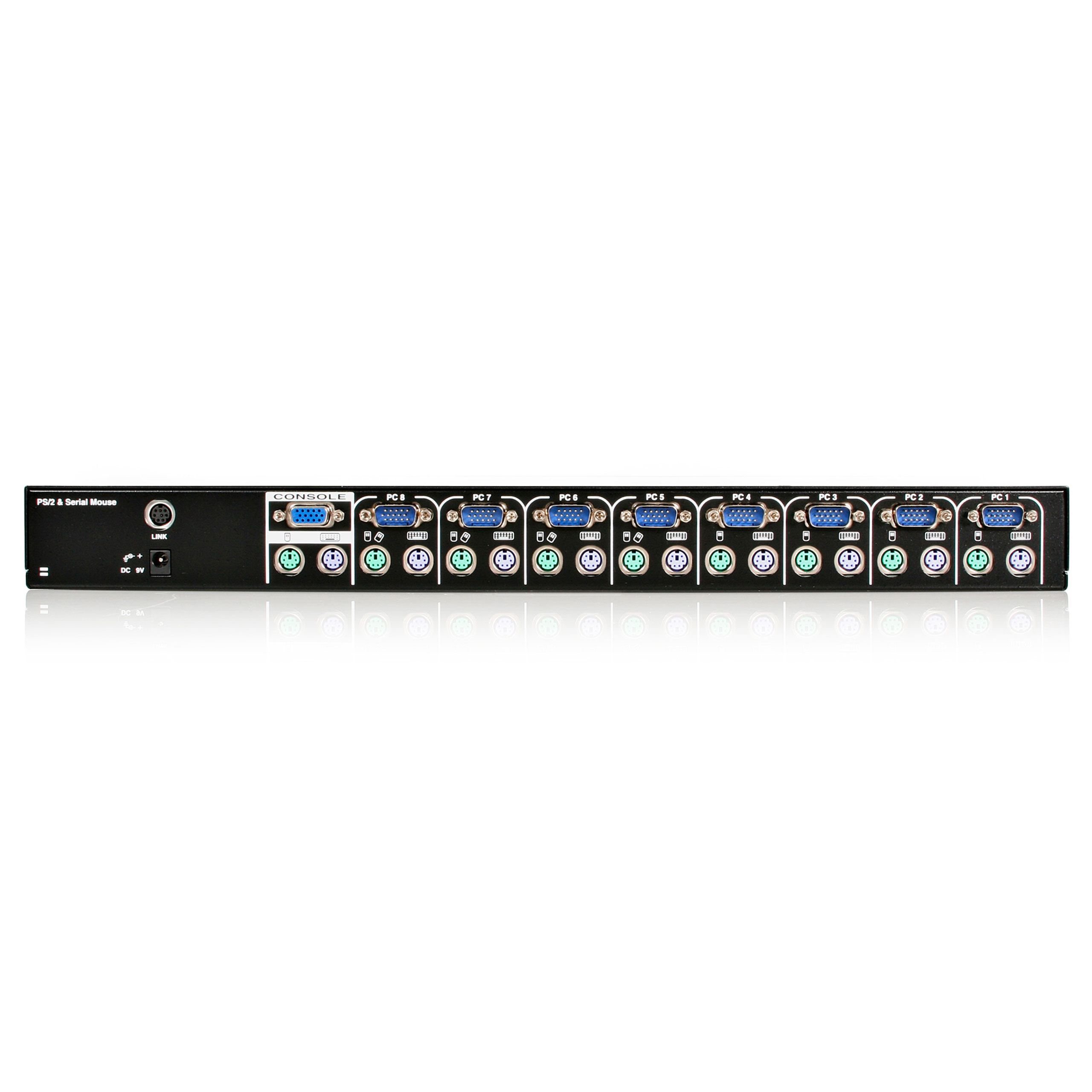

Package Depth (mm) 90 Package Height (mm) 264 Package Width (mm) 590 Package Weight (g) 3989.9591 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Host Connector 2 PS/2 Host Connector 2 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
