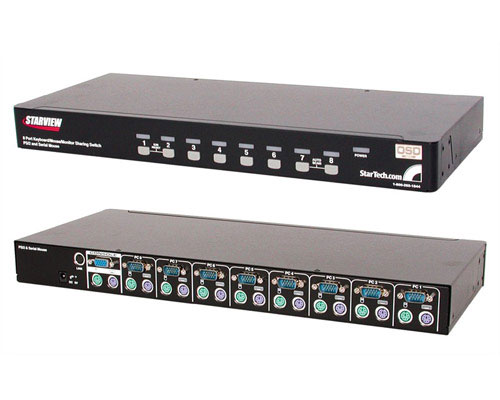

SV831D
Main Image
Product Name 8 Port StarView KVM Switch with OSD Product Number SV831D UPC 065030786737 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 8 Port StarView KVM Switch with OSD Bullet 1 A dependable 3-year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems. Bullet 4 Compatible with all notebook computers. Bullet 5 Compatible with Compaq Alpha systems. Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
Accessory Products - SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- SV565UTP
- USB2PS2
- GC56MF
- SVPOWER
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SV125
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- SV831HD
Related Products - SV831
- SV832DS
- SV831MEDIA
Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 440 Product Width (mm) 179 Product Weight (g) 2385 TAA Compliant No DVI Support No General Specifications - Ports: 8 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion LINK port (8 pin MiniDIN Female)
- PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button
- Video Bandwidth: 300 MHz
- Enclosure: Metal, rackmount brackets included
- Dimensions: W17.3 x D7.06 x H1.75" (440 x 179 x 44 mm)
- Weight: 5.26 lb (2385 g)
- Certifications: FCC Part 15 Class A, CE Mark, VCCI
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 pixels Maximum Number of Users 1 On-Screen Display Yes Audio No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 288 Carton Height (mm) 300 Carton Quantity 3 Carton Weight Gross (g) 13170 Included in Package - 1 - SV831D Switch
- 1 - Instruction Manual
- 1 - Keyboard hotkey sticker
- 1 - Set of 4 sticky feet
- 1 - Set of left and right rackmount brackets
- 1 - 9V Power Adapter
- 4 - PS2 to serial mouse adapters
Package Depth (mm) 90 Package Height (mm) 269 Package Width (mm) 608 Package Weight (g) 3990 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 18 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
