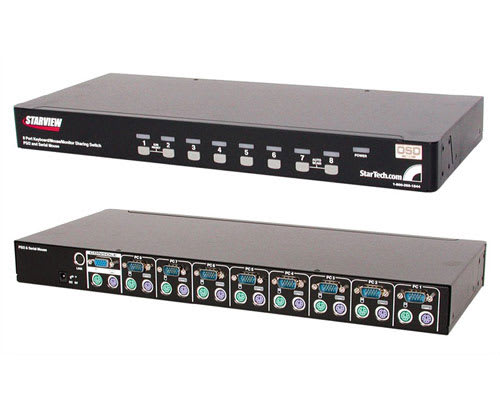

8 Port StarView KVM Switch with OSD

Main Image

Product Name	8 Port StarView KVM Switch with OSD
Product Number	SV831DEU
UPC	065030811552
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Product Title (Long)	8 Port StarView KVM Switch with OSD
Bullet 1	"Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control.
Bullet 2	A dependable 3-year warranty provides peace of mind.
Bullet 3	A special LINK port provides an upgrade path for expanding the capabilities of the switch. An expansion module adding audio and dual monitor support is available. (See SV831MEDIA)
Bullet 4	Can be cascaded to control up to 64 PCs
Bullet 5	Compatible with all notebook computers.
Marketing Copy
Applications	Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

Accessory Products	GC56MF PS23N1THIN10 PS23N1THIN15 PS23N1THIN2 PS23N1THIN25 PS23N1THIN4 PS23N1THIN6 SVPOWER SVPS23N1_10 SVPS23N1_15 SVPS23N1_25 SVPS23N1_35 SVPS23N1_50 SVPS23N1_6 USB2PS2
Related Products	SV831 SV831MEDIA SV832DS

General Specifications	Certifications: FCC Part 15 Class A, CE Mark, VCCI Dimensions: W17.3 x D7.06 x H1.75" (440 x 179 x 44 mm) Enclosure: Metal, rackmount brackets included Maximum resolution: 1920 x 1440 pixels PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button Ports: 8 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion LINK port (8 pin MiniDIN Female) Power: 9V DC 600mA - Adapter included Video Bandwidth: 300 MHz Weight: 5.26 lb (2385 g)
Maximum Analog Resolutions	1920 x 1440
Maximum Number of Users	1
On-Screen Display	Yes

Included in Package	1 - 9V Power Adapter 1 - Instruction Manual 1 - Keyboard hotkey sticker 4 - PS2 to serial mouse adapters 1 - Set of 4 sticky feet 1 - Set of left and right rackmount brackets 1 - SV831D Switch

Power Consumption (In Watts)	0.6W
Power Source	AC Adapter Included
