8 Port KVM Switch with Remote IP Access

Main Image

Product Name	8 Port KVM Switch with Remote IP Access
Product Number	SV831DI
UPC	065030798549
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--_N1jBSlu--/bbf7ab013c18dc020ba564baca21e4ad4d4c3022.pdf

Product Title (Long)	8 Port KVM Switch with Remote IP Access

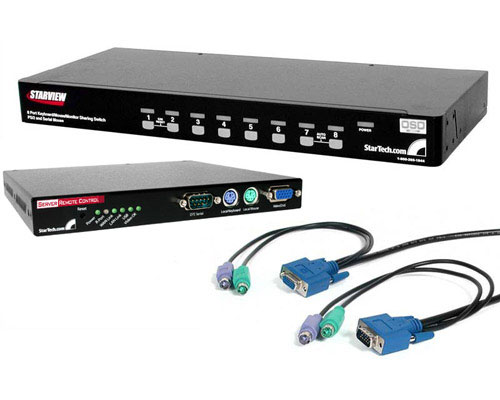

Bullet 1	SV831D, Server Remote Control and Cables
Bullet 2	A dependable 3-year warranty on SV831D KVM Switch and 1 Year on our KVM Control Over IP Server Remote Control provides peace of mind.
Bullet 3	Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems
Bullet 4	Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems
Bullet 5	Compatible with all notebook computers
Marketing Copy
Applications	Remote access to mission-critical corporate datacenter servers Application service providers (ASPs) BIOS level remote access to servers located at co-location facilities and ISPs Remote access for outsourced server/IT hardware management IP enable existing KVM switches Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

Accessory Products
2636CABINET
2630CABINET
7230CABINET
7236CABINET
CAB1019WALL
CAB4236BK
RPORT
PCM815SHNA
Related Products
SV841HDI
SV831SUN
SV831
SV831MEDIA
Power Consumption (In Watts) 0.6W
Power Source AC Adapter Included
Color Black
Material Steel
Product Length (mm) 440
Product Width (mm) 179
TAA Compliant No

DVI Support	No
General Specifications	SV831D: : Ports: 8 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female) : PC Selection methods: Keyboard hot-key, Front panel button : Video Bandwidth: 200 MHz : Maximum resolution: 1920 x 1440 pixels : Enclosure: Metal, rackmount brackets included : Dimensions: W17.3 x D7.06 x H1.75" (440 x 179 x 44 mm) : Power: 9V DC 600mA - Adapter included : Certifications: FCC Part 15 Class A, CE Mark, VCCI KVM Control over IP Module : Login Security: MD5 and DAA encryption protocols : Web Interface Security: SSL2, SSL3 and TLS1.0 protocols : Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys : Maximum Supported Resolution: 1600x1200 pixels at 85Hz : Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more : Connectors: 1 x RJ45 10/100 Ethernet 1 x RJ11 Serial 2 x HD-DB15 VGA Video (In/Out) 2 x PS/2 Keyboard/Mouse (In/Out) USB (In) : Safety Approvals: FCC & CE : Warranty: 2-year Package Contents: : SV831D : SV1110IPEXT : 2 PS23N1THIN_2 : 2 PS23N1THIN_4 : 3 PS23N1THIN_6 : 3 PS23N1THIN_10
KVM IP Control	Yes
Maximum Analog Resolutions	1280 x 1024 @ 60 Hz
Maximum Number of Users	1

Accessory Products	2636CABINET 2630CABINET 7230CABINET 7236CABINET CAB1019WALL CAB4236BK RPORT PCM815SHNA
Related Products	SV841HDI SV831SUN SV831 SV831MEDIA

Power Consumption (In Watts)	0.6W
Power Source	AC Adapter Included

Audio	No
Cascadable	Yes
Number of KVM Ports	8
Number of Monitors Supported	1
Rack-Mountable	Yes
Supported Platforms	PS/2
U Height	1U
